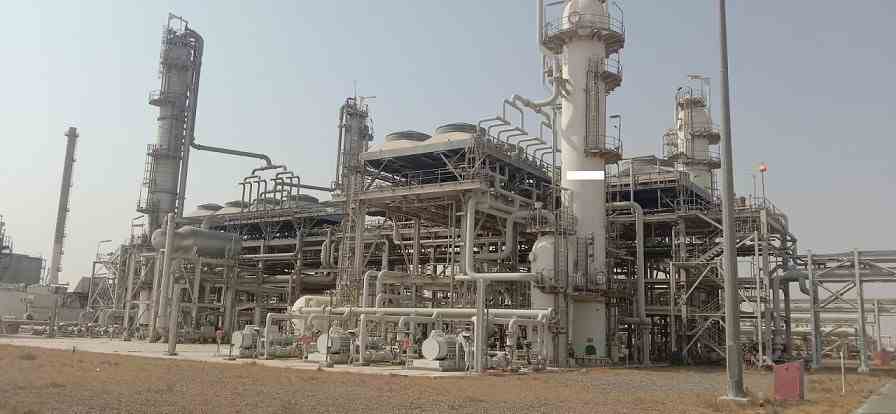

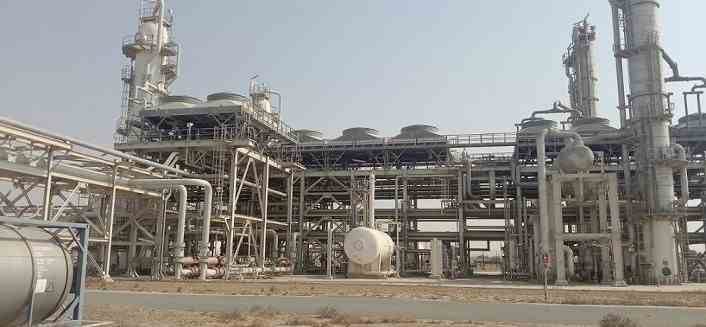

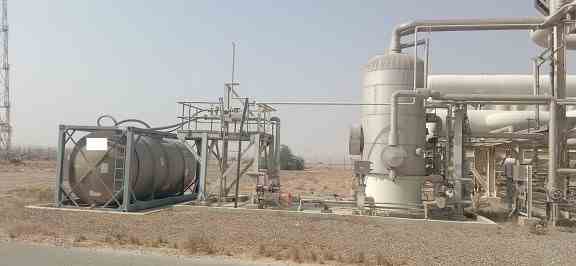

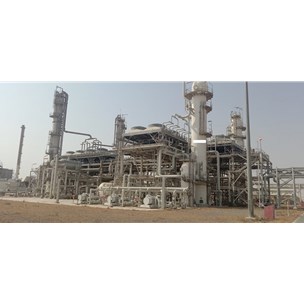

Amine Plant - 300 MMSCFD X 2
Other Views - click image for larger view
Amine Plant - 300 MMSCFD X 2 Amine Plant - 300 MMSCFD X 2

Amine Plant - 300 MMSCFD X 2

Stock # 563
Capacity 600 MMSCFD
Products Natural Gas

Overview

600 MMSCFD (300 MMSCFD per train X 2 trains) Amine plant was designed to treat sour gas containing 3.16 mol% CO2 and 1.55 mol% H2S. Amine circulation rate is 1175 GPM. Sweet gas generated from the plant contains 1.12% CO2 and 4 ppm H2S. Amine contactor operated at 81.7 barg pressure, 63 degree Celsius. The plant has turn-down ratio of 20% of its designed capacity. The plant was built for a service life of 25 years. After pre-commissioning, it has never been operated. No hydrocarbons entered into the plant. Currently the plant is being maintained in preservation mode in a dormant state and ready to start.

Major Equipment

Condensate Vaporizer
Amine Contactor
Amine Contactor Overhead Scrubber
Amine Regenerator
Amine Regenerator Reflux Accumulator
Amine Regenerator overhead Condenser
Rich / Lean Amine Exchanger
Share
SPECIFICATIONS RESOURCES
Year Built
2005
Year Shut
Capacity
600 MMSCFD
