General Electric Steam Turbine Generator - 15700 KW
Other Views - click image for larger view
General Electric Steam Turbine Generator - 15700 KW General Electric Steam Turbine Generator - 15700 KW

General Electric Steam Turbine Generator - 15700 KW

Stock # 20991
Capacity 15700 KW
Products Electric, Steam

Overview

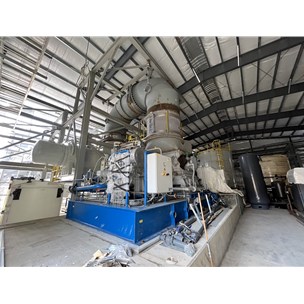

Unused 15700 kwh steam turbine generator set. Manufactured by GE. The set consists of (1) Dresser-Rand Condensing steam turbine. Model #RD9MQQ, 4500 RPM. 652 abs @ 430F inlet steam. 0.08 abs exhaust steam. 52,661 kg/hr inlet steam flow. Serial #21107 with (1) 15,537 kva Indar air cooled generator. Model #LSA-900-X/4, 13800V. Serial #12272. 13000 KW RENK gear box, model TL-500. 2514 ratio, 4226 speed input, 1800 speed output.

Major Equipment

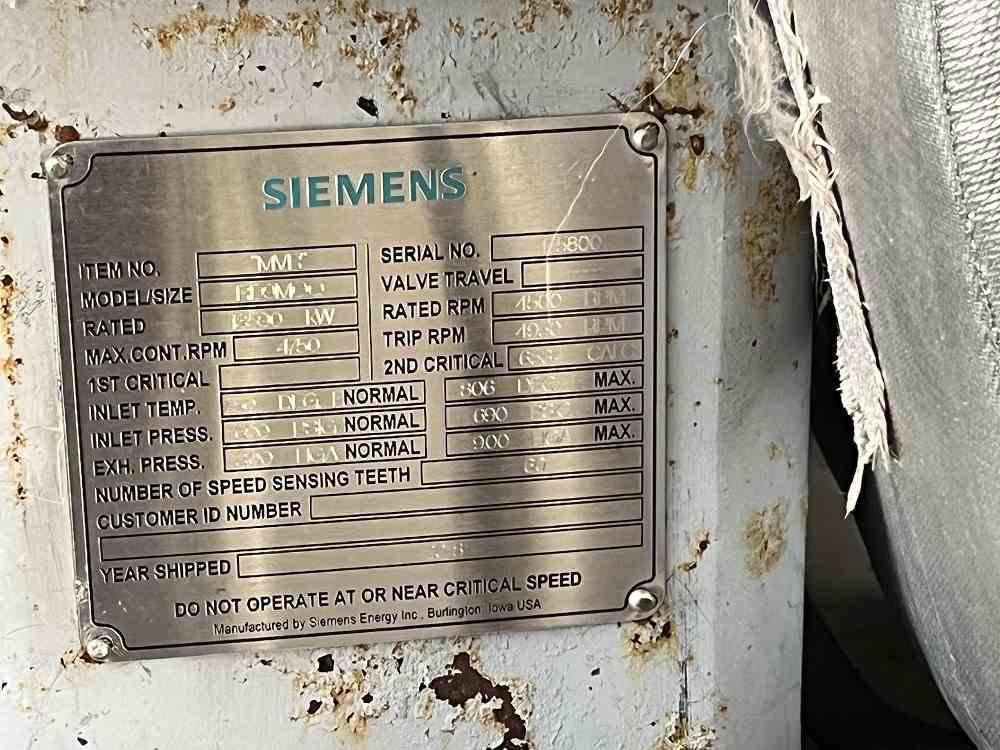

- Dresser-Rand (Siemens) Steam Turbine - Model #RD9MQQ
- Indar Synchronous Generator - Model #LSA-900-X/4
- GEA Surface Condenser - 10441 sq ft
- RENK Gearbox - Model #TL-500
Share
SPECIFICATIONS RESOURCES
Year Built
Year Shut
Capacity
15700 KW
Subcategory
