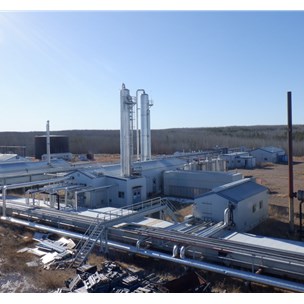

Amine Plant - 50 MMSCFD

Stock # 555

Capacity 50 MMSCFD

Products Natural Gas

Add to Quote Sell Similar Equipment

Overview

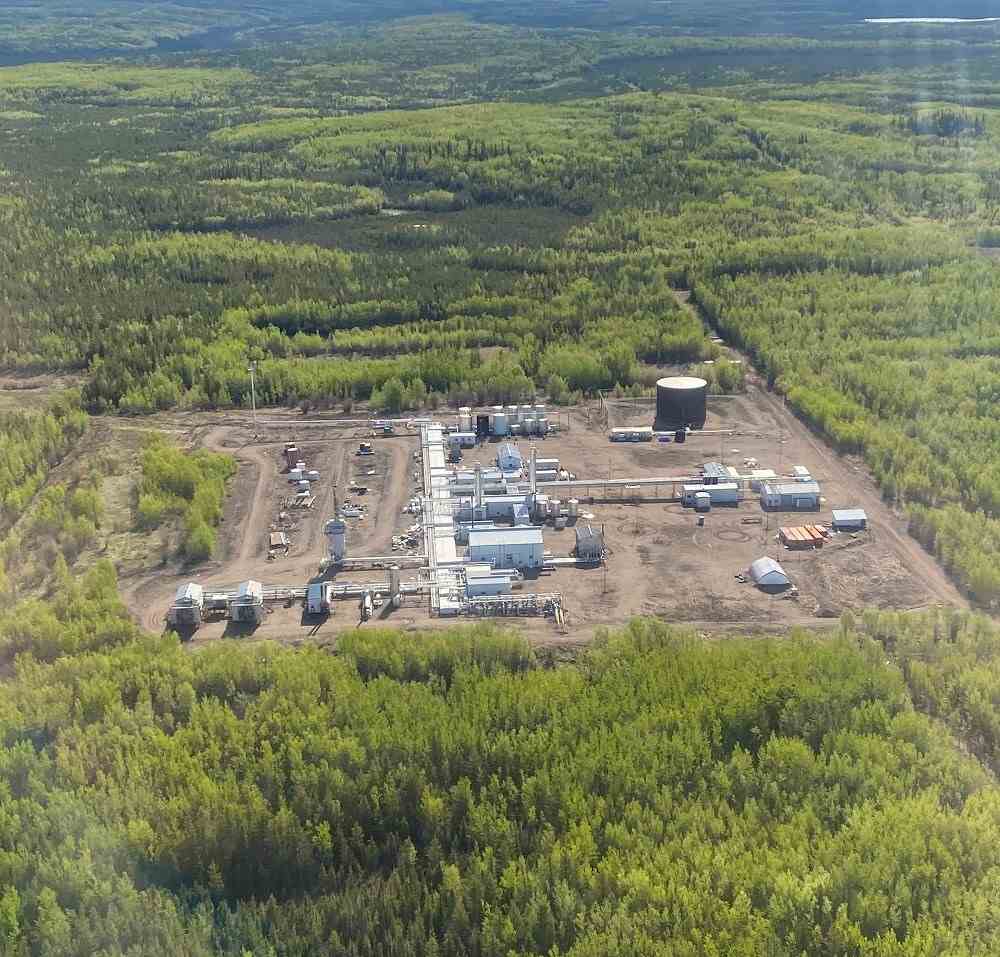

Used 50 MMSCFD Amine Plant built in 1997. Designed by Tridyne Projects Corporation. 34 psi inlet pressure, 942 psi discharge pressure. 125 bbl a day Pentane+ capacity with 0.35 MMSCFD acid gas injection. 95.9% sulphur recovery efficiency, with >= 1.0 t/d sulphur inlet. Amine tower manufactured by Cessco. 56’ L X 60” ID dimensions, 675 psi max pressure. Shut down in 2014.

Major Equipment

HP and LP Inlet Separators, V-801 and V-101
Coalescing Filter/Separator V-110
Indirect Line Heater, H-799
Condensate Pump, P-119
Crash Dump Separator, V-119
Treater Skid
Gas/Gas Exchanger, E-100
Inlet/Sales Compressor Package, PKG-0254
Control Panels, CP-669-1 and CP-670-1
Suction Scrubbers, V-699-1 and V-670-1
Gas Compressors, C-669-1 and C-670-1
Inlet Filter Separator, F-2307
Amine Contactor, T-2301
Treated Gas Drum, V-2301
Amine Charge Pumps, P-2302A/B
