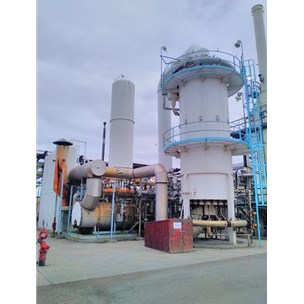

HYDROGEN PLANT - 2,350 NM3/HR (83,000 SCFH)
Other Views - click image for larger view
HYDROGEN PLANT - 2,350 NM3/HR (83,000 SCFH) HYDROGEN PLANT - 2,350 NM3/HR (83,000 SCFH) HYDROGEN PLANT - 2,350 NM3/HR (83,000 SCFH) HYDROGEN PLANT - 2,350 NM3/HR (83,000 SCFH)
Stock # 529
Capacity 2,350 NM3/HR (83,000 SCFH)
Products Hydrogen (99.9%)
Sold

Overview

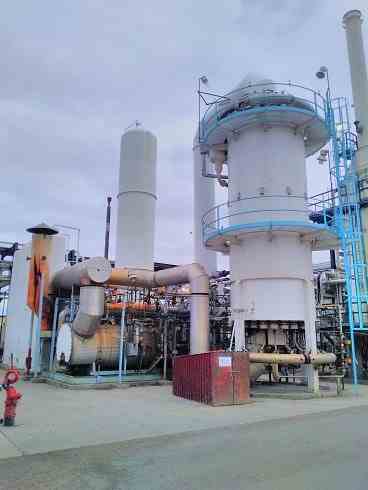

Used 2,350 NM3/HR (83,000 SCFH) Hydrogen Plant designed by Hydro-Chem (a Linde company) for sale. The plant produced hydrogen product of 99.9% purity at 250 PSIG at 150 degree F for refinery hydrotreating process. The plant was built in 1993, shut down in 2012. Syngas reformer 11' Dia X 27'-7" long, with 20 reforming tubes. The plant has been well maintained and preserved since the shutdown. Full technical documents available.

Major Equipment

Feed gas heater

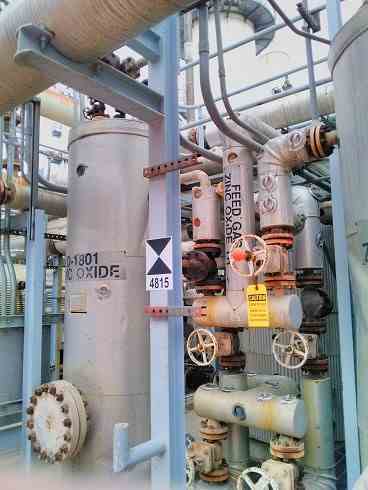

Zinc oxide vessels
Reformer
PSA purification vessels

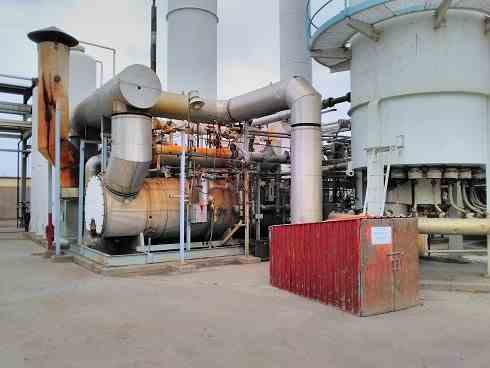

Waste heat boiler
Hydrodesulfurizer
Process gas cooler

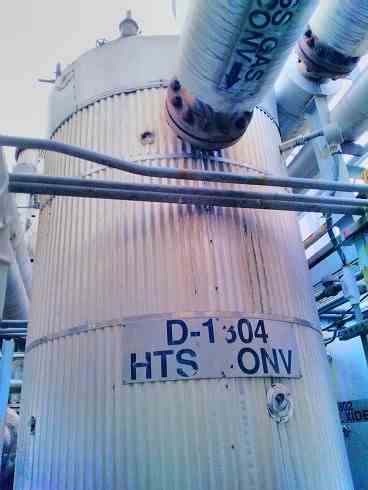

Shift converter
Deaerator
Share
SPECIFICATIONS RESOURCES
Year Built
1993
Year Shut
2012
Capacity
2,350 NM3/HR (83,000 SCFH)
