Hydrogen PSA Unit - 7,080 Nm3/hr (250,000 SCFH)

Stock # 520
Capacity 7,080 Nm3/hr (250,000 SCFH)
Products Hydrogen 99%
Sold

Overview

UOP Polybed pressure swing adsorption (PSA) unit designed to produce 7,080 Nm3/hr (250,000 SCFH) hydrogen of 99% purity. This skid-mounted and modular unit was built in 2006.

Major Equipment

Hydrogen Compressors (2)

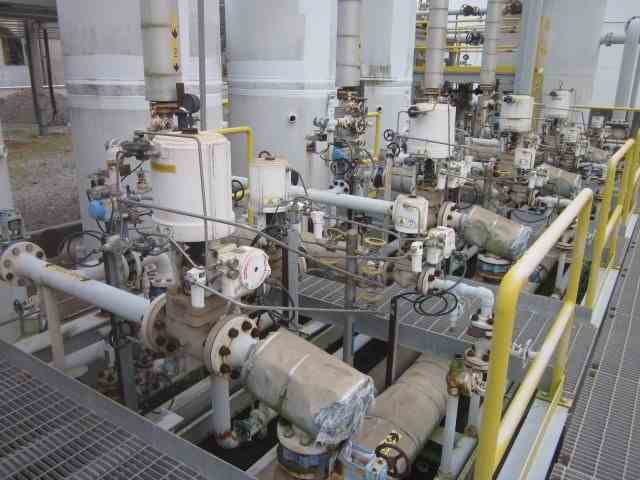

Adsorbers (4)
PSA Feed KO Drum
PSA Condensate KO Drum
Waste Gas Drum (Surge Tank)

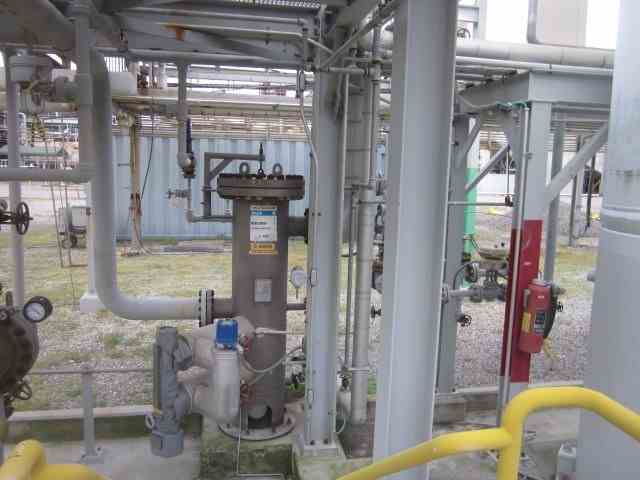

PSA Product Gas Filter
Instrument Air Filters (2)
Silencer
PSA Feed Cooler
Hydrogen Product Cooler
Share
SPECIFICATIONS RESOURCES
Year Built
2006
Year Shut
2015
Capacity
7,080 Nm3/hr (250,000 SCFH)
Subcategory
Hydrogen (HyCo) & Syngas Plants
