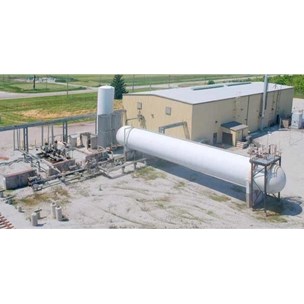

Carbon Dioxide Liquefaction Plant - 300 TPD
Other Views - click image for larger view
Carbon Dioxide Liquefaction Plant - 300 TPD Carbon Dioxide Liquefaction Plant - 300 TPD Carbon Dioxide Liquefaction Plant - 300 TPD Carbon Dioxide Liquefaction Plant - 300 TPD Carbon Dioxide Liquefaction Plant - 300 TPD Carbon Dioxide Liquefaction Plant - 300 TPD Carbon Dioxide Liquefaction Plant - 300 TPD
Stock # 500
Capacity 300 TPD
Products Liquid Carbon Dioxide (food grade CO2, 99.95%)
Sold

Overview

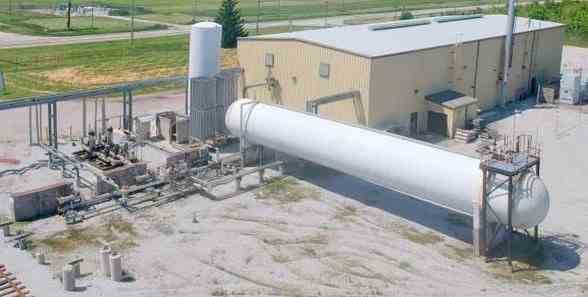

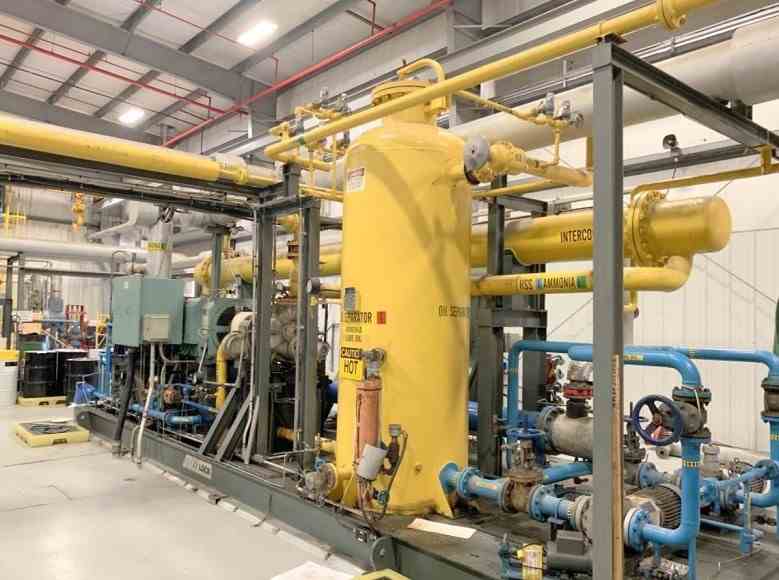

Used 300 TPD Carbon Dioxide Liquefaction Plant for sale immediately available. The plant is Toromont design with Catox to recover the CO2 discharged from ammonia plant. The crude CO 2 feed stock enters the system at a pressure of 250 kPaA and ambient temperature with a 97 mole percent CO 2 content. The crude CO2 gas is processed to yield a liquid product at 1530 - 1700 kPaG pressure and -23° to -28° C temperature, with a CO2 purity of 99.95 mole percent.The plant has energy consumption of 25 MW/day and water consumption of 9160 m3/day. The plant is skid-mounted type for easy transportation and installation. It includes process skids A and B, CO2 compression skid, ammonia compression skid, and utility equipment. The plant was built in 1986. All the equipment is maintained well. Complete technical documents available. The plant was put under N2 purge after it shut down.

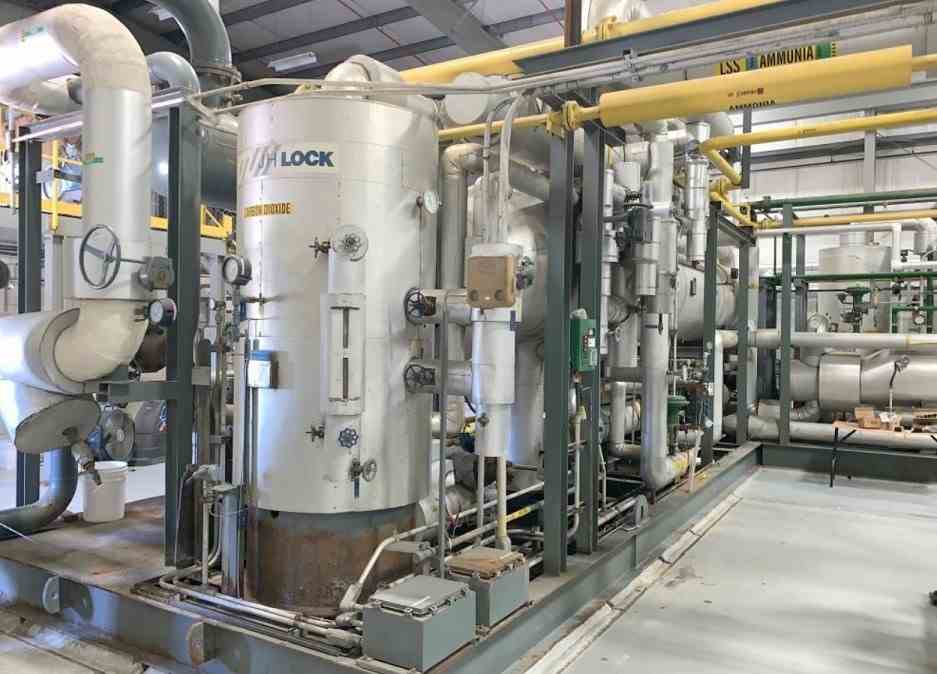

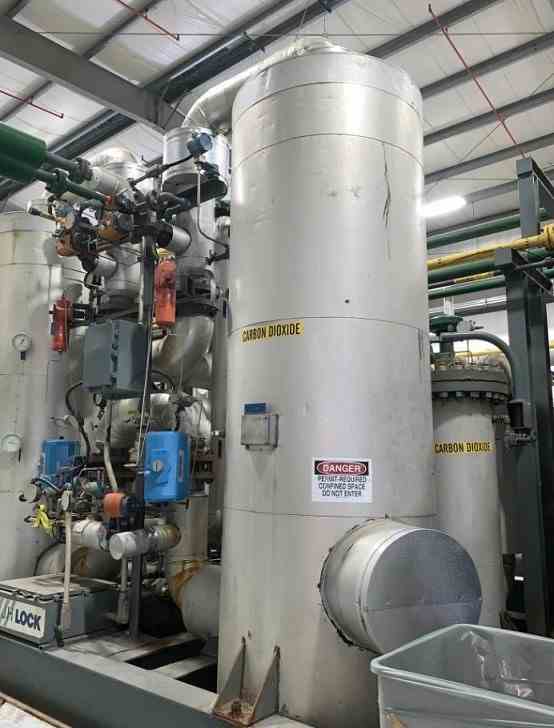

Major Equipment

Inlet water separator
CO2 Blowers
CO2 Aftercooler

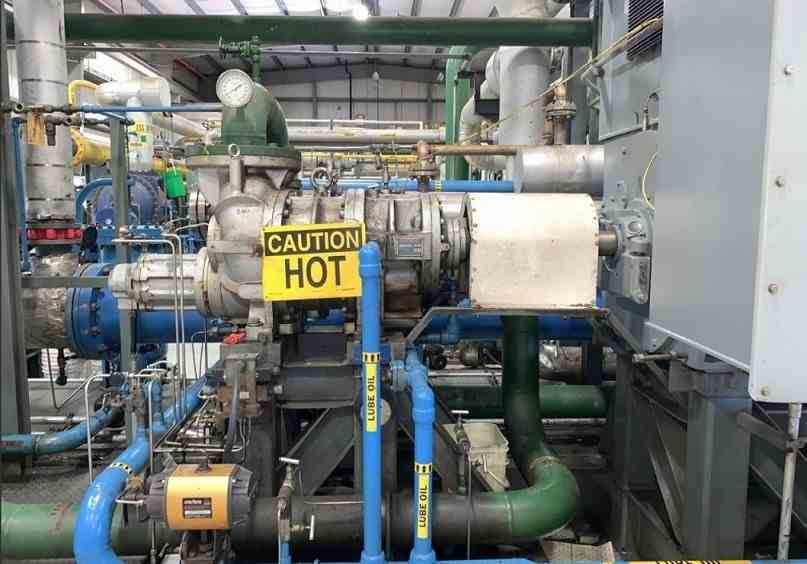

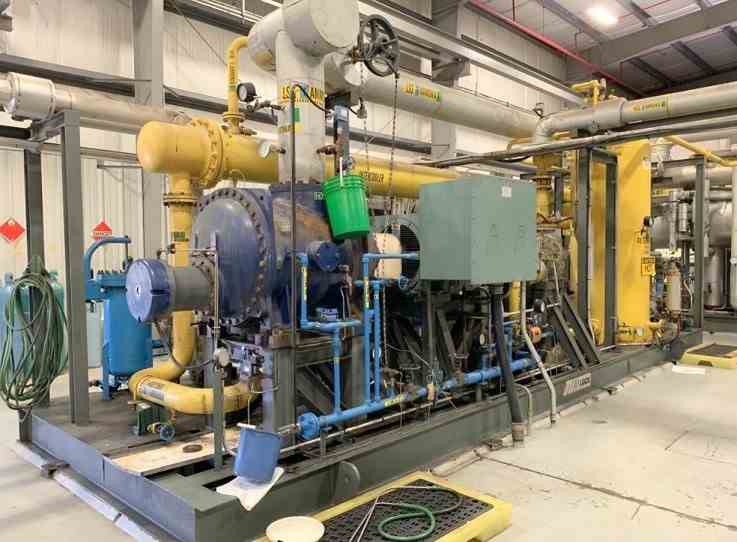

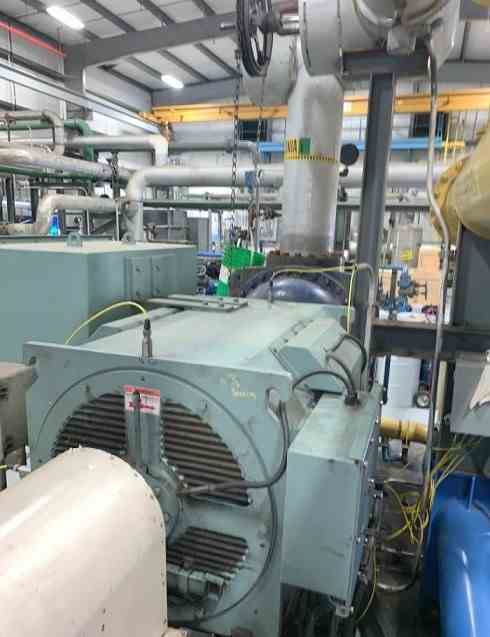

1st and 2nd stage CO2 compressors

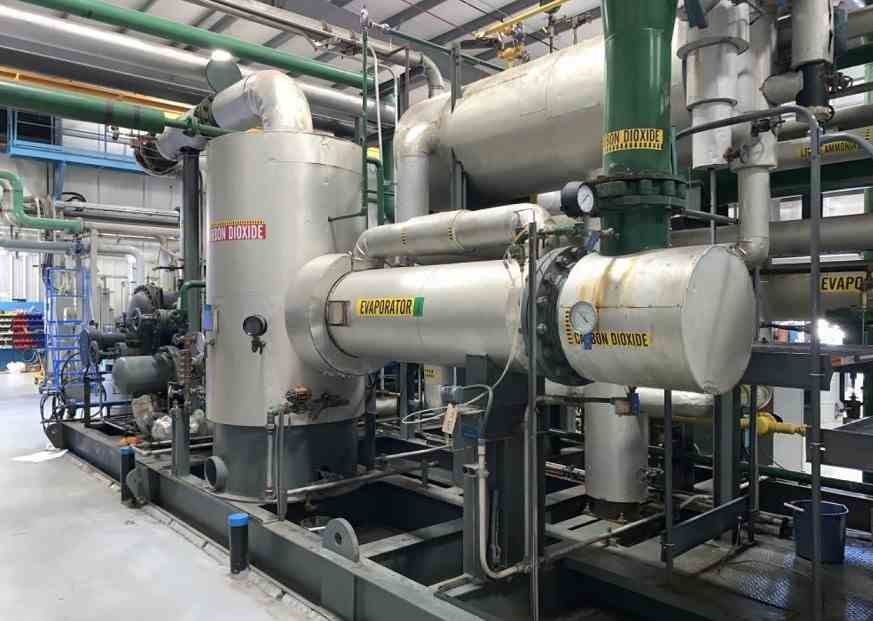

CO2 chiller
CO2 high pressure separator
CO2 driers
CO2 gas heater
Regeneration gas cooler
Regeneration gas cooler separator
CO2 reboiler
CO2 vent column
CO2 condenser
CO2 reflux system
Reactor gas / gas exchanger
Reactor aftercooler
1st & 2nd stage NH3 compressors
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1986
Year Shut
Capacity
300 TPD
