Hydrogen Plant - 30 Nm3/hr X 2 (1,060 SCFH X 2)
Other Views - click image for larger view
Hydrogen Plant - 30 Nm3/hr X 2 (1,060 SCFH X 2) Hydrogen Plant - 30 Nm3/hr X 2 (1,060 SCFH X 2) Hydrogen Plant - 30 Nm3/hr X 2 (1,060 SCFH X 2) Hydrogen Plant - 30 Nm3/hr X 2 (1,060 SCFH X 2) Hydrogen Plant - 30 Nm3/hr X 2 (1,060 SCFH X 2)
Stock # 498
Capacity 30 Nm3/hr X 2 (1,060 SCFH X 2)
Products Hydrogen - high purity 99.999%
Sold

Overview

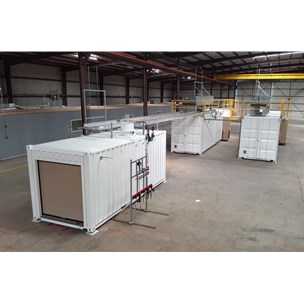

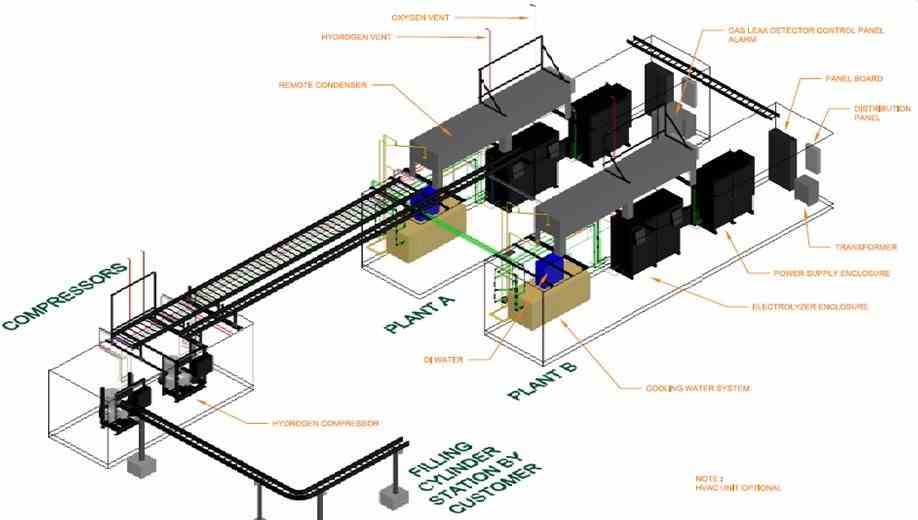

Unused 60 Nm3/hr (30 Nm3/hr X 2 or 1,060 SCFH X 2) hydrogen generating and compression plant for sale. The output hydrogen has high purity of 99.999% and delivery pressure of 30 bar (435 PSIG). The plant consists of: Two (2) containerized independent units of hydrogen production through water electrolysis. Each unit has capacity of 30 Nm3/hour of hydrogen, integrated in specially designed weatherproof containers. Two (2) containerized compression stations of 40 Nm3 / hour each. Two (2) filling stations with a capacity of five (5) cylinders each hour (1 cylinder = 6 m3). Full package of necessary spare parts and consumables, recommended by the manufacturer, for a period of two years. Manuals and plans for the installation. The fuel cell stacks are not installed at this time. Fresh new fuel cells will be ordered and purchased to be delivered to the customer. The hydrogen plant only needs a small footprint of 24 ft x 100 ft, easy to install, handle and transport to the places where it is required. It does not require a hazardous classified area to operate. Technical services, such as installation and commissioning, are available.

Major Equipment

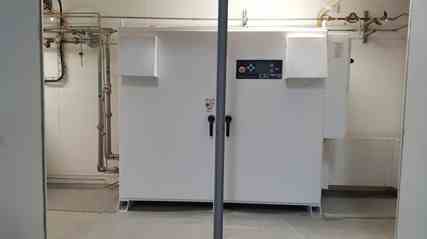

Fuel cell hydrogen generator

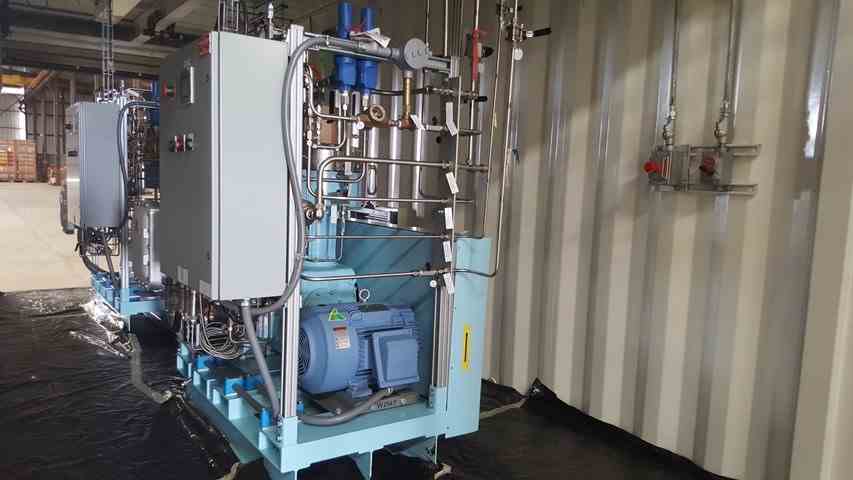

Diaphragm hydrogen compressor
Gas leak detector system
DI water system

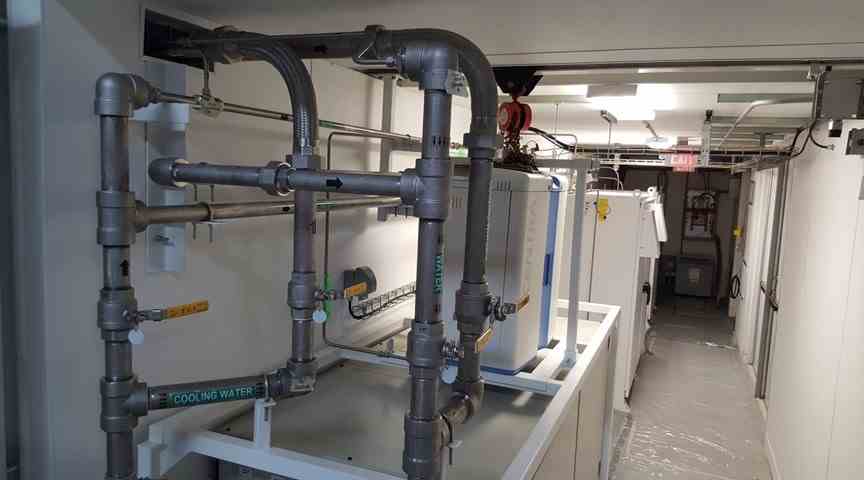

Auxiliary water cooling system

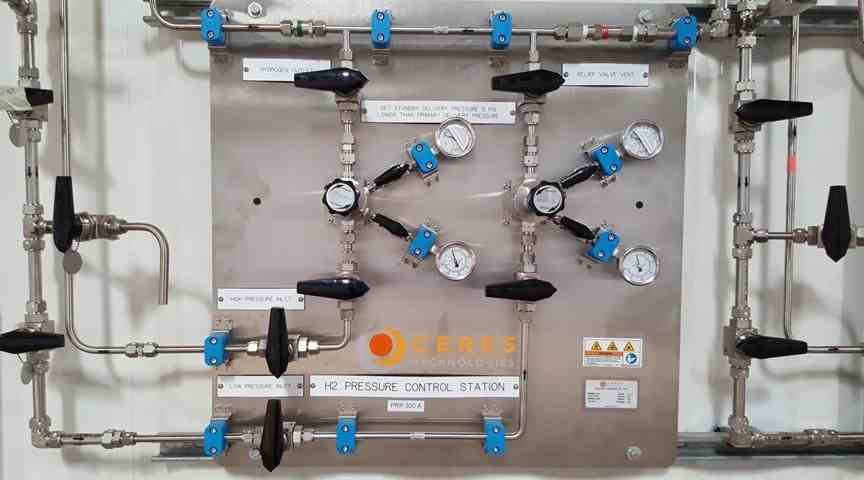

Cylinder filling manifold
Share
SPECIFICATIONS RESOURCES
Year Built
2018
Year Shut
Capacity
30 Nm3/hr X 2 (1,060 SCFH X 2)
