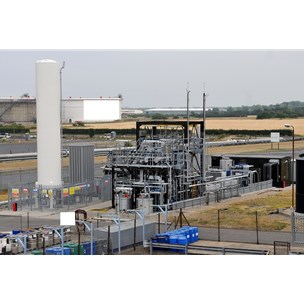

Pilot Gas-to-Liquids Plant - 3 BPD
Other Views - click image for larger view
Pilot Gas-to-Liquids Plant - 3 BPD Pilot Gas-to-Liquids Plant - 3 BPD Pilot Gas-to-Liquids Plant - 3 BPD Pilot Gas-to-Liquids Plant - 3 BPD Pilot Gas-to-Liquids Plant - 3 BPD Pilot Gas-to-Liquids Plant - 3 BPD
Stock # 495
Capacity 3 BPD
Products Hydrocarbon Liquids (Synthetic Oil)
Sold

Overview

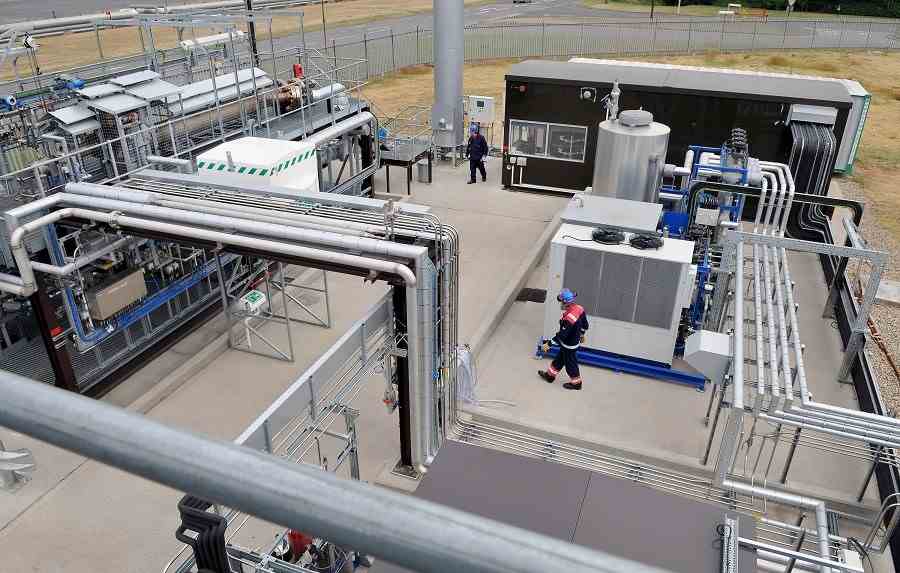

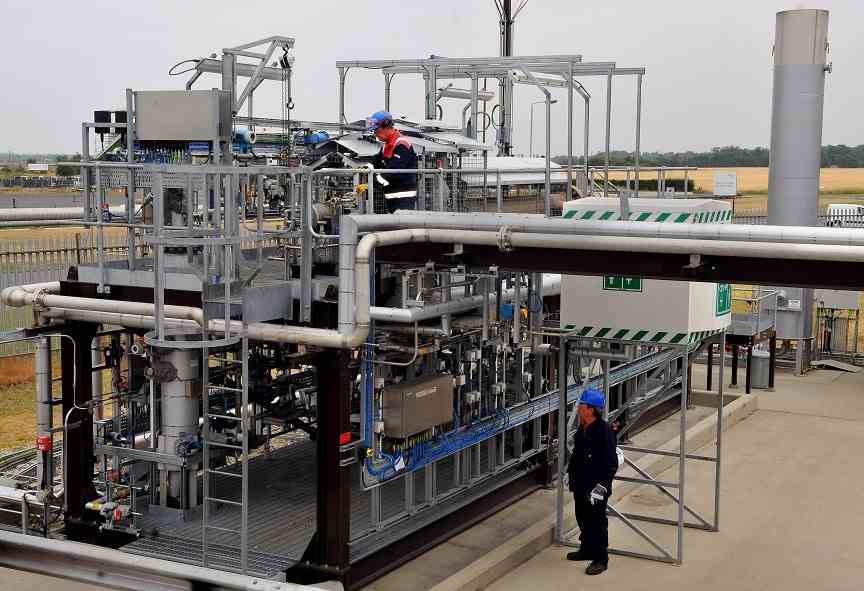

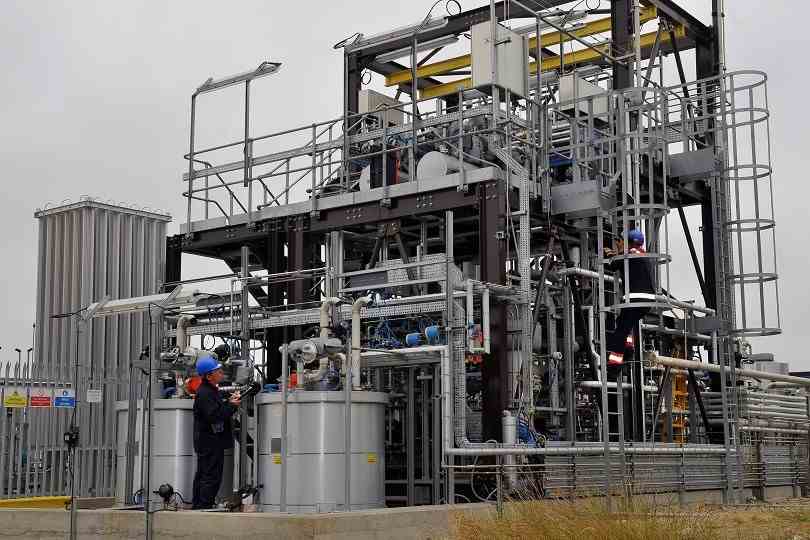

Used 3 BPD Pilot Gas-to-Liquids (GTL) plant for sale immediately available. The plant was built in 2013 and had the first liquid production in 2014. It includes one (1) syngas reactor and four (4) Fischer Tropsch (FT) reactors. The syngas reactor has design pressure up to 38 bar and design temperature up to 1400 degree C methane flow rate up to 800 L/minute. Rhodium catalyst in Syngas reactor. Conversion of methane to Syngas 65% (commercial goal 80% with 80% selectivity to Hydrogen at a H2:CO ratio of 2:1). Cobalt catalyst in FT reactor. The equipment is skid-mounted for easy relocation and set-up.

Major Equipment

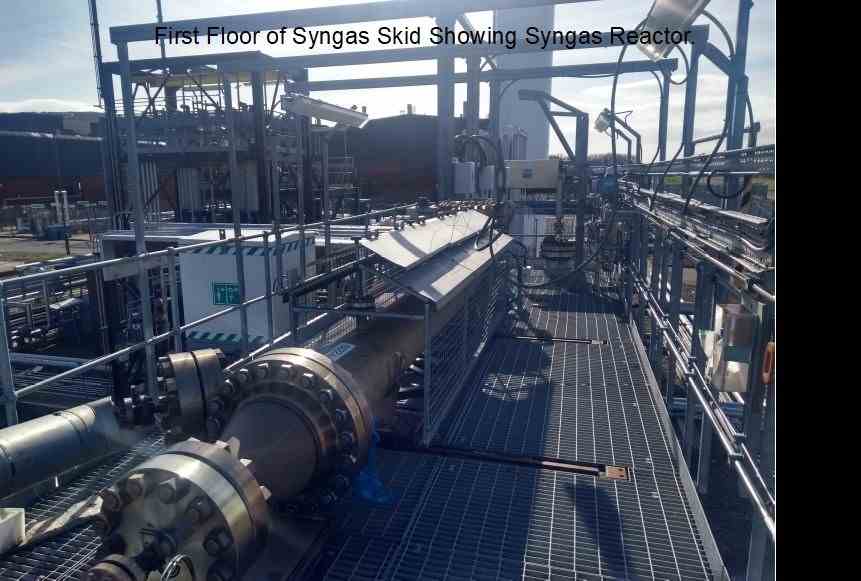

Syngas reactor
Methane preheater
Syngas cooler
Syngas knock-out vessel

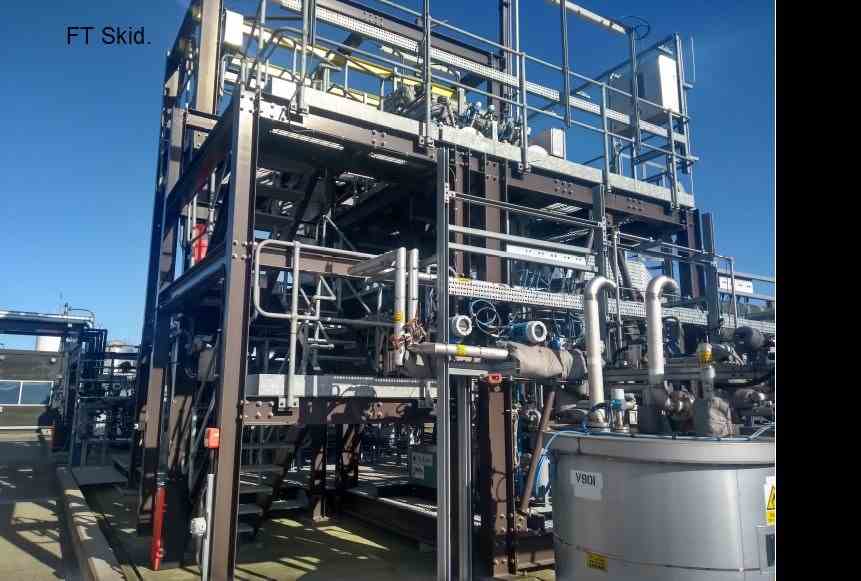

Fischer Tropsch reactors
FT reactor recycle compressors
FT vapor electric heaters
Light and heavy syncrude separators
Catalyst regeneration collection drum
Thermal oxidizer
Pressure swing absorption unit
Share
SPECIFICATIONS RESOURCES
Year Built
2013
Year Shut
2014
Capacity
3 BPD
