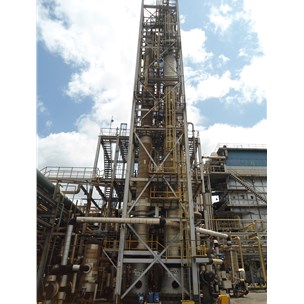

Methanol Plant - 260 TPD
Other Views - click image for larger view

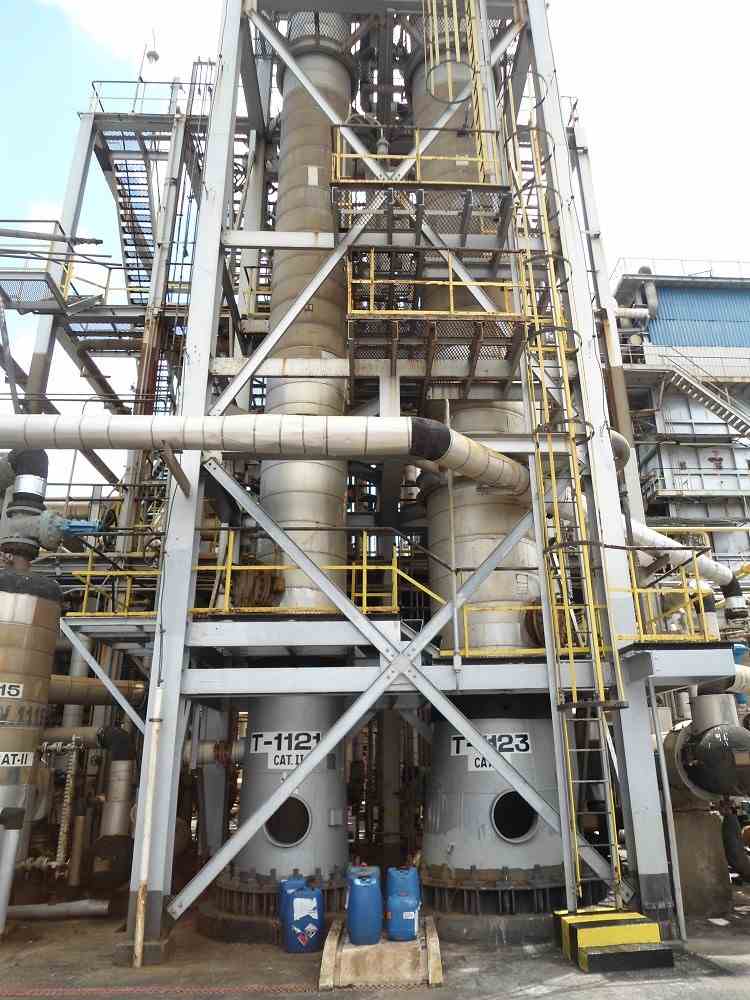

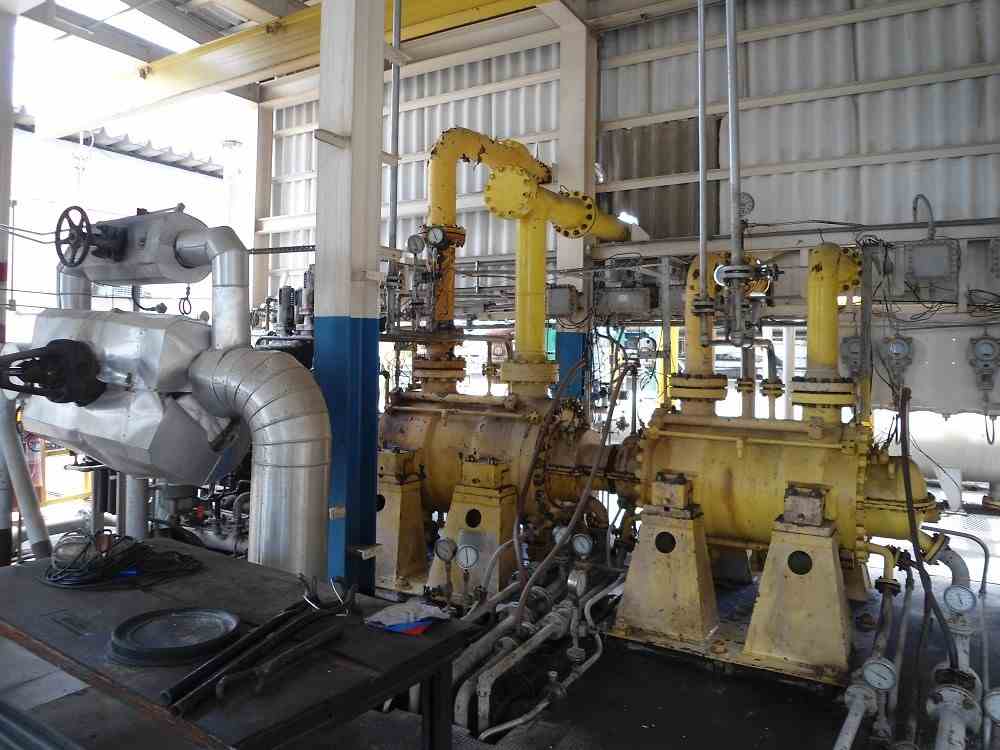

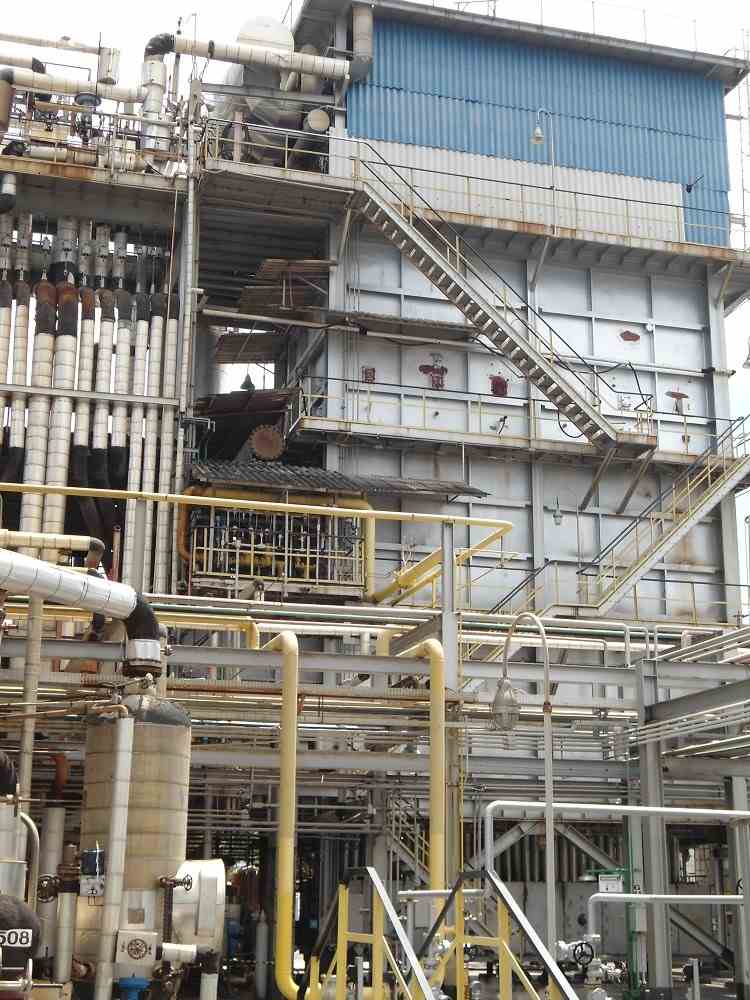

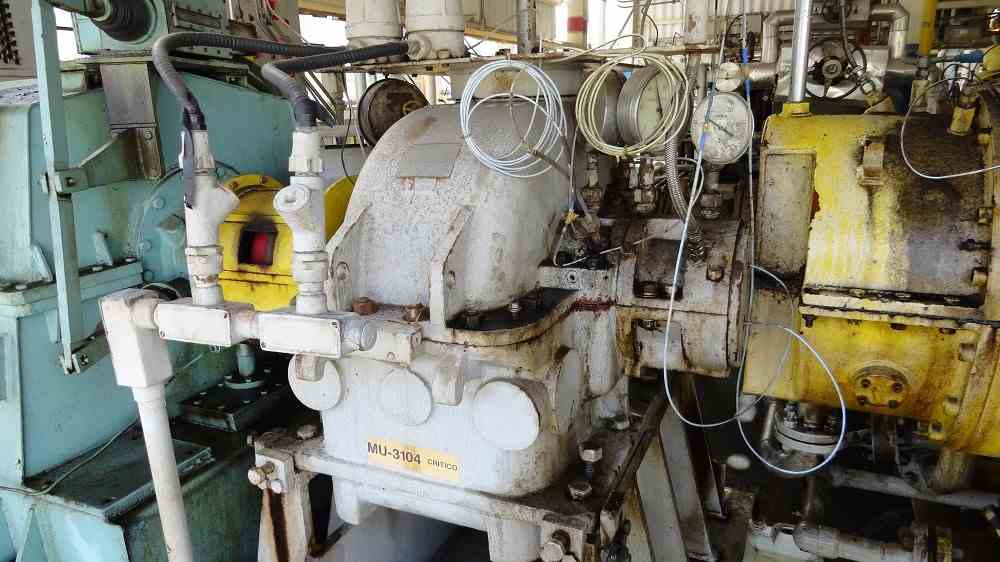

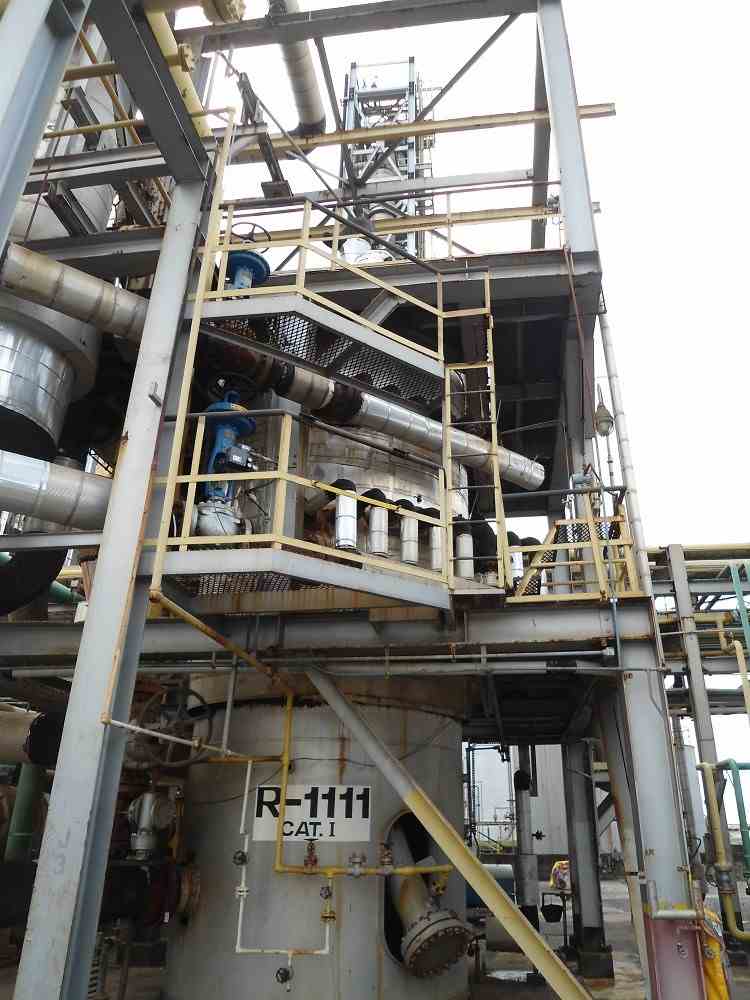

Methanol Plant - 260 TPD Methanol Plant - 260 TPD Methanol Plant - 260 TPD Methanol Plant - 260 TPD Methanol Plant - 260 TPD

Methanol Plant - 260 TPD

Stock # 476
Capacity 260 TPD
Products Methanol

Overview

Used 260 TPD Methanol Plant designed for two basic modes, 1) Low Carbon Concept, 2) Carbon Dioxide Addition. The Low Carbon Concept process route is based upon the production of methanol using only natural gas as feedstock. Synthesis gas obtained from natural gas by the Low Carbon Concept process route contains a large excess of hydrogen over carbon compared to the relative amounts required for stoichiometric methanol synthesis. If the excess hydrogen is combined with more carbon, more methanol is produced. This plant is designed to achieve such an increase in production by Carbon Dioxide Addition which yields 20 percent more methanol, for a similar amount of natural gas feedstock, than is produced by Low Carbon Concept operation.

Major Equipment

Feedstock Desulphurisation
Steam Gas Reforming
Heat Recovery
Synthesis Gas Compression
Methanol Synthesis Loop
Share
SPECIFICATIONS RESOURCES
Year Built
1976
Year Shut
2016
Capacity
260 TPD
Subcategory
