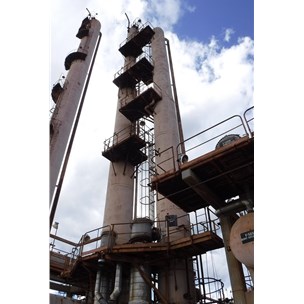

Alkylation Unit - 7,500 BPD

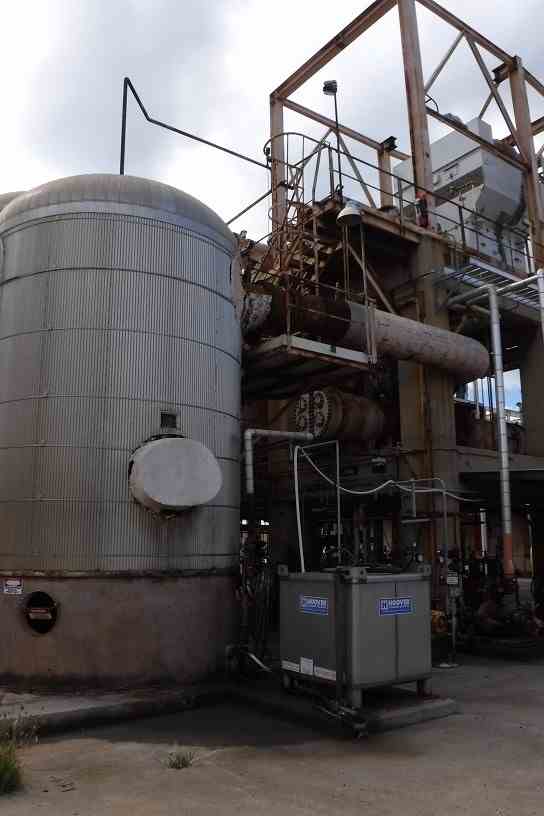

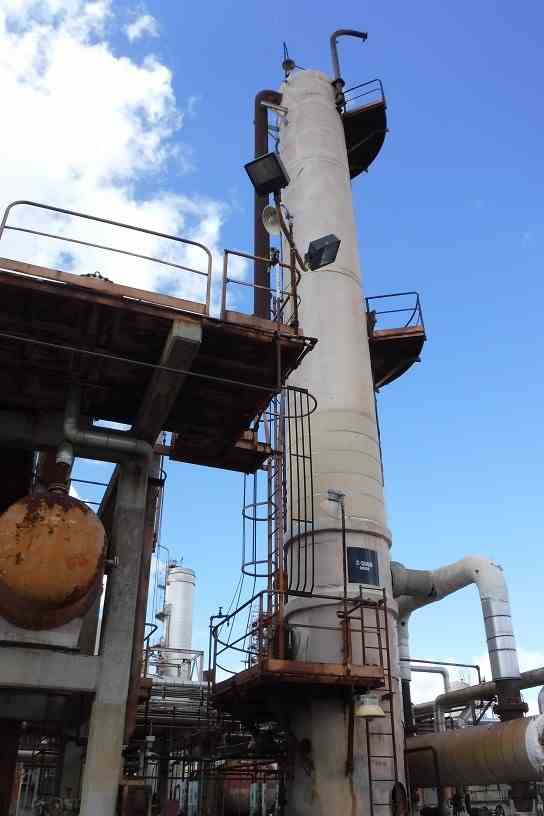

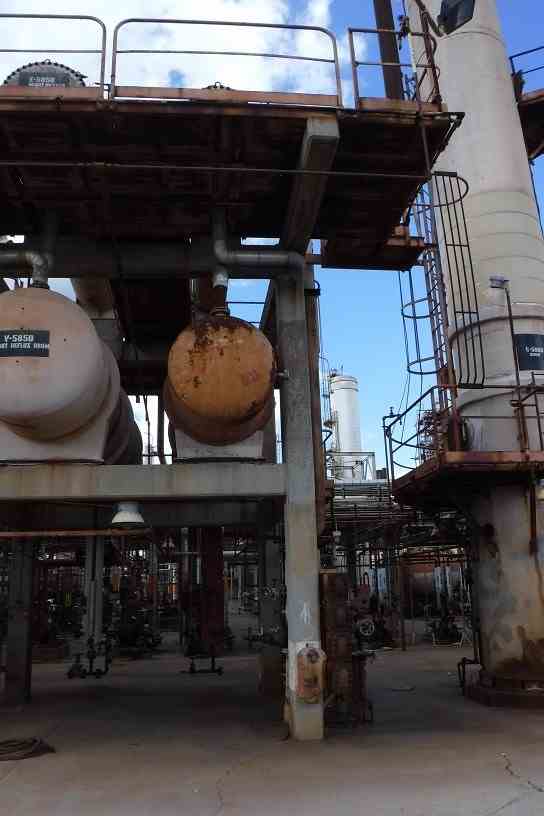

Other Views - click image for larger view
Alkylation Unit - 7,500 BPD Alkylation Unit - 7,500 BPD Alkylation Unit - 7,500 BPD Alkylation Unit - 7,500 BPD Alkylation Unit - 7,500 BPD

Alkylation Unit - 7,500 BPD

Stock # 455
Capacity 7,500 BPD
Products alkylates

Overview

Used 7,500 BPD Alkylation Unit built in 1961. Originally commissioned in 1961, had upgrades and modification in 2013, currently installed, maintained in good condition. Process technology from Stratco. Use sulfuric acid as catalyst. Feedstocks are the streams from fluid catalytic cracking unit (FCCU) and isomerization unit. Product is high octane component for gasoline blend.

Major Equipment

Depropanizer Column
Deisobutanizer
Debutanizer
Rerun Column
Contactors
Reactor feed/effluent exchanger
Reactor effluent/isobutane exchanger
Depropanizer Reboiler
Deisobutanizer overhead condenser
Debutanizer Reboiler
Share
SPECIFICATIONS RESOURCES
Year Built
1961
Year Shut
2018
Capacity
7,500 BPD
Subcategory

For additional information, visit the Resource Center

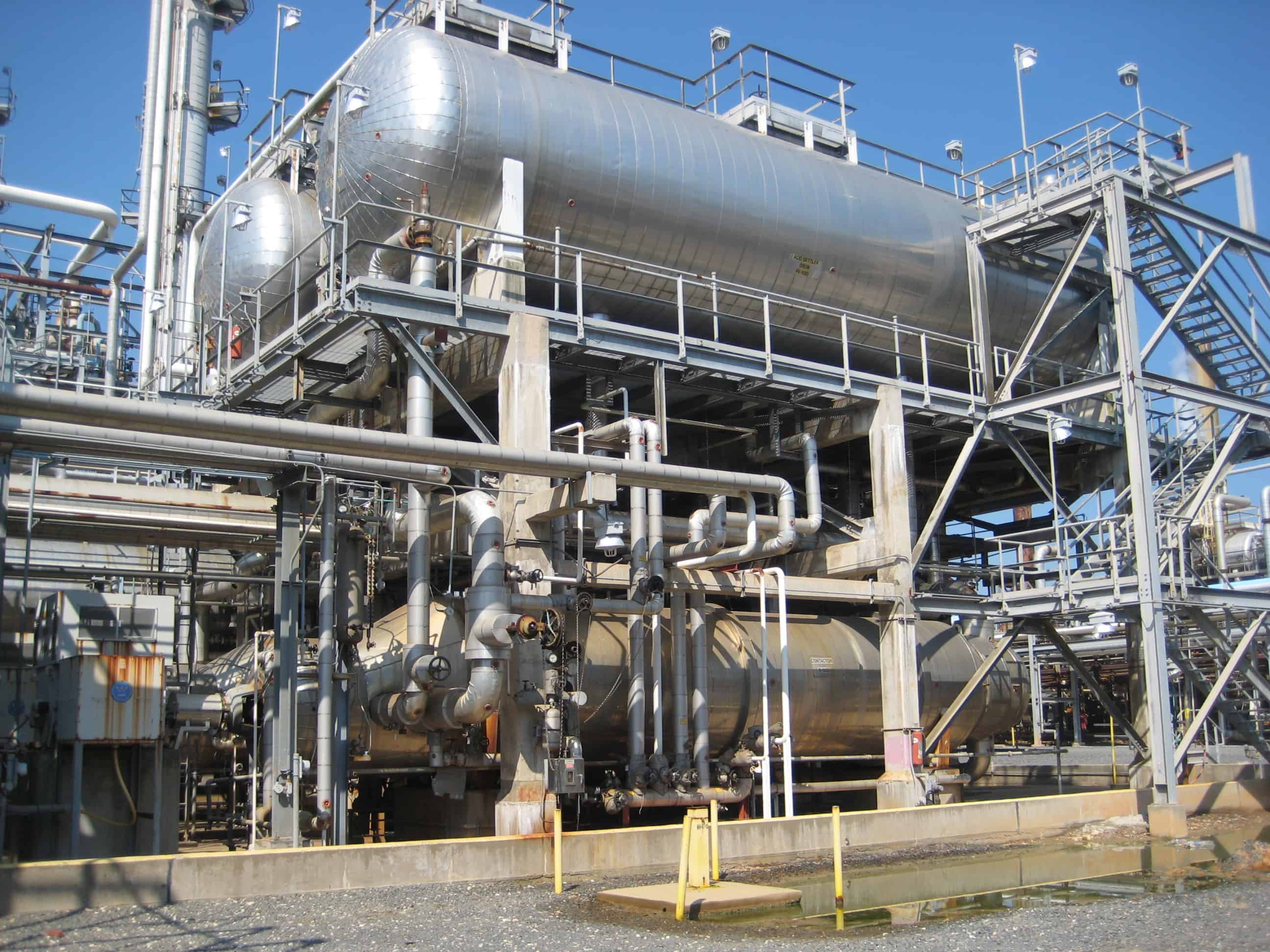

Similar Plants
