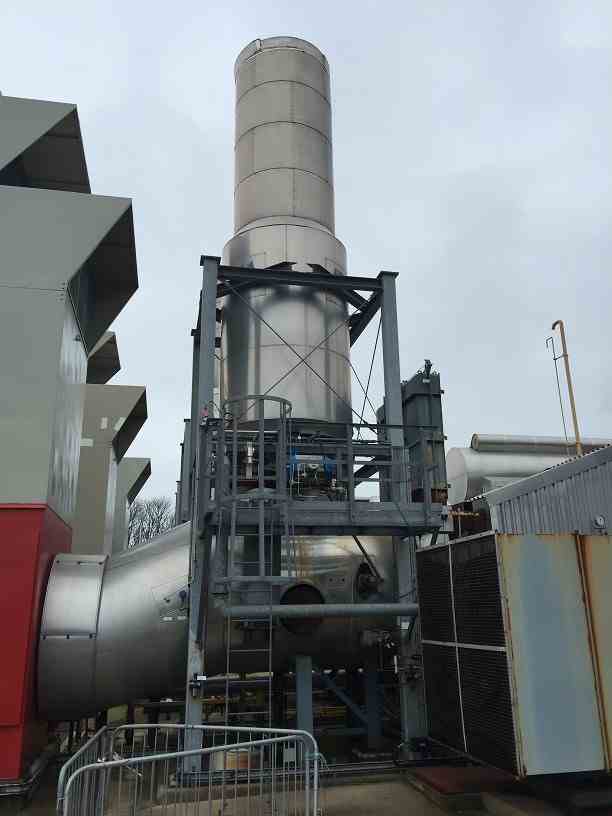

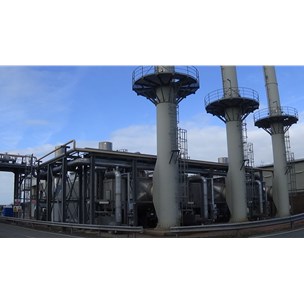

Cogeneration Power Plant with SOLAR TAURUS 70 Generator - 3 X 7.5 MW

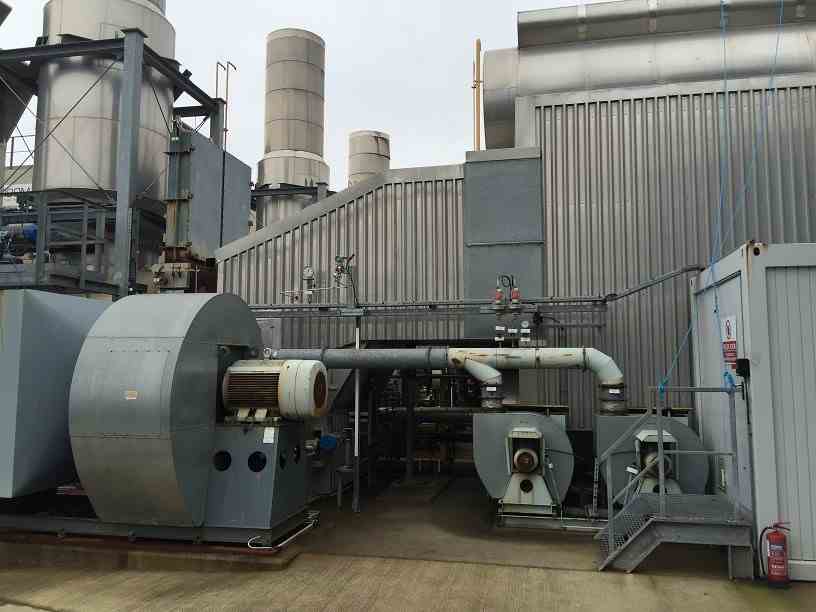

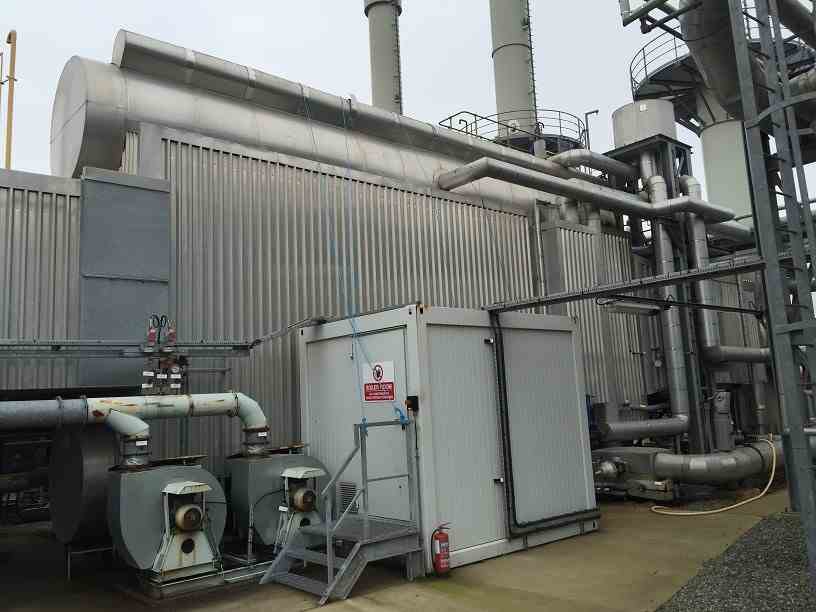

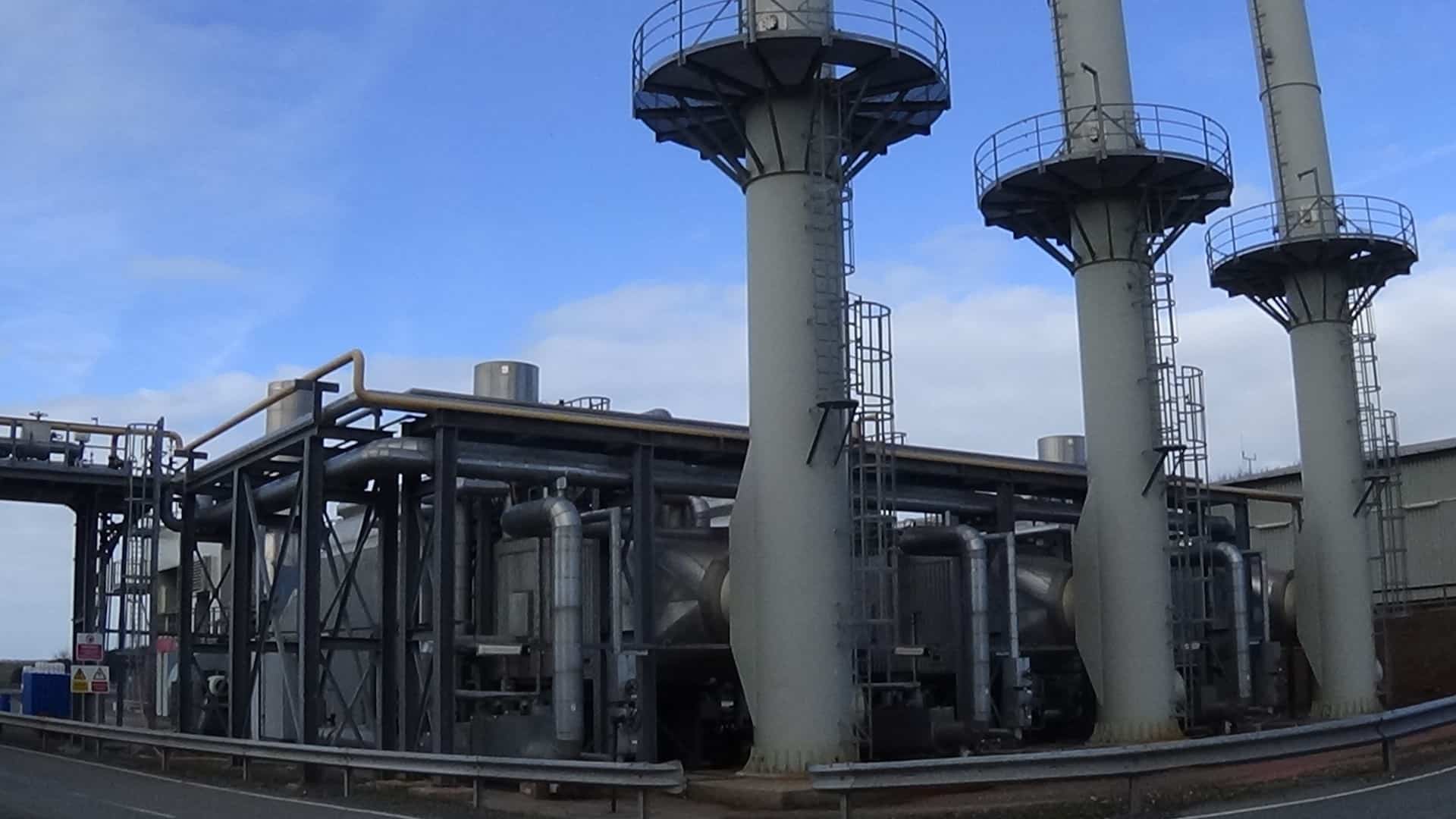

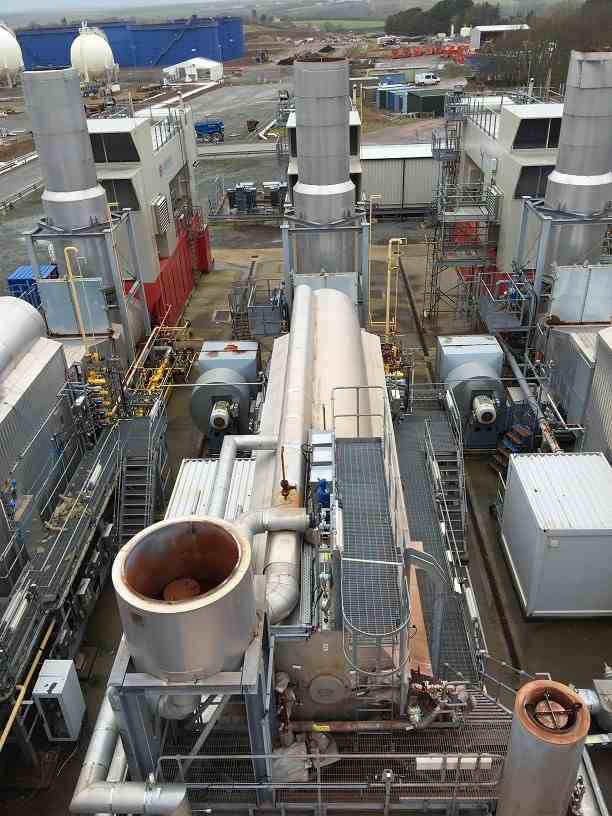

Other Views - click image for larger view
Cogeneration Power Plant with SOLAR TAURUS 70 Generator - 3 X 7.5 MW Cogeneration Power Plant with SOLAR TAURUS 70 Generator - 3 X 7.5 MW Cogeneration Power Plant with SOLAR TAURUS 70 Generator - 3 X 7.5 MW Cogeneration Power Plant with SOLAR TAURUS 70 Generator - 3 X 7.5 MW

Cogeneration Power Plant with SOLAR TAURUS 70 Generator - 3 X 7.5 MW

Stock # 1020
Capacity 22.5 MW (3 x 7.5 MW)
Products Electricity, Steam
Sold

Overview

This power plant includes three identical cogenerating system. Each one can produce 7.5 MW power and 45 tons/hr steam. The SOLAR TAURUS 70 (T-10301) Gas Turbine Generators were commissioned in 2009 and ran for only approximately 1500 hours and 6500 hours, respectively. Its operation is continuous. Turbine design is open cycle, single shaft, cold-end drive. Compressor has 14 stages, axial Compression ratio 16 : 1. Combustion is annular with 12 injectors, SoLoNOx system turbine 3 stage, axial-reaction. Turbine speed 15 143 rpm.

Major Equipment

- SOLAR TAURUS 70 Gas Turbine Generator
- SOLAR TAURUS 70 gas turbine
- Heat recovery steam generator
- Super heated steam boiler
- Fuel system
- Lube oil system
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
2009
Year Shut
2014
Capacity
22.5 MW (3 x 7.5 MW)
