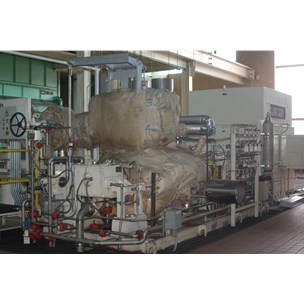

Steam Turbine Generator (Dresser Rand) - 7 MW
Other Views - click image for larger view
Steam Turbine Generator (Dresser Rand) - 7 MW Steam Turbine Generator (Dresser Rand) - 7 MW Steam Turbine Generator (Dresser Rand) - 7 MW Steam Turbine Generator (Dresser Rand) - 7 MW Steam Turbine Generator (Dresser Rand) - 7 MW

Steam Turbine Generator (Dresser Rand) - 7 MW

Stock # 12120
Capacity 7 MW
Products Not Listed

Overview

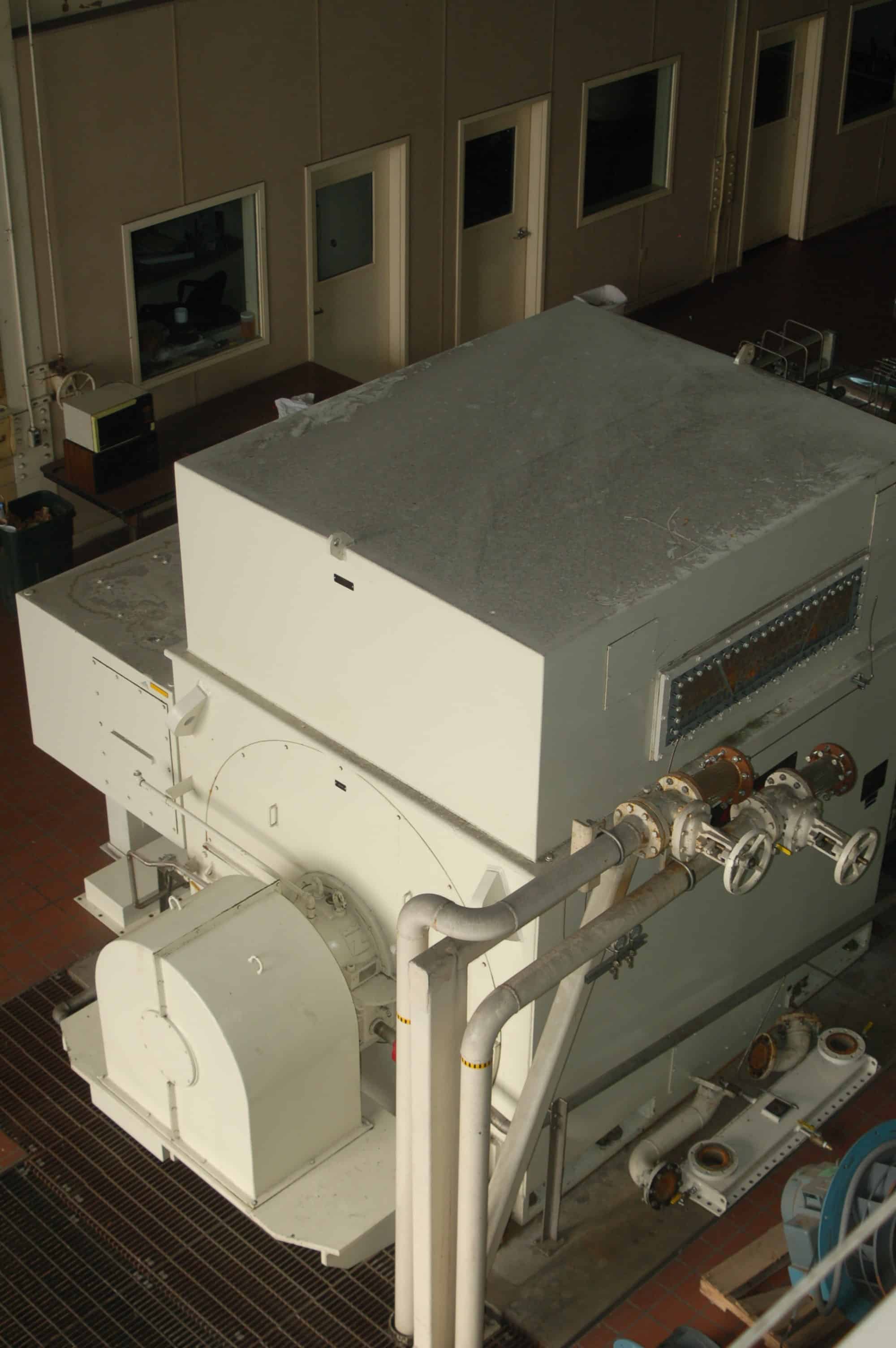

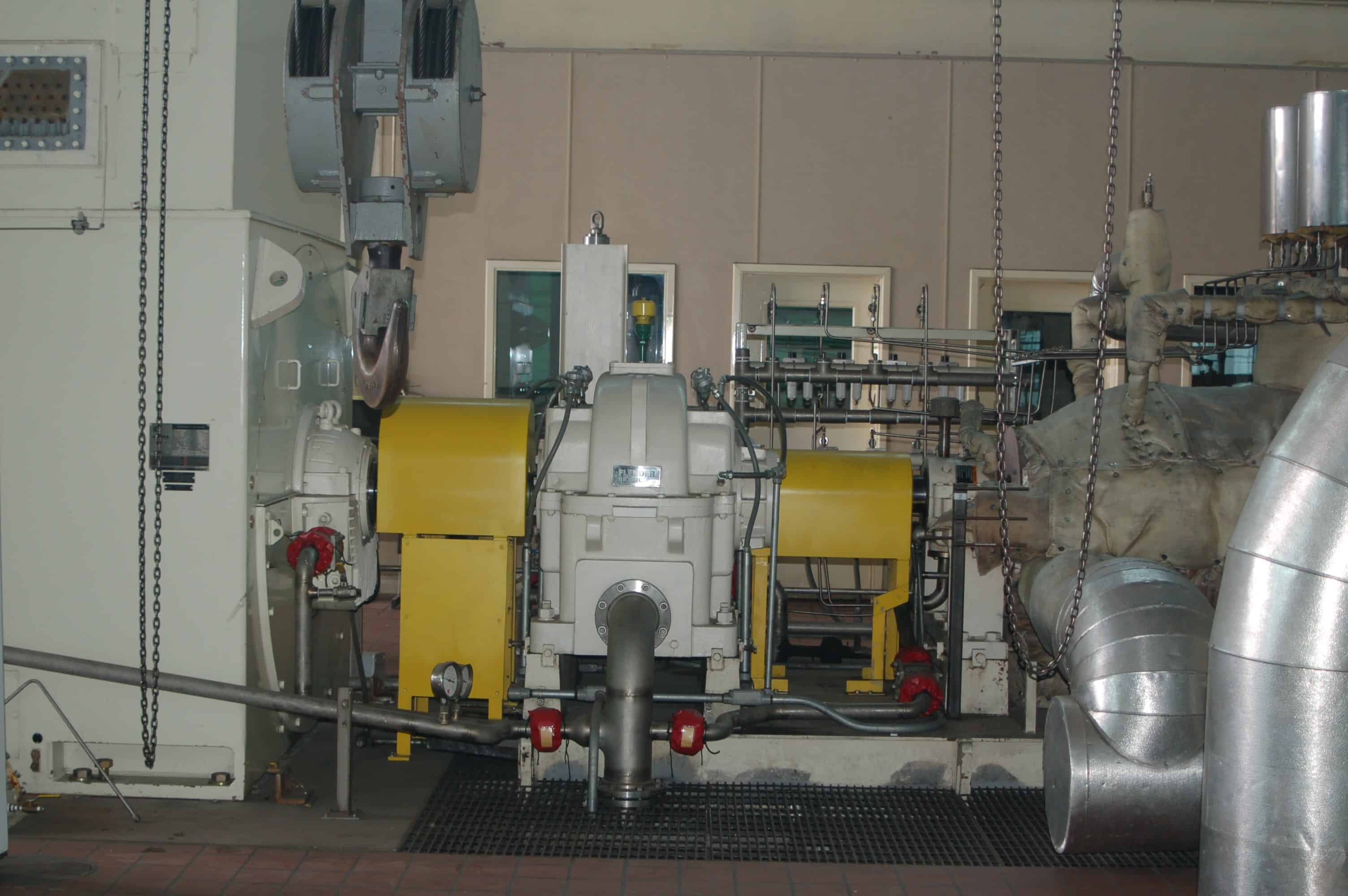

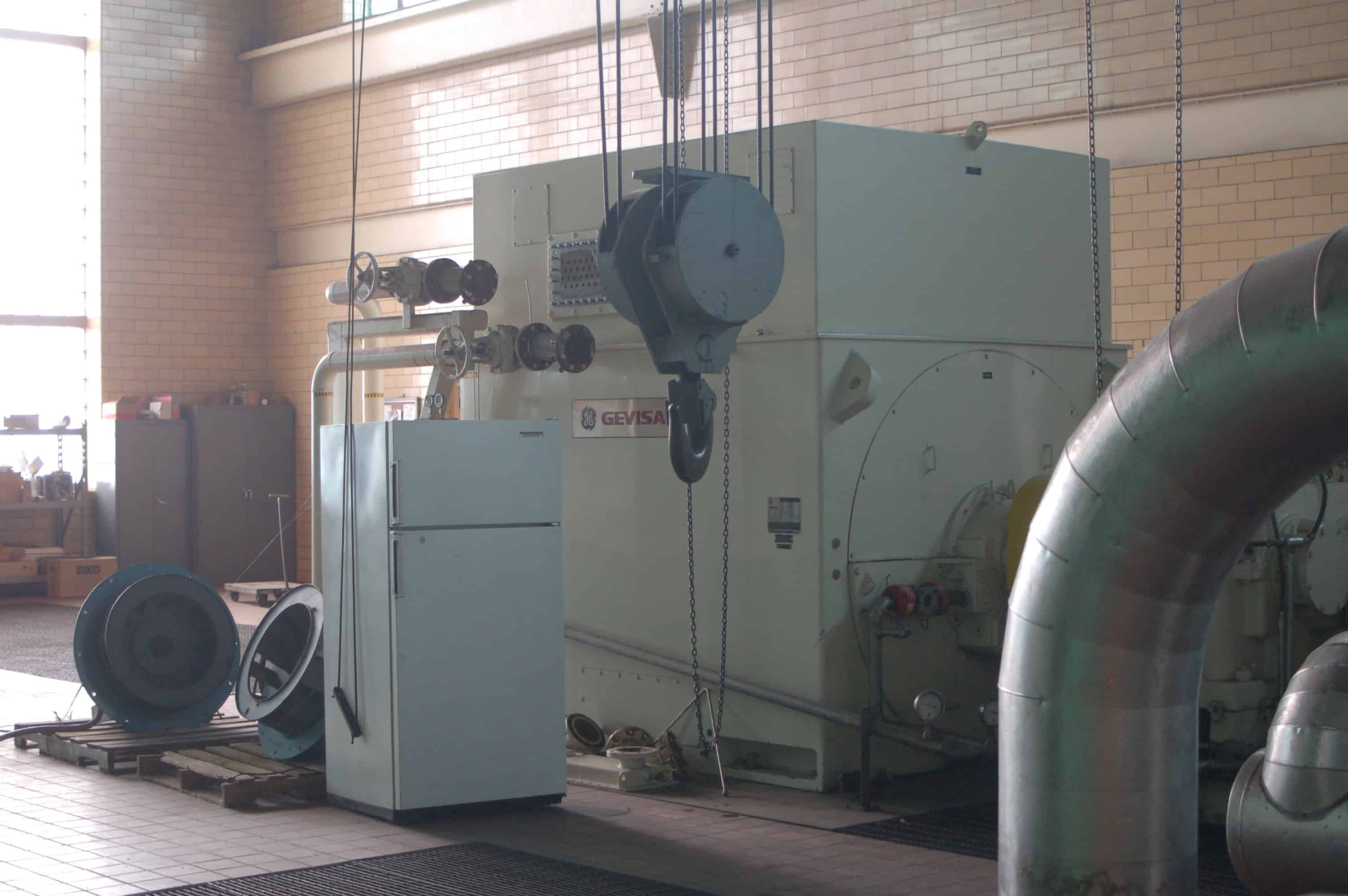

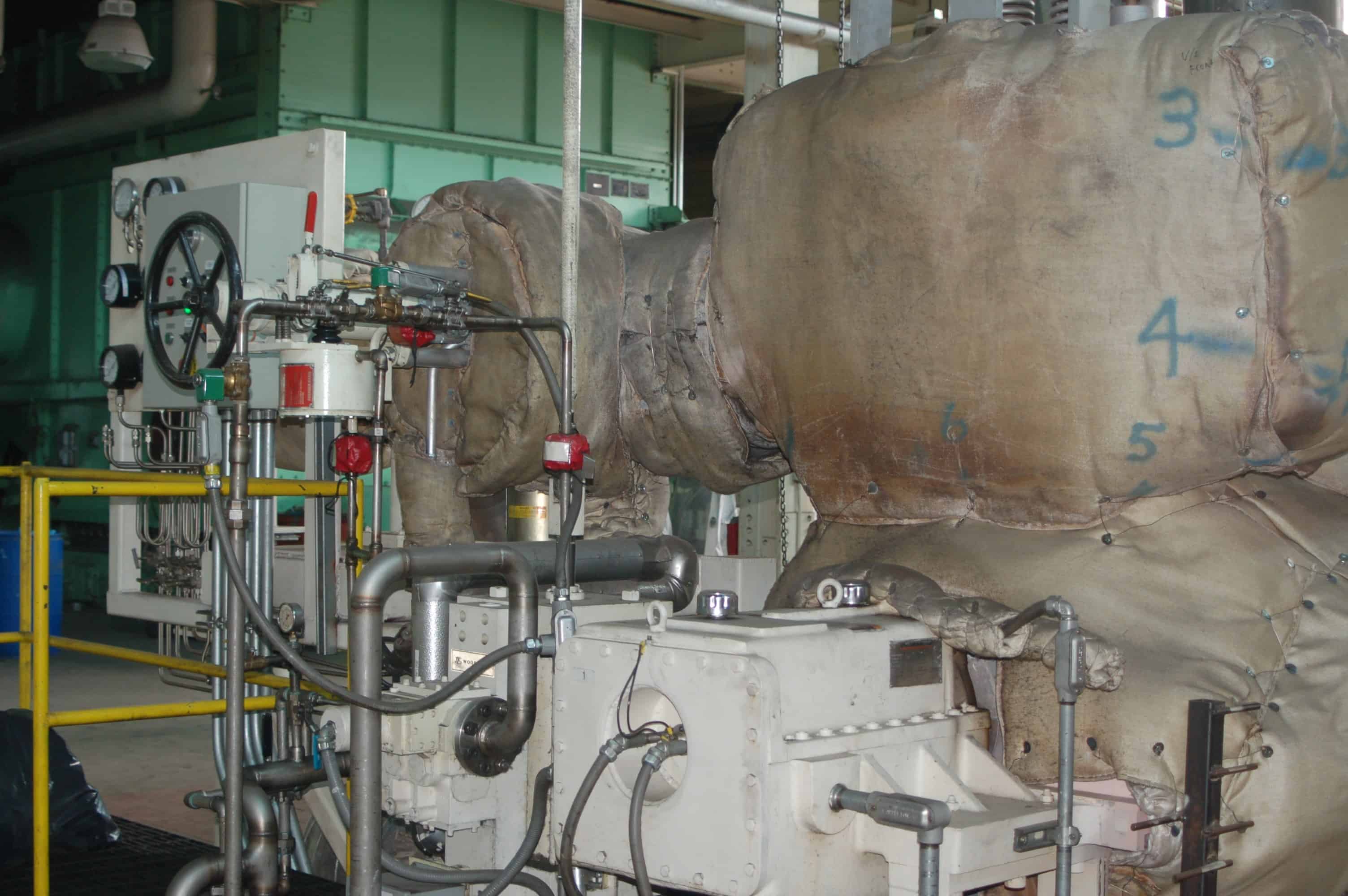

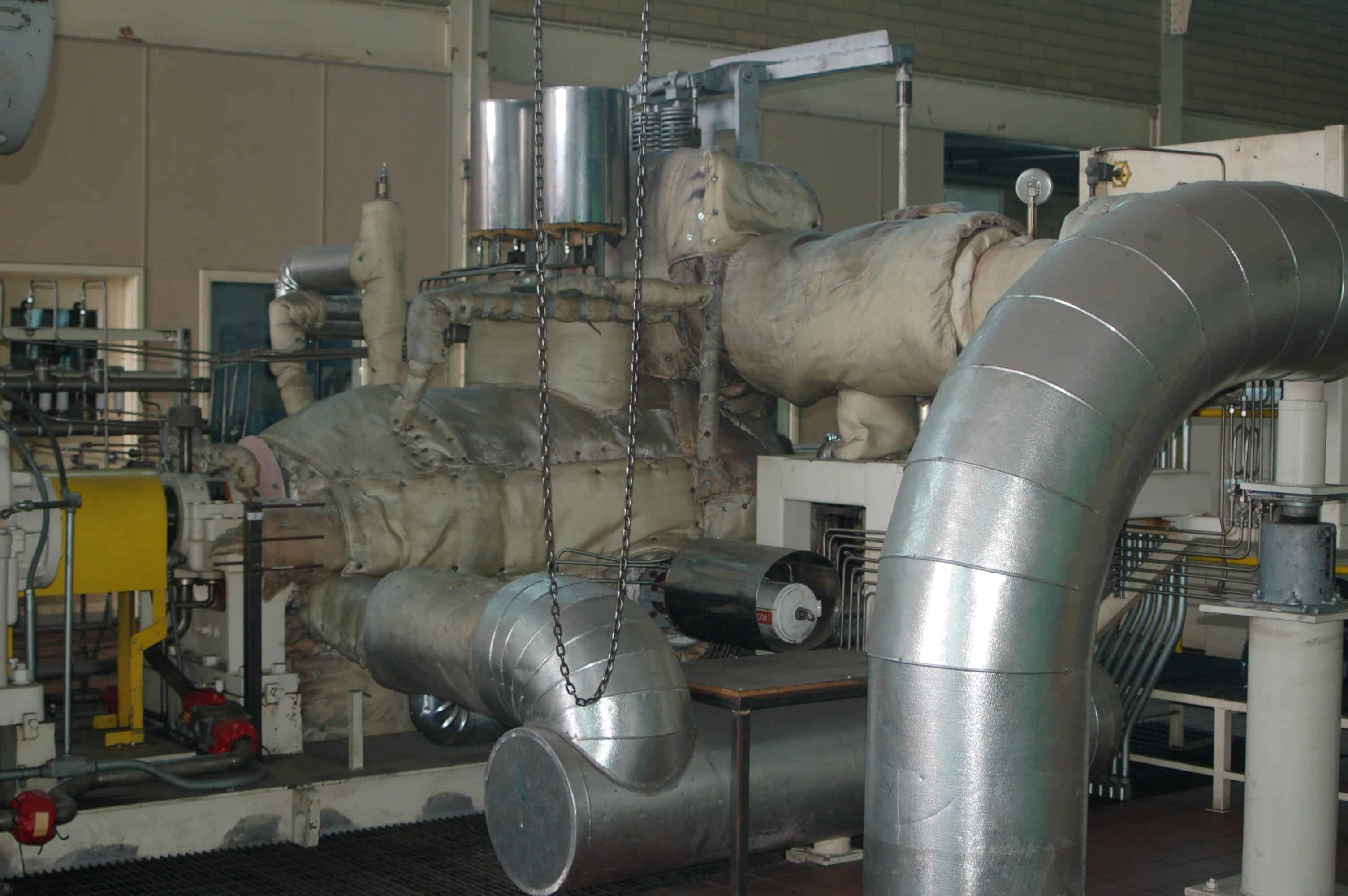

Phoenix Equipment has for sale a 6.9 MW Dresser Rand Steam Turbine Generator with GEVISA generator. The Dresser Rand steam turbine generator is a backpressure unit with a pressure of 250 PSIG, an inlet pressure of 850 PSIG @ 902 DEG F, and induction pressure of 650 PSIG @ 620 DEG F, with a Flow of 130,000/90,000 LBS/HR, Speed of 6000 RPM and was built in 2006. The GEVISA generating unit is rated 8235 KVA, 13800 V, 345 Amp, 0.85 Power Factor, 6999 KW, and Speed 1800 rpm.

Major Equipment

Dresser Rand Turbine
-Serviced 2006
-Pressure 850/600 PSIG
-Temperature (F) 902/620
-Flow (LBS/HR) 130,000/90,000
-Speed (RPM) 6000
-Type Back Pressure

Gevisa Generator
-KVA 8235
-Voltage 13800
-Ampere 345
-Power Factor 0.85
-KW 6999
-Speed 1800
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
2006
Year Shut
2009
Capacity
7 MW
