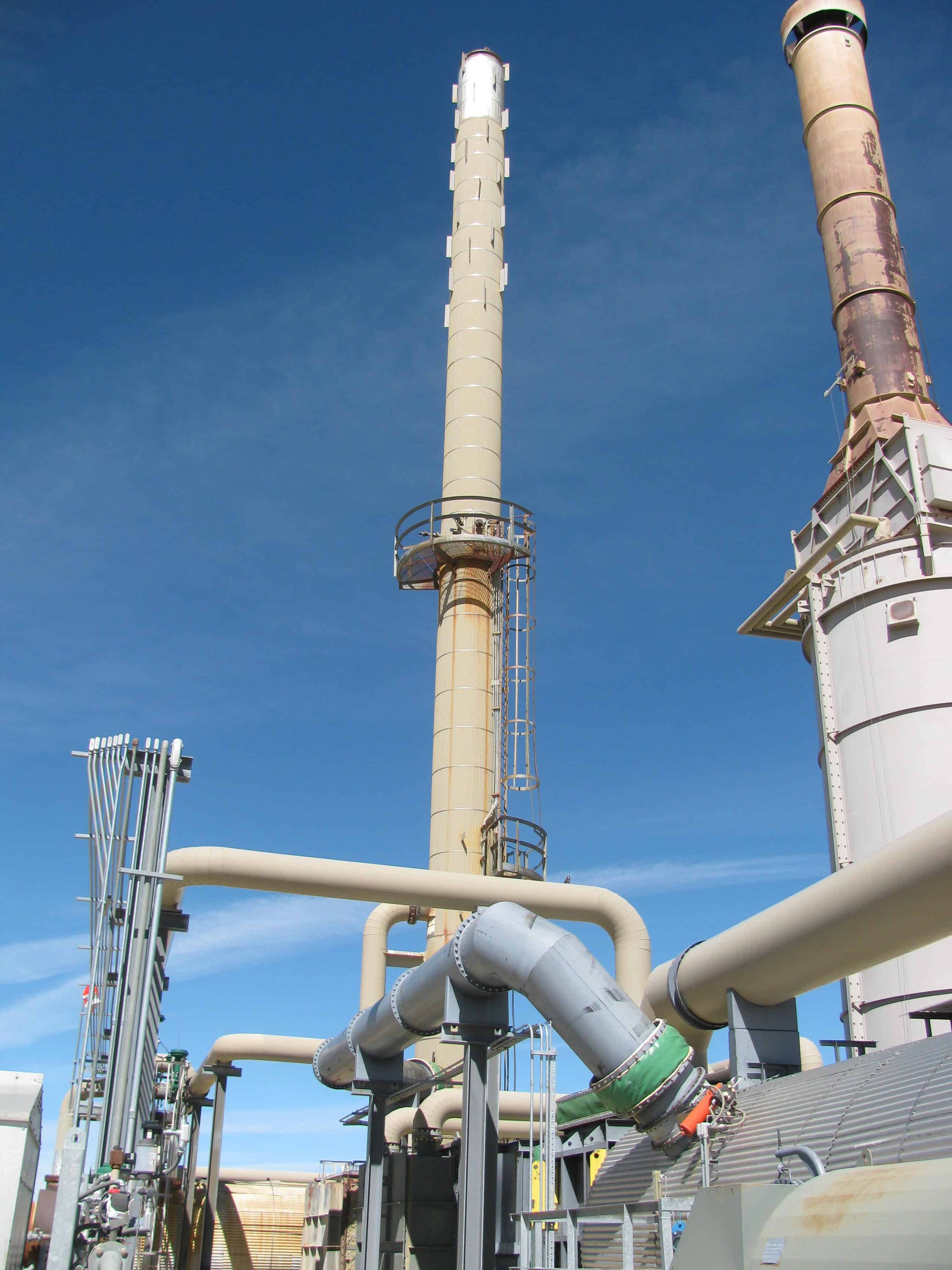

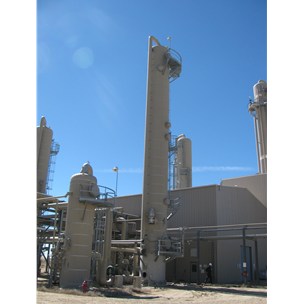

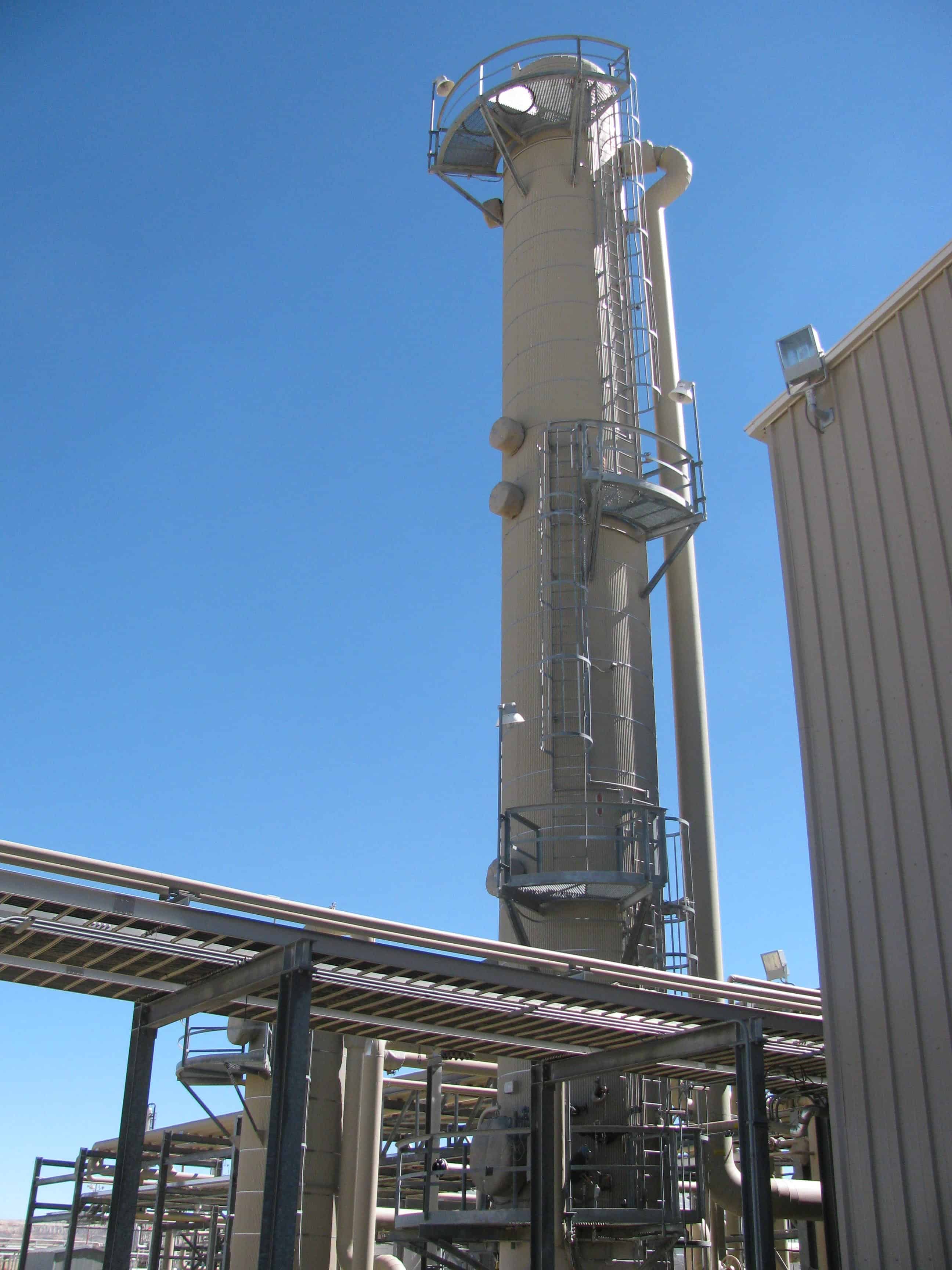

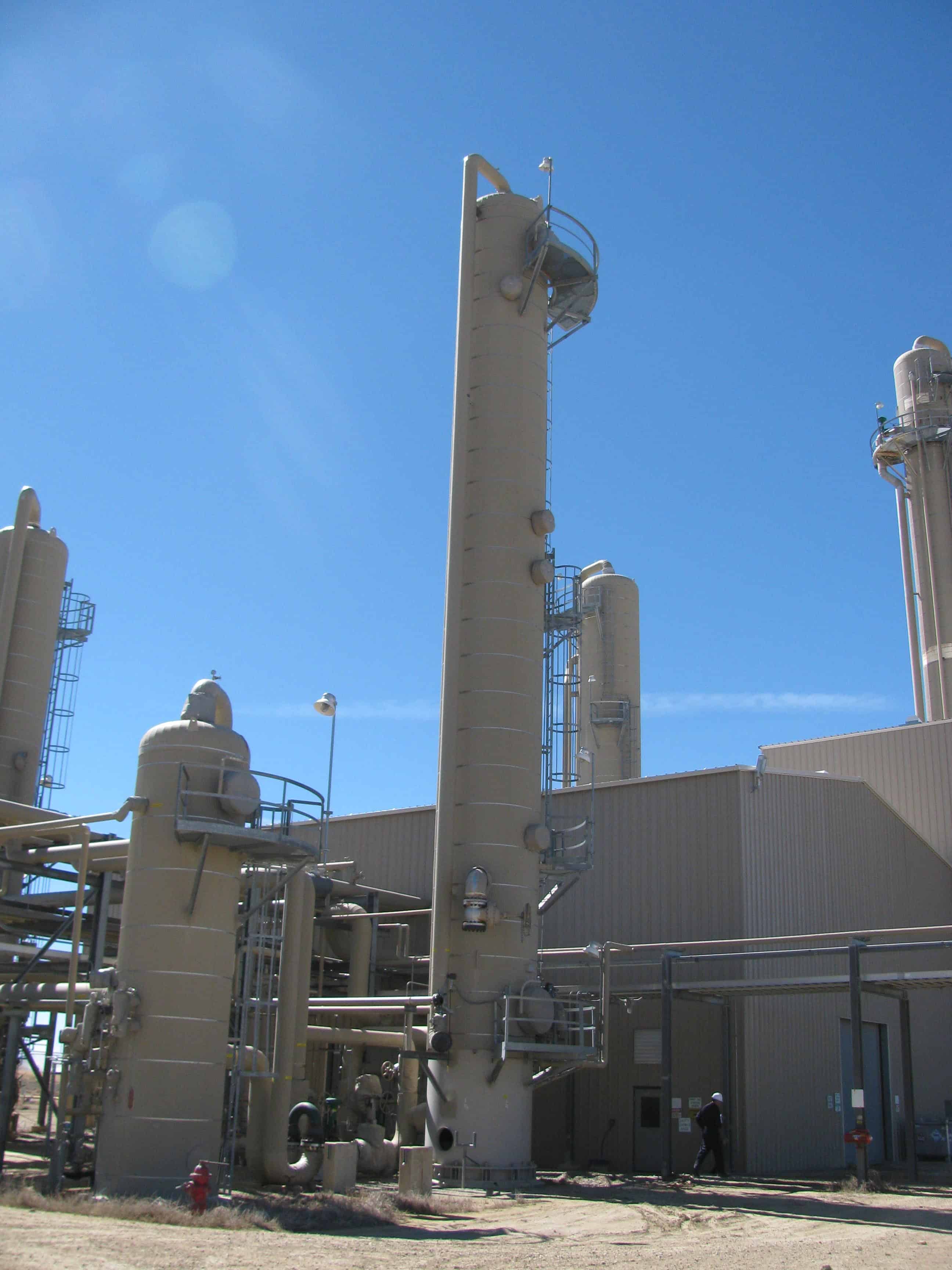

Natural Gas CO2 Removal Plant - 60 MMSCFD
Other Views - click image for larger view
Natural Gas CO2 Removal Plant - 60 MMSCFD Natural Gas CO2 Removal Plant - 60 MMSCFD

Natural Gas CO2 Removal Plant - 60 MMSCFD

Stock # 389
Capacity 60 MM SCFD
Products Natural Gas

Overview

Used 60 MM SCFD Carbon Dioxide removal plant (Benfield Low Heat process) built in 1997. The process is designed to treat 60MM SCFD of incoming natural gas with a hot 35% potassium carbonate solution to remove the remaining CO2 from an upstream Ucarsol process. This gas treating process removes CO2 down to a 1.2 mol % level. The incoming gas is treated by 2,770 gpm of 35% potassium carbonate at 218 degF. The advantage of the Benfield Low Heat process over an amine process is the lowest possible energy consumption by requiring approximately 50% less duty than a typical amine process.

Major Equipment

The Benfield Process for Sale at Phoenix Equipment comes complete with:

Ucarsol Contactor
Benfield Contactor
Benfield Regenerator
1st Stage Wash Tower
Overhead Knock-out Drum
Solvent Flash Tank
Reflux Accumulator
Solvent Drain Sump
Solution Filter
Sump Filter
Solution Pumps
Reflux Pumps
Sump Pump
Overhead Condenser
Gas/Gas Exchanger
Regenerator Reboiler
Low Heat Reboiler
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1997
Year Shut
2009
Capacity
60 MM SCFD
