Glycerin (Pharma Grade) Plant - 50 TPD

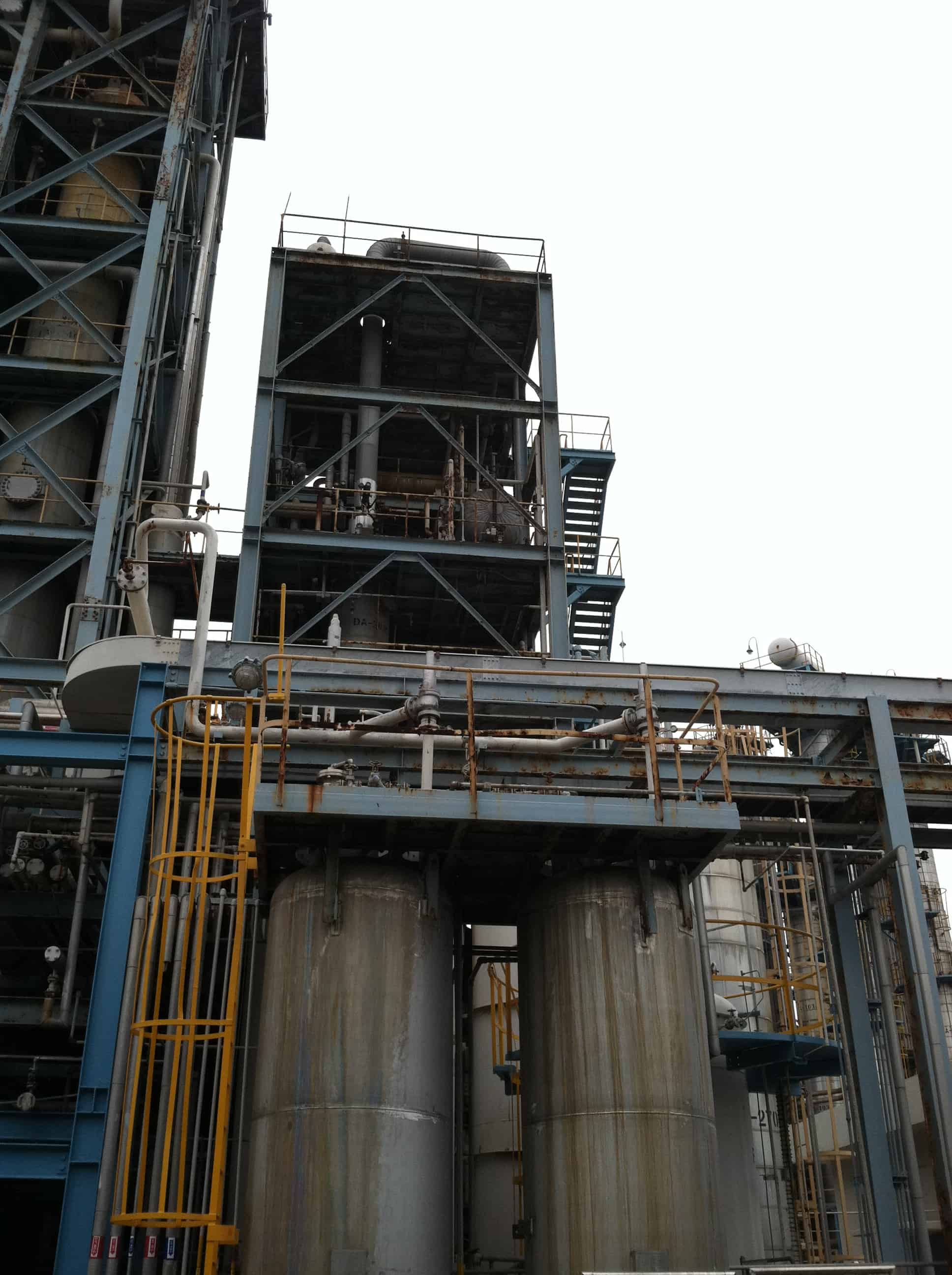

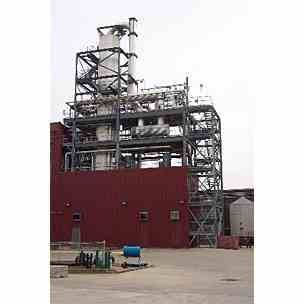

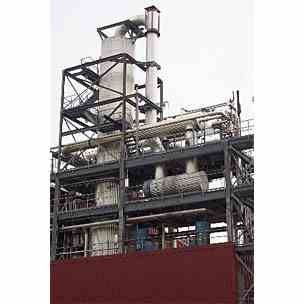

Other Views - click image for larger view
Glycerin (Pharma Grade) Plant - 50 TPD

Glycerin (Pharma Grade) Plant - 50 TPD

Stock # 125
Capacity 50 TPD
Products Glycerin

Overview

Used 50 TPD Glycerin Plant commissioned in 2002 and shut down in 2008. This plant is designed to encompass crude distillation and glycerin bleaching, producing USP pharma grade glycerin. The plant consists of a pre-dryer, a structured packing distillation column, and a continuous bleaching unit. The process incorporates two post-addition stills for residue recovery, and can be modified to be capable of running "all vegetable" based biodiesel crude once a precut column is installed to remove methanol. The glycerin produced will be in accordance with pharmaceutical glycerin specifications, with a concentration of 99.8% glycerin minimum.

Major Equipment

Distillation column (15/FV PSI @428 deg. F, 521" T/T X 94.6" OD)
Distillation still (118" OD X 94.6" T/T 15/FV PSI @ 446 deg. F)
Post distillation still 1 & 2 (64" T/T)
Bleaching vessel 1 & 2 & 3 (316 SS, 130/FV PSI @ 302 deg. F, 60" OD X 213" T/T)
Dryer vessel, (56" OD X 84" T/T, packing 26 cu. ft. of 1" pall rings)
Recievers for distillate 1 and 2 (304 SS, 28" OD X 40" T/T)
Finished product receiver (316 SS, 28" OD X 42" T/T, 100/FV PSI @ 350 deg. F)
Netzsch glycerin residue pump (316 SS, 6 GPM, 1.5 HP)
Durco pump (8 GPM, 202 ft. hd., alloy D4, 10 HP)
Tranter heat exchanger
Rosedale Polish filters (2)
Dewatering screen
