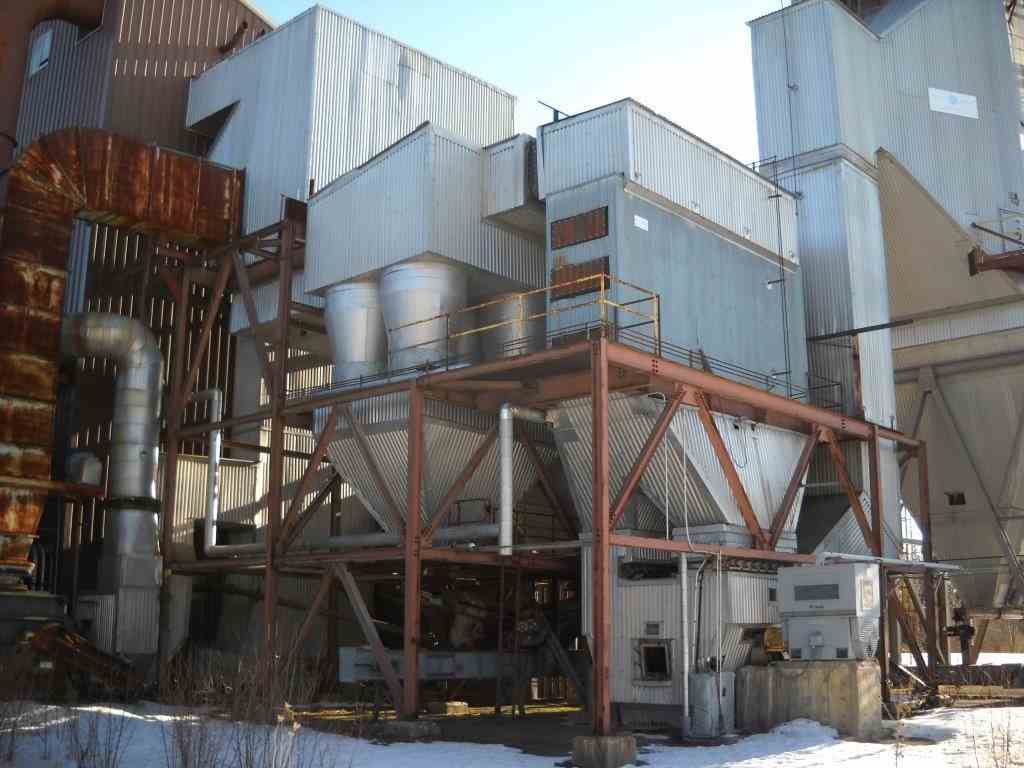

This 17.6 MW Biomass (Wood-Fired) Power Plant Consists of (1) 1988 Keeler 140,000 PPH, field erected, watertube boiler. The boiler is designed for 1050 psig at 950 F. The boiler is equipped with Welded wall construction and Pendant type superheater.

Feedwater system consists of (1) deaerator, (1) turbine driven feedwater pump, (1) electric driven feedwater pump, and (1) lot of interconnecting pipe , valves and fittings.

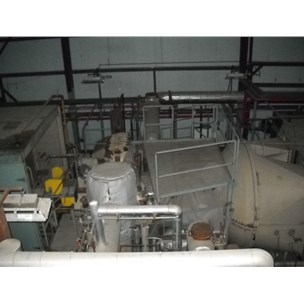

The General Electric Turbine/Generator System consists of (1) General Electric turbine utilizing at 900 psig @ 890 F superheated steam; (1) General Electric generator designed to produce 17.6 MW of power at 13,800 volts; (1) hydraulic system, (1) General Electric condenser; (2) hot well pumps; (1) lot of transmission switchgear; (1) emergency diesel generator.
The Water Treatment System comes with (1) water softener, (1) demineralizer, (1) acid tank, (1) caustic tank, and (2) condensate tanks.
