113 CFM Rietschle Rotary Vane Vacuum Pump, type BWZ162-15. Vacuum 0.5" Hg. 10HP XP Motor. Serial #815194

Heat Exchanger - No Nameplate.

113 CFM (1800 RPM speed, 10HP) Rietschle Vacuum Pump, Model VWZ162-15 0.5 Bar 10HP XP, Serial #1458716

Used 113 CFM Rietschle Vacuum Pump, Model VWZ162(15). 0.213 PSI @ 40F/180F. Direct coupled 10 HP, 1800 RPM Motor. 2" x 2.5" Flanged connections. Serial #1499942.

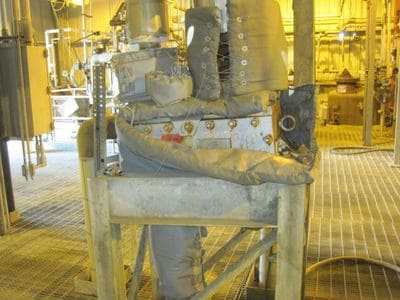

Used 69.7 sq.ft. Hastelloy Vicarb block type heat exchanger. Process 150 psi FV 450 Deg. F. Serv 100 psi @ 450 Deg. F. Serial #CF.20.0788, Year Built: 1990, Weight 985#.

Used 18" diameter x 11' T/T DeDietrich glass lined column. Rated 100 PSI/FV @ 500 F. Serial #34954, National Board #5565, Year Built: 1990.

110 CFM Rietschle, 10 HP, Vacuum Pump. 10 HP XP 3/60/230/460V @ 3500 RPM. Serial #600-200

Used 2.5 Square Meter Hastelloy C Rosenmund Filter (565 gallon capacity). Model # 91-RF-201. Rated 50 psi/FV @ -20/370 F. Manufactured by Gaston. 1/2 pipe coil jacket. 87" length, 74" OD. Center bottom discharge. Hydraulic lifting system. Packing gland. Serial # RPD2.5-669-92 (Gaston serial # F80933-192-1, National Board # 22913, Built 1992. Estimated weight - 13,000 lbs.

113 CFM 1750 RPM, 3 HP, Rietschle Vacuum Pump, Model VWZ162. 1800 RPM, 10HP Motor. 0.213 psi at -40/180F.

Used 5 Square Meter 3V Cogeim Model FPP/XD500 316L Stainless Steel Nutsche Filter. Shell rated 75 psi/FV (5.2 bar/FV) at -4 F to 536 F (-20 C to 280 C). 304 Stainless Steel 1/2 pipe jacket rated 150psi/FV (10.34 bar/FV) at 536 F to -4 F (-20 C to 280 C). Capacity 13,100 liters. Shell dimensions: 8'6.362" x 6'3.354" vertical. Openings: manhole - 23.22", side discharge hatch - 18.50", product inlet -NPS4 and others. With hydraulic driven 40HP heated shaft. Mechanical seal. Serial # 1334, National Board # 301, Built 2000. Estimated weight - 34,254 lbs (15,570 KG).

Used 4 Square Meter 316L Stainless Steel Rosenmund Inc Nutsche Type Filter Dryer. Internal rated 50psi/Fv at -20/370 F; 304 Stainless Steel 1/2 pipe jacket rated 150psi/Fv at -20/370 F; Base rated 150psi/Fv at -20/370 F. Driven by 25 HP 3/60/460V @ 1800 RPM agitator motor and 3HP hydraulic pack motor. Shell dimensions - 8 ft x 79 inches. Packing gland. Control panel available. Altered by Gaston (6/6/2002), SO # Fb2242A. Serial # RPD4-580-90, Built 1990. Estimated weight - 24,000 lbs.

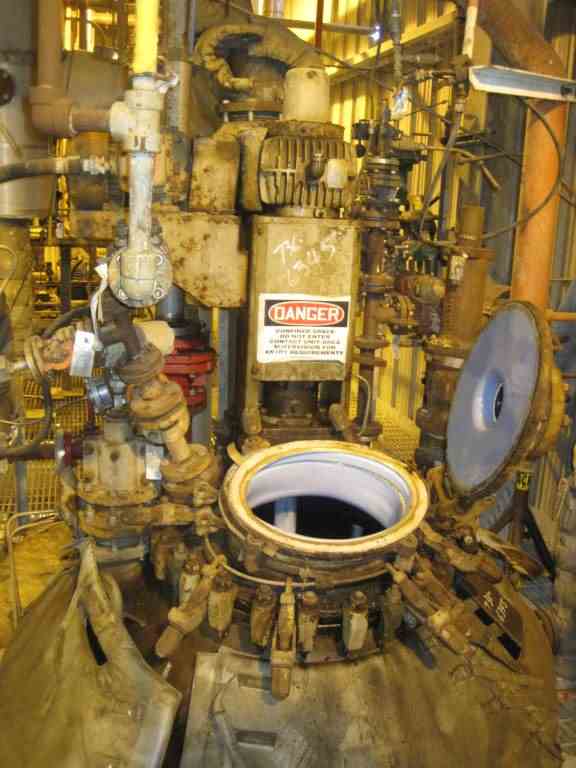

Used 1,000 gallon DeDietrich glass lined reactor. Rated for 100 psi & FV @ 500 deg F. internal; rated for 90 psi @ 500 deg F. jacket. Type 3008 glass. Dimensions: 63" O.D. x 70-3/4" T/T. Complete with Lightnin agitator, mechanical seal, 3 blade pitched Glaslock agitator. Serial #33459, National Board #4156, Year Built 1986. Previous Service reactor still.

16.6 Sq.Ft. Hastelloy Karbate Vicarb, Inc block type, Compabloc heat exchanger with 25 plates. Shell rated 100 psi / FV @ 450 F. Tube side rated 100 psi @ 450 F. Model CP20-25. Serial # CP20 0790. Year Built 1990. Weight 481 #.

Used 1,712 Sq. Ft. (159.1 Sq. M) 316L Stainless Steel Alfa Laval (Neveres, France) spiral heat exchanger. Rated 130.56 psi (9 Bar) at 32/392 F (0/200 C) on chamber A; rated 87 psi (6 Bar) at 32/392 F (0/200 C) on chamber B. Serial # 18456, Built 1991. Weight – 11,243 lbs (5100 Kg).

Reglassed and Unused 23" ID x 10' long Glass Lined Dedietrich column (4340001827). Type 3008 Glass. Rated 75 psi / FV @ 300 F. Built 1987. National Board # 4257; Serial # 33601. With 18" head new in 2005 (4340001823) and 4' head new in 2005 (4340001801).

Reglassed and Unused 30" ID x 10' long Glass Lined Dedietrich column (4340001811). Type 3009 Glass. Rated 105 psi / FV @ 500 F; and - 20 F @ 105 psi / FV. Built 2003. National Board # 1304; Serial # 2457. With (2) heads (4340001822). OAL - 16'.

26" Armylor Lined Column, Built by Carbone of America. Shell rated 37 psi @ 392 F. (9) sections bolted. Volume .217 ft3. Serial # 11576, National Board # 1571, Year Built 1999.

Used 69.7 Square Feet Hastelloy Vicarb block type heat exchanger. Process 150 psi FV 450 Deg. F. Service side 100 psi @ 450 Deg. F. Serial #CF.20.0788, Year Built: 1990, Weight 985#.

16.6 Sq.Ft. Hastelloy Karbate Vicarb, Inc block type, Compabloc heat exchanger with 25 plates. Shell rated 100 psi / FV @ 450 F. Tube side rated 100 psi @ 450 F. Model CP20-25. Serial # CP20 0789. Year Built 1990. Weight 481 #.

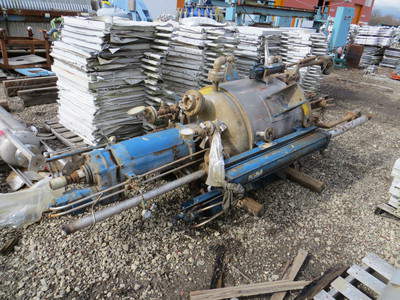

Used 0.3 Square Meter (3.2 Sq. Ft., 79 US Gal) 316 Stainless Steel Sparkler Filters Inc Auto Nutsche Filter with Hydraulic Drive, model # WD-03. 316SS body rated 75 psi / FV @ 350F. 304SS jacket rated for 150 psi @ 350F. 30" Diameter. 316SS Tank with dished top with detachable and removeable bottom mounted filter plate. Filter Cake Discharge - By center hydraulically operated automatic cake slide valve 316SS with internal flush. Nozzle and internal impeller rotation. Bottom discharge. Hydraulic pack. Serial # 22600, Built 1989.

Used 200 gallon Pfaudler glass lined reactor. Rated for 100 psi & FV @ 450 Deg F internal; rated for 90 psi @ 350 deg. F jacket. Type 9116 glass. Dimensions: 40" I.D. x 44-1/2" T/T, bolted dish top. Complete with Pfaudler RW drive, mechanical seal with lubricator, XP motor 3/60/230/460V. Unit has a 4 blade Crylock agitator, fin baffle and dip-tube. Serial #R-192-0486, National Board #46874, Year Built 1992. Previous Service, Reactor Semi, Estimated Weight 4,000#.

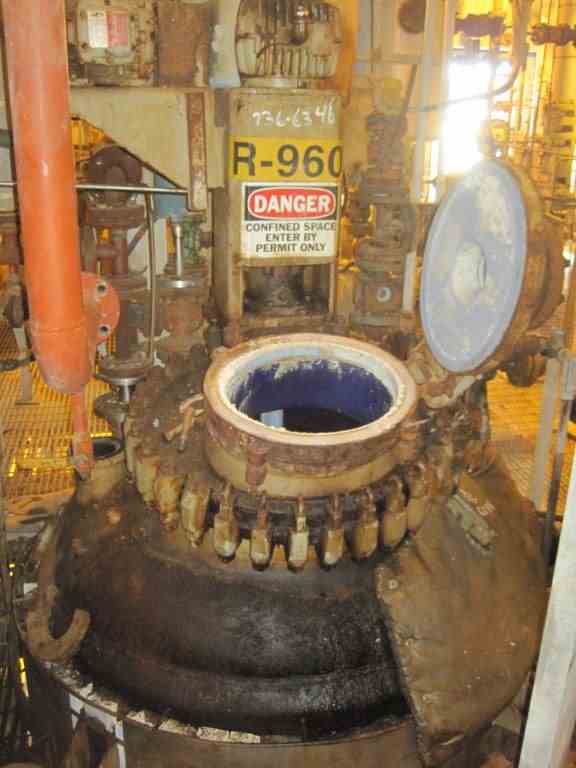

Used 300 gallon Pfaudler glass lined reactor. Rated for 300 psi & FV @ 450 deg. F internal; rated for 90 psi @ 350 deg F jacket. Type e9115 glass. Dimensions: 48" I.D. x 33" T/T, lug mounted. Complete with Pfaudler RW drive, mechanical seal, 4 pitched blade Crylock agitator, alloy dip-tube and glass lined fin baffle. Serial #R-192-0077, National Board #46900, Year built 1992. Previous Service Reactor, Estimated Weight 4,800#.

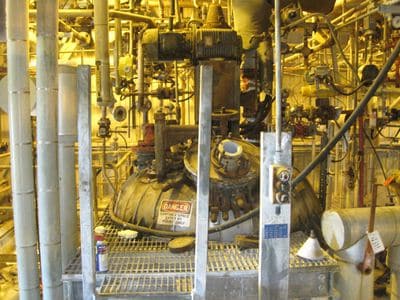

Used 1000 gallon Pfaudler glass lined reactor. Rated 300 psi & FV @ 450 deg F internal; rated for 450 psi @ 450 deg F 1/2 pipe jacket. Type 9115 glass. Dimensions: 60" x 72" T/T, model K-60-1000, lug mounted. Complete with 5RWFFG Pfaudler drive with mechanical seal and lubricator, 4 blade pitched Crylock agitator and glass lined fin baffle. Serial #R190-0126, National Board #46320, Year Built 1991, Previous Service Methyl Mercaptam, Estimated Weight 10,500#

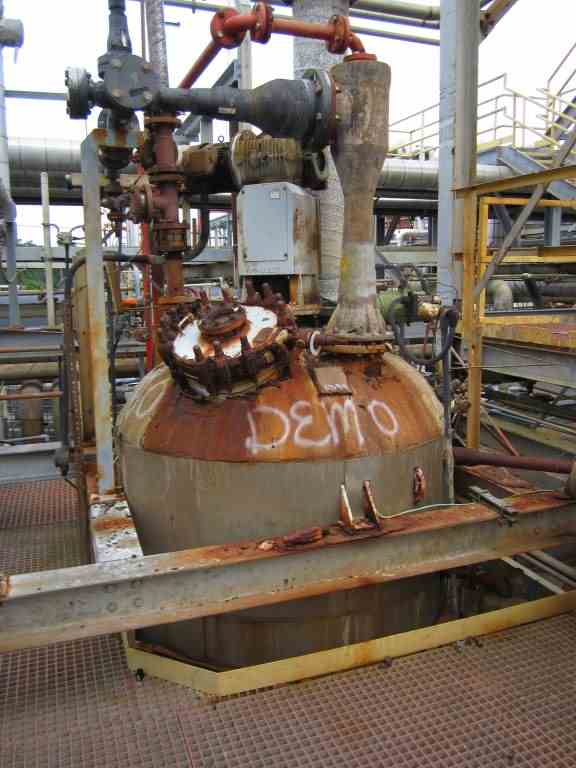

Used 750 gallon Pfaudler glass lined reactor. Rated 100 psi & FV at 450 deg F internal; rated 90 psi/FV @ 450 Deg F gasket. 9115 glass lug mounted MDL-K-60-750. Cryolock 3-blade agitator; fin baffle with RT sensor 4RWFFG Drive, 7.5 HP, 3ph, 60 HZ 230/460V, Serial #R192-0020, National Board #46721, Year Built 1992, Estimated Weight 8,750#

Used 500 Gallon Pfaudler (Repaired by DeDietrich in 2001) glass lined reactor. Rated for 100 psi & FV @ 500 deg F. internal; rated for 100 psi @ 500 deg F. jacket. Type 33009 glass, lug mounted. Complete with Pfaudler FDWV52350-TB drive, ratio 15:1 and mechanical seal. Lug mounted, spring loaded Manway cover. 4 blade pitch Drylock agitator, fin baffle and alloy dip tube, no visible plugs. Serial #2197, National Board #1069, Year built 1992, Previous Service Reactor Semi Works

Used 530 gallon 316L stainless steel reactor, Mfg. by Industrial Piping for 76 PSI & FV @ 350 deg. F internal; rated for 90 PSI & FV @ 350 deg F jacket. Dimensions: 48" Dia x 60" T/T. Complete with Chemineer drive model 1NTN-1, mechanical seal, 4 blade pitched turbine agitator - 125 RPM, 1 HP motor XP 3/60/1800RPM. Serial #W6078F, National Board #945, Year Built 1990. Previous Service: Reactor Still

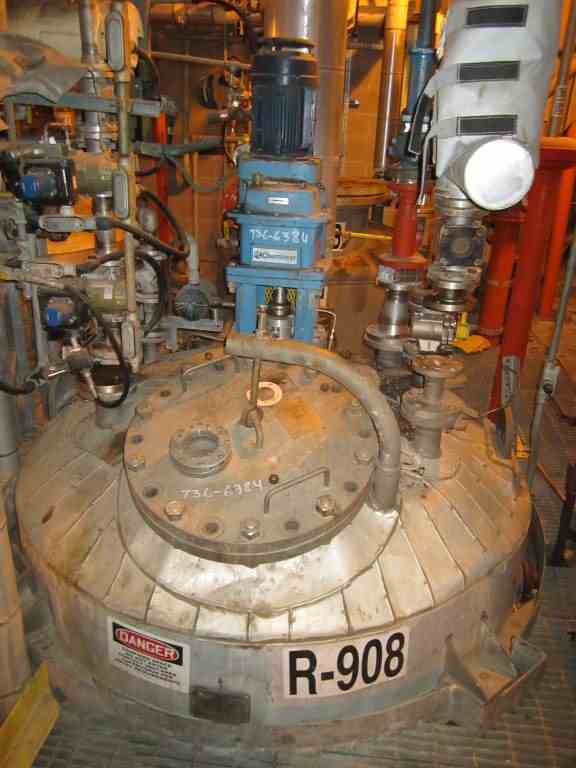

Used 1286 gallon (total) 316L stainless steel reactor, Mfg. by Ward Tank. Rated for 75 psi & FV @ 572 Deg. F internal; rated 300 psig & FV jacket. Dimensions: 66" I.D. x 72" T/T. Complete with Chemineer drive model 1GTN-5, mechanical seal, 3 blade pitched turbine agitator - 155 RPM, 5 HP motor XP 3/60/1800 RPM. Serial #WC-4479, National Board #2651, Year built 2001. Previous Service: Product Still, Estimated Weight 4,000#

Used 1,828 gallon 316L stainless steel reactor, Mfg. by Buffalo Tech. Corp. Rated for 100 psi & FV @ 500 Deg F internal; rated for 150 psi & FV @ 500 Deg F jacket. Dimensions: 78" O.D. x 72" T/T, lug mounted. Complete with 30 HP Chemineer drive model 4GT, mechanical seal with lubricator. Unit has (3) sets of impellers each with 3 impellers - 3 pitched blades, 155 RPM. Serial #18979, National Board #9658, Year built 2001, Previous Service: Reactor HMDS, Estimated Weight: 7,800#

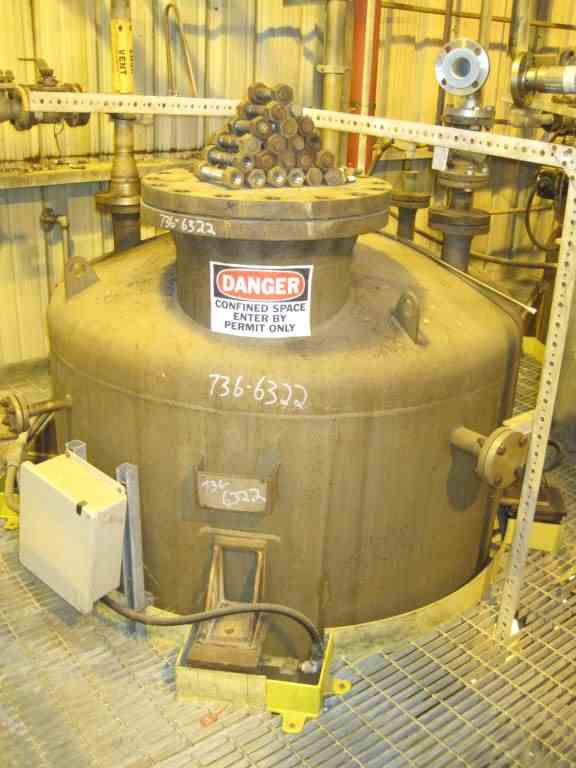

Used 1800 gallon 316L stainless steel reactor, Mfg. by Industrial Piping. Rated for 111 psi & FV @ 550 Deg F internal; rated for 90 psi @ 350 Deg F. jacket. Dimensions: 78" O.D. x 72 " T/T, lug mounted. Complete with Chemineer drive model 3HTN-7.5, mechanical seal, dual (4) blade pitched turbine agitator (78 RPM) and baffles, 7.5 HP motor XP 3/60/1800 RPM. Serial #W6078E, National Board #984, Year built 1990. Previous Service: Reactor, Estimated Weight 7,600# (NOTE: Unit missing nameplate)

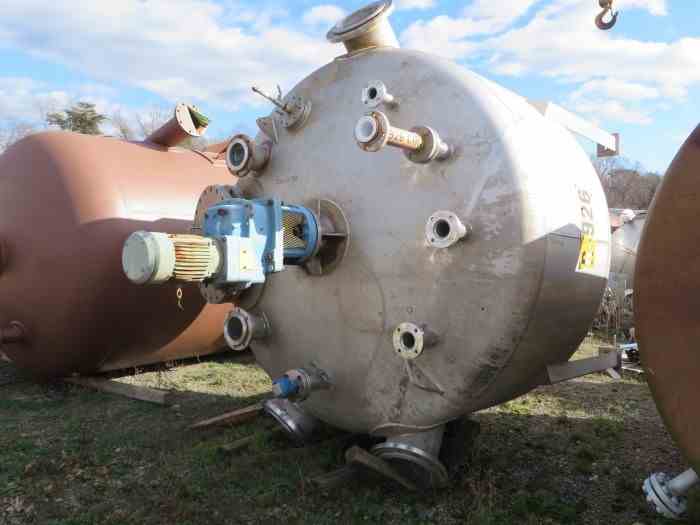

Used 2000 gallon (1,918 gallon) Hastelloy C-276 Sovereign Stainless Fabricators, Inc Reactor. Rated for 75 PSI @ 500 Deg F internal; rated 100 psi @ 500 Deg. F (-20 Deg F @ 100 psi) on 304L SS jacket. Complete with 5 HP Chemineer drive (Serial #532675-2), mechanical seal, 3 blade impeller agitator - 155 RPM. Dimensions: 8' Dia x 3'3'' T/T with dished heads. Serial #0-193, National Board #224, Year built 2000, Previous Service: Dissolving Tank, Estimated Weight: 6,000#

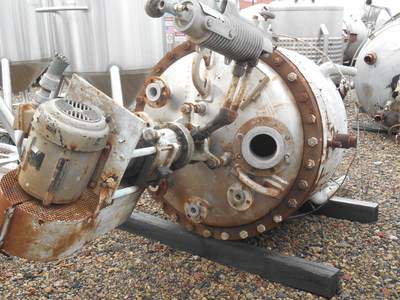

Used 50 gallon Hastelloy C22 Pfaudler reactor. Rated for 100 psi & FV @ 480 Deg. F. internal; rated for 90 psi @ 480 Deg F. jacket. Dimensions: 30" I.D. x 18" T/T. Complete with 2.5 DTW variable speed Pfaudler drive, mechanical seal with lubricator. Agitator speed: 50-175 RPM. Serial #2-056, National Board #2871, Year built 1997, Previous Service: Reactor - Pilot, Estimated Weight 1,300#

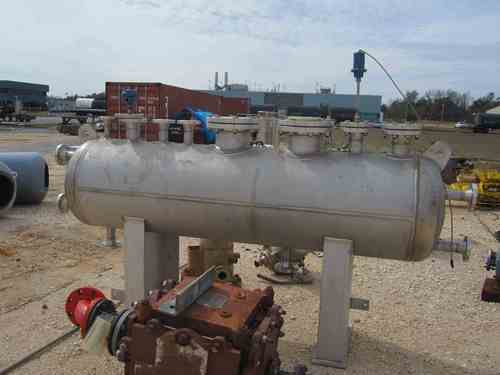

Used 200 gallon Inconel (SB-625) Sovereign Stainless Steel Fabricators, Inc Horizontal Pressure Vessel. 2'ID x 9'L. Rated 45 psi @ 486 F. National Board #230, Serial # 1-135, Built 2001.

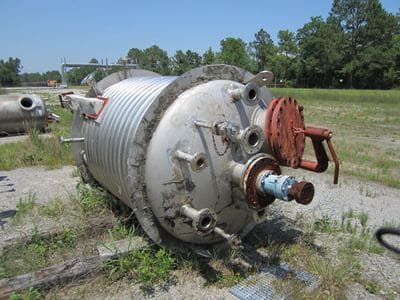

Used 1,000 gallon 304L stainless steel reactor body, Mfg. by Industrial Alloy Fabricators. Rated for 60 psi & FV @ 1-20 Deg F. @ 60 psi with internal coils rated for 100 psi @ 374 Deg. F; rated for 150 psi @ 374 Deg F stainless steel 1/2 pipe jacket. Dimensions: 64" Dia. x 68" T/T welded dished heads. Unit is missing drive but has mechanical seal and agitator. Serial #F986-1, National Board #2201, Year Built 1995. (See#6509 for gear box)

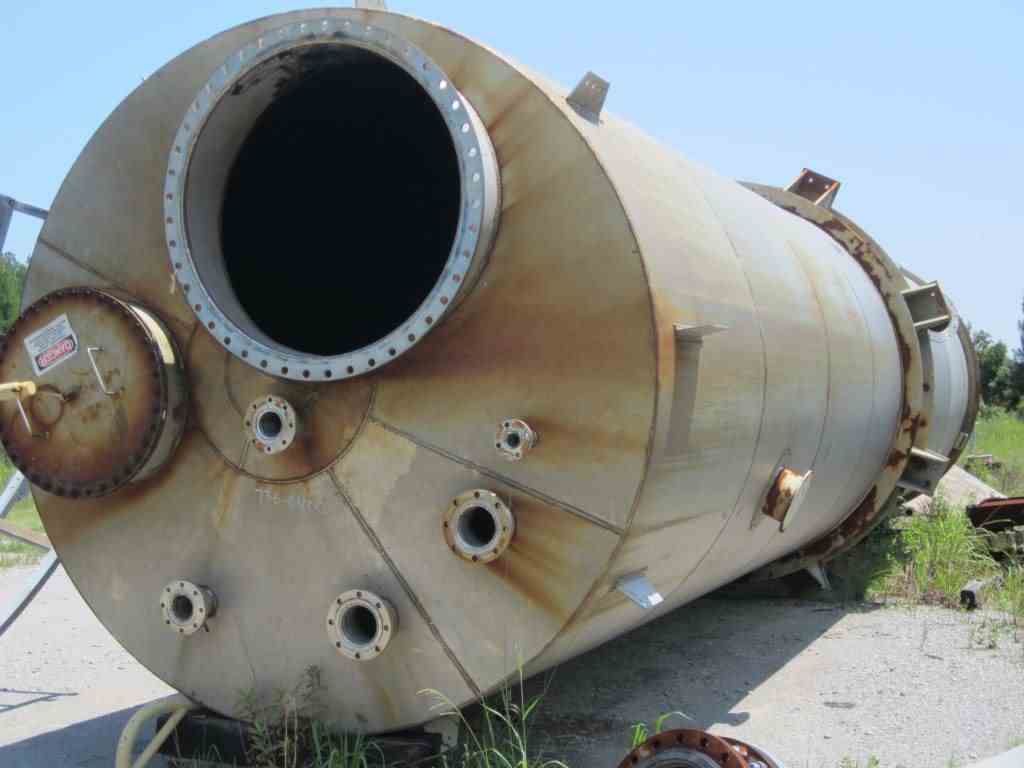

Used 28,825 Gallon Davis Fabricating Vertical 304L Stainless Steel Silo. Approx. 10'diameter x 43' T/T with 9'6'' cone. Lug mounted with bottom valve. Shell rated 0.29 to 1.45 psi @ 178 F. Serial # SF1234A. Built 1994.

Used 470 gallon 316L stainless steel vertical jacketed pressure vessel, Mfg. by Industrial Piping. Rated for 600 psi @ 500 Deg. F. internal and 90 psi @ 500 Deg. F Jacket, lug mounted. Serial #7018A, National Board #1026, Year built 1991. Previous Service: Hydrogen Sulfide, Estimated Weight 4,850#

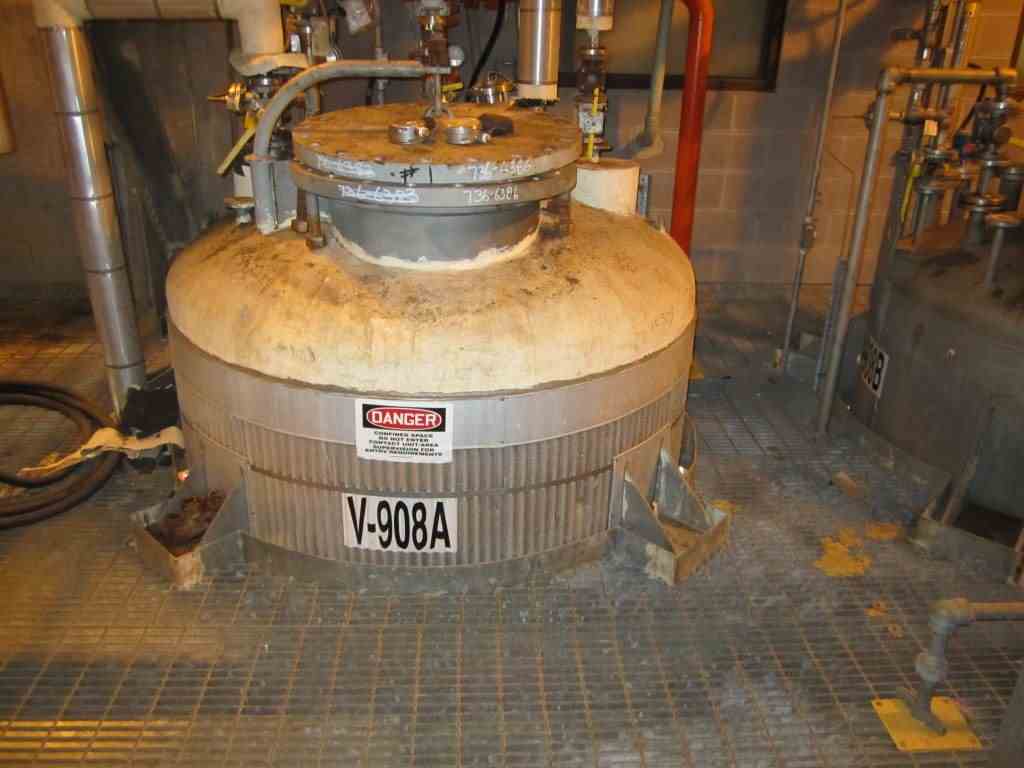

Used 650 gallon 316L stainless steel vertical pressure vessel, Mfg. by Alabama Heat Exchanger. Rated for 75 psi & FV @ (-29/260 Deg C). Dimensions: 60" O.D. x 54" T/T, lug mounted. NB# 1296. Previous Service: Alkyl Halides Batch, Estimated Weight 3,800#

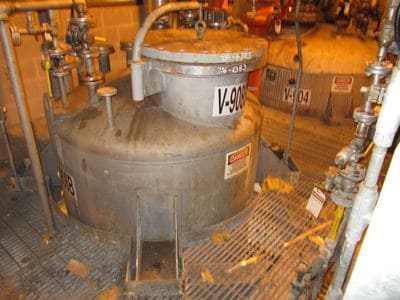

Used 113 gallon 316L stainless steel vertical pressure vessel, Mfg. by Alabama Heat Exchanger. Rated for 100 psi & FV @ 500 Deg. F. Dimensions: 30" I.D. x 30" T/T, mounted on lugs. Serial #AHEJN.4863-A, National Board #364, Year Built 2000, Previous Service: Primer Bath Tank Grignard, Estimated Weight 1,300#

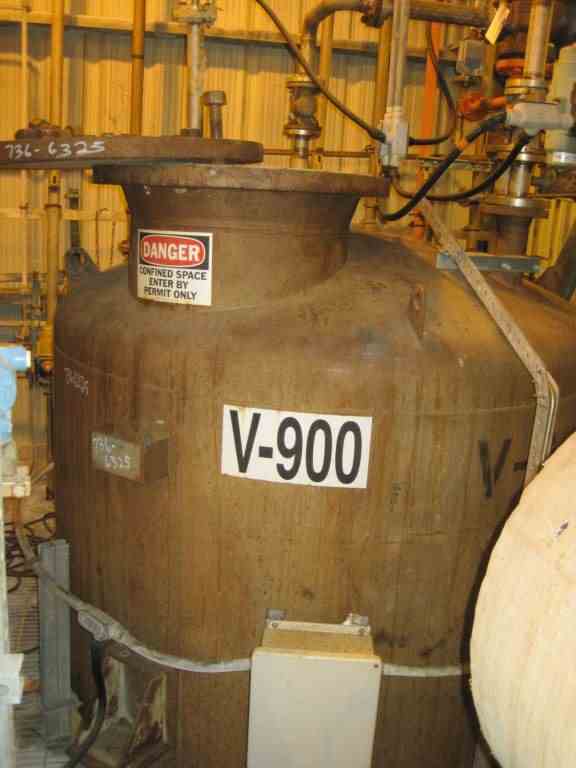

Used 1700 gallon 316L stainless steel vertical pressure vessel, Mfg. by Industrial Piping. Rated for 59 psi & FV @ 300 Deg. F. internal. Dimensions: 72" O.D. x 84" T/T, lug mounted. Serial #W6078J, National Board #936, Year built 1990. Previous Service: TMCS Batch, Estimated Weight: 3,600#

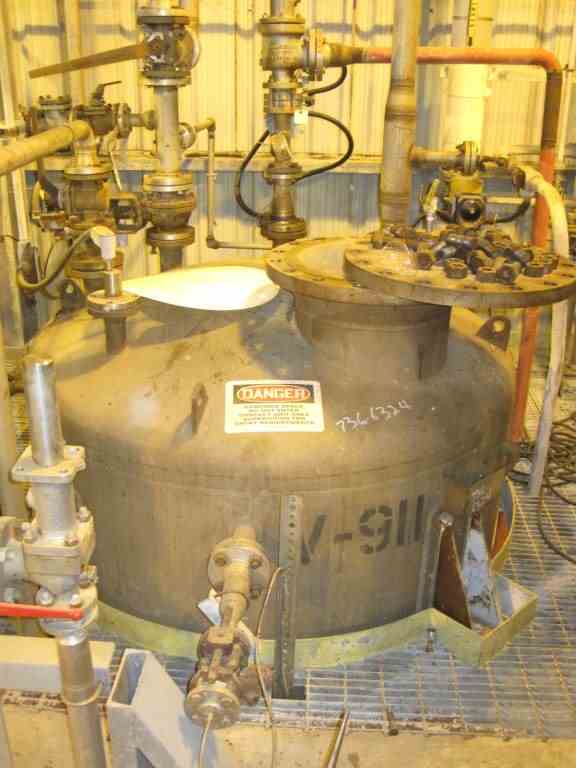

Used 1250 gallon 316L stainless steel vertical pressure vessel, Mfg. by Industrial Piping. Rated for 62 PSI/FV @ #300 Deg. F internal. Dimensions: 66" O.D. x 72" T/T, lug mounted. Serial #W6078A, National Board #938, Year built 1990. Previous Service: Solvent Batch Tank - Multi Purpose, Estimated Weight 1,910 lbs.

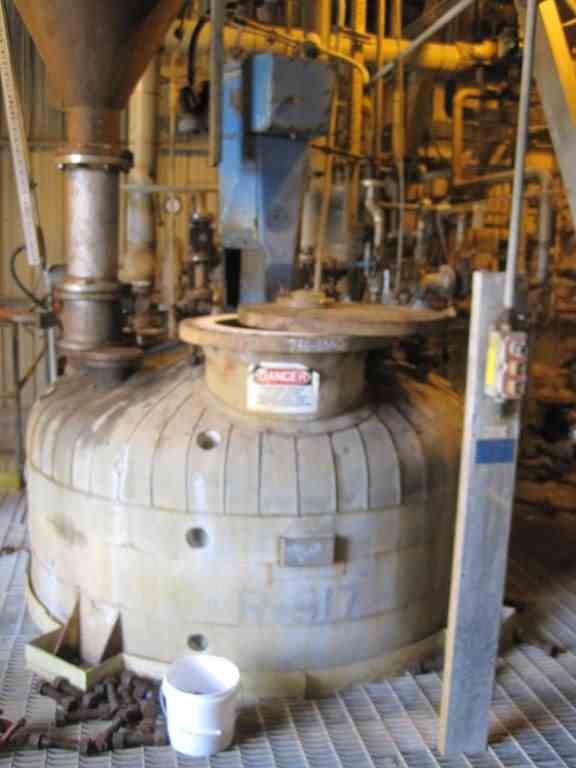

Used 800 gallon 316L stainless steel vertical vessel, Mfg. by Industrial Piping. Rated for 47 psi & FV @ 550 Deg. F internal. Dimensions: 60" O.D. x 54" T/T, lug mounted. Serial #6078G, National Board #937, Year Built: 1990, Previous Service: Bath Tank - Multi-purpose, Estimated Weight 1,900#

Used 800 gallon 316L stainless steel vertical pressure vessel, mfg. by Industrial Piping. Rated for 53 psi & FV @ 300 Deg. F. internal. Dimensions: 60" O.D. x 54" T/T, lug mounted. Serial #W6078H, National Board #935, Year Built 1990. Previous Service: Batch Tank - Multi-purpose. Estimated Weight: 1,600#

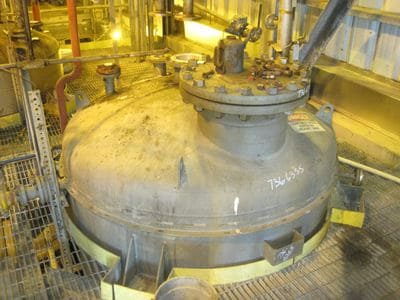

Used 1160 gallon 316L stainless steel vertical pressure vessel, Mfg. by Industrial Piping. Rated for 53 psi & FV @ 600 Deg. F. internal. Dimensions: 66" O.D. x 66" T/T, lug mounted. Serial #W6078D, National Board #939, Year Built 1990. Previous Service: Receiver - Multi-purpose. Estimated Weight: 3,650#

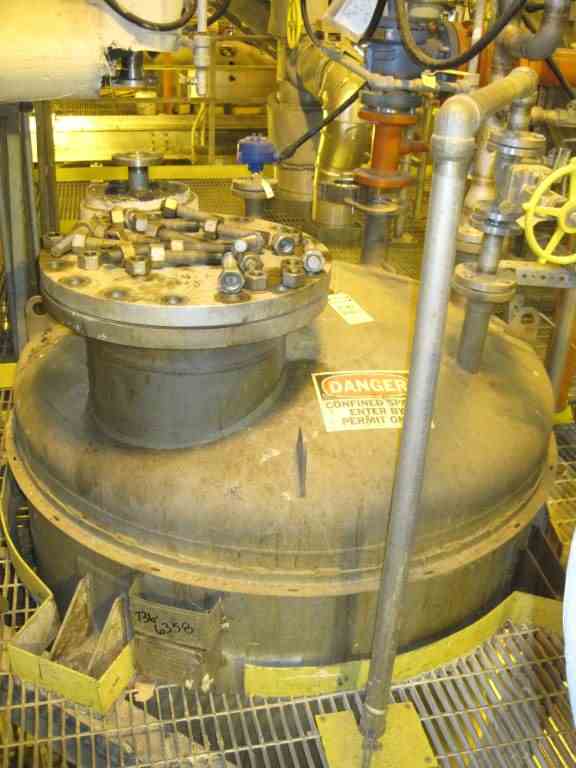

Used 1008 gallon 316L stainless steel vertical pressure vessel, Mfg. by Industrial Piping. Rated for 64 psi & FV @ 450 Deg. F. internal. Dimensions: 60" O.D. x 84" T/T, lug mounted. United was re-rated in 2001 by Alabama Heat Exchanger, rated for 75 psi & FV @ 500 Deg. F. Serial #W6078K, National Board #940, Year Built 1990. Previous Service: Receiver Distillate Grignard.

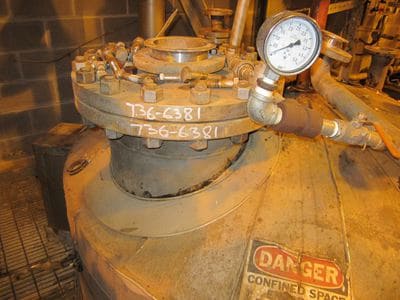

Used 2000 gallon 316L stainless steel vertical pressure vessel, Mfg. by Knights Piping Inc. Rated for 50 psi & FV @ 450 Deg. F (-58 Deg F @ 50 psi & FV). Dimensions: 3' Dia x 9' T/T, lug mounted. Serial #KPI-67, National Board 24, Year Built: 1990. Previous Service: Tank Drum Off/Treat, Estimated Weight: 3,200#

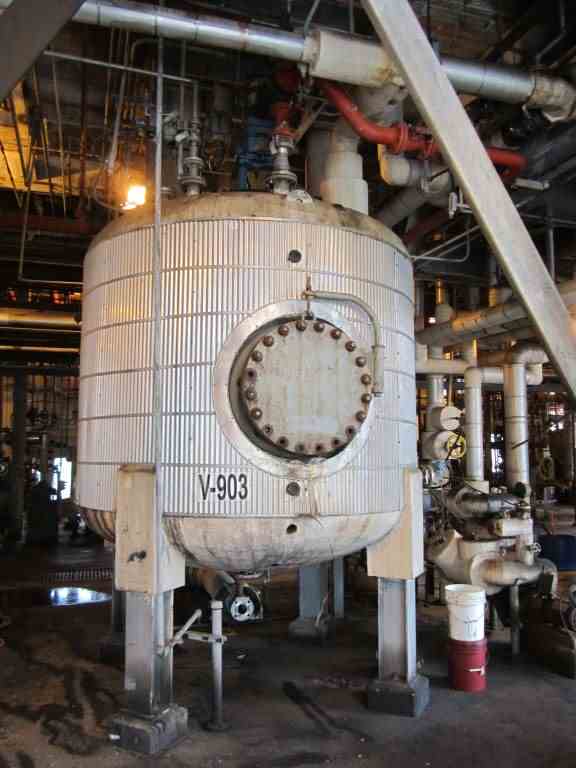

Used 2875 gallon 316L stainless steel vertical pressure vessel with mixer, Mfg. by Alabama Heat Exchanger. Rated for 75 psi & FV @ 500 Deg. F (-58 Deg. F @ 75 psi & FV) internal. Dimensions: 96" O.D. x 72" T/T with dished heads and mounted on 4 legs. Complete with Chemineer model #1GTN-3 drive, double mechanical seal, 3HP XP motor 3/60/1800 RPM, 4 blade pitched turbine agitator - 100 RPM. Serial #AHE-701, National Board #383, Year Built: 2001. Previous Service: Quench Tank Filtrate Grignard, Estimated Weight: 10,000#

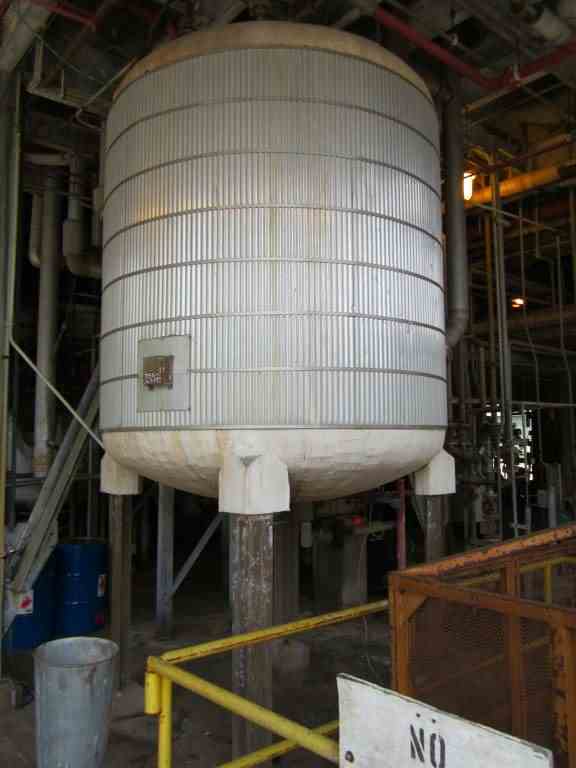

Used 2000 gallon 316L stainless steel vertical pressure vessel, Mfg. By Knights Piping Inc. Rated for 50 psi & FV @ 500 Deg F (-58 Deg F @ 50 psi & FV). Dimensions: 80" O.D. x 84" T/T, dished heads mounted on legs. Serial # KPI-68, National Board #25, Year Built: 1990. Previous Service: Receiver Filtrate, Estimated Weight 6,240#

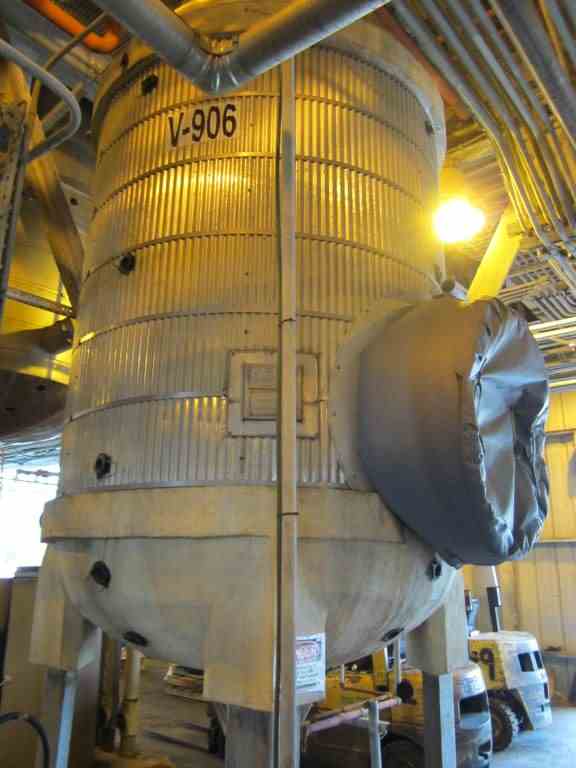

Used 1266 gallon 316L stainless steel vertical pressure vessel, Mfg. by Tesecon Inc. Rated for 75 PSI & FV @ 500 Deg. F. (-58 Deg. F @ 75 PSI & FV) internal. Dimensions: 60" O.D. x 84" T/T. Serial #25, National Board #7, Year Built: 2001. Previous Service: Receiver Product Grignard, Estimated Weight #1,878#

Used 1193 gallon 316L stainless steel vertical pressure vessel, Mfg. by Alabama Heat Exchanger. Rated for 75 psi & FV @ 572 Deg. F. (-20F @ 75 psi & FV) internal. Dimensions: 60" O.D. x 85" T/T, lug mounted. Serial #AHE-697, National Board #378, Year Built: 2001. Previous Service: Receiver Distillate, Estimated Weight: 4,625#

Used 1193 gallon 316L stainless steel vertical pressure vessel, Mfg. by Alabama Heat Exchanger. Rated for 75 psi & FV @ 572 Deg. F. (-58 Deg. F @ 75 psi & FV) internal. Dimensions: 60" O.D. x 84" T/T, lug mounted. Serial # AHE-684, National Board #?, Year Built 2000. Previous Service: Receiver Distillate Grignard, Estimated Weight: 4,625#

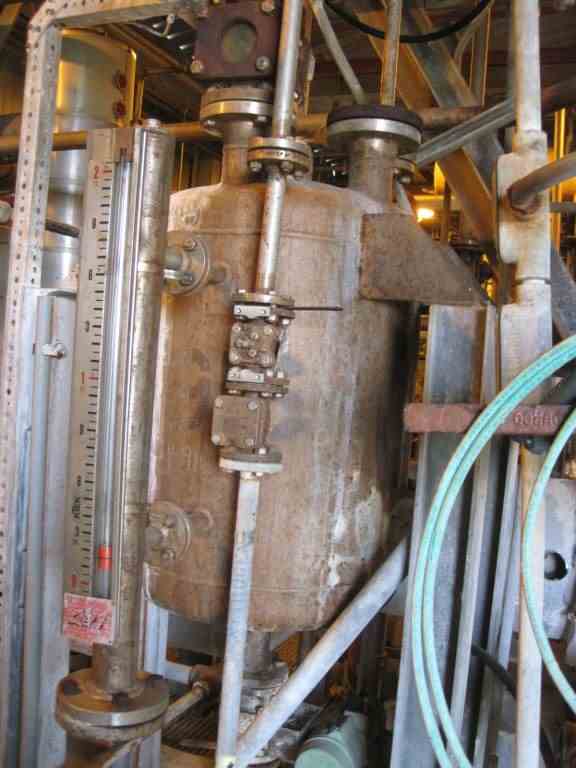

Used 59 gallon 316L stainless steel vertical pressure vessel, Mfg. by Knights Piping Inc. Rated for 100 psi & FV @ 300 Deg. F. internal. Dimensions: 24" O.D. x 30" T/T, lug mounted. Serial #KTI-70, Year Built: 1990. Previous Service: Batch Tank - Multi-purpose, Estimated Weight 217#
