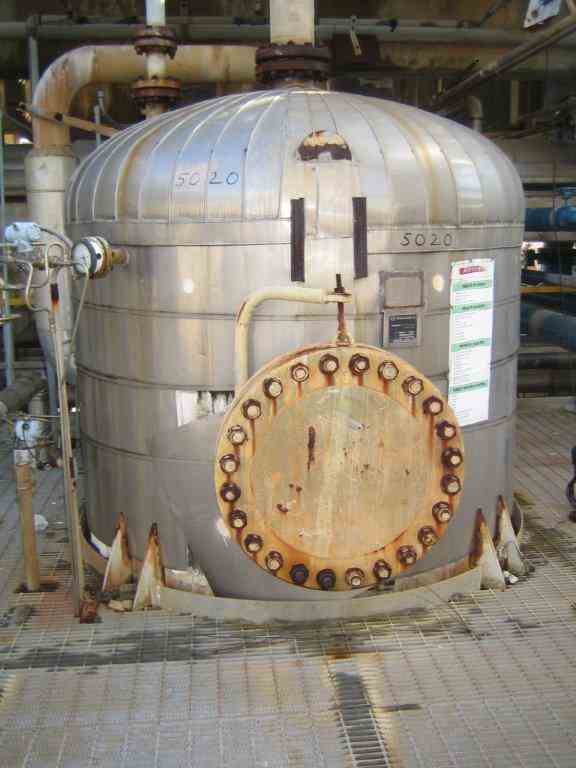

Used 4,100 Gallon vertical 304L-SS Tank. Internal Rated 50 PSI @ 200 deg F. Dished heads. 7' dia x 12' T/T (OAL - 17'). Shell thickness: 0.1875". Lug mounts. Mfg by Best Mfg Co, 1977. S/N: A-2022, NB# 1801. Previous Use: Column Feed Receiver. Approx Wt: 5,850 lbs.

Used 10 Gallon vertical 304L-SS Tank. Internal Rated 200 PSI @ 125 deg F. Dished heads. 12" dia x 18" T/T (OAL - 2'). Shell thickness: 0.25"; Mfg by Best Mfg Co, 1977, S/N: A-2094, NB# 1821. Previous Use: Break Drum. Approx Wt: 195 lbs.

Used 5115 Sq Ft Vertical SS Heat Exchanger. CS Shell rated 180/FV PSI @ 400 Deg F. 304L-SS tubes rated 180 PSI @ 400 deg. F. Shell: 49" OD x 23' 4" (OAL - 25'). (1221) 1" Tubes x 16' L. Nozzles: Shell - 10" in, 4" out: Tubes - 20" in, 30" out. Type AEL. Mfg by Killebrew Engineering, 1977, S/N: 32110, NB# Stamped. Previous use: Column Reboiler. Approx weight: 32,160 lbs.

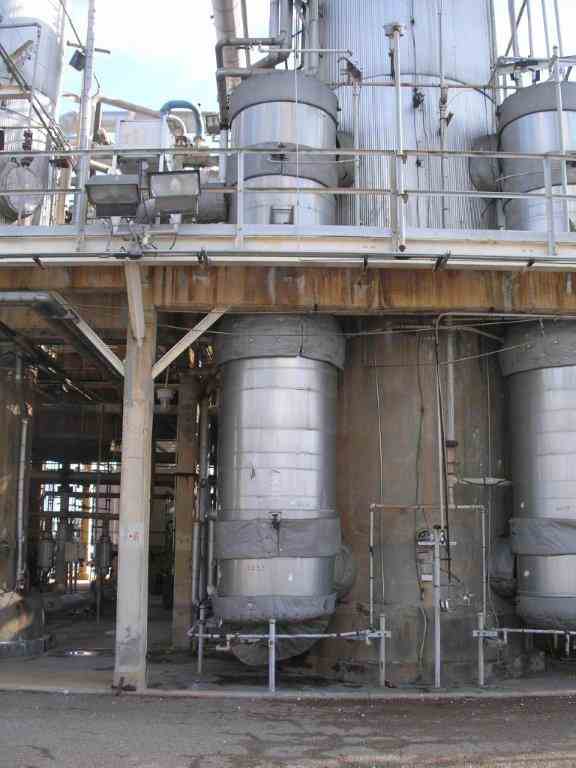

Used 5969 Sq Ft Vertical SS Heat Exchanger. CS Shell rated 75/FV PSI @ 350 Deg F. 304L-SS tubes rated 75 PSI @ 300 deg. F. Shell: 53" OD x 23' 6" (OAL - 24' 6"). (1425) 1" Tubes x 16' L. Nozzles: Shell - 12" in, 4" out: Tubes - 12" in, 4" out. Type AEL. Mfg by Killebrew Engineering, 1977, S/N: 32112, NB# 3644. Previous use: Column Reboiler. Approx weight: 33,840 lbs.

Used 1,378 Gallon vertical Carbon Steel Tank. Internal Rated 50 PSI @ 400 deg F. Dished heads. 4' dia x 14' 7" T/T (OAL - 21' 5"). 0.75". Skirt Mounted. Built by Best Mfg Co, 1977, S/N: A-2282, NB# 2213 or 2273. Previous Use: Flash Tank. Approx Wt: 5,525 lbs.

Used Stainless Steel 2x3" Close Coupled Centrifugal Pump, rated 79.26 GPM @ 1263.5' TDH (530 PSI), Mfg by Sundyne. 75 HP, 3450 RPM, 460V/3PH/60HZ TEFC Motor. S/N: 984714140. Base Mounted.

Used 11.7 Square Feet 304-SS Cartridge Filter, rated 100 PSI @150 deg F. Filter area of each element - .65 Sq Ft.Nozzles: 2" in, 2" out, 1" drain. Built 1976 by Commercial Filters (Div of Carborundum), Model #4SF6-3-2FE. NB #215. Leg mounted. 15" x 15" x 47" H. Wt: Approx 175 lbs. (Qty -2 available)

Used Steel 18x14x23 Axially Split Case Pump, rated 7500 GPM @ 175' TDH. 450 HP, 230/460V-3PH-60HZ, 1190 RPM, U.S. Electric Motor (TEFC). Drametallic Cartridge Seal, Falk Coupling. Base Mounted. Manufactured by ITT A-C, Model 9100, 1998. Drawing and Manual on file. (Qty - 3 available)

Used Steel 18x14x23 Axially Split Case Pump, rated 7500 GPM @ 175' TDH. 450 HP, 230/460V-3PH-60HZ, 1190 RPM, U.S. Electric Motor (TEFC). Drametallic Cartridge Seal, Falk Coupling. Base Mounted. Manufactured by ITT A-C, Model 9100, 1998. Drawing and Manual on file. (Qty - 3 available)

Used Steel 18x14x23 Axially Split Case Pump, rated 7500 GPM @ 175' TDH. 450 HP, 230/460V-3PH-60HZ, 1190 RPM, U.S. Electric Motor (TEFC). Drametallic Cartridge Seal, Falk Coupling. Base Mounted. Manufactured by ITT A-C, Model 9100, 1998. Drawing and Manual on file. (Qty - 3 available)

Used 594 Sq. Ft. Stainless Steel Plate & Frame Heat Exchanger, manufactured by Accu-therm, Model # AT40-F20. MAWP 100 psi @ 200°F. National Board # 12342, Serial # 622831-4, Built 1987.

Used 105.78 Sq. Ft. (Cap 6.56 US gallons ) 316 Stainless Steel (Plates) Alfa Laval Plate and Frame Heat Exchanger, Type M10-BFG. 100 PSI at 300 F. Built 1992. Serial # 67814

Used 4800 gallon 304 stainless steel tank. Manufactured by Alloy Fab. ATM @140F. Cone top, flat bottom. 5600lb. Serial #1-165A. Built 1991. Past use Toluene filtrite tank.

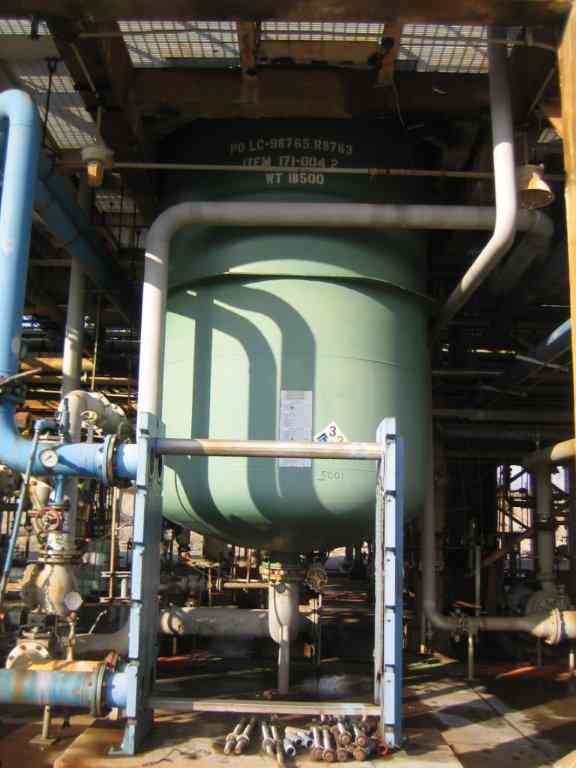

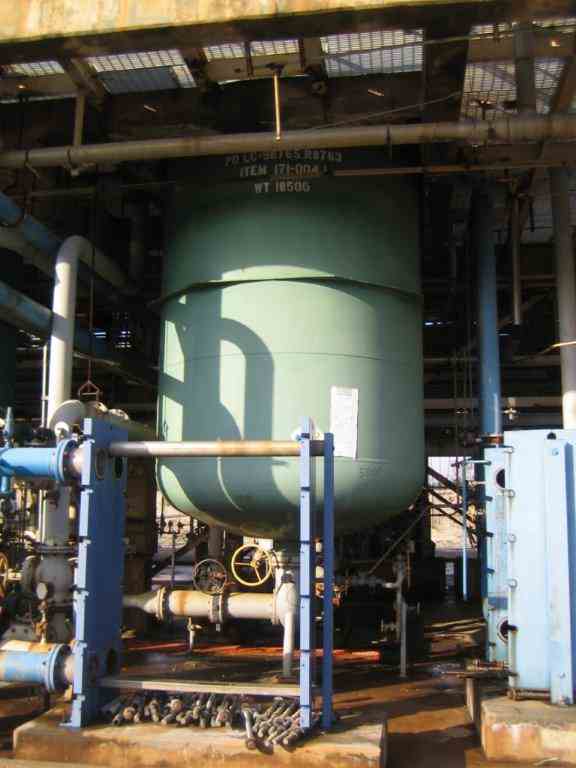

Used 11,325 Gallon vertical 304L-SS Tank. Internal Rated 75 PSI @ 225 deg F. Dished heads. 10' dia x 15' 9" T/T (OAL - 21'). Shell thickness: 0.375". Lug mounts. NB# 1016. Approx Wt: 18,500 lbs.

Used 11,325 Gallon vertical 304L-SS Tank. Internal Rated 75 PSI @ 225 deg F. Dished heads. 10' dia x 15' 9" T/T (OAL - 21'). Shell thickness: 0.375". Lug mounts. Built by Ohmstede, Inc, 1994. S/N: 348102-B. NB# 1017. Approx Wt: 18,500 lbs.

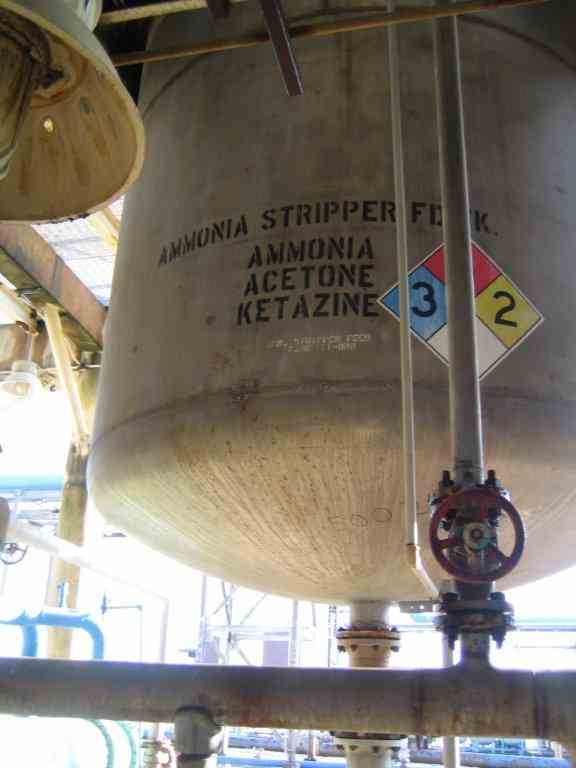

Used 8,950 Gallon vertical 304L-SS Tank. Internal Rated 55 PSI @ 225 deg F. Dished heads. 10' dia x 13' 9" T/T (OAL - 18'). Shell thickness: 0.25". Lug mounts. NB# 1809. Previous Use: Ammonia Stripper Feed Tank. Approx Wt: 11,650 lbs.

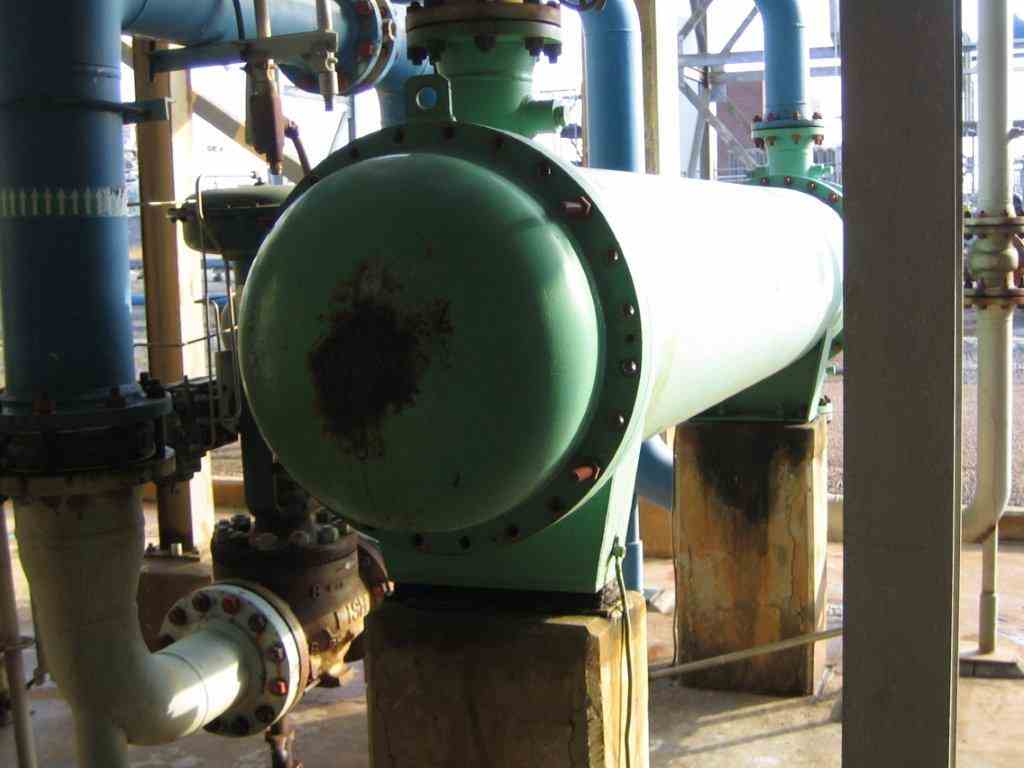

Used 906 Sq Ft Horizontal SS Tube Heat Exchanger. CS Shell rated 151 PSI/FV @ 300 Deg F. 304L-SS tubes rated 151 PSI/FV @ 200 deg. F. Shell: 24" OD x 9' 8.5" L (OAL - 12' 9"). (462) 3/4" dia tubes X 10' L. Nozzles: Shell - (2) 6", Tubes - (2) 6". Built by Beaumont Machine Works, 1999, S/N: N0979, NB# 362. Saddle Mounts. Previous use: Ketazine Feeed Tank Cooler. U-1 & Drawing on file.

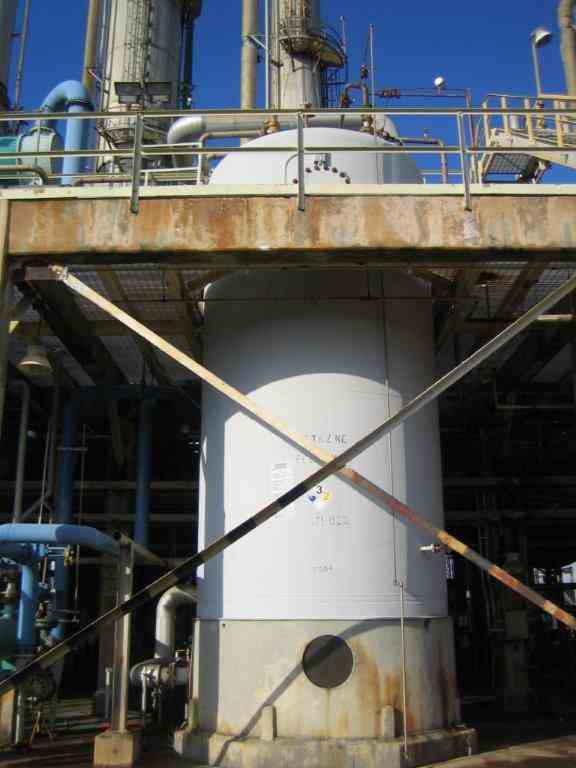

Used 15,700 Gallon vertical 304L-SS Tank. Internal Rated 50 PSI @ 225 deg F. Dished heads. 11' dia x 20' T/T (OAL - 27'). Shell thickness: 0.25", Head thickness: 0.375". Skirt mounted. Built by James Machine Works, 1996, S/N: 6673, NB# 2317. Approx Wt: 20,000 lbs. Previous use: Ketazine Col. Feed Tank. Drawing & U-1 on file.

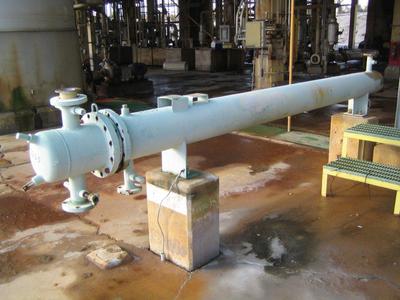

Used 72 Sq Ft Horizontal SS U-Tube Heat Exchanger. CS Shell rated 150 PSI @ 200 Deg F. 304L-SS tubes rated 200 PSI @ 200 deg. F. Shell: 10.75" OD x 12' 8" L (OAL - 14'). (12-U's) 1" dia tubes X 11' 7" L. Passes: Shell- 1, Tubes - 2. Nozzles: Shell - (2) 2", Tubes - (2) 3". Built by Killebrew Engineering, 1977, S/N: 32126, NB# 3622. Type BEU. Saddle Mounts. Previous use: Trim Cooler. Approx weight: 1050 lbs.

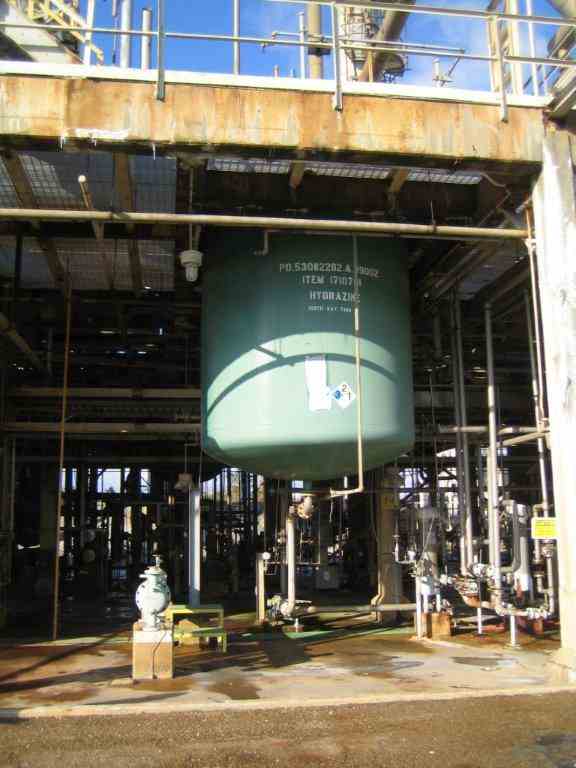

Used 8,750 Gallon vertical 304L-SS Tank. Internal Rated 50 PSI @ 225 deg F. Dished heads. 10' dia x 13' 9" T/T (OAL - 18'). Shell thickness: 0.25". Lug mounts. NB Stamped. Built by Dixie Steel & Supply, S/N: 3958E. Previous Use: Product Receiver Tank. Approx Wt: 11,600 lbs.

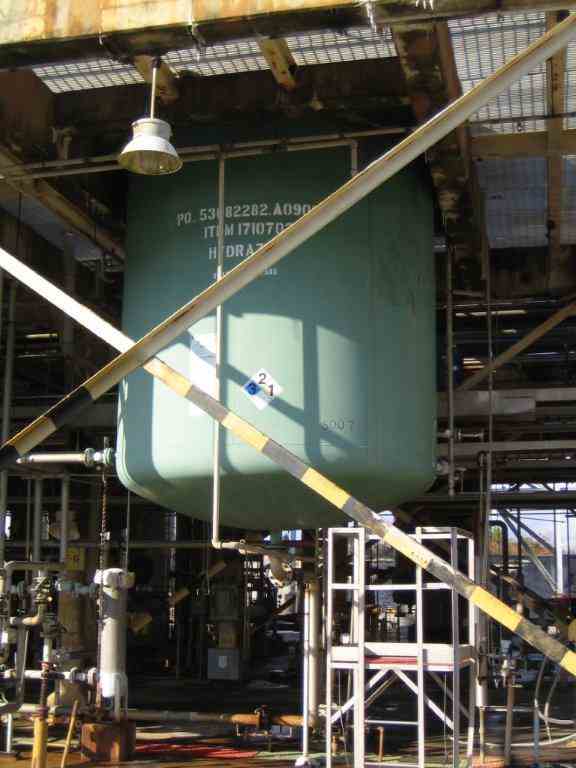

Used 8,750 Gallon vertical 304L-SS Tank. Internal Rated 50 PSI @ 225 deg F. Dished heads. 10' dia x 13' 9" T/T (OAL - 18'). Shell thickness: 0.25". Lug mounts. NB Stamped. Built by Dixie Steel & Supply, S/N: 3958H. Previous Use: Product Receiver Tank. Approx Wt: 11,600 lbs.

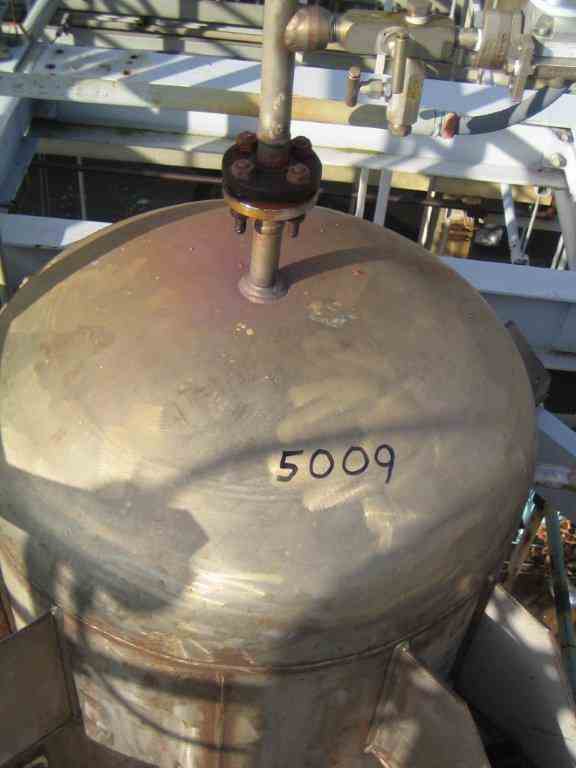

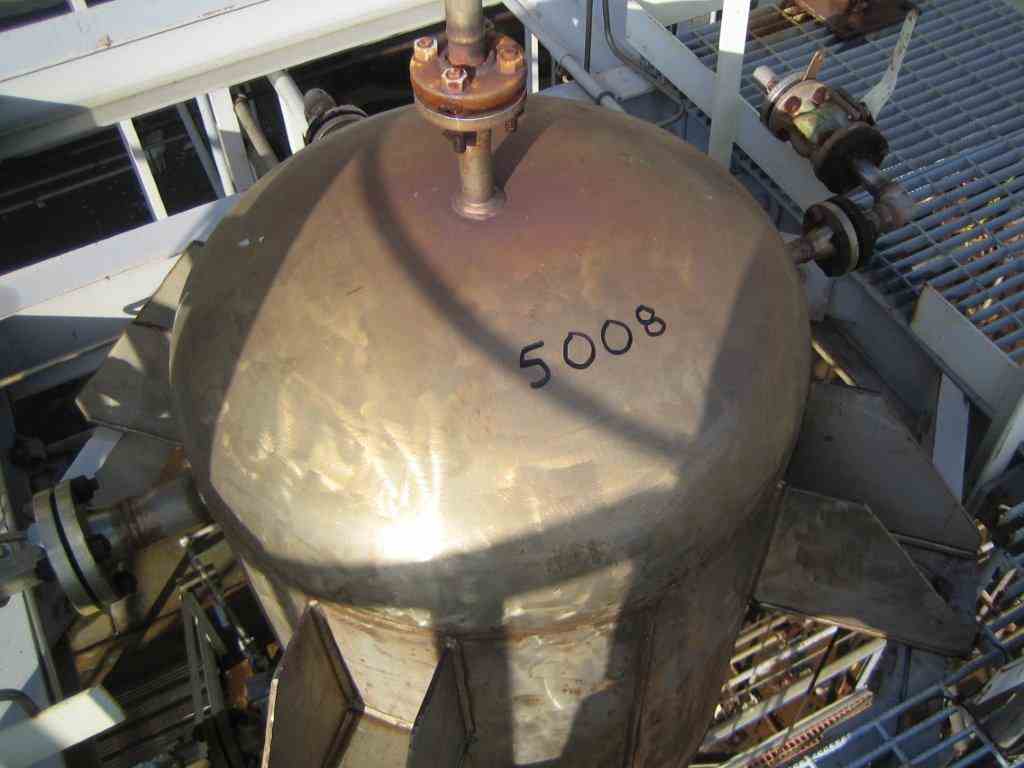

Used Approx. 100 Gallon vertical 304L-SS Tank. Internal Rated 15 PSI @ 150 deg F. Dished heads. 30" dia x 36" T/T (OAL - 5'). Shell thickness: 0.25". Lug mounts. Previous Use: Low TOC Gas Separator.

Used Approx. 100 Gallon vertical 304L-SS Tank. Internal Rated 15 PSI @ 150 deg F. Dished heads. 30" dia x 36" T/T (OAL - 5'). Shell thickness: 0.25". Lug mounts. Previous Use: Low TOC Gas Separator.

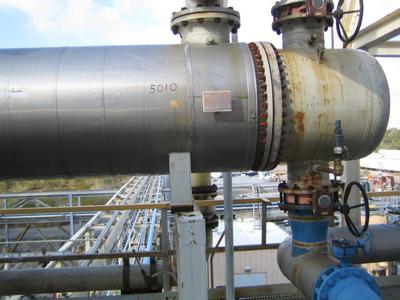

Used 1376 Sq Ft Horizontal SS Heat Exchanger. 304L-SS Shell rated 75 PSI @ 280 Deg F. 304L-SS tubes rated 75 PSI @ 160 deg. F. Shell: 34" OD x 14' (16' 4" OAL). (594) 3/4" Tubes x 12'L. Built by Ohmstede, 1995, S/N: 548365, NB# 1266. Saddle Mounts. Previous use: Secondary Condenser. Approx weight: 7750 lbs.

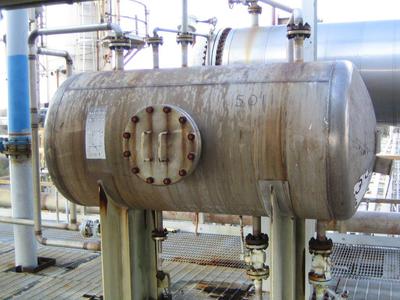

Used 540 Gallon Horizontal 304L-SS Tank. Internal rated 15 PSI @ 300 Deg F. (Dished Heads. 42" dia x 6' 6" T/T (7' 9" OAL). Thickness: 0.1875". Built by St. Mary Iron Works, 1986, S/N: 86-103-8659, NB# 53. Saddle mounted. Previous use: Separator Waste. Weight: Approx 2000 lbs.

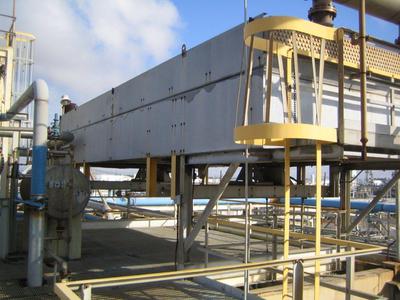

Used 3909 Square Feet (Bare) / 83336 Square Feet (Extended) Fin Fan Heat Exchanger, rated 75PSI @ 300 deg F. (394) 1" 304L-SS tubes x 38' L. Cabinet Dims: 38' L x 14' W x 12' 11" H. (2) 30 HP, 460/3/60, 1800 RPM, TEFC Fan Motors, 26,3 MBTU/HR, Mfg by ESSEX, 1976, S/N:76A480-A1. Previous Use: Primary Column Condenser. Weight: 36,400 lbs. Drawing on file.

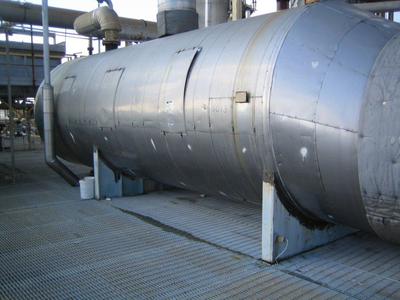

Used 13,397 Sq Ft Horizontal Stainless Steel U-Tube Heat Exchanger. Carbon Steel Shell rated 50 PSI @ 200 Deg F. 304L-SS tubes rated 75 PSI @ 300 deg. F. Shell: 96" OD x 30' 8" L (OAL - 33' 9.5"). (1279) 1" dia tubes X 20' L. 4 Pass Tubes. Nozzles: Shell - 12" in, 16" out, Tubes - 20" in, 8" out. Built by Miller Exchangers, 1977, S/N: J-393-1, NB# 106. Type AKU. Saddle Mounts. Previous use: Column Condenser. Approx weight: 95,000 lbs.

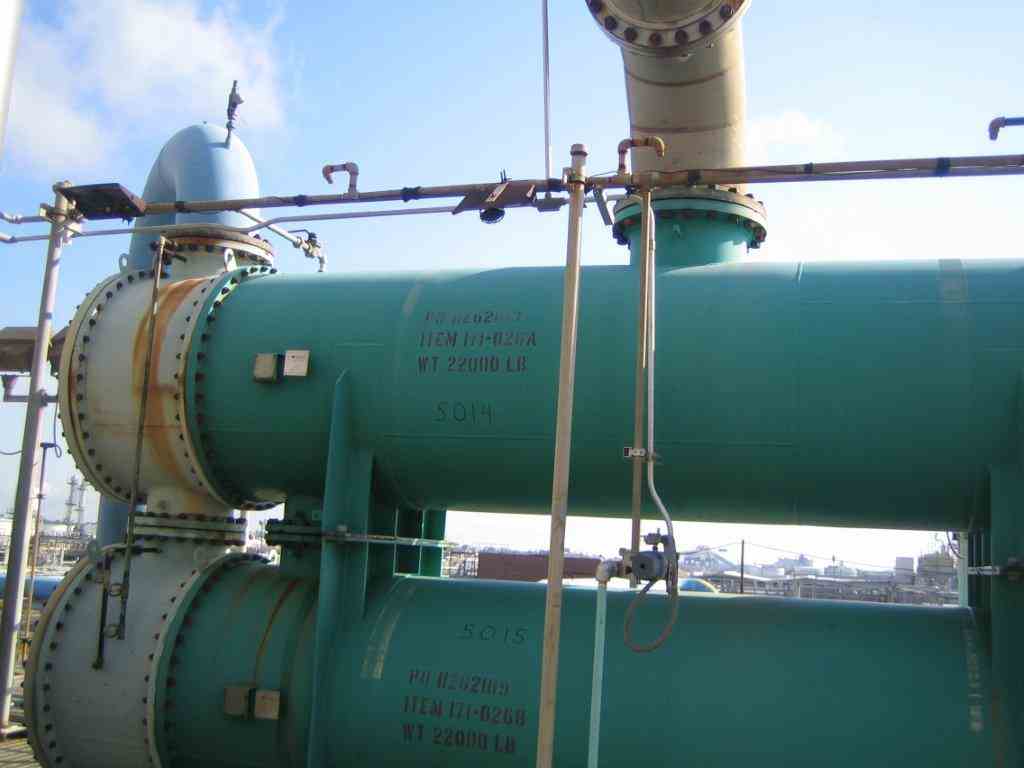

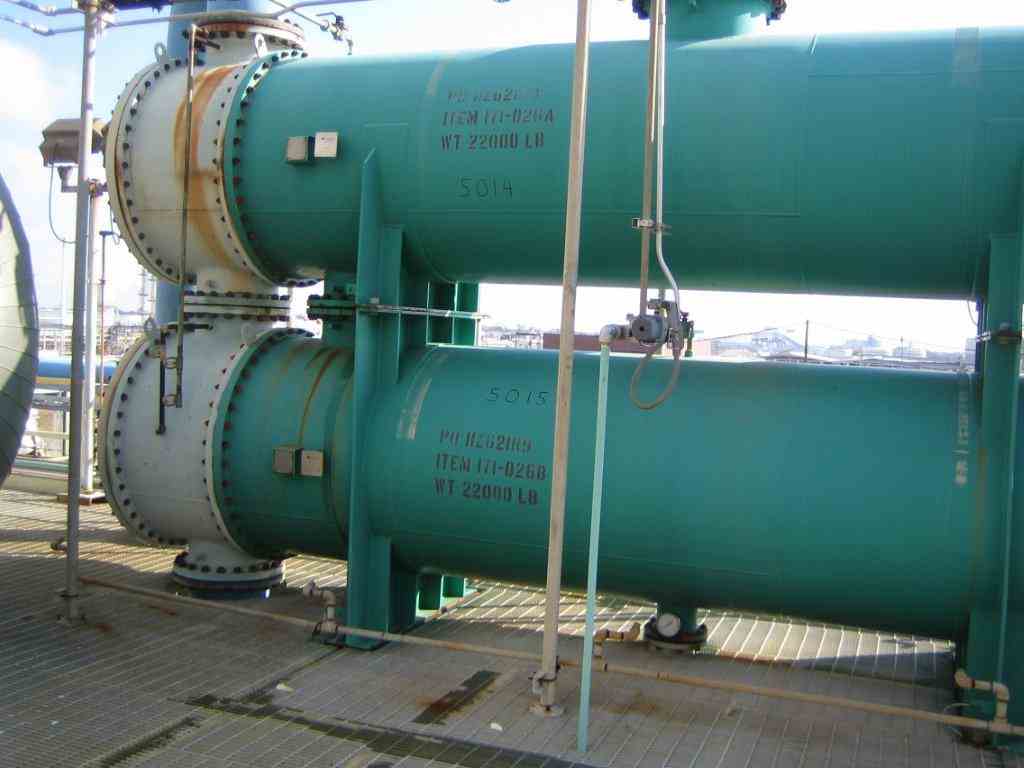

Used 4830 Sq Ft Horizontal SS Heat Exchanger. 304L-SS Shell rated 75 PSI @ 250 Deg F. 304L-SS tubes rated 75 PSI @ 250 deg. F. Shell: 52" OD x 16' (OAL - 20' 6"). (1153) 1" dia tubes X 16' L. Passes: Shell - 1, Tubes - 2. Nozzles: Shell - 24", 16" in; 16" out, Tubes - (2) 20". Built by Killebrew Engineering, 1977, S/N: 32113, NB# 3632. Type AJM. Previous use: Column Condenser. Approx weight: 27,700 lbs.

Used 4830 Sq Ft Horizontal SS Heat Exchanger. 304L-SS Shell rated 75 PSI @ 250 Deg F. 304L-SS tubes rated 75 PSI @ 250 deg. F. Shell: 52" OD x 16' (OAL - 20' 6"). (1153) 1" dia tubes X 16' L. Passes: Shell - 1, Tubes - 2. Nozzles: Shell - 24", 16" in; 16" out, Tubes - (2) 20". Built by Killebrew Engineering, 1977, S/N: 32114, NB# 3633 Type AJM. Previous use: Column Condenser. Approx weight: 27,700 lbs.

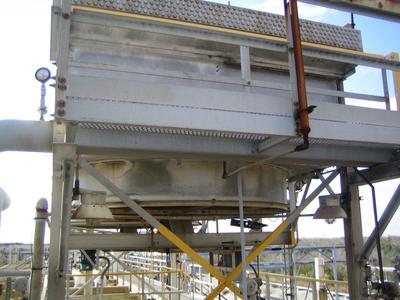

Used 2038 Sq Ft Fin Fan Heat Exchanger, rated 150 PSI @ 300 deg F. Cabinet Dims: 28' L x 11.5' W x 15' 3" H. (2) 20 HP, 460/3/60, 1800 RPM, TEFC Fan Motors, 9.486 MBTU/HR, Mfg by Marley, 1976, S/N:11-129-76-1-01. Previous Use: Ammonia Stripper Condenser. Weight: 29,800 lbs. Drawing on file.

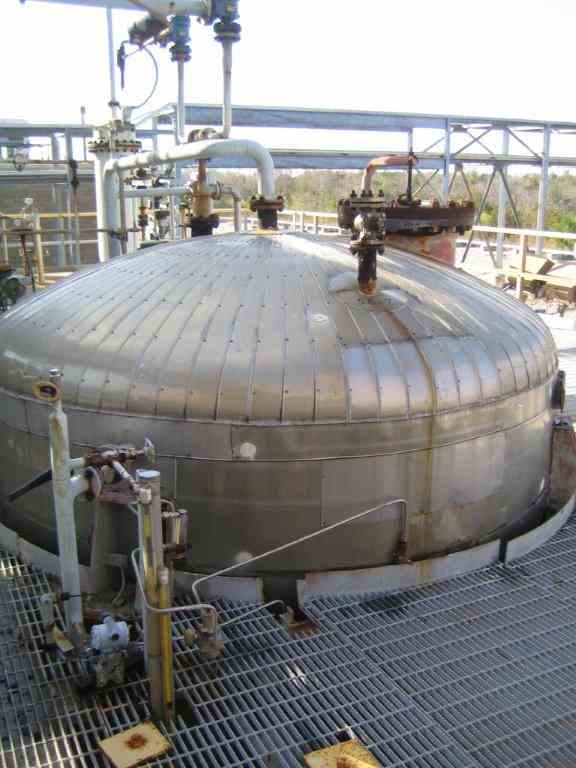

Used 8,700 Gallon vertical Carbon Steel Tank. Internal Rated 102 PSI @ 225 deg F. Dished heads. 10' dia x 13' T/T (OAL - 18'). Shell thickness: 0.5"; Heads: 0.875. Lug mounts. Mfg by Mississippi Tank Co, 1977, S/N: 79846, NB# 7001. Previous Use: Aqua Ammonia Tank. Approx Wt: 11,500 lbs.

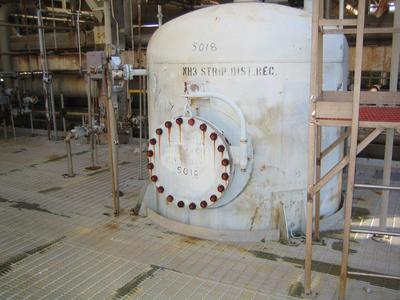

Used 4,100 Gallon vertical Carbon Steel Tank. Internal Rated 175 PSI @ 250 deg F. Dished heads. 7' dia x 12' T/T (OAL - 17'). Shell thickness: 0.5". Lug mounts. NB# 1800. Previous Use: Stripper Distillate Receiver. Approx Wt: 10,250 lbs.

Used 4,100 Gallon vertical 304L-SS Tank. Internal Rated 202 PSI @ 400 deg F. Dished heads. 7' dia x 12' T/T (OAL - 17'). Shell thickness: 0.75"; Heads: 0.75". Lug mounts. Mfg by Best Mfg Co, 1977, S/N: A-2024, NB# 1803. Previous Use: Concentration Column Receiver. Approx Wt: 15,225 lbs.

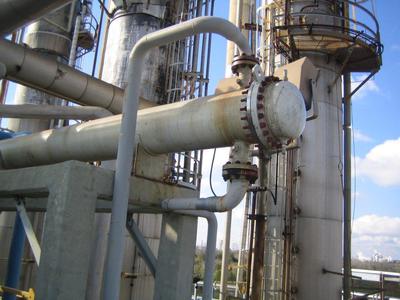

Used 730 Sq Ft Horizontal 304L-SS Heat Exchanger. 304L-SS Shell rated 225 PSI @ 300 Deg F. 304L-SS tubes rated 150 PSI @ 150 deg. F. Shell: 16" OD x 24' L (OAL - 27' 6"). (187) 3/4" dia tubes X 24' L. 1 Pass Shell, 1 Pass Tubes. Nozzles: Shell - (2) 10", Tubes -8" in, 3", 4" out. Built by Ohmstede Inc., 1996, S/N: 648548, NB# 1519. Type BEM. Previous use: Condenser. Approx weight: 4,500 lbs.

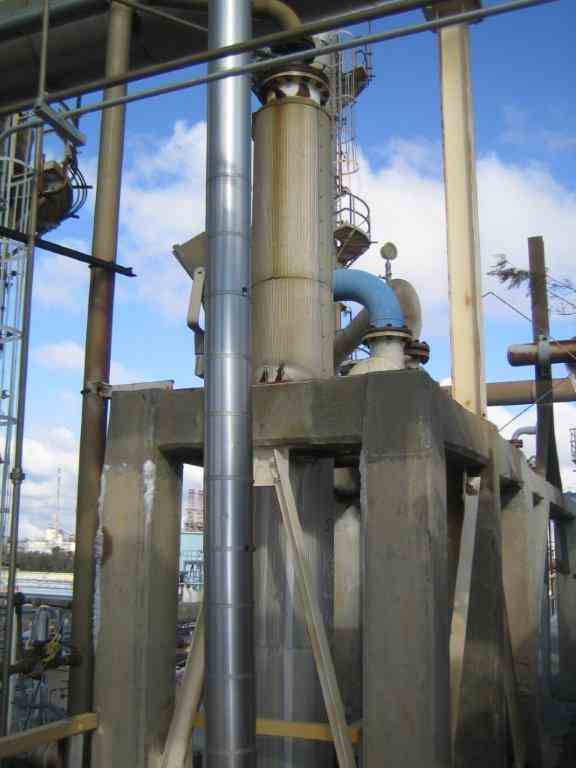

Used 201 Sq Ft Vertical SS Heat Exchanger. CS Shell rated 150 PSI/FV @ 200 Deg F. 304L-SS tubes rated 150 PSI @ 250 deg. F. Shell: 10.75" OD x 16' (18' 4" OAL). (48) 1" Tubes x 16'L. 1 Pass shell, 1 pass tubes. Nozzles: Shell - (2) 2"; Tubes - 4" in, 1.5" out. Type: BEM. NB Stamped. Lug Mounts. Previous use: Column Vent Condenser. Approx weight: 1550 lbs.

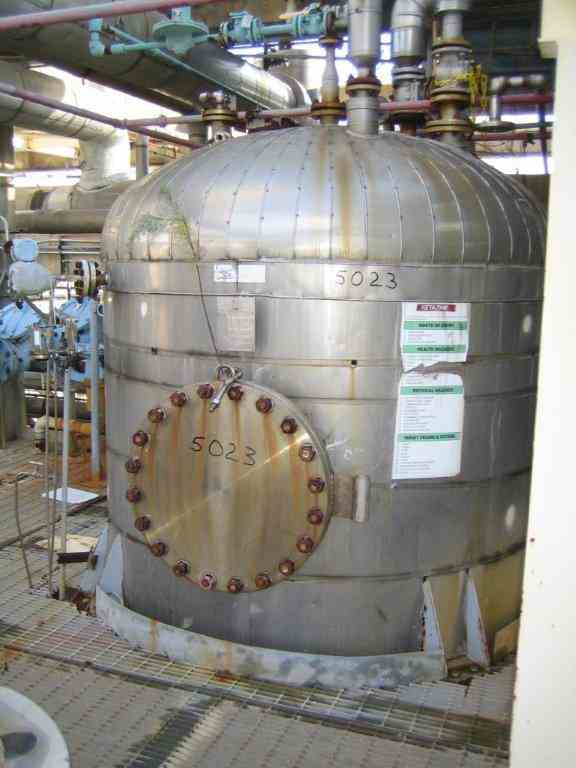

Used 4,800 Gallon vertical 304L-SS Tank. Internal Rated 50 PSI @ 250 deg F. Dished heads. 7 dia x 14' T/T (OAL - 18'). Shell thickness: 0.25"; Lug mounts. Mfg by Custom Metal, 1995, S/N: CM45909, NB# 52. Previous Use: Column Receiver. Approx Wt: 6,000 lbs.

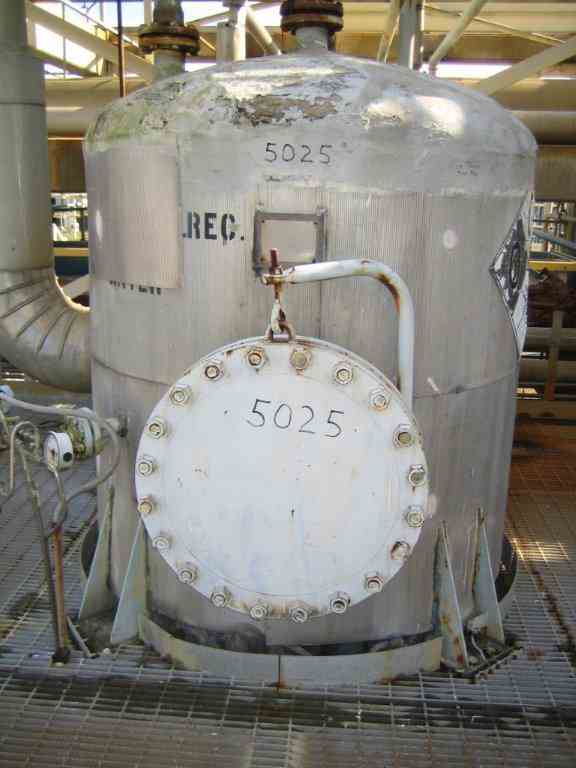

Used 1,900 Gallon vertical 304L-SS Tank. Internal Rated 50 PSI @ 300 deg F. Dished heads. 5' dia x 12' T/T (OAL - 15'). Shell thickness: 0.1875"; Heads: 0.25". Skirt mount. Mfg by Best Mfg Co, 1977, S/N: A-2036, NB# 1813. Previous Use: Distillate Receiver. Approx Wt: 15,225 lbs.

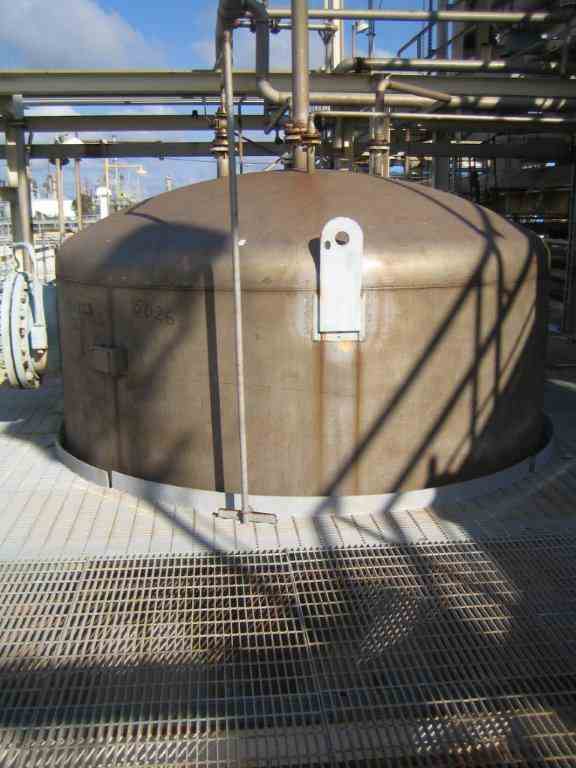

Used 13,600 Gallon vertical 304L-SS Tank. Internal Rated 15 PSI @ 304 deg F. Dished heads. 11' dia x 17' T/T (OAL - 25'). Shell thickness: 0.25". Mfg by Best Mfg Co, 1977, S/N: A-2034, U-Stamp. Previous Use: Distillate Receiver. Approx Wt: 17,950 lbs.

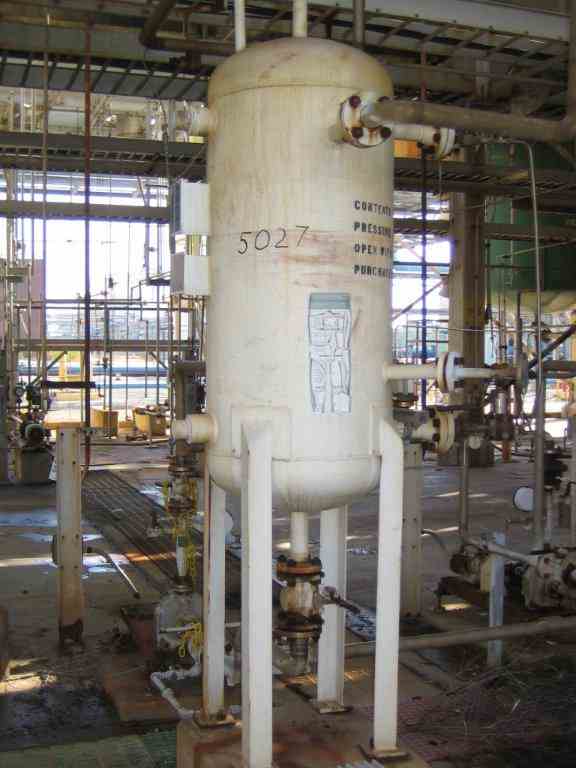

Used 105 Gallon vertical 304L-SS Tank. Internal Rated 200 PSI @ 300 deg F. Dished heads. 24" dia x 4' T/T (OAL - 7'). Shell thickness: 0.25". Mfg by Ohmstede Inc., 1997, S/N: 748659, NB# 1700. Previous Use: Brine Receiver. Approx Wt: 700 lbs.

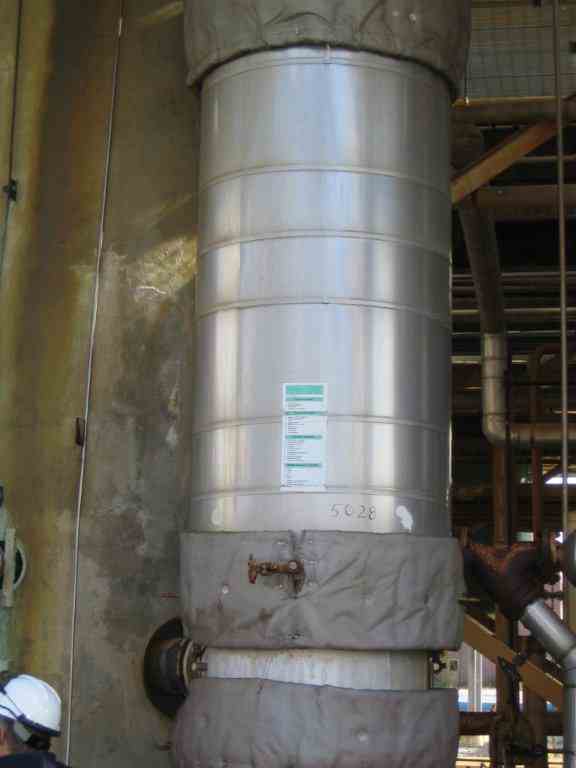

Used 1642 Sq Ft Vertical SS Heat Exchanger. CS Shell rated 175/FV PSI @ 400 Deg F. 304L-SS tubes rated 180 PSI @ 350 deg. F. Shell: 30" OD x 20' (22' 6" OAL). (392) 1" Tubes x 16' L. Nozzles: Shell - 10" in, 4" out: Tubes - 8" in, 24" out. Type AEL. Mfg by Killebrew Engineering, 1977, S/N: 32122, NB# 3621. Previous use: Column Reboiler. Approx weight: 12680 lbs.

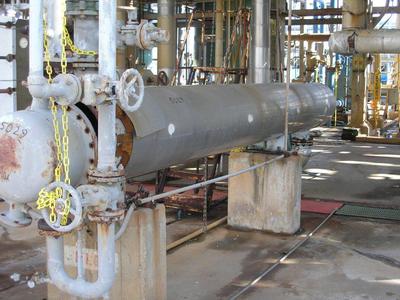

Used 490 Sq Ft Horizontal CS U-Tube Heat Exchanger. CS Shell rated 150 PSI @ 200 Deg F. CS tubes rated 150 PSI @ 200 deg. F. Shell: 20" OD x 17' L (OAL - 17' 6"). (57-U's) 1" dia tubes X 16' L. Passes: Shell- 1, Tubes - 4. Nozzles: Shell - (2) 6", Tubes - (2) 3". Built by Killebrew Engineering, 1977, S/N: 32125, NB# 3615. Type BEU. Saddle Mounts. Previous use: Ammonia Cooler. Approx weight: 4285 lbs.

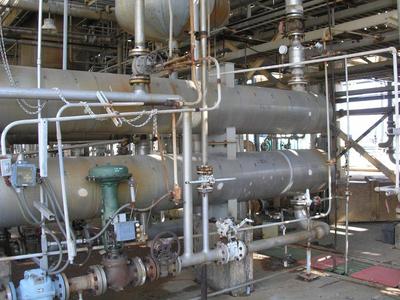

Used 854 Sq Ft Horizontal SS U-Tube Heat Exchanger. 304L-SS Shell rated 200 PSI @ 300 Deg F. 304L-SS tubes rated 180 PSI @ 400 deg. F. Shell: 18" OD x 17' L (OAL - 18' 8"). (100-U's) 1" dia tubes X 16' L. Passes: Shell- 1, Tubes - 4. Nozzles: Shell - (2) 6", Tubes - (2) 4". Built by Killebrew Engineering, 1977, S/N: 32115, NB# 3616. Type BEU. Previous use: Ammonia Cooler. Approx weight: 7120 lbs.

Used 854 Sq Ft Horizontal SS U-Tube Heat Exchanger. 304L-SS Shell rated 200 PSI @ 300 Deg F. 304L-SS tubes rated 180 PSI @ 400 deg. F. Shell: 18" OD x 17' L (OAL - 18' 8"). (100-U's) 1" dia tubes X 16' L. Passes: Shell- 1, Tubes - 4. Nozzles: Shell - (2) 6", Tubes - (2) 4". Built by Killebrew Engineering, 1977, S/N: 32116, NB# 3617. Type BEU. Previous use: Ammonia Cooler. Approx weight: 7120 lbs.

Used 5969 Sq. Ft. Vertical SS Heat Exchanger. CS Shell rated 75/FV PSI @ 350 Deg F. 304L-SS tubes rated 75 PSI @ 300 deg. F. Shell: 53" OD x 23' 6" (OAL - 24' 6"). (1425) 1" Tubes x 16' L. Nozzles: Shell - 12" in, 4" out: Tubes - 12" in, 4" out. Type AEL. Mfg by Killebrew Engineering, 1977, S/N: 32111, NB# 3643. Previous use: Column Reboiler. Approx weight: 33,840 lbs.

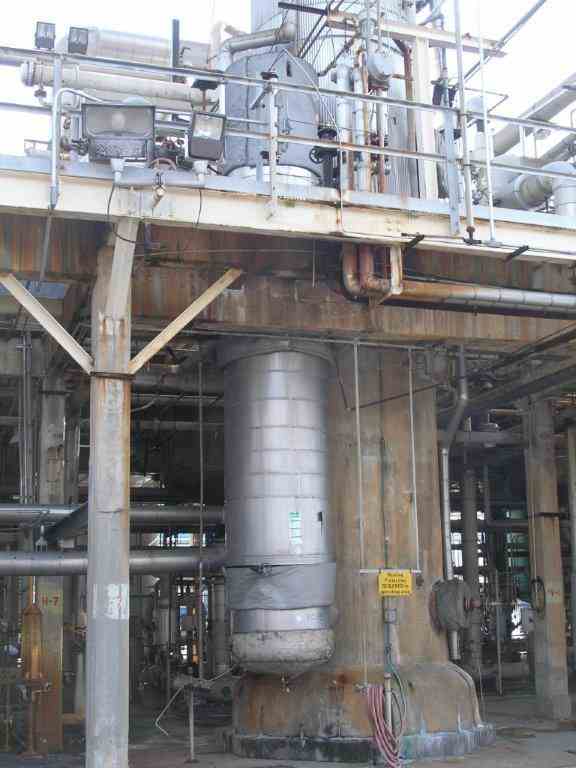

Used 2358 Sq Ft Vertical SS Heat Exchanger. CS Shell rated 500 & 15 Ext/FV PSI @ 550 Deg F. 304L-SS tubes rated 200 PSI @ 450 deg. F. Shell: 37.5" OD x 22' 8" (OAL - 23' 2"). (563) 1" Tubes x 16' L. Nozzles: Shell - 8" in, 4" out: Tubes - 12" in, 20" out. Type AEL. Mfg by Miller Exchangers, 1977, S/N: J-393-2, NB# 107. Previous use: Column Reboiler. Approx weight: 22,100 lbs.

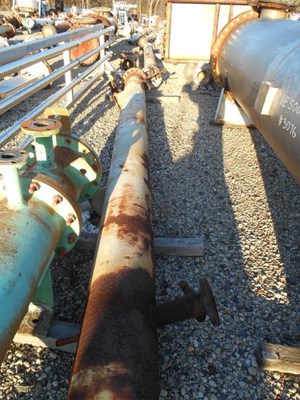

Used 204 Sq Ft Horizontal SS U-Tube Heat Exchanger. CS Shell rated 175 PSI @ 400 Deg F. 304L-SS tubes rated 300 PSI @ 400 deg. F. Shell: 12.75" OD x 17' 2" (OAL - 18' 2"). (24 U's) 1" Tubes x 15' 5" L. Passes: Shell - 1, Tubes - 6. Nozzles: Shell - 3" in, 2" out: Tubes - (2) 2". Type BEU. Mfg by Killebrew Engineering, 1977, S/N: 32120, NB# 3619. Mounting Feet. Previous use: Column Preheater. Approx weight: 1,870 lbs.

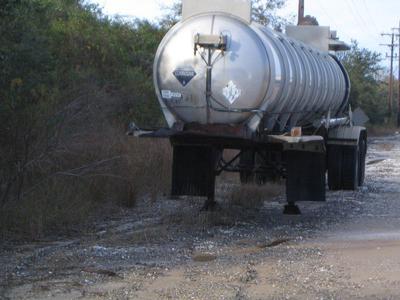

Used Stainless Steel Liquid Tanker Trailer, approximately 3,750 gallons, built by Fruehauf Corp, 1972, S/N: UNP433701. Mat'l: SA-240-304L-SS. Approx 32' Long x 59" Radius. Max W.P: 35 PSI @ 100 deg F. Shell Thickness: Top - .138", Heads & Bottom - .167". NB #39.

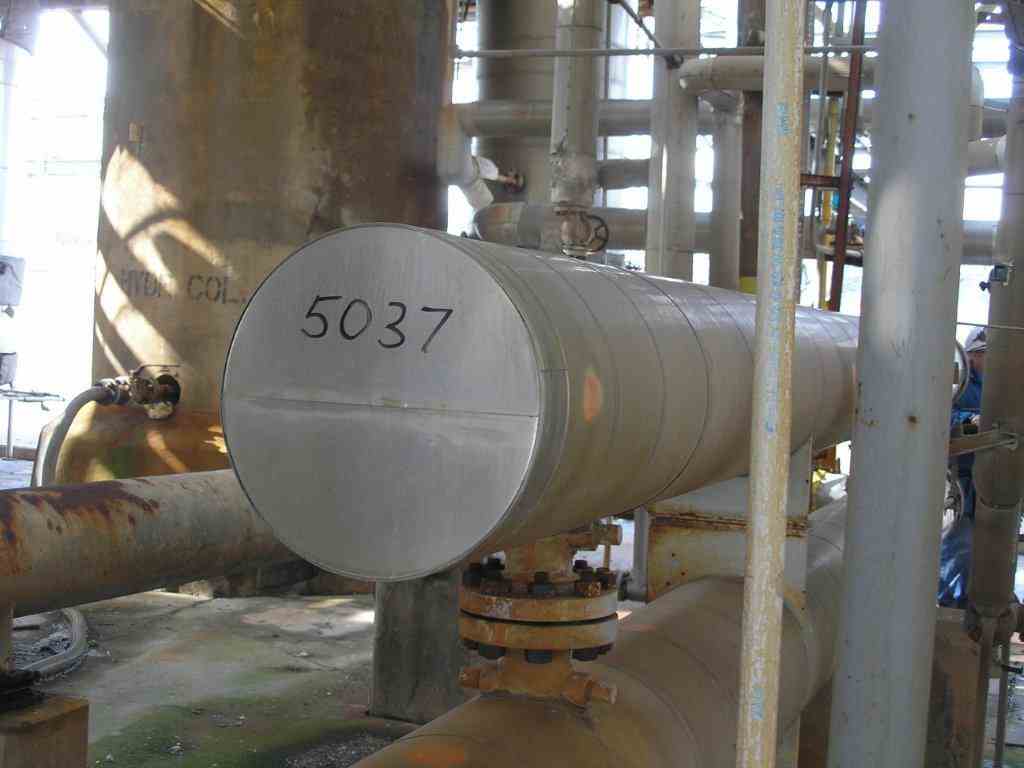

Used 131.9 Sq Ft Horizontal SS U-Tube Heat Exchanger. 304L-SS Shell rated 300 PSI @ 450 Deg F. 304L-SS tubes rated 300 PSI @ 450 deg. F. Shell: 10.75" OD x 17' (OAL - 17' 9"). (16 U's) 1" Tubes x 16' L. Nozzles: Shell - (2) 3": Tubes - (2) 2". Passes: Shell - 1; Tubes - 8. Type BEU. Mfg by Killebrew Engineering, 1977, S/N: 32118, NB# 3658. Previous use: Column Interchangerer. Approx weight: 1,400 lbs.

Used 131.9 Sq Ft Horizontal SS U-Tube Heat Exchanger. 304L-SS Shell rated 300 PSI @ 450 Deg F. 304L-SS tubes rated 300 PSI @ 450 deg. F. Shell: 10.75" OD x 17' (OAL - 17' 9"). (16 U's) 1" Tubes x 16' L. Nozzles: Shell - (2) 3": Tubes - (2) 2". Passes: Shell - 1; Tubes - 8. Type BEU. Mfg by Killebrew Engineering, 1977, S/N: 32119, NB# 3659. Previous use: Column Interchangerer. Approx weight: 1,400 lbs.

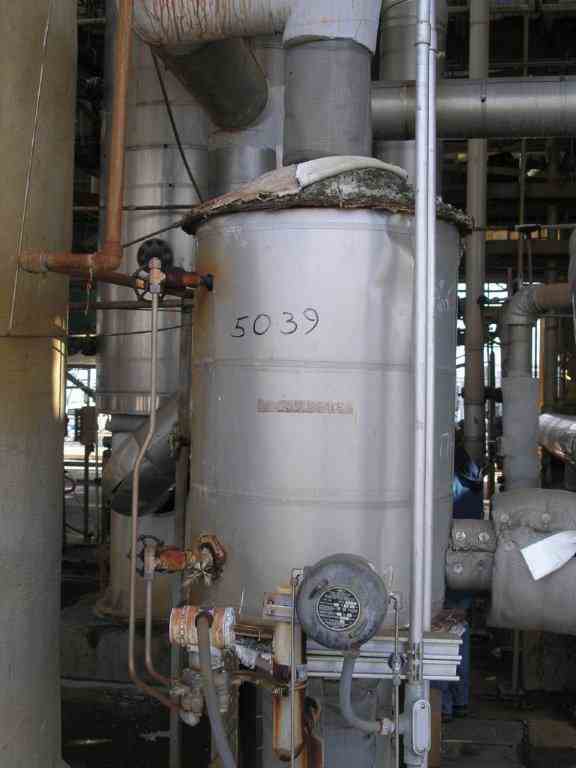

Used 40 Gallon vertical CS Tank. Internal Rated 775 PSI @ 550 deg F. Dished heads. 6' dia x 6" T/T (OAL - 7'). Shell thickness: 0.75". Previous Use: Break Drum. Approx Wt: 195 lbs.
