Lube Oil (MEK & Furfural) Plant Liquidation

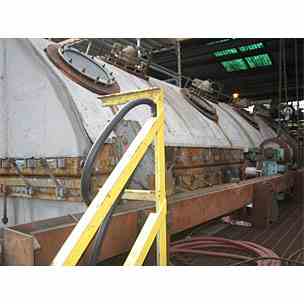

The Lube Oil plant consists of an MEK and Furfural plant and includes the following equipment: (1) 13,686 CFM Elliot, Model #38M7-61, Centrifugal Compressor; (1) 10,526 CFM Elliot, Model #38M6-5, Centrifugal Compressor; (7) 1000 Sq. Ft. Eimco Rotary Vaccum Filters; (18) 1,400 Sq. Ft. Richard M. Armstrong Scraped Surface Heat Exchangers; Dozens of Shell & Tube Exchangers, ranging from 500 Sq. Ft up to 7,000 Sq. Ft.

Location: Kentucky, USA
|
Lube Oil (MEK & Furfural) Plant Liquidation Featured Item(s):
21 Results
Show:
Sort:
View:
Methyl Ethyl Ketone (MEK) Plant - 11,000 BPD
Stock # 243
Capacity 11,000 BPD

Used 11,000 BPD Methyl Ethyl Ketone (MEK) Plant built in 1977. Designed by Foster Wheeler. From a refinery in the US. The MEK dewaxing unit is a part of a lube oil complex to produce lube feed stock. The unit is a crystallization process that takes its charge from G-oil dehydrator bottoms. Its purpose is to remove high pour point material (wax) from the lube base stocks (waxy distillate). The oil is separated from the solvent by flash distillation and a final stripper using nitrogen supplied by the compressor in the waxy distillate recovery section. The wax is separated from the solvent by flash distillation and a final stripper using nitrogen supplied by the compressor in the slack wax recovery sections. The original process was designed by TEXCO. The plant was upgraded in 1989.

View details

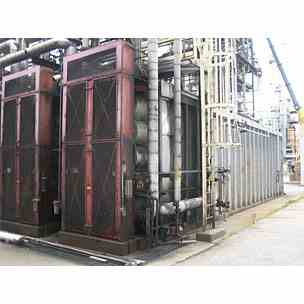

1400 Sq Ft Richard M. Armstrong Company Scraped Surface Heat..
Stock # 4406
Capacity 1400

1,400 Square Feet (0.77 MM BTU/HR) Richard M. Armstrong Company Scraped Surface Heat Exchanger. Shell (Material SA-516-70) rated 260 psi @ 24°F/39°F (In/Out). Unit consists of (10) double pipes shell consisting of (2) rows side by side x (5) rows high, 1'2" ID x 42' long, supported on common framework, inner connected with nozzles. Tubes (Material SA-106 Gr. B) rated 400 psi @ 170°F/65°F (In/Out). Overall dimensions 6'W x 46'7" x 13'6"H, Approximate weight 65,000 #. Serial # A-8733149A, National Board # 8902, Built 1988 (Qty. 18 similar units).

View details
314 Sq Ft Manning & Lewis Carbon Steel Shell & Tube Heat Exc..
Stock # 4426
Capacity 314

Used 314 Sq Ft. Carbon Steel, U-Tube Heat Exchanger. Mfg by Manning & Lewis, 1975.(Modified 2002) Carbon steel Shell (SA-53-B) rated 150 PSI @ 500 deg F; Carbon Steel Tubes (SA-214) rated 300 PSI @ 650 deg F. Carbon Steel Heads (SA-515-70). Shell - 1'4" dia. x 11'4"; (80) Tubes - .75" dia. Flanged Nozzles: (2) 8", (1) 6", (2) 1-1/2", (6) 1". S/N: 7964, NB# 4148.

View details
1684 Sq Ft Manning & Lewis Carbon Steel Shell & Tube Heat Ex..
Stock # 4427
Capacity 1684

Used 1684 Sq Ft. Carbon Steel, U-Tube Heat Exchanger. Mfg by Manning & Lewis, 1975. Carbon steel Shell (SA-53-B) rated 300 PSI @ 650 deg F; Carbon Steel Tubes (SA-214) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-515-70). Shell - 2' dia. x 22'4"; (209) Tubes - .75" dia. Flanged Nozzles: (4) 8", (2) 6", (6) 1". S/N: 7958, NB# 4142.

View details
2251 Sq Ft Old Dominion Fabricators Carbon Steel Shell & Tub..
Stock # 4428
Capacity 2251

Used 2251 Sq Ft. Carbon Steel, U-Tube Heat Exchanger. Mfg by Old Dominion, 1976. Carbon steel Shell (SA-516) rated 300 PSI/FV @ 650 deg F; Carbon Steel Tubes (SA-214) rated 300 PSI @ 650 deg F. Carbon Steel Heads (SA-516). Shell - 4'5" dia. x 25' 6"; (284) Tubes - .75" dia. Flanged Nozzles: (1) 8", (2) 6", (1) 4", (5) 1-1/2"”. S/N: 75-103, NB# 26802.

View details

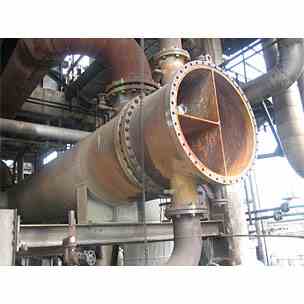

3139 Sq Ft Heat Transfer Equipment Co Stainless Steel Shell ..
Stock # 4405
Capacity 3139

Used 3139 Sq Ft. U-Tube Heat Exchanger. Mfg by Heat Transfer Equip Co, 1988. Carbon steel Shell (SA-516) rated 150 PSI @ 500 deg F; Stainless Steel Tubes (SA-249-TP304) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-516). Shell - 3' dia. x 24' L ; (385) Tubes - .75" dia. Flanged Nozzles: (2) 18", (2) 8", (1) 6", (1) 2" (2) 1". Type - AJU. S/N: 88-1684-A, NB# 955.

View details
1719 Sq Ft Bas-Tex Carbon Steel Shell & Tube Heat Exchanger
Stock # 4425
Capacity 1719

Used 1719 Sq Ft. U-Tube Heat Exchanger. Mfg by Bas-Tex Corp 1988. Carbon steel Shell (SA-53-B) rated 150 PSI @ 500 deg F; Carbon Steel Tubes (SA-214) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-516). Shell - 1'7" dia. x 17'2"L ; (33) Tubes - 1" dia. Flanged Nozzles: (4) 10", (1) 1", (1) 3/4". S/N: 7249-88-2, NB# 6857.

View details
2095 Sq Ft Old Dominion Fabricators Carbon Steel Shell & Tub..
Stock # 4408
Capacity 2095

Used 2095 Sq Ft. U-Tube Heat Exchanger. Mfg by Old Dominion 1976. Carbon steel Shell (SA-516) rated 300 PSI/FV @ 650 deg F; Carbon Steel Tubes (SA-214) rated 300 PSI @ -15 to 650 deg F. Carbon Steel Heads (SA-516). Shell - 4'2" dia. x 25' 6"L ; (258) Tubes : 3/4" dia. Flanged Nozzles: (1) 12", (1) 8", (2) 6", (3) 2". Type AKU. S/N: 75-104-A, NB# 27012. Weight: 16,000 Lbs

View details

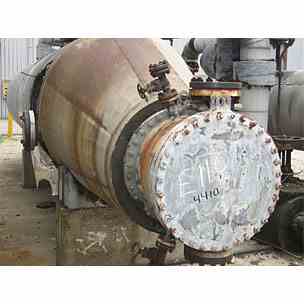

2095 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat E..
Stock # 4410
Capacity 2095

Used 2095 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger Co, Built 1987. Carbon steel Shell (SA-516) rated 300 PSI/FV @ -25 to 650 deg F; Carbon Steel Tubes (SA-214) rated 300 PSI @ -15 to 650 deg F. Carbon Steel Heads (SA-516). Shell - 4'1" dia. x 25'7"L ; (258) Tubes : 3/4" dia. Flanged Nozzles: (1) 12", (1) 8", (2) 6", (3) 2". Type AKU. S/N: X-2914, NB# 1270. Approx weight: 26,900 Lbs. U-1 & drawing on file.

View details

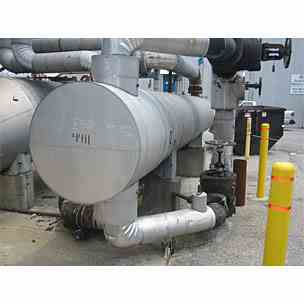

2137 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat E..
Stock # 4411
Capacity 2137

Used 2137 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger, Built 1988. Carbon steel Shell (SA-516) rated 300 PSI @ 650 deg F; Carbon Steel Tubes (SA-214) rated 300 PSI @ 650 deg F. Carbon Steel Heads (SA-516). Shell - 2'7.5" dia. x 19'L ; (328) Tubes - 3/4" dia. Flanged Nozzles: (2) 8", (2) 6", (2) 3/4". Type AEU. S/N: X-2968, NB# 1300.

View details
2685 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat E..
Stock # 4429
Capacity 2685

Used 2685 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger 1988. Carbon steel Shell (SA-516) rated 300 PSI/FV @ 650 deg F; Carbon Steel Tubes (SA-214) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-516). Shell - 3'8" dia. x 21'5"L ; (322) Tubes - 1" dia. Flanged Nozzles: (5) 18", (1) 14". S/N: X-2965, NB# 1299.

View details
266 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat Ex..
Stock # 4419
Capacity 266

Used 266 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger 1987. Carbon steel Shell (SA-106-B) rated 150 PSI @ 500 deg F; Carbon Steel Tubes (SA-214) rated 300 PSI @ 650 deg F. Carbon Steel Heads (SA-515). Shell - 13.25" dia. x 17'6" L ; (43) Tubes - 3/4" dia. Flanged Nozzles: (1) 8", (1) 6", (1) 4", (1) 3". Type AEU. S/N: X-2918, NB# 1259.

View details

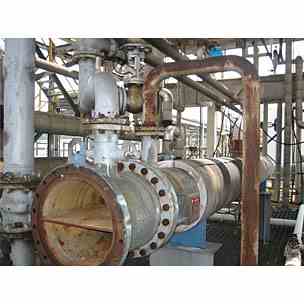

358 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat Ex..
Stock # 4420
Capacity 358

Used 358 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger 1987. Carbon steel Shell (SA-106-B) rated 150 PSI @ 500 deg F; Carbon Steel Tubes (SA-214) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-515). Shell - 1' 3.25" dia. x 17'2" L ; (56) Tubes - 3/4" dia. Flanged Nozzles: (2) 4", (2) 3". Type AEU. S/N: X-2919, NB# 1260.

View details

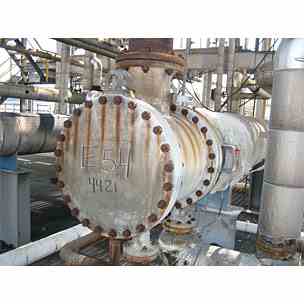

877 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat Ex..
Stock # 4421
Capacity 877

Used 877 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger 1987. Carbon steel Shell (SA-106-B) rated 150 PSI @ 500 deg F; Carbon Steel Tubes (SA-214) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-515). Shell - 19.25" dia. x 22'1" L ; (113) Tubes - 3/4" dia. Flanged Nozzles: (1) 10", (1) 8", (1) 4", (1) 3". Type AEU. S/N: X-2917, NB# 1258.

View details
309 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat Ex..
Stock # 4417
Capacity 309

Used 309 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger 1987. Carbon steel Shell (SA-106-B) rated 300 PSI @ 650 deg F; Carbon Steel Tubes (SA-214) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-515). Shell - 13.25" dia. x 19'6" L ; (44) Tubes - 3/4" dia. Flanged Nozzles: (2) 6", (2) 3". Type AEU. S/N: X-2920, NB# 1261.

View details
765 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat Ex..
Stock # 4430
Capacity 765

Used 765 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger 1988. Carbon steel Shell (SA-106-B) rated 150 PSI @ 500 deg F; Carbon Steel Tubes (SA-214) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-515). Shell - 17.25" dia. x 20'4" L ; (105) Tubes - 3/4" dia. Flanged Nozzles: (2) 6", (2) 4". Type AEU. S/N: X-2967, NB# 1305.

View details
521 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat Ex..
Stock # 4432
Capacity 521

Used 521 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger 1988. Carbon steel Shell (SA-106-B) rated 150 PSI @ 500 deg F; Carbon Steel Tubes (SA-214) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-515). Shell - 15.25" dia. x 21'L ; (65) Tubes - 3/4" dia. Flanged Nozzles: (2) 6", (2) 4". Type AEU. S/N: X-2970, NB# 1306.

View details

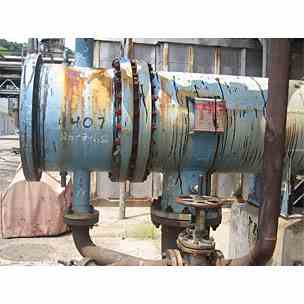

423 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat Ex..
Stock # 4407
Capacity 423

Used 423 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger 1987. Carbon steel Shell (SA-516) rated 150 PSI @ 500 deg F; Carbon Steel Tubes (SA-214) rated 150 PSI @ 500 deg F. Carbon Steel Heads (SA-515). Shell - 21.25" dia. x 17'2" L ; (70) Tubes - 3/4" dia. Flanged Nozzles: (1) 14", (2) 10", (2) 3", (2) 3/4", (1) 1.5". Type AJU. S/N: X-2915, NB# 1271.

View details

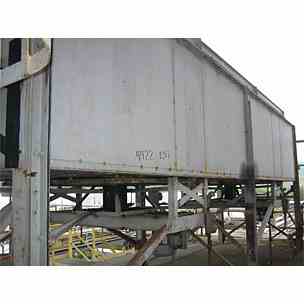

22118 Sq Ft Fin Fan Heat Exchanger
Stock # 4422
Capacity 22118

Used 22118 Sq. Ft. Cooling Products, Inc Fin Fan Heat Exchanger. MAWP 150 psi @ 500 F. (2) 8" Inlets; (1) 4" Outlets; (2) 1" Vent/Drain. (102) 1.5" diameter tubes (SA-214). Four row, three pass box type header. Dimensions - 10-7/8" x 78", (2) 8" Swages. Built 1990, National Board # 1091, Serial # 3050-1. Previous Use: MEK Dewaxing (Qty. 2 Available)

View details
4600 Sq Ft Energy Exchanger Carbon Steel Shell & Tube Heat E..
Stock # 4431
Capacity 4600

Used 4600 Sq Ft. U-Tube Heat Exchanger. Mfg by Energy Exchanger 1988. Carbon steel Shell (SA-516) rated 150 PSI @ 500 deg F; Carbon Steel Tubes (SA-214) rated 550 PSI @ 700 deg F. Carbon Steel Heads (SA-515). Shell - 3'5" dia. x 22'6" L ; (550) Tubes - 3/4" dia. Flanged Nozzles: (1) 16", (1) 12", (1) 6", (1) 3", (1) 1.5". Type AEU. S/N: X-2969-A, NB# 1301.

View details

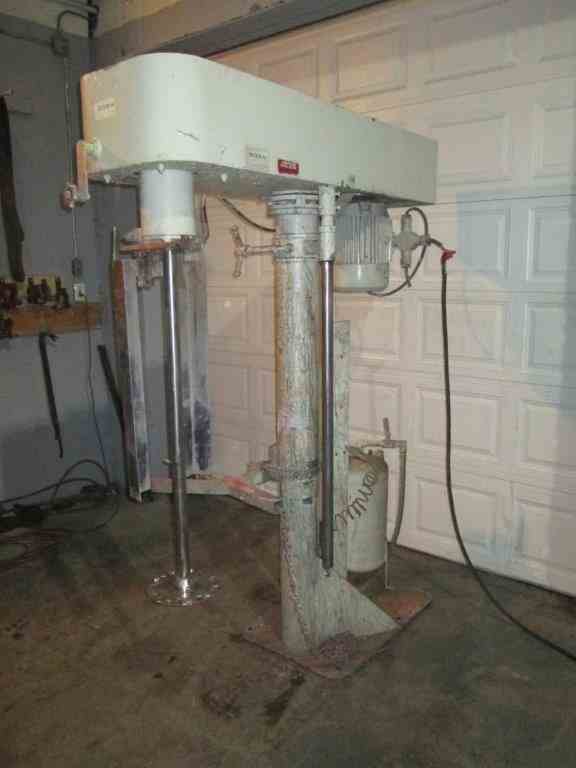

10 HP Disperser
Stock # 9050
Capacity 10

Used 10 HP Myers High Speed Disperser, Model 775A-10-1869, Serial number 1869, built 1-87. Floor Mount, air over oil lift with air/oil tank. 10 HP motor, 3 phase, 230/460 voltage, XP tagged motor. Variable speed unit. Stainless Steel shaft and blade. 1-3/4" diameter shaft, 46" long with a 10" diameter blade. Equipped with a Meyers Quick Open Shaft Guard, tank holder and chain. Overall Height in down position = 88". Overall Height in up position = 11' 1". Blade to floor in down position = 21.5". Blade to floor in up position = 66.5". Unit has been test run and operational.

View details
