1300 Gal Glass Lined Reactor (Body)
Other Views - click image for larger view
1300 Gal Glass Lined Reactor (Body) 1300 Gal Glass Lined Reactor (Body) 1300 Gal Glass Lined Reactor (Body) 1300 Gal Glass Lined Reactor (Body) 1300 Gal Glass Lined Reactor (Body)

1300 gal glass lined reactor (body)

Stock # 10226
Sold
Capacity 1300 Gal

Overview

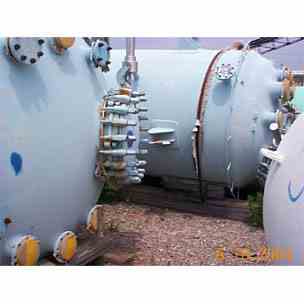

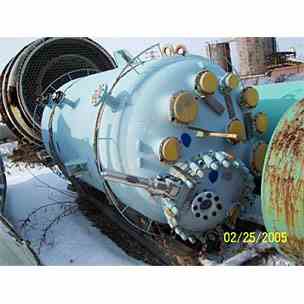

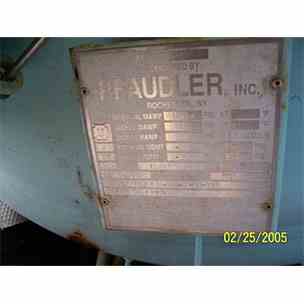

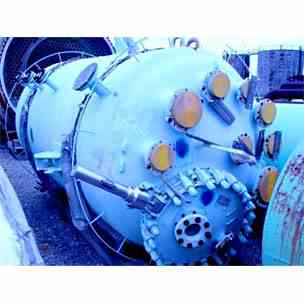

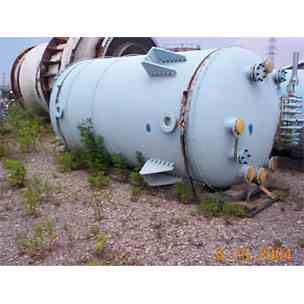

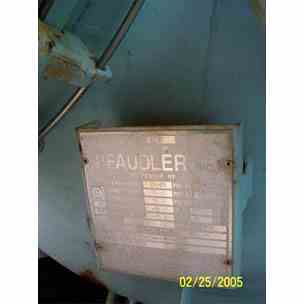

UNUSED 1300 gallon vertical glass lined jacketed reactor body. Manufactured by Pfaudler, type RS60-1300-100-95. SR# J016969, built 1998. ASME code stamped for 100 PSI & FV @ -20/+450 degrees F internal, jacket rated 95 PSI @ -20/+450 degrees F. NB # 49170. 60" diameter x 96" straight side, welded dished heads. Lugs for mounting. Openings: Top 24" manway with cover , protective ring and stainless steel spring assist, 1-8", 1-6" 5-4", 1-3". Side 1-3"3-2"; bottom 1-4" center discharge, 2-2",1-3".Total volume 1420 gallon.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Unknown
Model
N/A
Material
Unknown
Capacity
1300 Gal
