300 GPM Waukesha Positive Displacement Pump
Other Views - click image for larger view
300 GPM Waukesha Positive Displacement Pump 300 GPM Waukesha Positive Displacement Pump 300 GPM Waukesha Positive Displacement Pump 300 GPM Waukesha Positive Displacement Pump

300 gpm waukesha positive displacement pump

Stock # 7771
Capacity 300 GPM

Overview

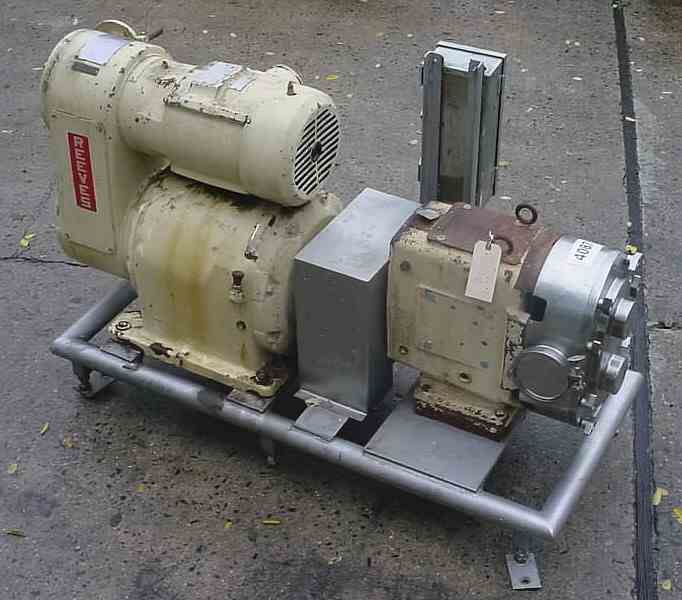

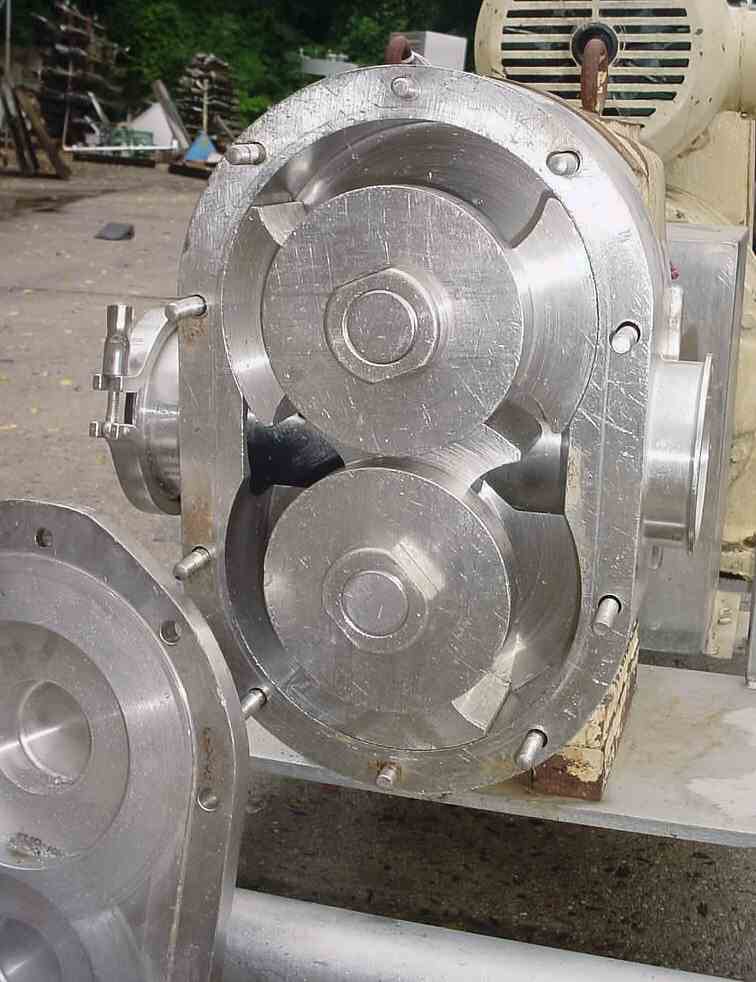

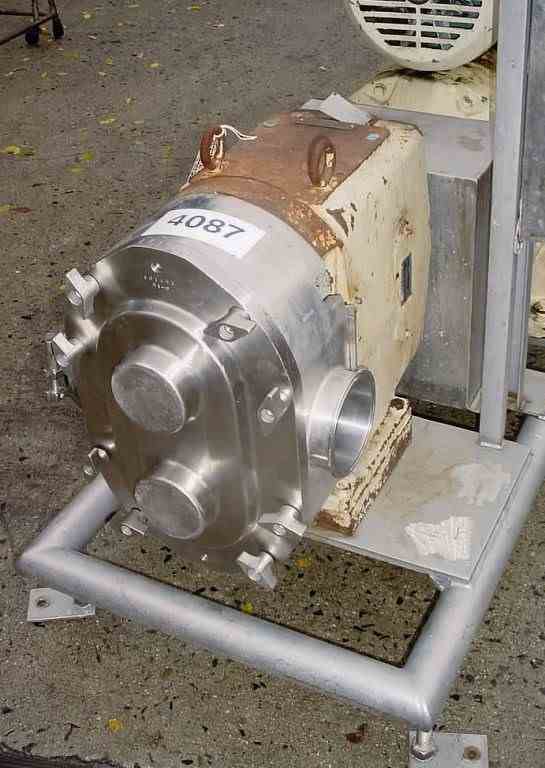

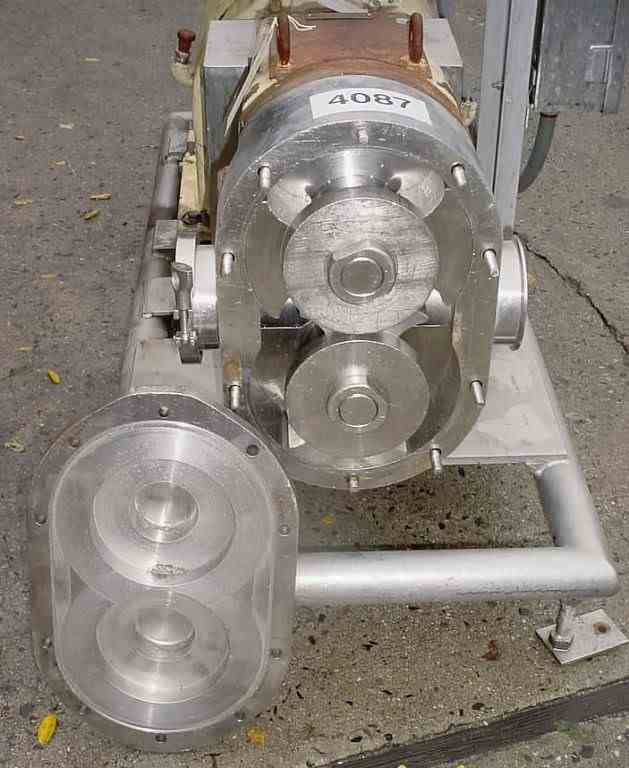

USED WAUKESHA POSITIVE DISPLACEMENT LOBE TYPE PUMP MODEL 220, SERIAL # 8263SS. FEATURES MANUFACTURERS MAXIMUM PERFORMANCE RATING OF 300 GPM @ 200 PSI @ 600 RPM, DIRECT COUPLED TO REEVES 7.5 HORSEPOWER VARIABLE SPEED DRIVE, TEFC, 38.8 TO 155 RPM YIELDING 19.7 TO 79 GPM, 4" INLET AND OUTLET WITH TRI CLAMP CONNECTIONS, 316 SS BODY, COVER AND LOBES. O RING TYPE SHAFT SEALS, 230/460 3 PHASE VOLTAGE (WIRED FOR 440 SERVICE), MOUNTED ON STAINLESS STEEL TUBULAR STATIONARY FRAME WITH LEVELING FEET. FORMERLY USED IN BRANDED FOOD PRODUCTS.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Waukesha
Model
Material
Unknown
Capacity
300 GPM
