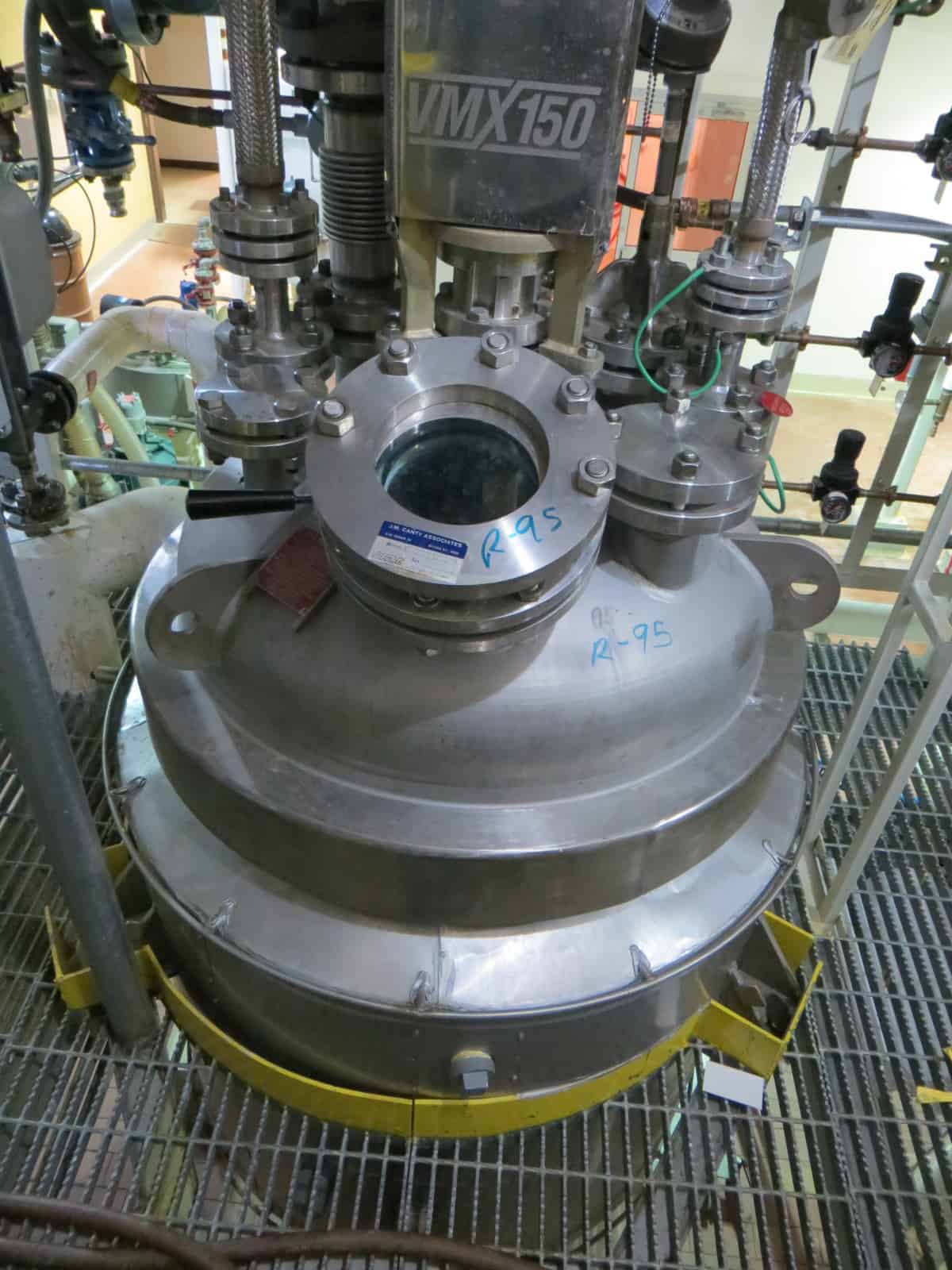

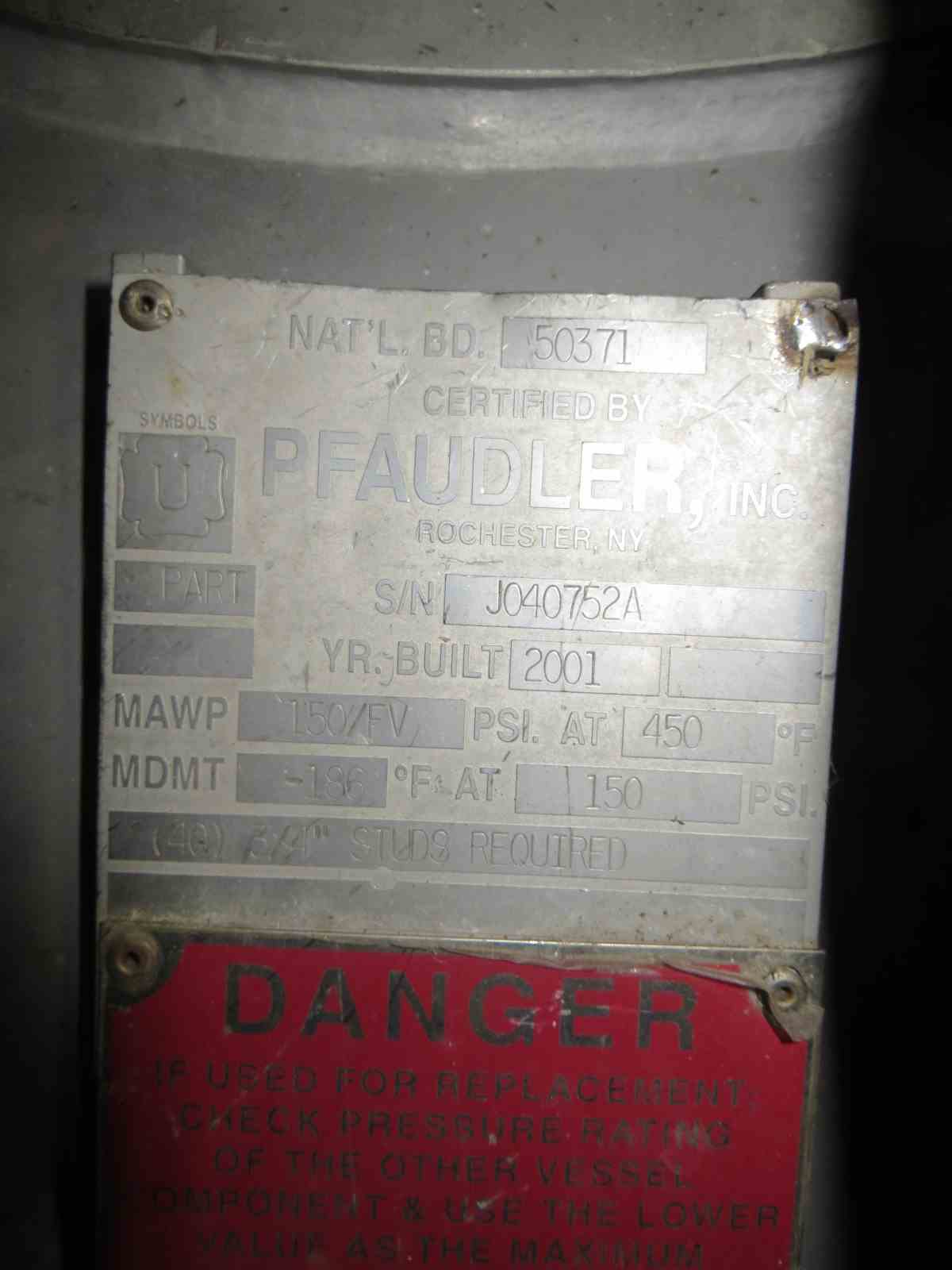

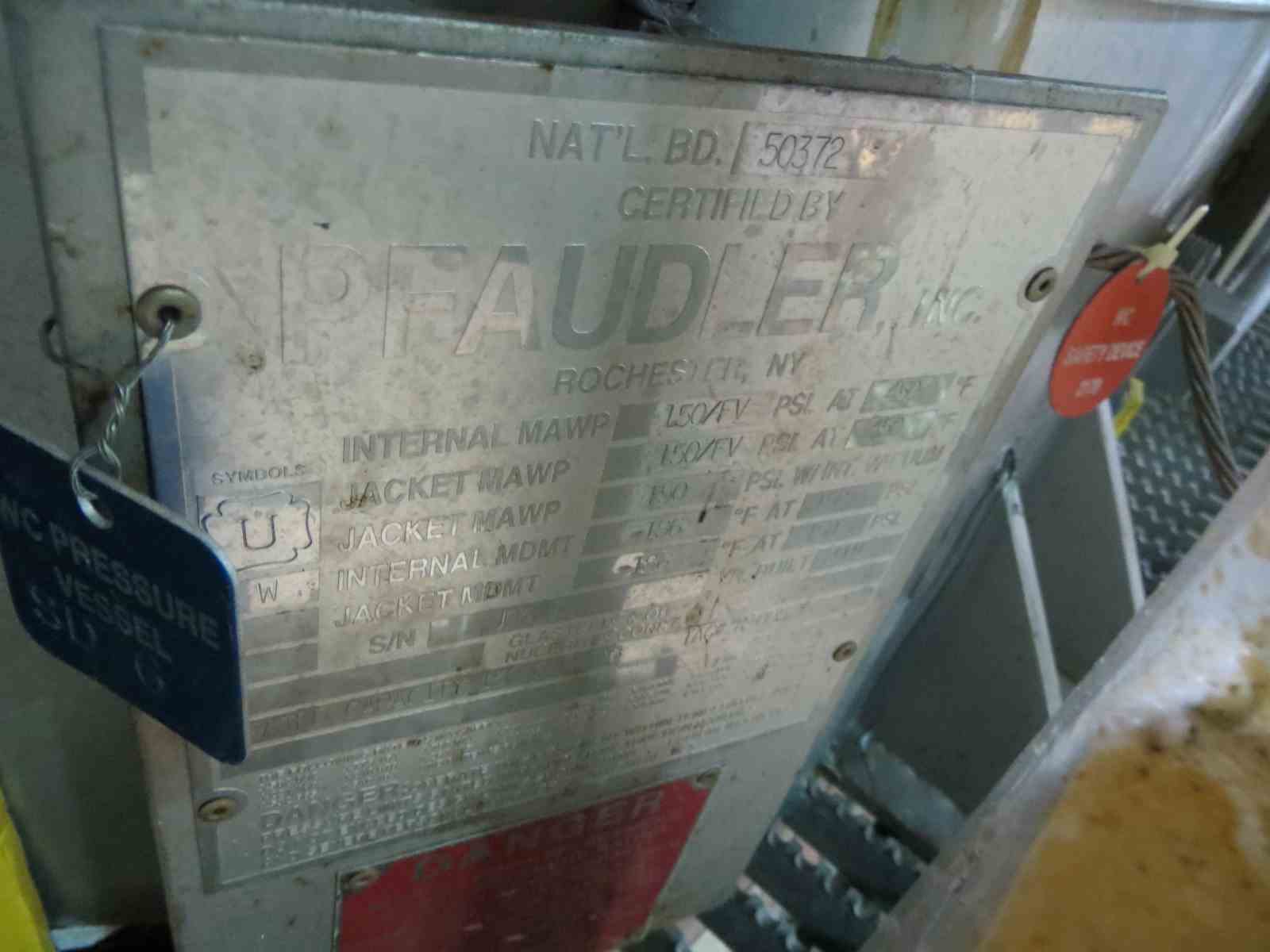

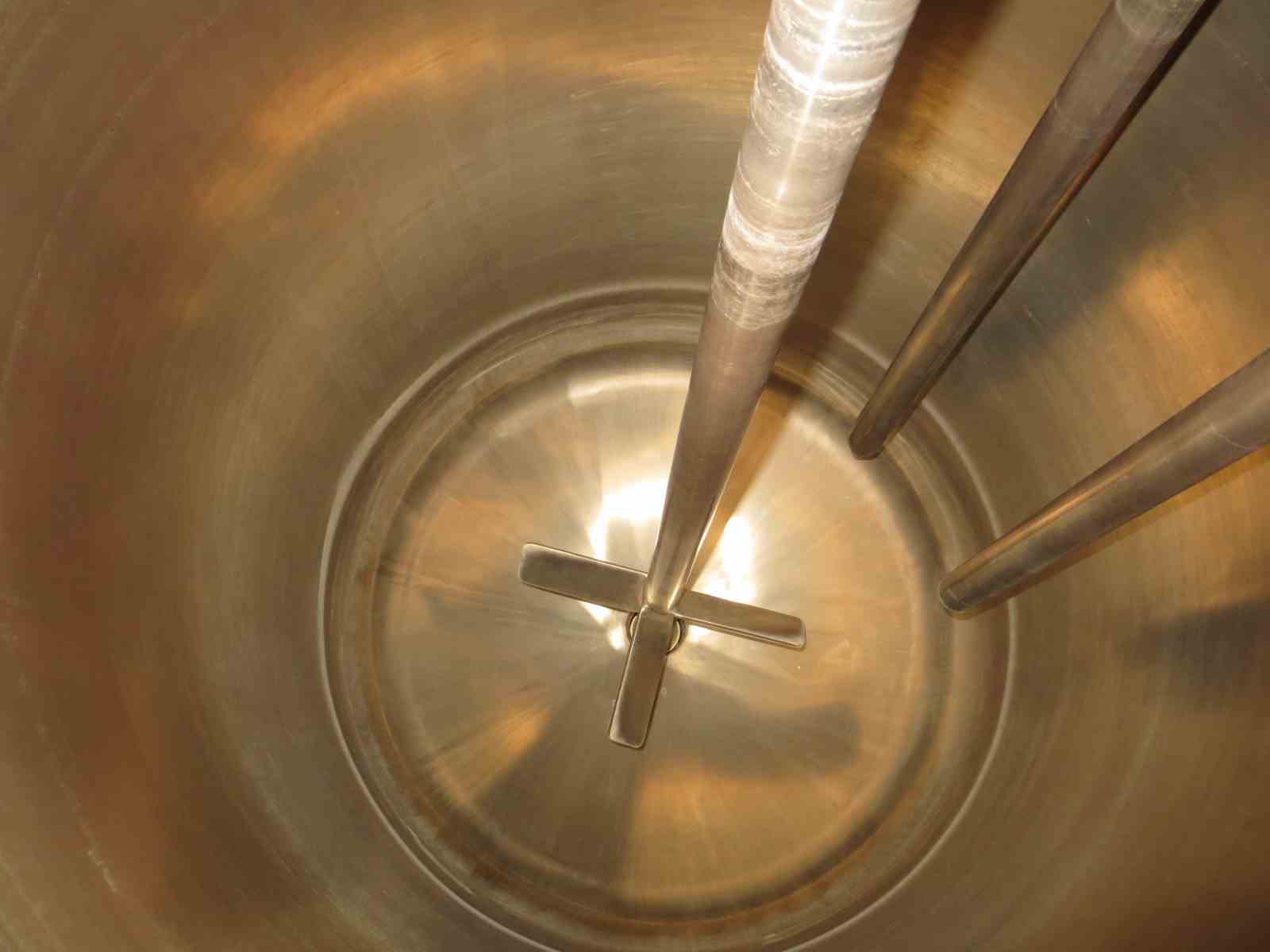

Used 150 gallon Pfaudler Hastelloy Reactor, rated 150 psi /FV @ 450 F internal and 150 psi /FV @ 450 F on the jacket. Shell material SB-525 C-22; Jacket material 316L. 32” ID x 48” Deep. 4 blade turbine agitator. (1) 6” handhole; (1) 4” inlet; (5) 2” inlets; (3) 3” inlet/outlet; (3) 2” jacket connections; (1) ½” jacket connection; (1) ¾” jacket connection. Serial # J070452, National Board # 50372, Built 2001.
Available with (Additional cost) - #7335 -1 - Used 70 GPM @135’ TDH Cryogenic Reactor Temperature Control Module (-101 Deg C) mfg by Fulton Thermal, Skid mounted unit consisting of 10 HP seal-less pump by Dickow Pump Co (Min flow 12 GPM, Max flow 80.GPM), (2) Brown Fin Tube Heat exchangers: HE# 1 – 398.2 Sq Ft. SlyTherm Cooler, all 316- SS, S/N: 2566-01-1, NB# 15906; HE# 2 – 206.7Sq Ft. Cryotherm XT/SlyTherm XLT Exchanger, all 316- SS, S/N: 2566-01-2, NB# 15907.
