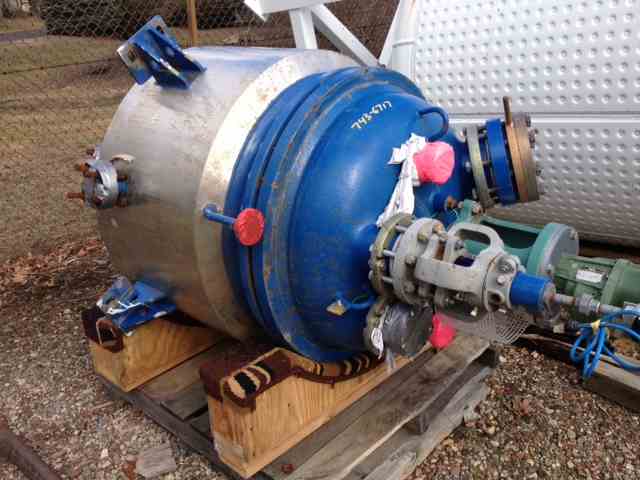

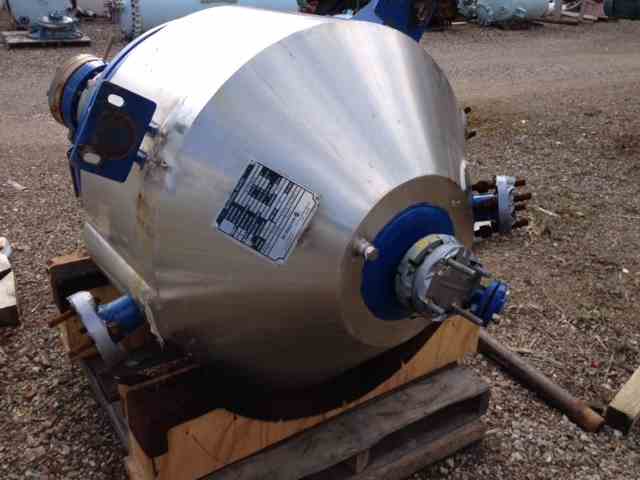

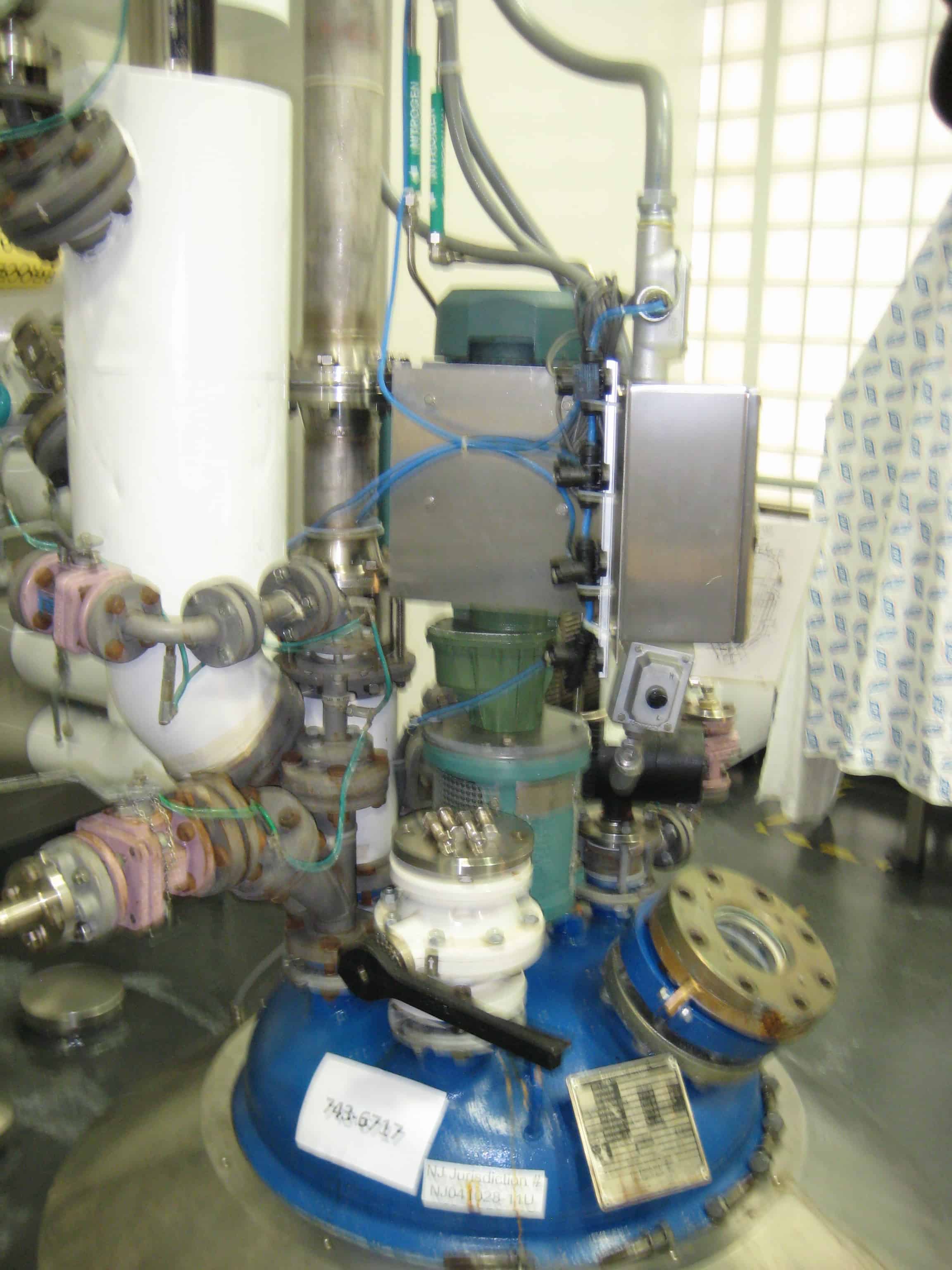

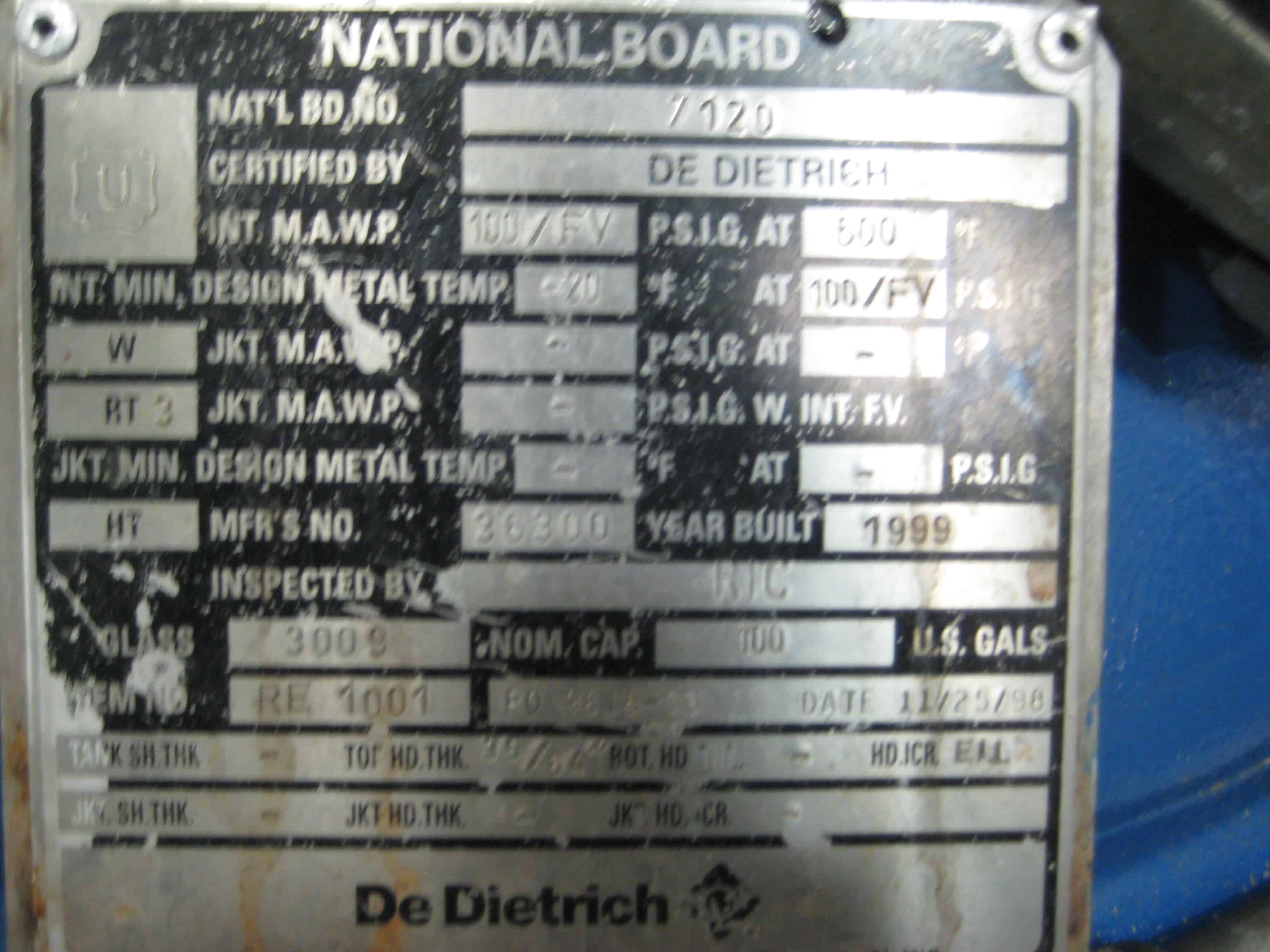

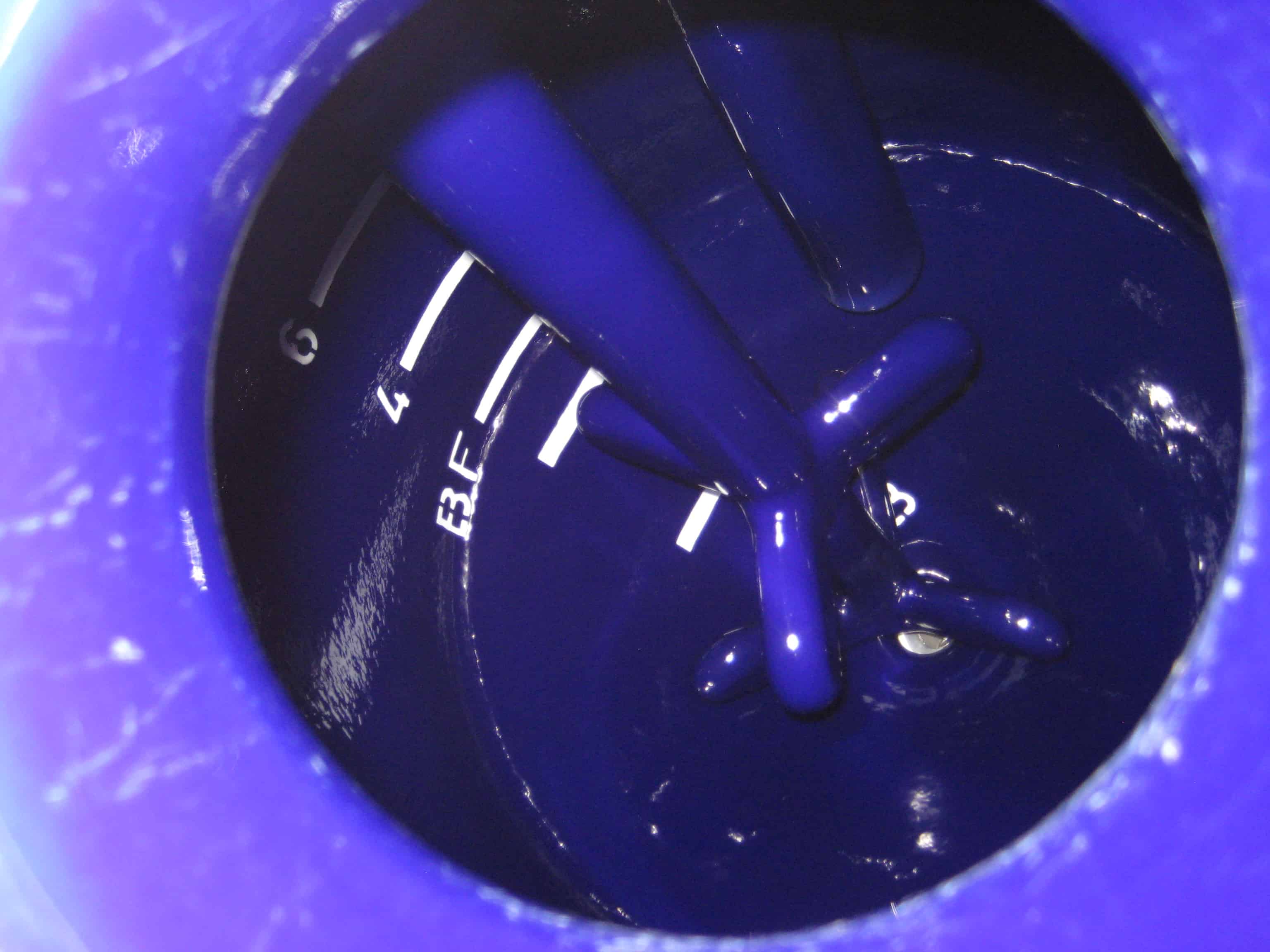

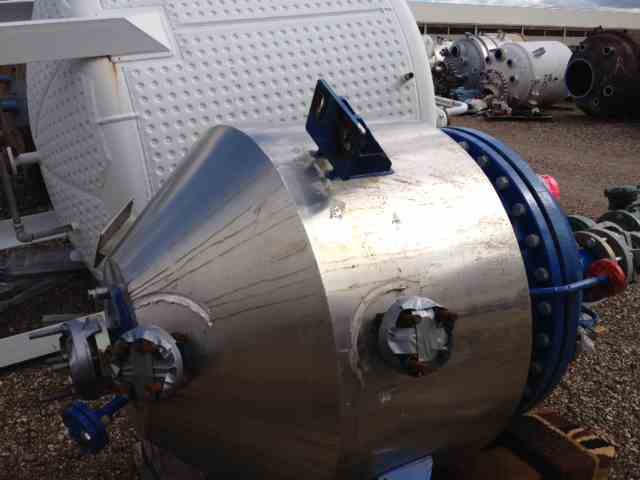

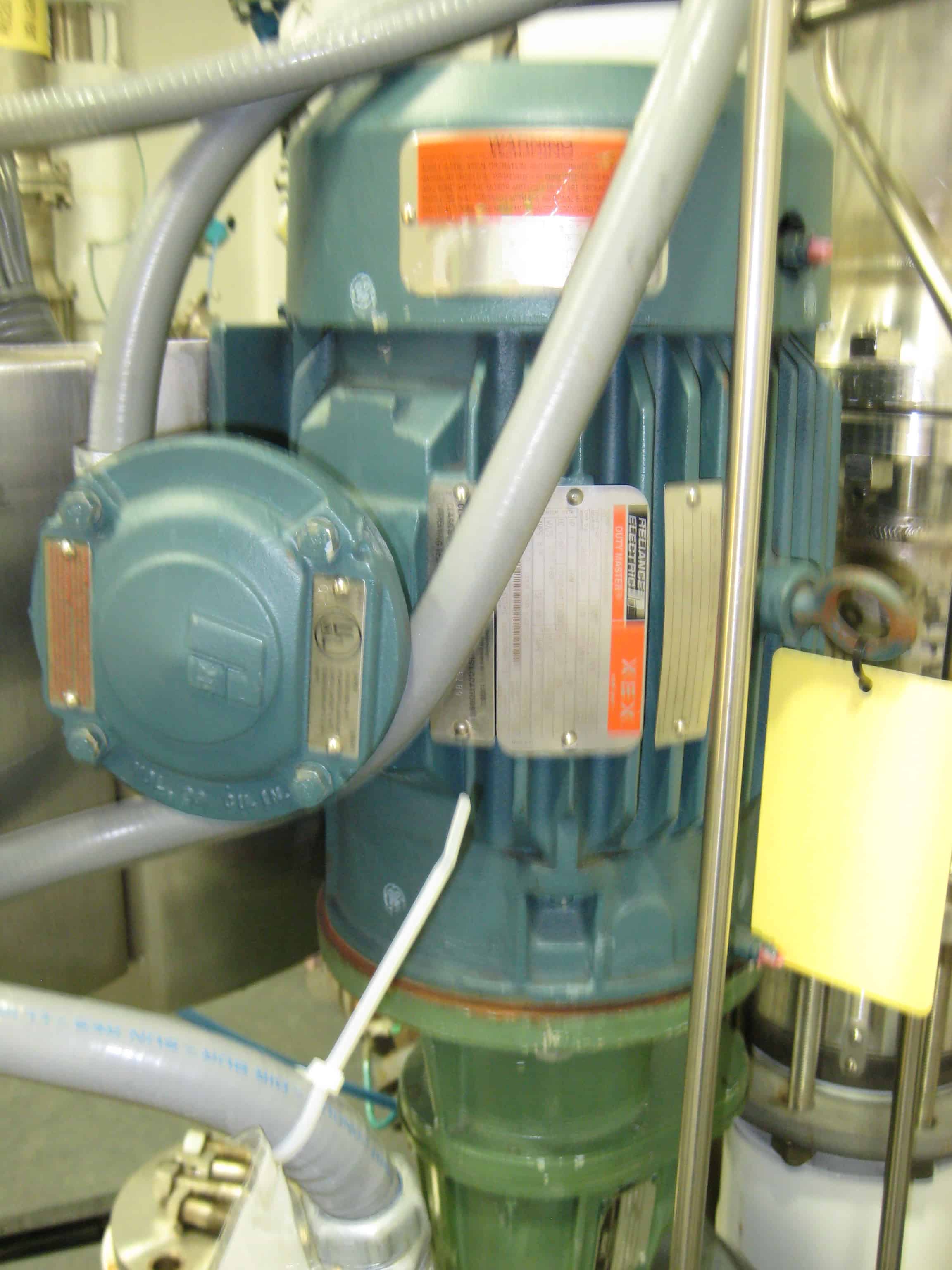

Used 100 gallon DeDietrich Glass Lined Reactor, rated 100 psi and full vacuum at 500 F internal, jacket rated 150 psi and full vacuum at 500 F. Type 3009 Blue Glass. Bolted top, welded cone bottom. 32” ID x 55 3/16”. 304 Stainless Steel sheathing. Lug mounted. Lenze fixed speed gear drive assembly. Motor – 3 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Baffle – Beavertail with DR-Tip. Agitator – (3) blade chevron lower tier, (3) blade turbine upper tier. (1) 6” handhole; (2) 4” inlet/outlet; (1) 3” inlet/outlet; (1) 2 ½ ” inlet/outlet; (2) 2” inlet/outlet; (1) 3” center bottom outlet. Serial #36300, National Board # 7120, Built 1999. Weight – 2260 lbs. Previous Use: API Pilot Plant
