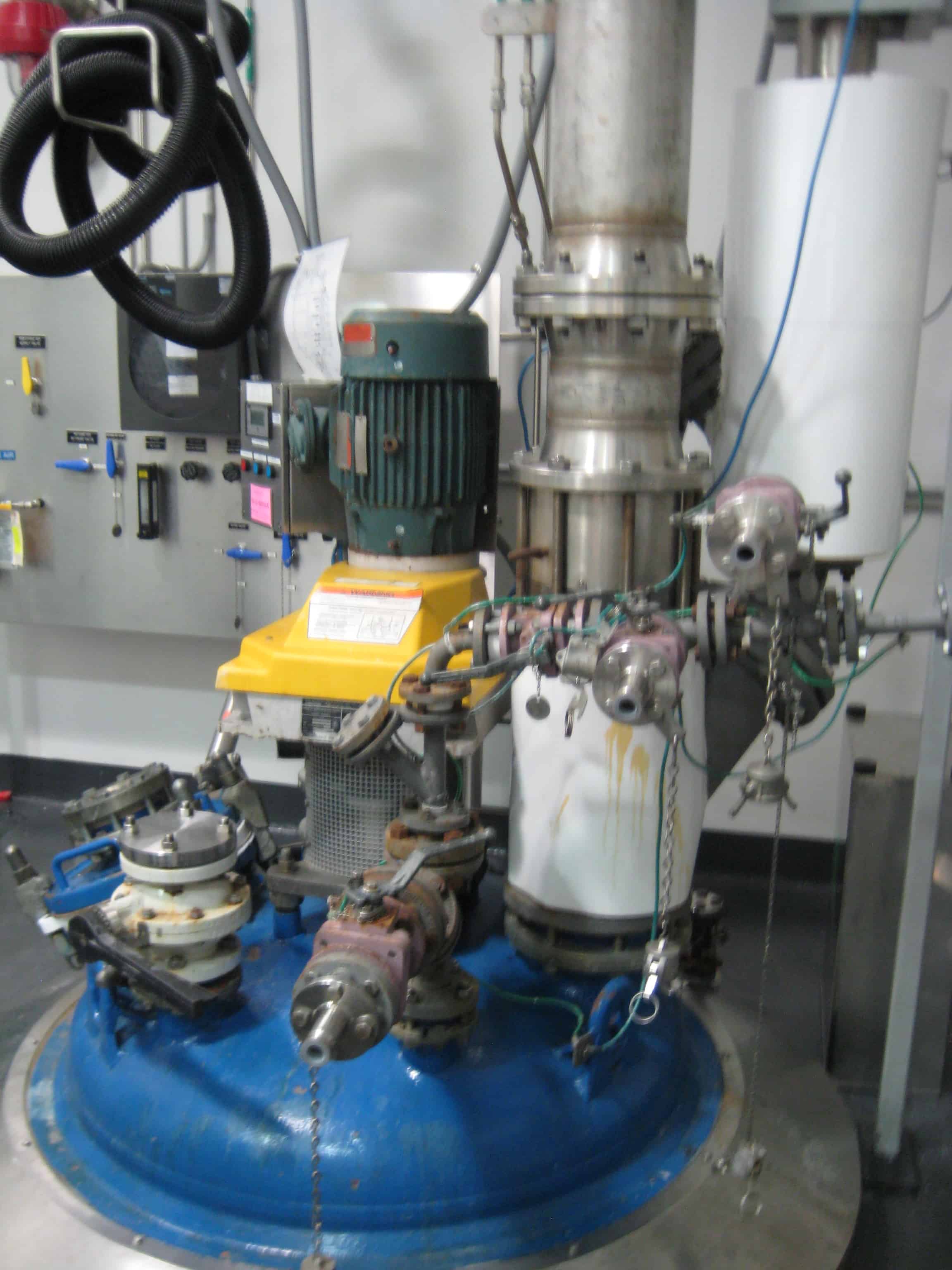

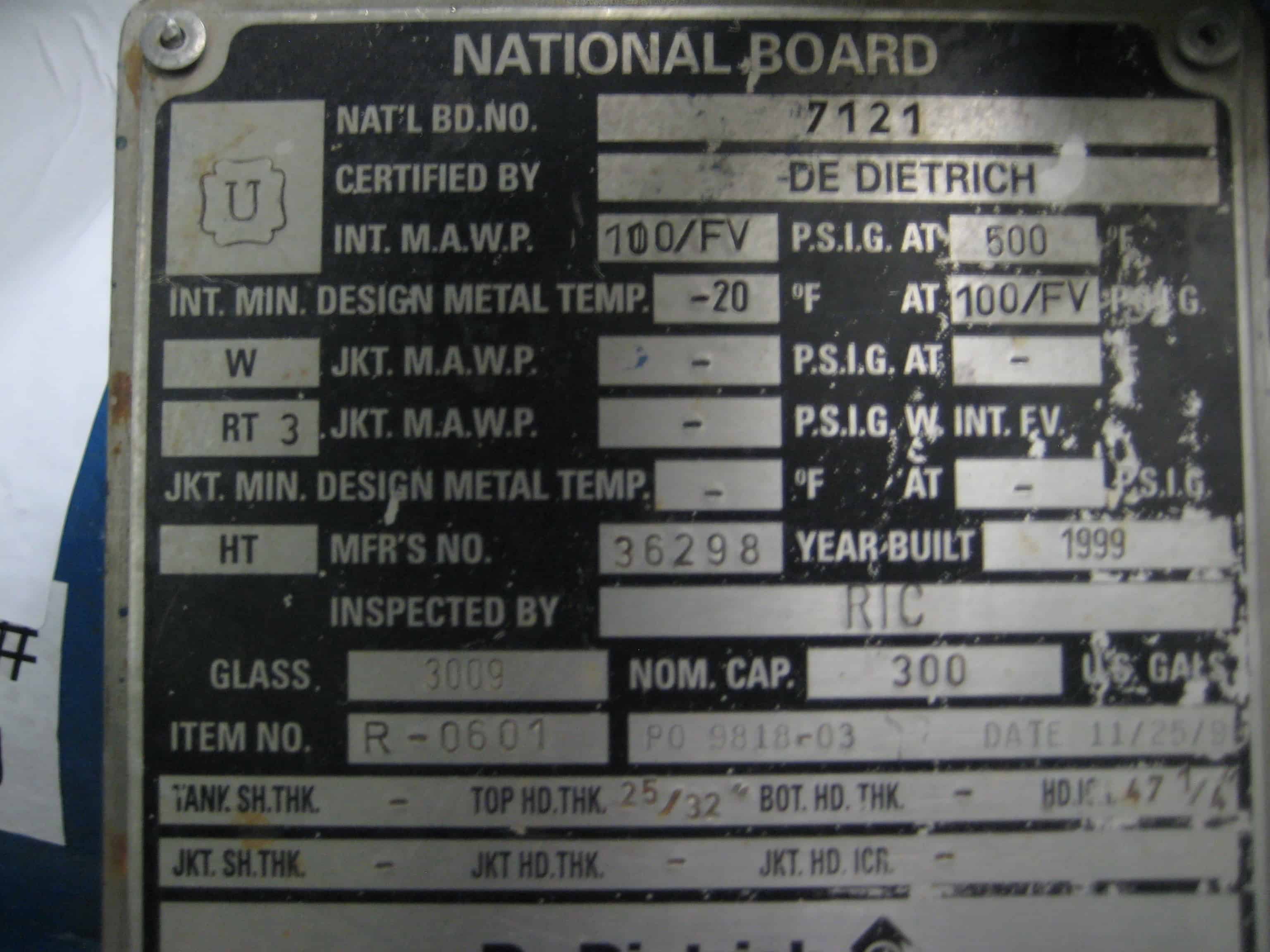

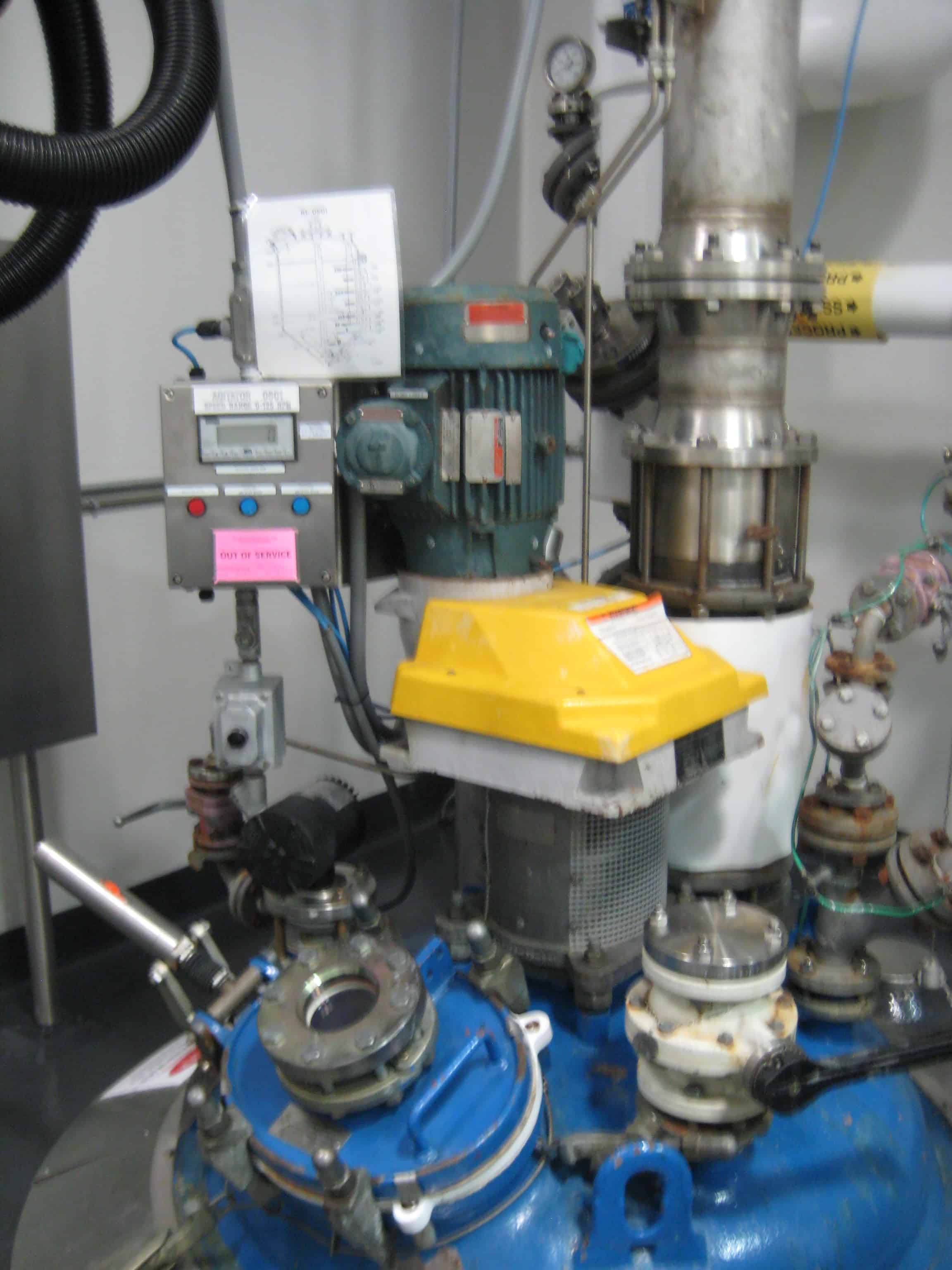

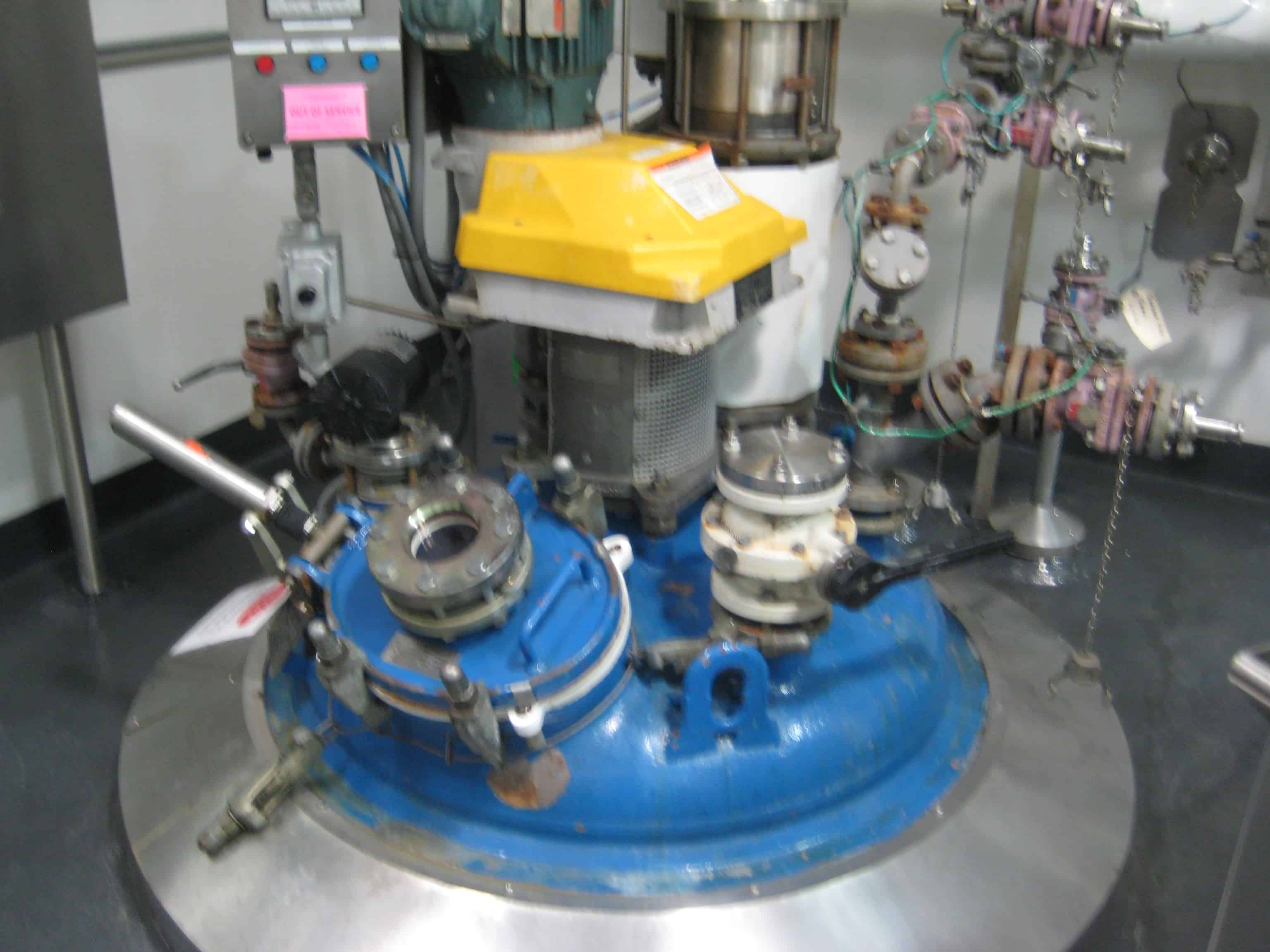

Used 300 gallon DeDietrich Glass Lined Reactor, rated 100 psi and full vacuum at 500 F internal, jacket rated 150 psi and full vacuum at 500 F. Type 3009 Blue Glass. Bolted top, welded cone bottom. 47 ¼” OD x 74 ¾” 304 Stainless Steel sheathing. Lug mounted. 61Q06 DeDietrich Lightnin Series 60 drive assembly. Motor – 7.5 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Baffle – Beavertail with DR-Tip. Agitator – (3) blade chevron lower tier, (3) blade turbine upper tier. 12” x 16” manhole; (1) 8” inlet/outlet; (1) 4 3/8” inlet/outlet; (1) 4” inlet/outlet; (2) 3” inlet/outlet; (1) 2” inlet /outlet; (1) 3” center bottom outlet. Serial #36298, National Board # 7121, Built 1999. Weight – 5000 lbs. Previous Use: API Pilot Plant
