69.72 Sq Ft Karbate Hastelloy Block Type Heat Exchanger
Other Views - click image for larger view
69.72 Sq Ft Karbate Hastelloy Block Type Heat Exchanger 69.72 Sq Ft Karbate Hastelloy Block Type Heat Exchanger 69.72 Sq Ft Karbate Hastelloy Block Type Heat Exchanger 69.72 Sq Ft Karbate Hastelloy Block Type Heat Exchanger

69.72 sq ft karbate hastelloy block type heat exchanger

Stock # 6340
Sold
Capacity 69.72 Sq Ft

Overview

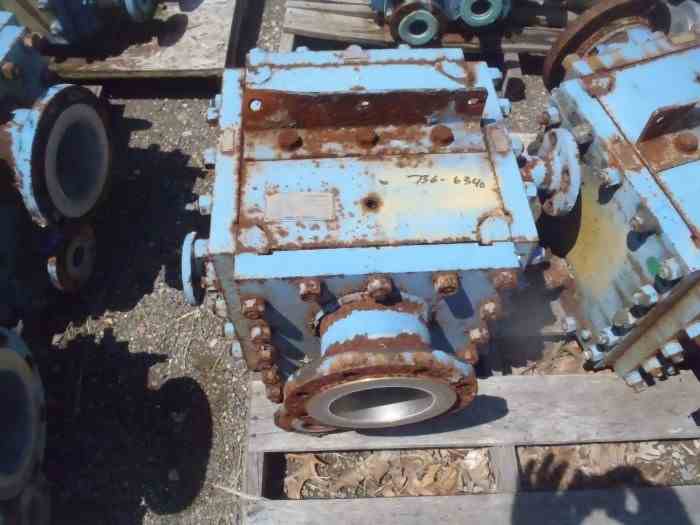

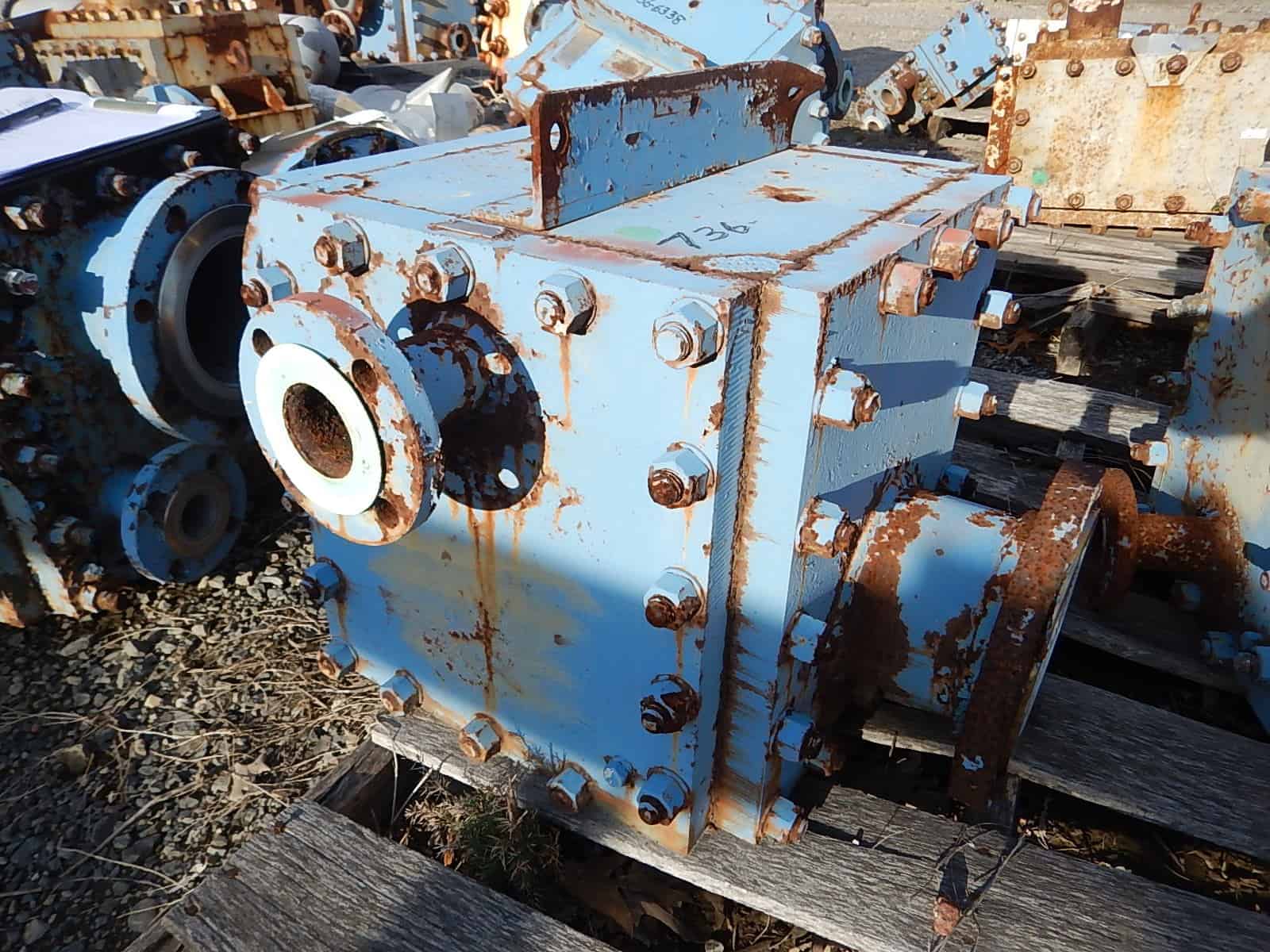

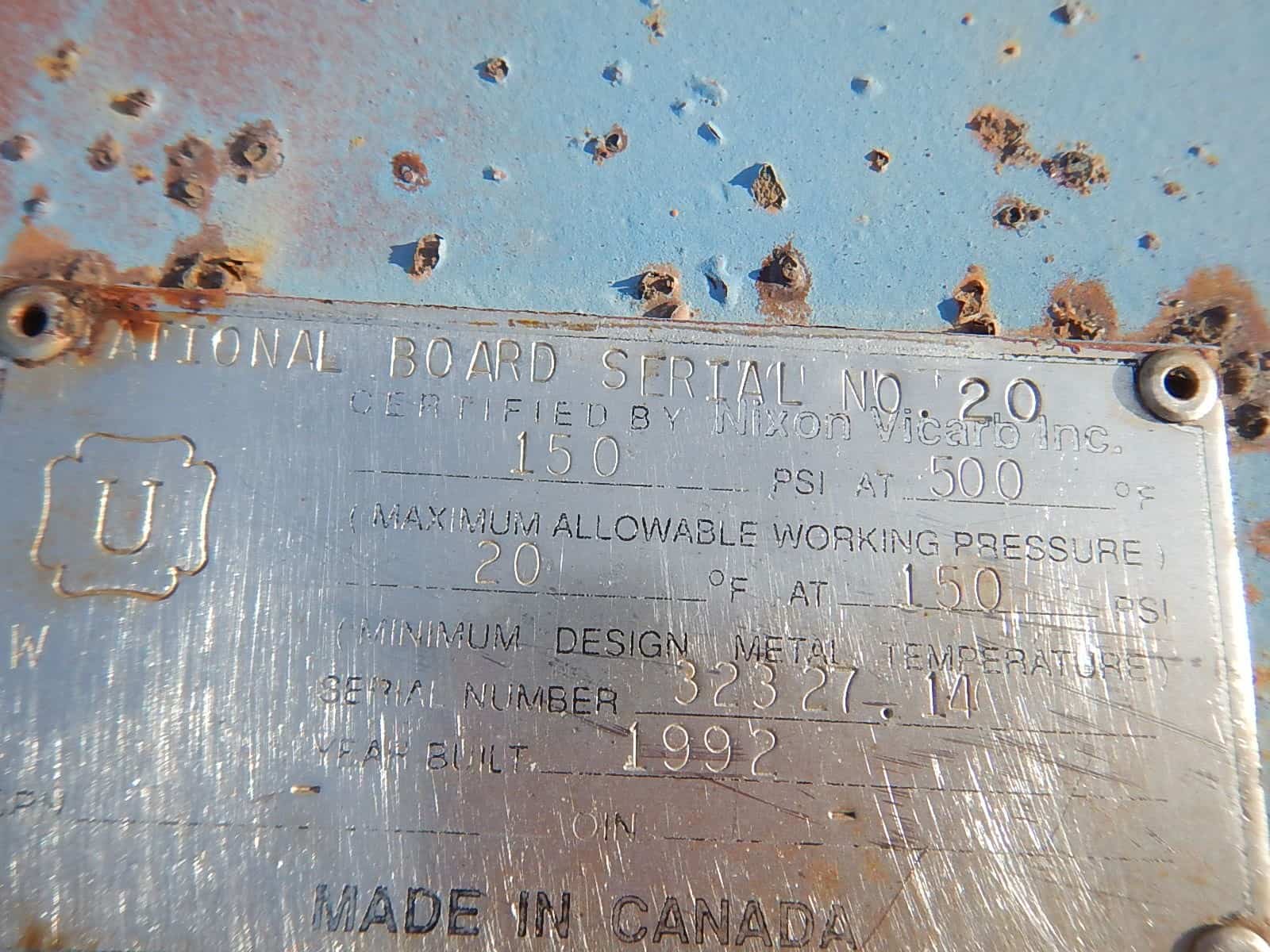

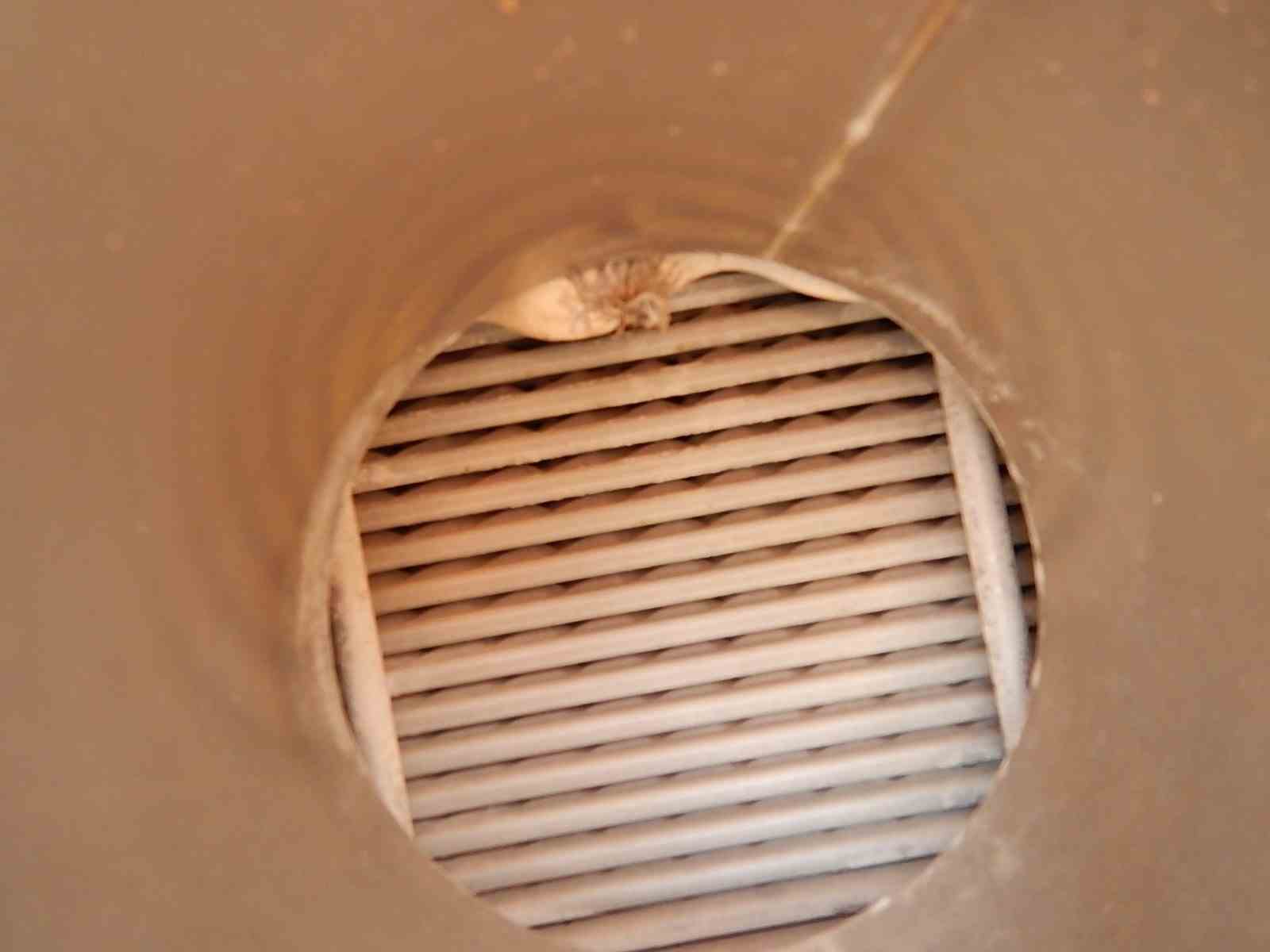

69.72 Sq.Ft. Hastelloy Karbate Vicarb Inc (Now Alfa Laval) block type heat exchanger, Compabloc Model CP 30 - H -10B - 60 Compact. (60) Hastelloy C 276 Plates. Side 1 rated 150 @ 500 F, 1 pass. Side 2 rated 150 psi @ 500 F, 5 passes. Serial # 32327.14. Built 1992. Weight - 826.7 lbs.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Karbate
Model
N/A
Material
Hastelloy
Capacity
69.72 Sq Ft
