47.5 " Wide Sandvik Belt Flaker / Dryer
Other Views - click image for larger view
47.5 " Wide Sandvik Belt Flaker / Dryer 47.5 " Wide Sandvik Belt Flaker / Dryer 47.5 " Wide Sandvik Belt Flaker / Dryer 47.5 " Wide Sandvik Belt Flaker / Dryer

47.5 " wide sandvik belt flaker / dryer

Stock # 5415
Capacity 47.5 " Wide

Overview

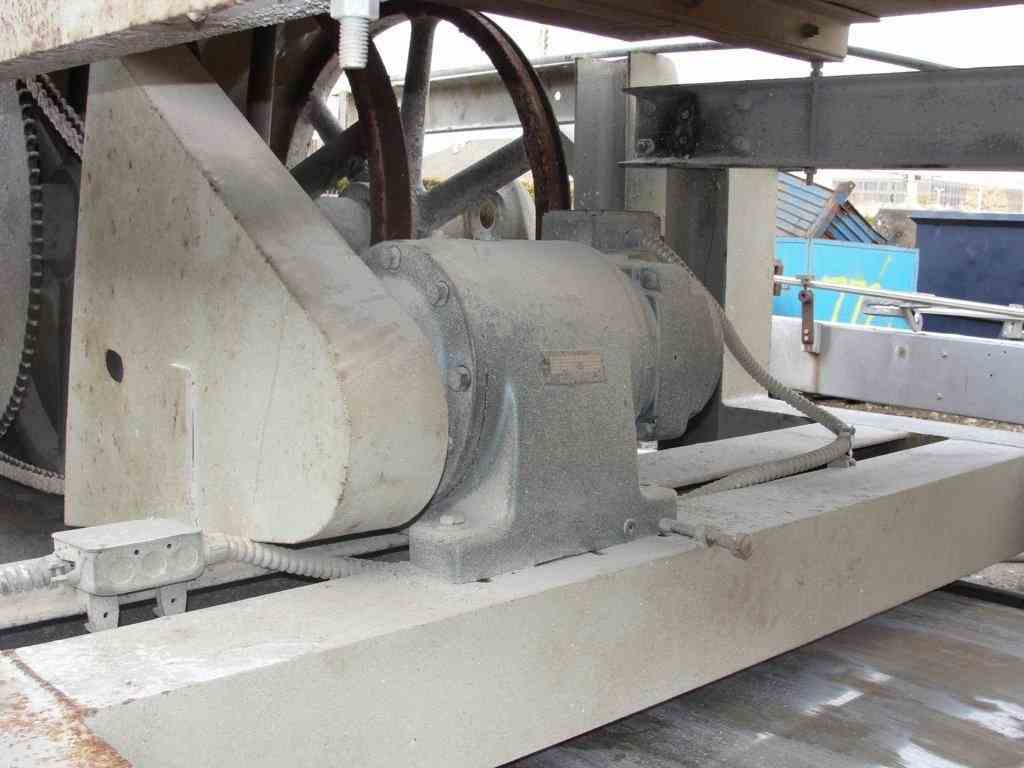

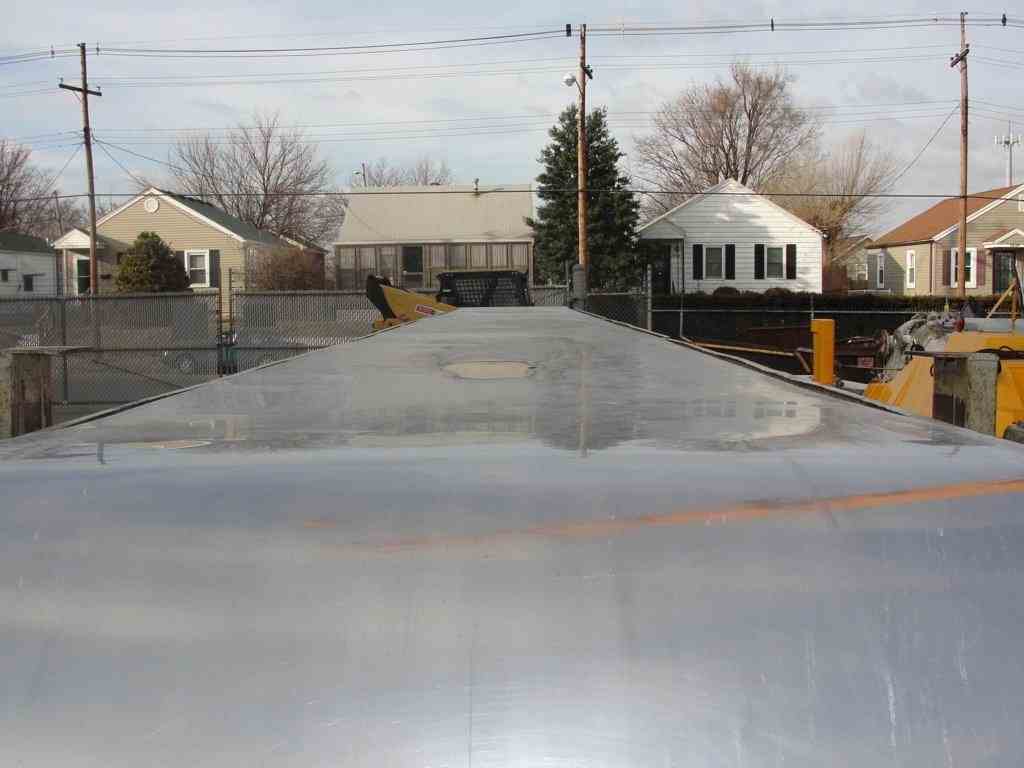

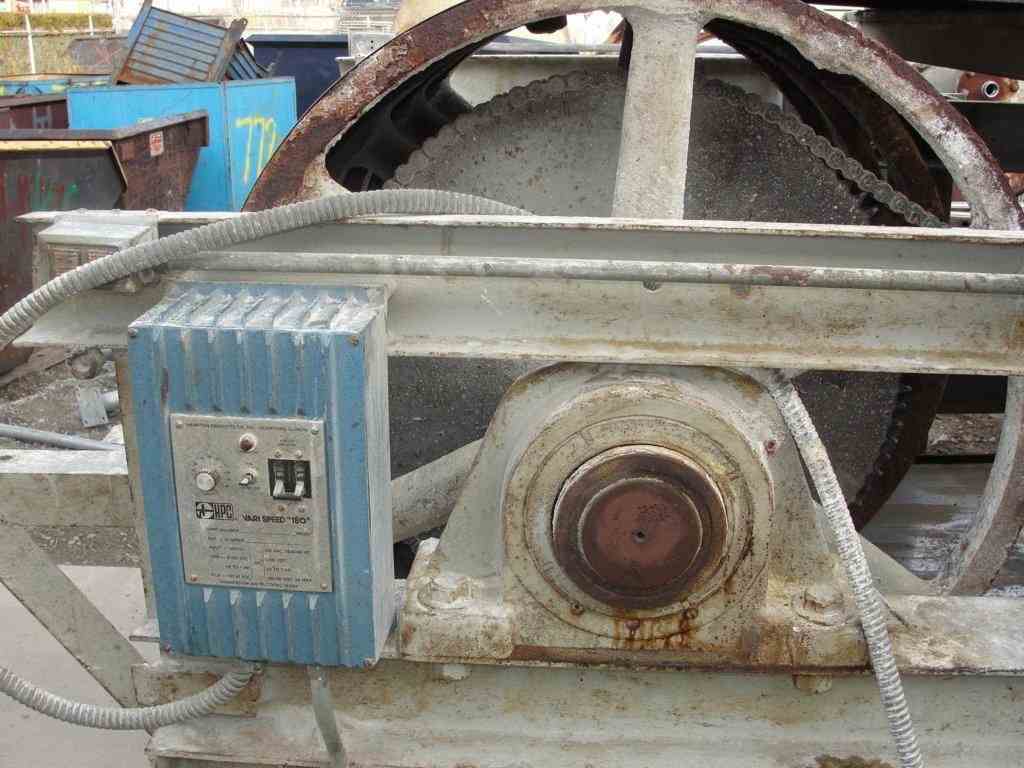

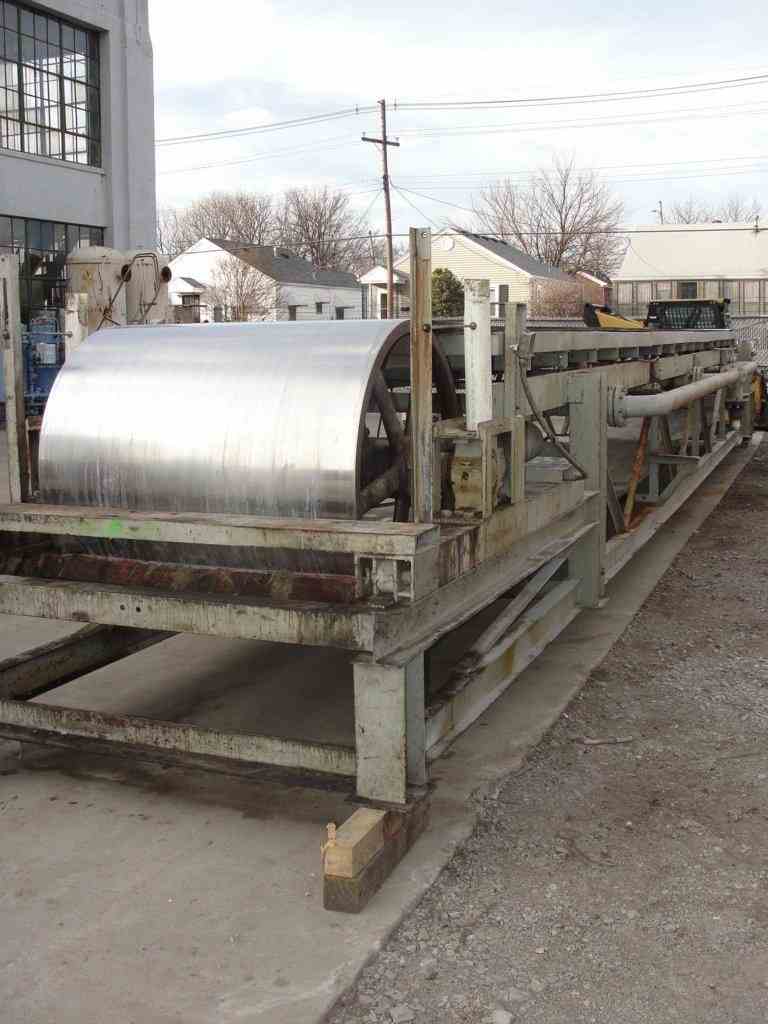

Used Sandvik stainless steel belt flaker. (There is no Manufacturers tag for model or serial number.) The belt is 47.5" wide and has a flat area length of 40'. The infeed feed height is 58". The belt has 40" diameter end turn wheels. The belt is driven by 1 HP, 90V DC motor through a gear drive and chain. The unit has a variable speed control. The belt is fed by a 2" jacket pipe with 13 spray nozzles. The unit is also equipped with a chipper with a 32" discharge height. The overall dimensions are 48' long x 70" wide x 58" high. Unit requires 230V AC, 1 HP electrical supply. Unit was running when shut down and is in good condition.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Sandvik
Model
Not Applicable
Material
Unknown
Capacity
47.5 " Wide
