80 Cu Ft BlenTech Stainless Steel Ribbon Blender
Other Views - click image for larger view
80 Cu Ft BlenTech Stainless Steel Ribbon Blender 80 Cu Ft BlenTech Stainless Steel Ribbon Blender 80 Cu Ft BlenTech Stainless Steel Ribbon Blender 80 Cu Ft BlenTech Stainless Steel Ribbon Blender 80 Cu Ft BlenTech Stainless Steel Ribbon Blender 80 Cu Ft BlenTech Stainless Steel Ribbon Blender

80 cu ft blentech stainless steel ribbon blender

Stock # 21752
Capacity 80 Cu Ft

Overview

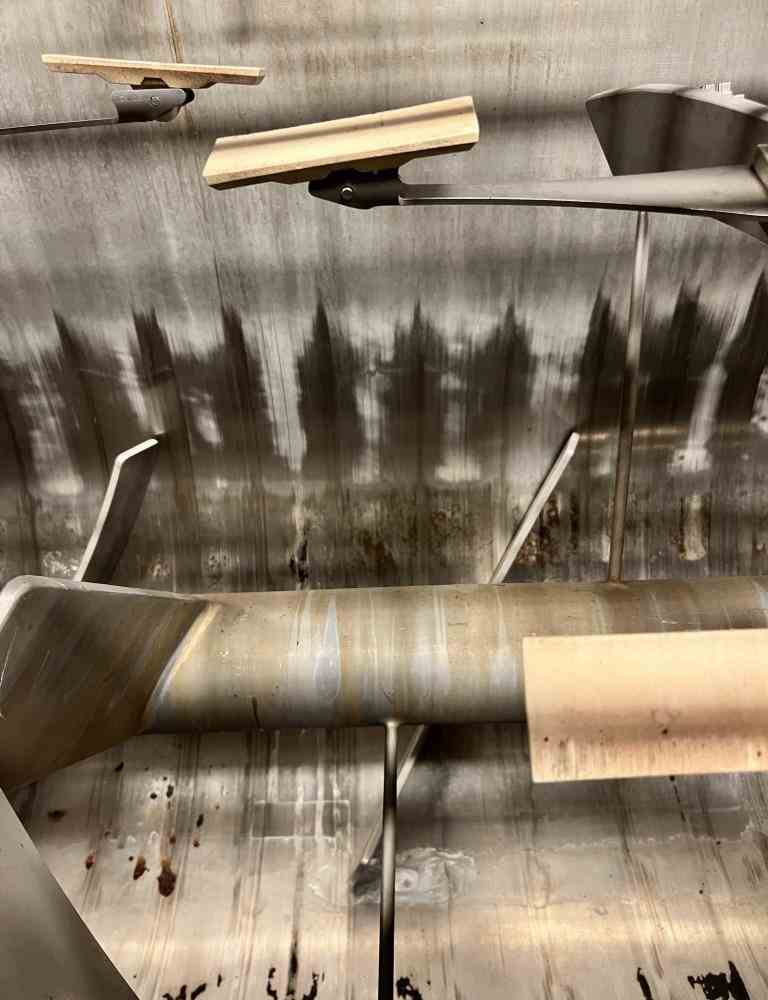

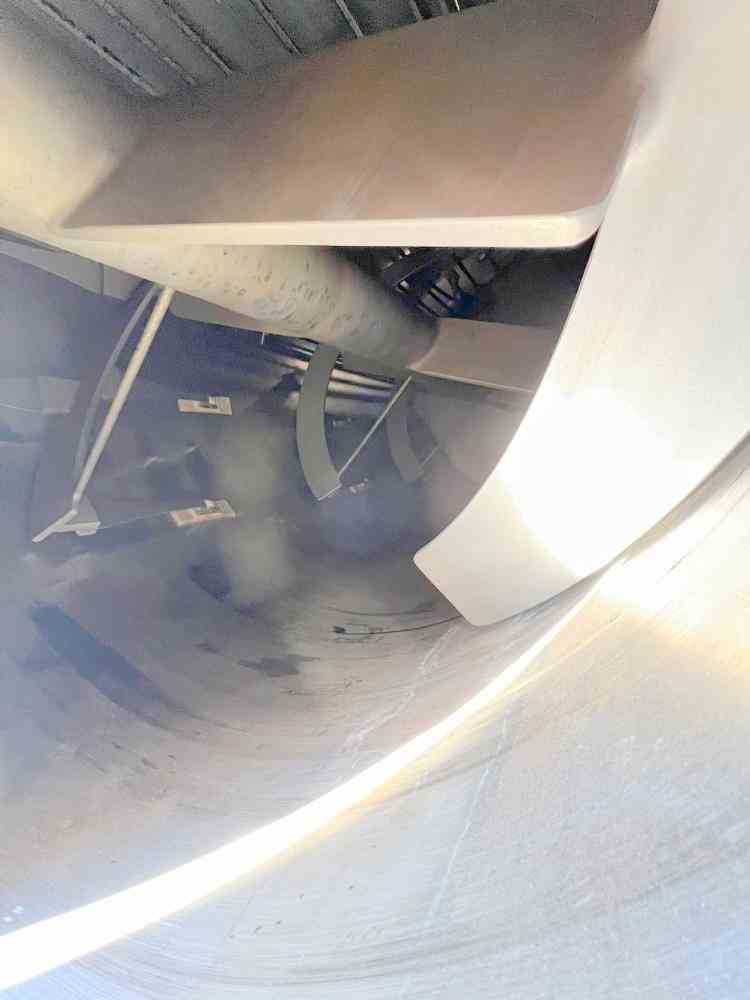

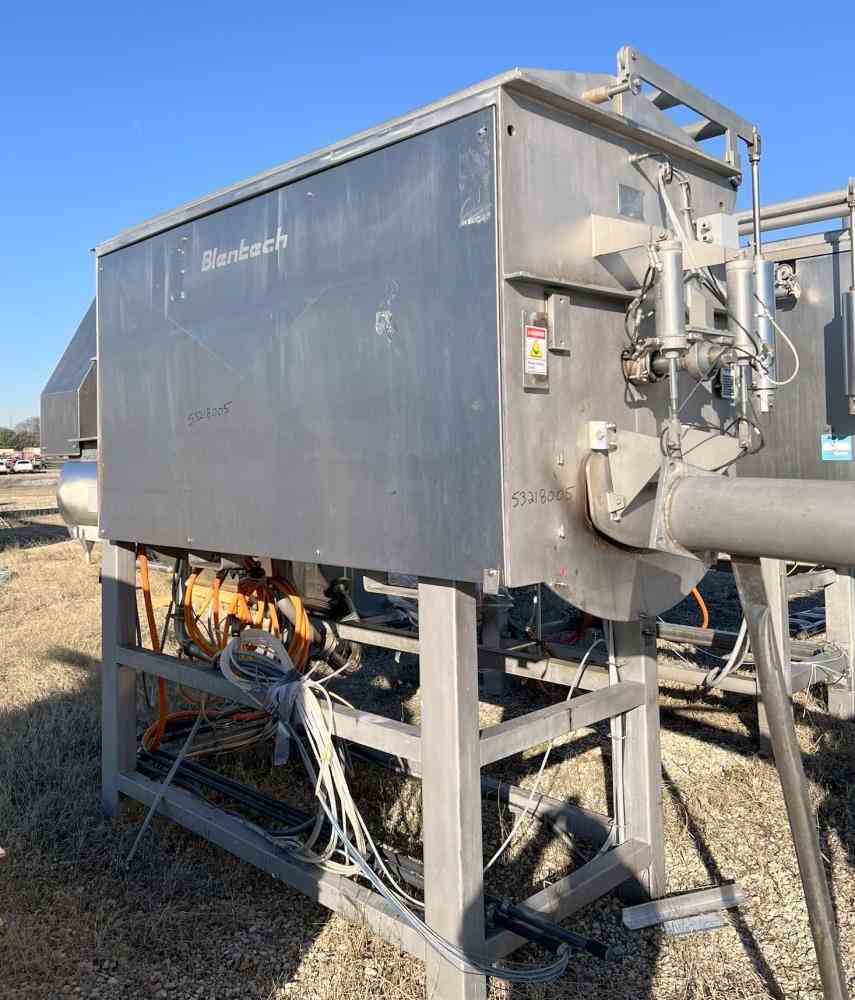

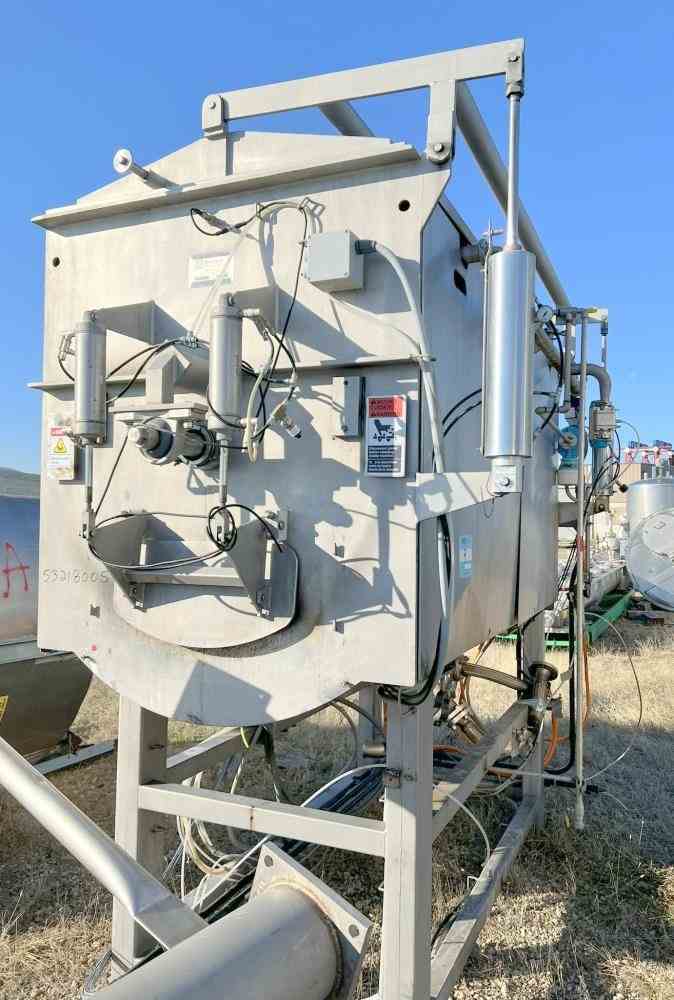

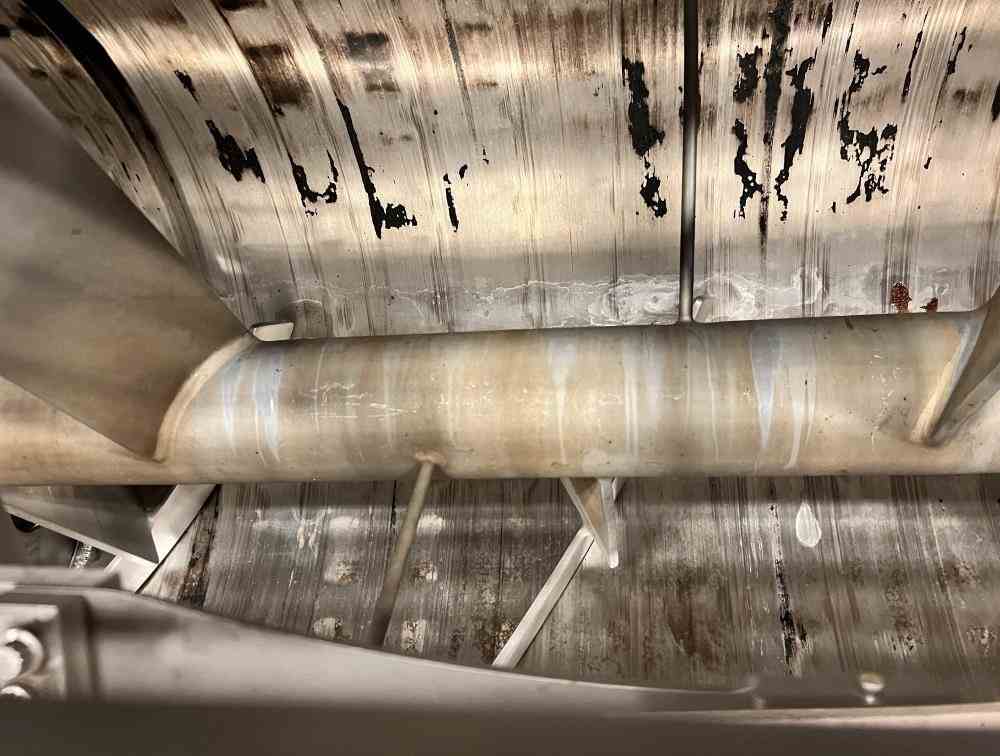

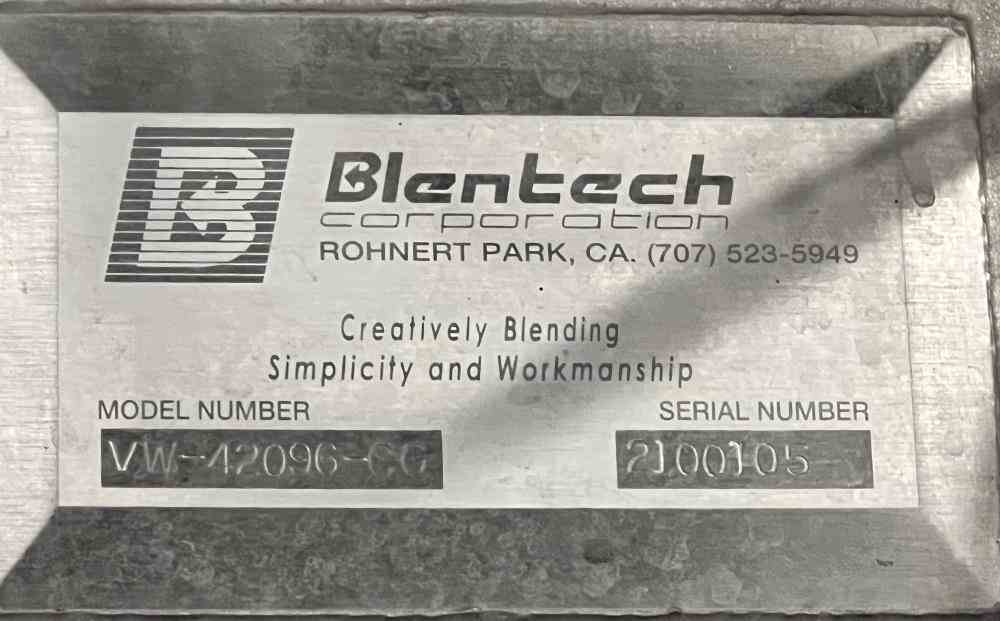

Used 80 cu ft VersaWok Cooker/Ribbon Blender. Manufactured by Blentech. Model VW-42096-CC. Working volume 2320 Liter. Stayed Jacketed trough 42" wide x 96" long x 50" deep. Rated 15 PSIG steam, or 45 PSIG liquid. Designed to run with thermal oil at 550F F. 5" diameter shaft, 6" wide plate from shaft to outer ribbon blade, 4" wide, with 6" x 2" scraper blades. Top actuated cover with 6" opening. Side bottom outlet with air operated cover 22" x 10". Driven by gearmotor. Mounted on stainless steel frame. PLC panel with Allen Bradley CompactLogix L33ER PLC, A/B Stratix 5700 servo drive. VFD panel with Allen Bradley VFD drive. Hope Industrial HIS-ML19.5-STAA HMI. Serial# 2100105.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
BlenTech
Model
VW-42096-CC
Material
Stainless Steel
Capacity
80 Cu Ft
Category
