GEA Crystallizer - 3000 Gallon Stainless Steel
Other Views - click image for larger view
GEA Crystallizer - 3000 Gallon Stainless Steel GEA Crystallizer - 3000 Gallon Stainless Steel GEA Crystallizer - 3000 Gallon Stainless Steel

gea crystallizer - 3000 gallon stainless steel

Stock # 21103
Capacity 3000 Gal

Overview

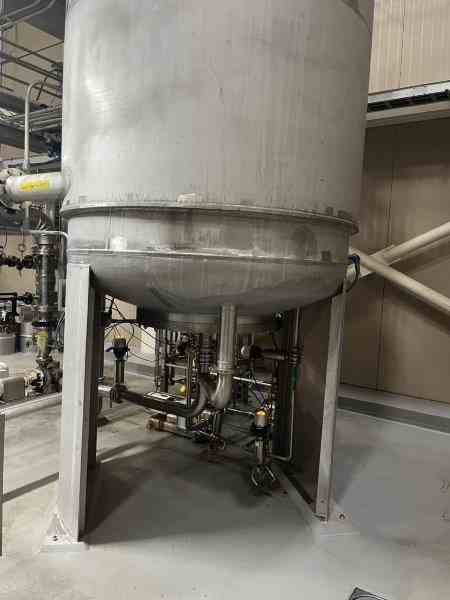

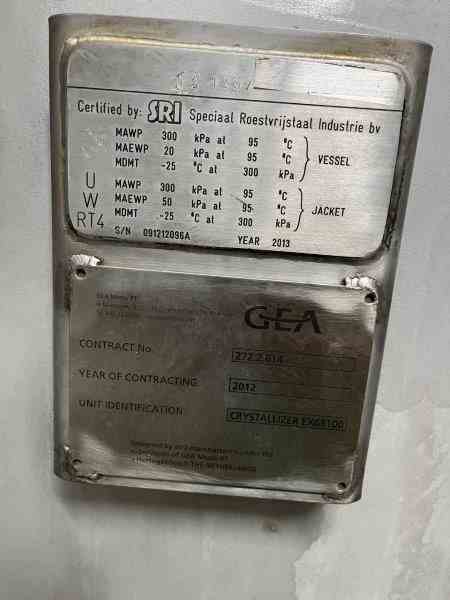

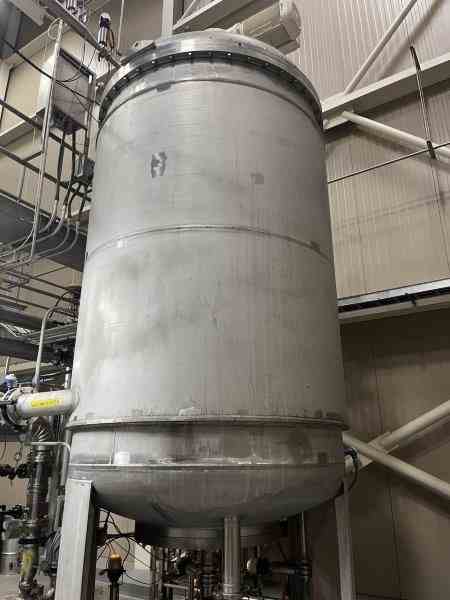

Unused 3000 Gallon (11.5 m3) 304L Stainless Steel Double Wall Crystallizer. Manufactured by GEA. Jacketed. Internal rated -2.90/43 psi (-.2/3 BARG) @-13F/203F (@-25C/95C), jacket rated -7.25/43psi (-.5/3 BARG) @-13F/203F (@-25C/95C). 18.5kW motor with top mounted side scraper agitation. 84" dia x 20' tall. Sanitary Polished Internal and sanitary clamped nozzles. NB #1257, Serial #091212096A, Weight 13000 lbs. Built 2013. Previous use: Crystallizer Stage 1 in GEA freeze concentration plant.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
GEA
Model
NA
Material
304 Stainless Steel
Capacity
3000 Gal
Category
