2000 Gal Hahn and Clay Stainless Steel Pressure Vessel
Other Views - click image for larger view
2000 Gal Hahn and Clay Stainless Steel Pressure Vessel 2000 Gal Hahn and Clay Stainless Steel Pressure Vessel 2000 Gal Hahn and Clay Stainless Steel Pressure Vessel 2000 Gal Hahn and Clay Stainless Steel Pressure Vessel 2000 Gal Hahn and Clay Stainless Steel Pressure Vessel 2000 Gal Hahn and Clay Stainless Steel Pressure Vessel

2000 gal hahn and clay stainless steel pressure vessel

Stock # 20992
Capacity 2000 Gal

Overview

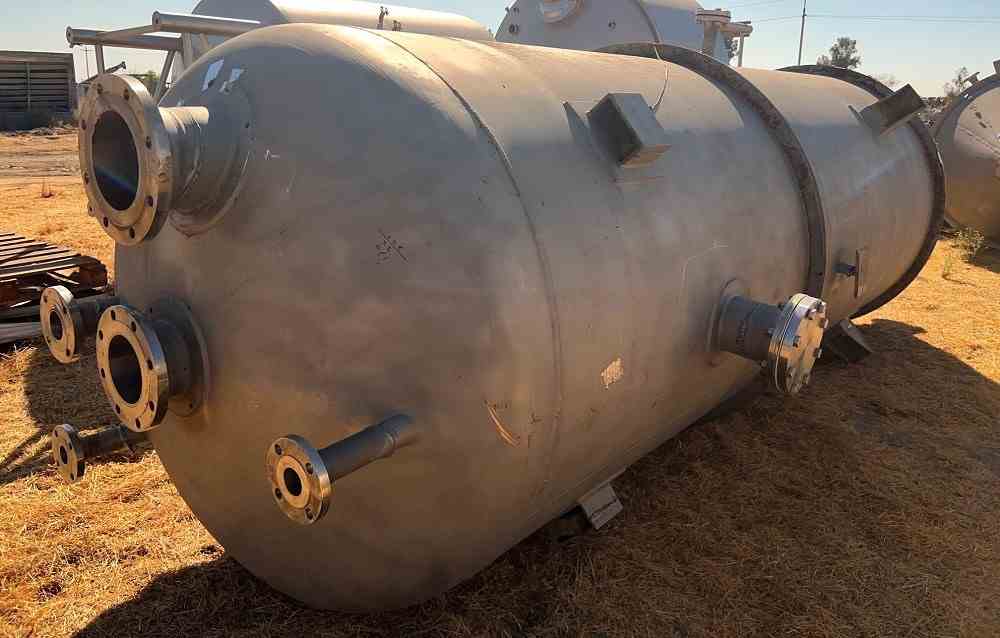

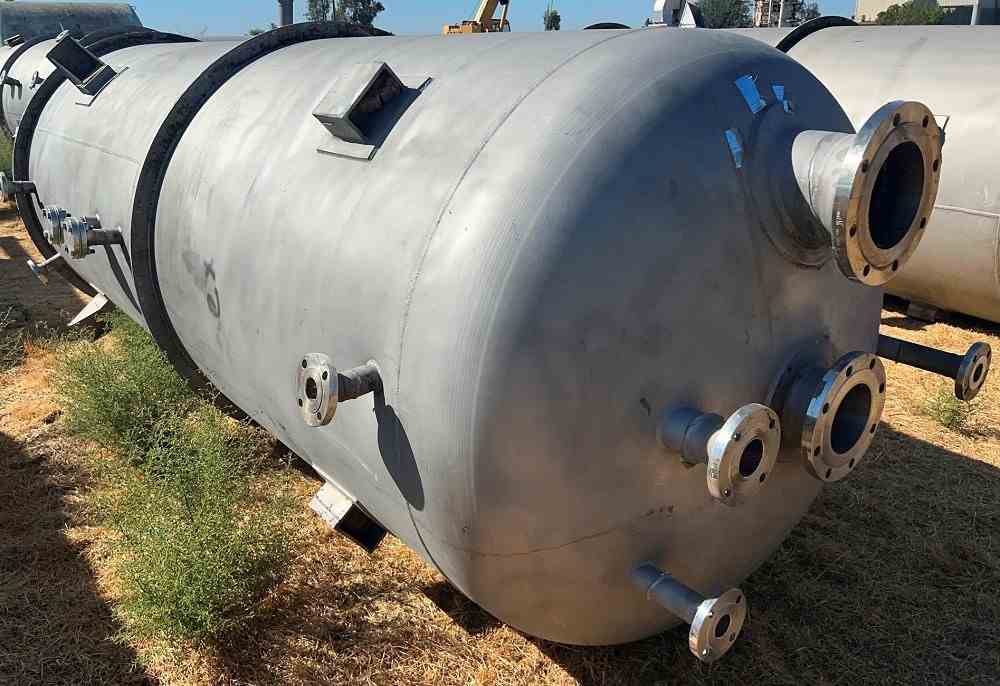

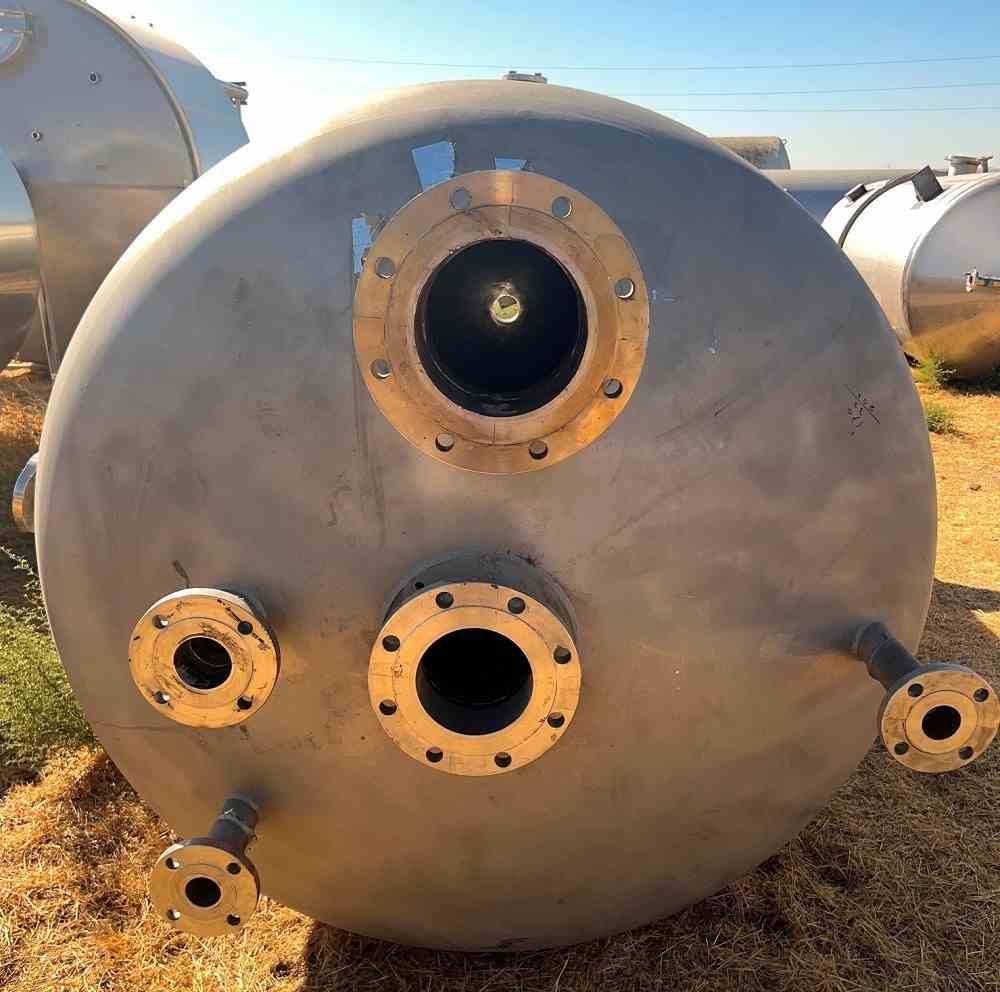

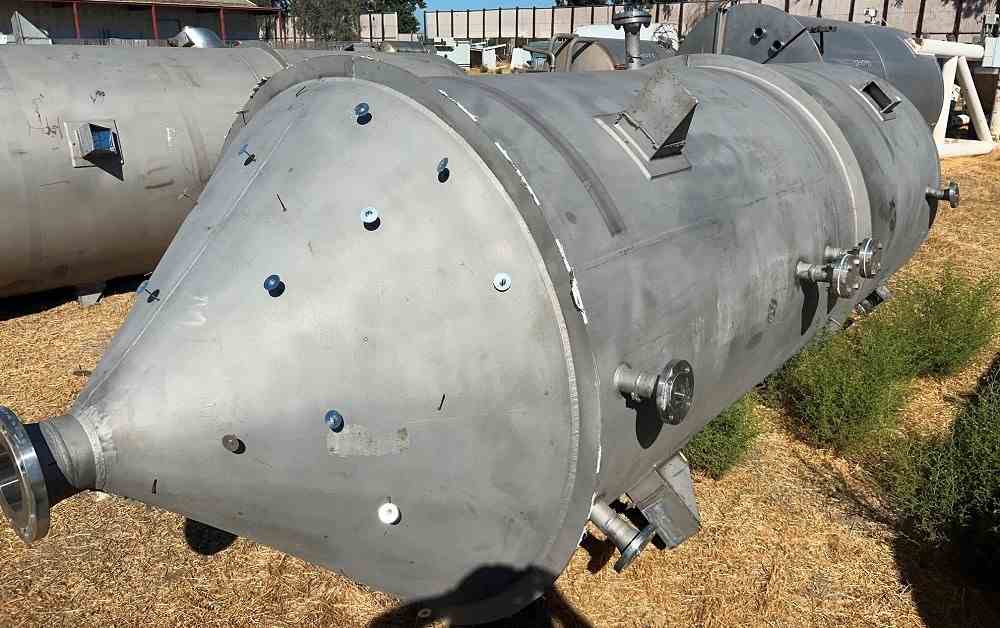

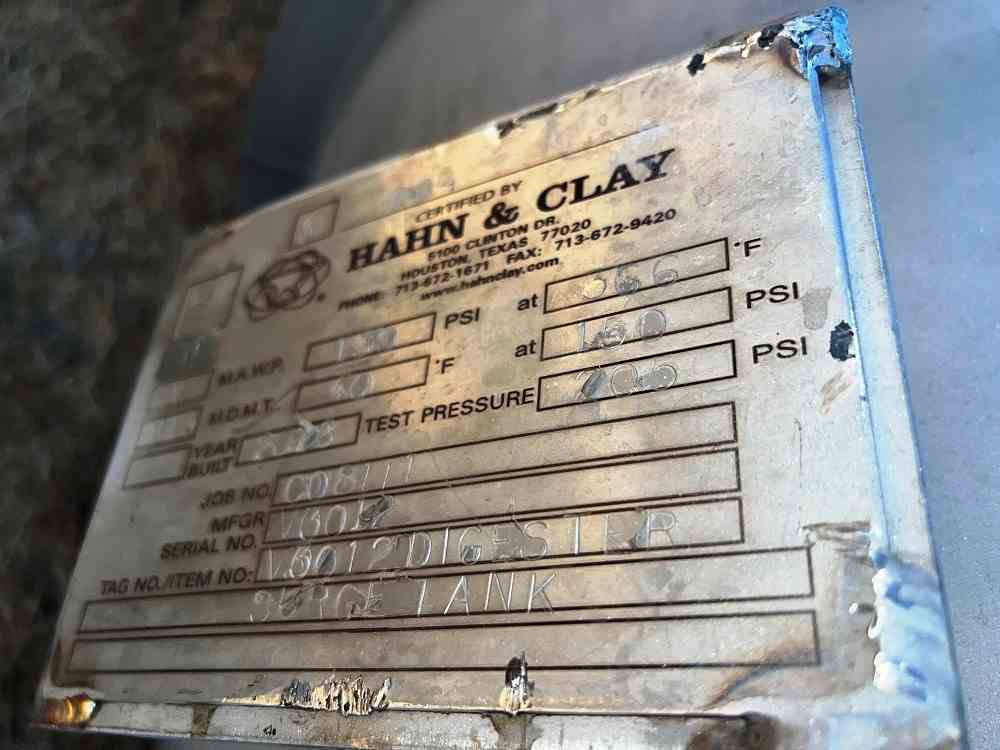

Used 2000 gallon 304L Stainless Steel vertical Pressure vessel. Manufactured by Hahn and Clay. 5'D X 12'H. Dish top and cone bottom. Rated 150 PSI @366F. MDMT 40F @ 150 PSI. 6" diameter center bottom on cone bottom, (1) 6" and (6) 2" openings along straight side, and (1) 8", (1) 6", (1) 3" and (2) 2" flange connections in top head. Serial # V3012. National Board # 602. Built 2018. Designed as digester tank for making probiotics.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
G2 Material Handling
Model
na
Material
304L Stainless Steel
Capacity
2000 Gal
Subcategory
