15700 KW General Electric Steam Turbine Generator
Other Views - click image for larger view
15700 KW General Electric Steam Turbine Generator 15700 KW General Electric Steam Turbine Generator 15700 KW General Electric Steam Turbine Generator

15700 kw general electric steam turbine generator

Stock # 20991
Capacity 15700 KW

Overview

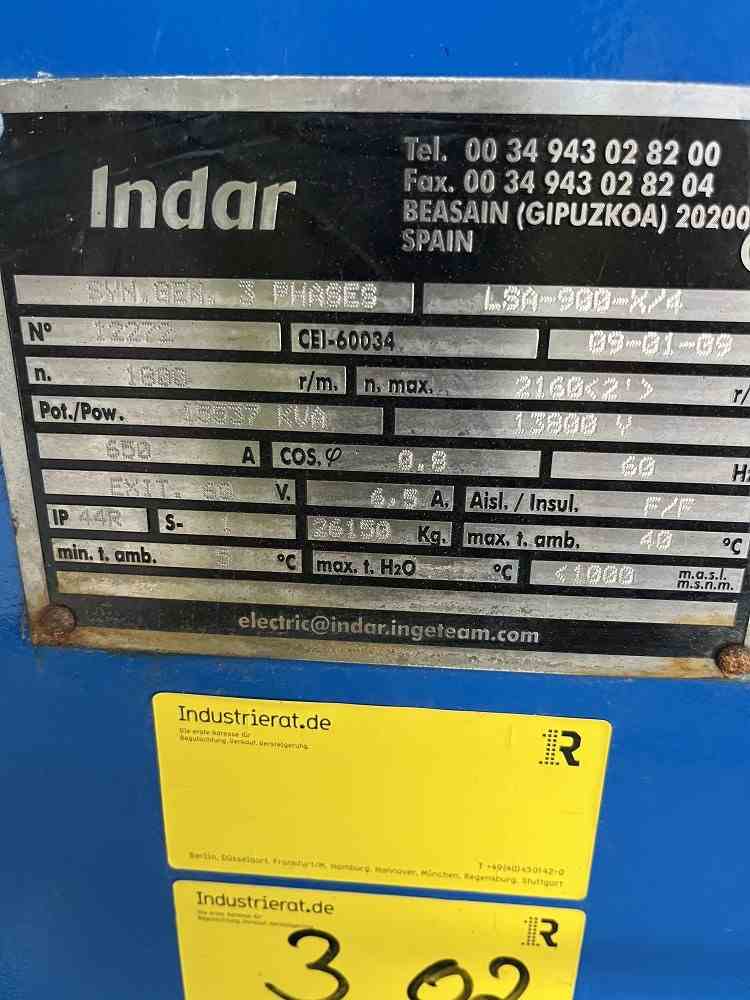

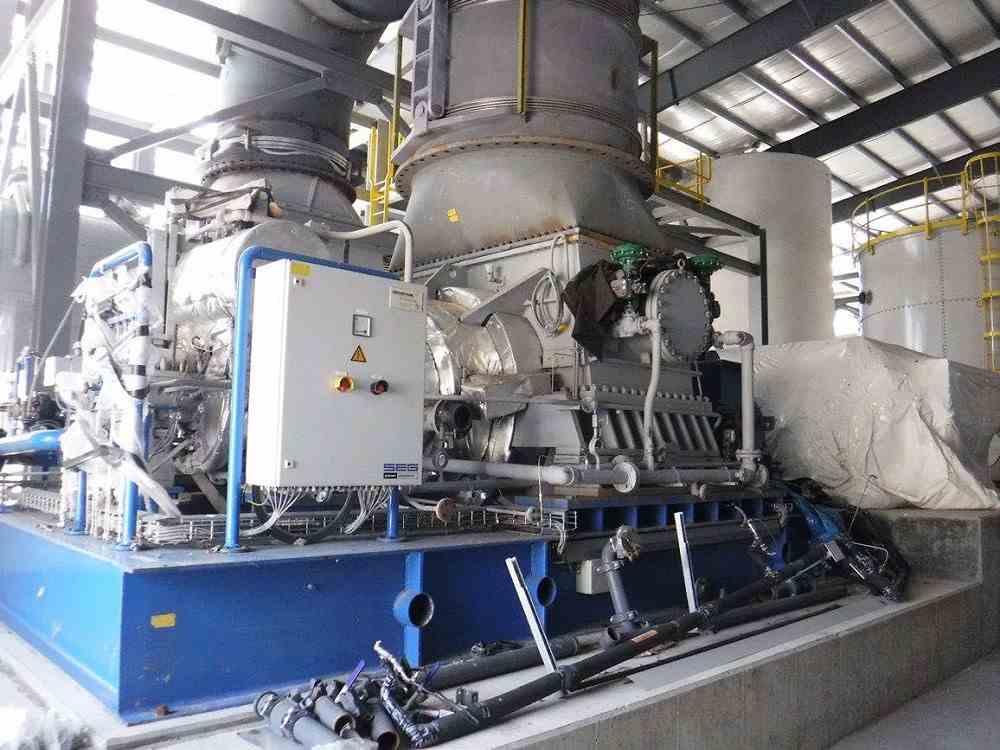

Unused 15700 kwh steam turbine generator set. Manufactured by GE. The set consists of (1) Dresser-Rand Condensing steam turbine. Model #RD9MQQ, 4500 RPM. 652 abs @ 430F inlet steam. 0.08 abs exhaust steam. 52,661 kg/hr inlet steam flow. Serial #21107 with (1) 15,537 kva Indar air cooled generator. Model #LSA-900-X/4, 13800V. Serial #12272. 13000 KW RENK gear box, model TL-500. 2514 ratio, 4226 speed input, 1800 speed output.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
General Electric
Model
NA
Material
Unknown
Capacity
15700 KW
