9910 Sq Ft GEA PHE Systems NA Inc. Stainless Steel Plate Heat Exchanger
Other Views - click image for larger view
9910 Sq Ft GEA PHE Systems NA Inc. Stainless Steel Plate Heat Exchanger 9910 Sq Ft GEA PHE Systems NA Inc. Stainless Steel Plate Heat Exchanger

9910 sq ft gea phe systems na inc. stainless steel plate heat exchanger

Stock # 19821
Capacity 9910 Sq Ft

Overview

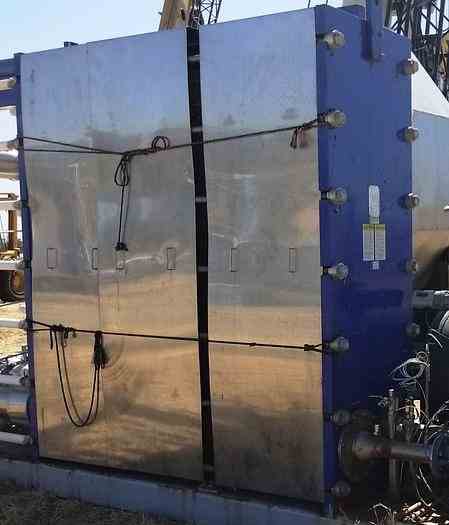

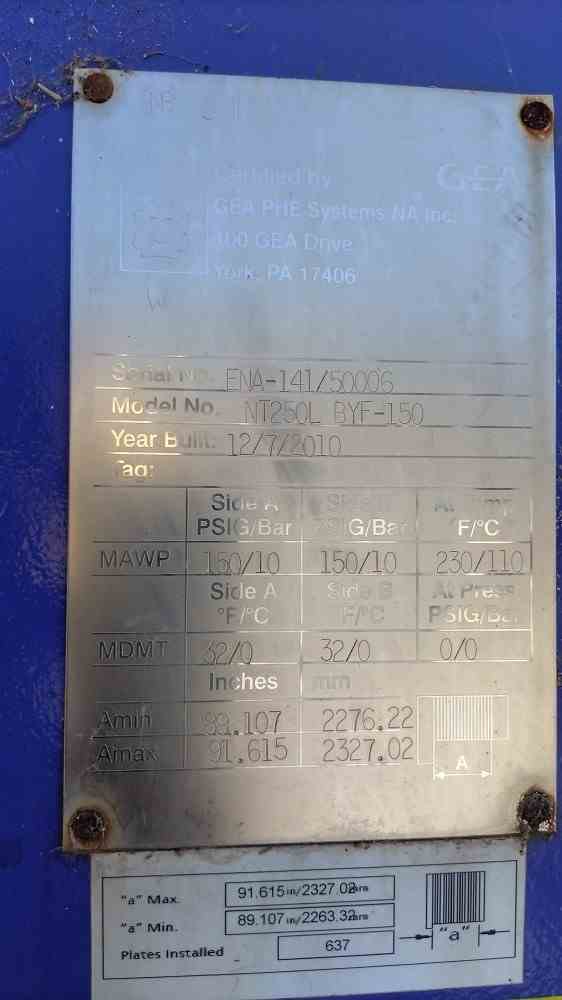

Used 9910 Sq Ft 304 Stainless Steel plate and frame heat exchanger. Manufactured by GEA PHE Systems NA Inc. Model NT250L BYF-150. (637) 304 stainless steel plates. 10" diameter inlets & outlets. Rated for up to 350 GPM, 52.7 cubic-feet volume, 150 PSI on hot side and cold side, 32F to 230F. Hot side - 185F inlet and 72F outlet temperature. Cold side - 70F inlet and 182F outlet. Serial #ENA-14/50006. National Board #516. Built 2010. Skid 33" wide X 165" long x 107" high. Previously used as part of pasteurization system.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
GEA PHE Systems NA Inc.
Model
NT250L BYF-150
Material
304 Stainless Steel
Capacity
9910 Sq Ft
