15800 KW Dresser Rand Steam Turbine Generator
Other Views - click image for larger view
15800 KW Dresser Rand Steam Turbine Generator 15800 KW Dresser Rand Steam Turbine Generator 15800 KW Dresser Rand Steam Turbine Generator 15800 KW Dresser Rand Steam Turbine Generator 15800 KW Dresser Rand Steam Turbine Generator 15800 KW Dresser Rand Steam Turbine Generator 15800 KW Dresser Rand Steam Turbine Generator 15800 KW Dresser Rand Steam Turbine Generator 15800 KW Dresser Rand Steam Turbine Generator 15800 KW Dresser Rand Steam Turbine Generator

15800 kw dresser rand steam turbine generator

Stock # 19716
Capacity 15800 KW

Overview

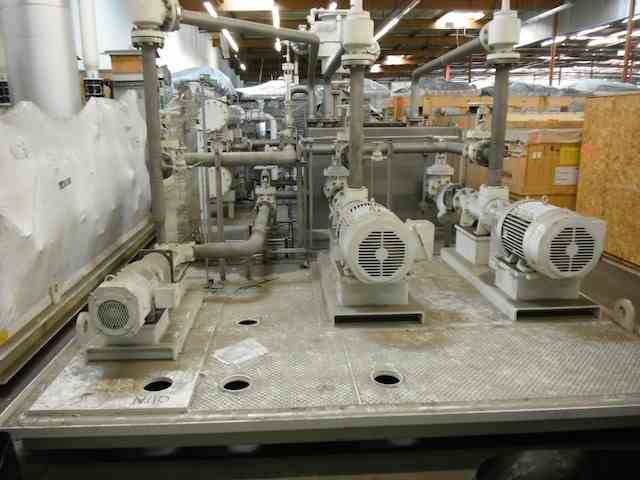

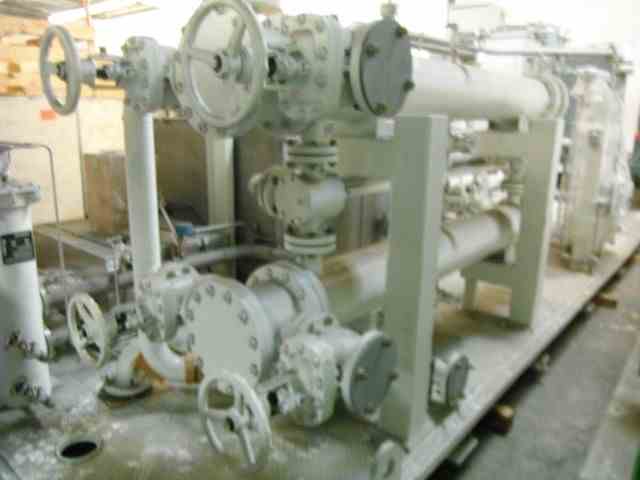

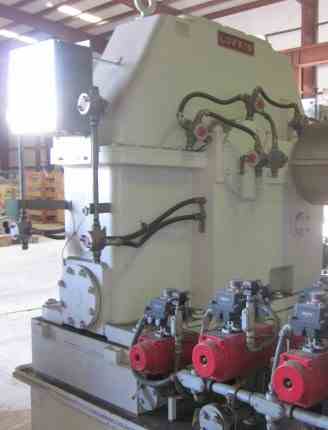

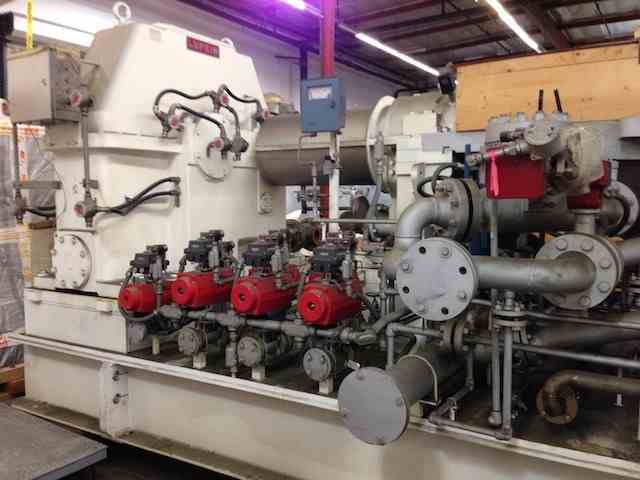

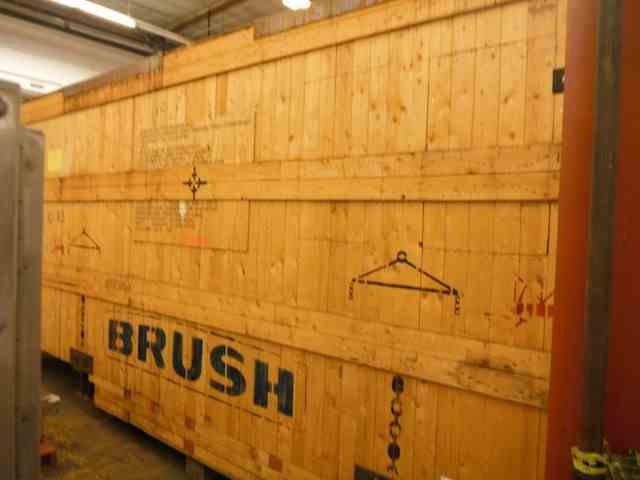

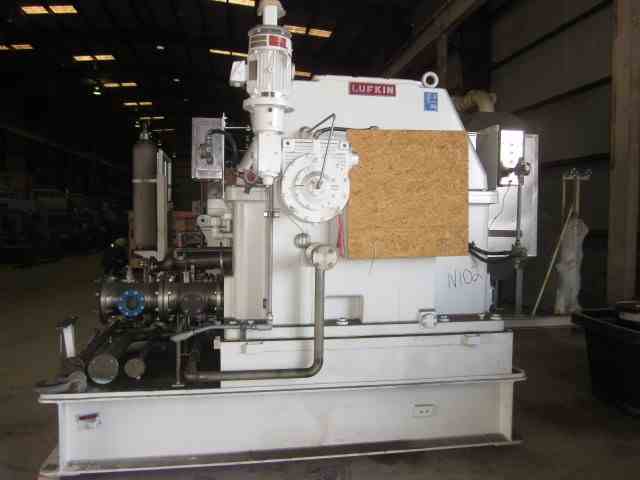

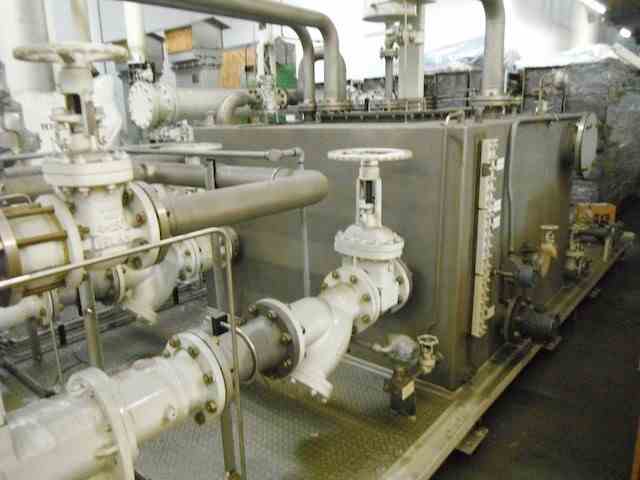

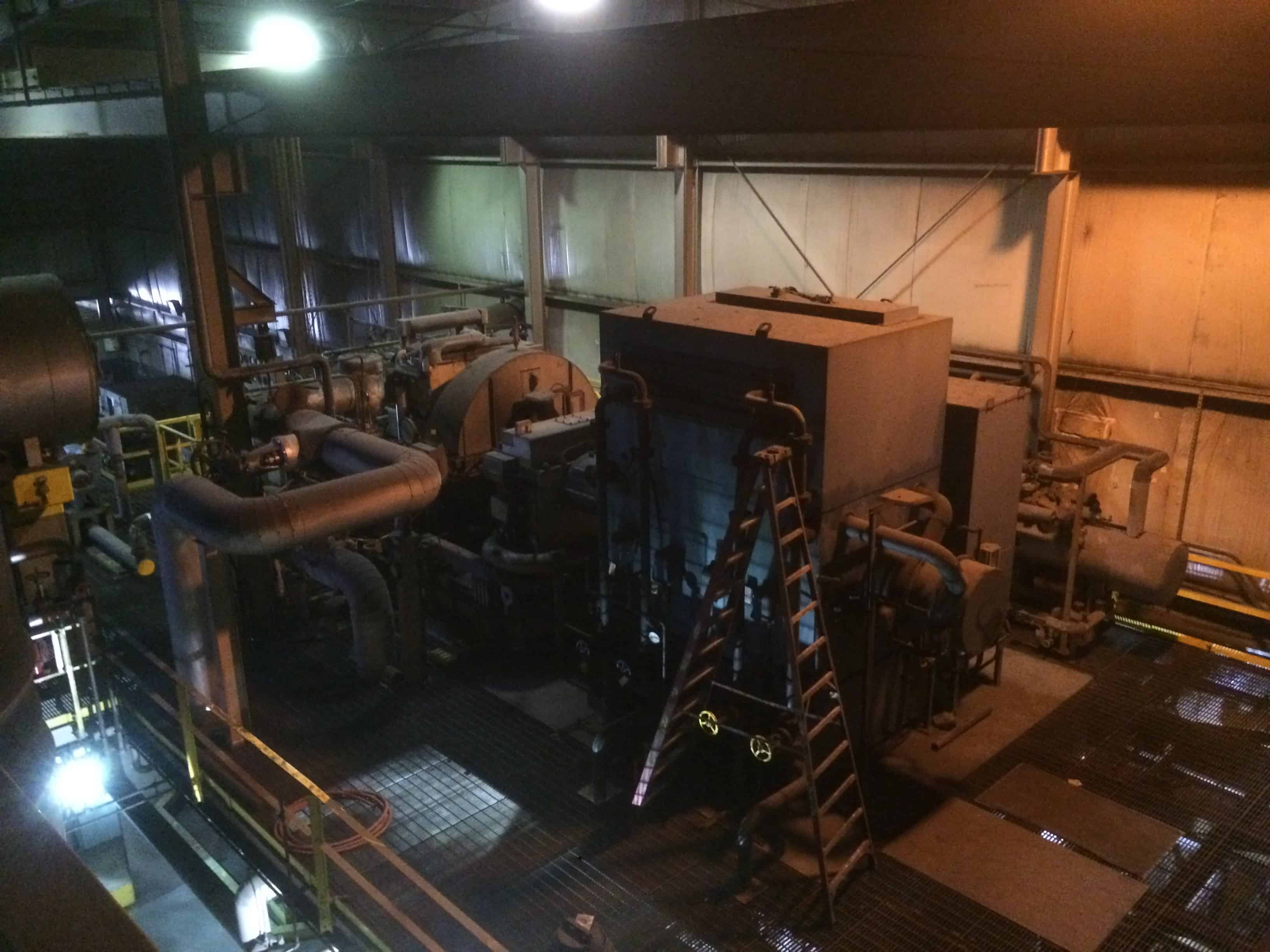

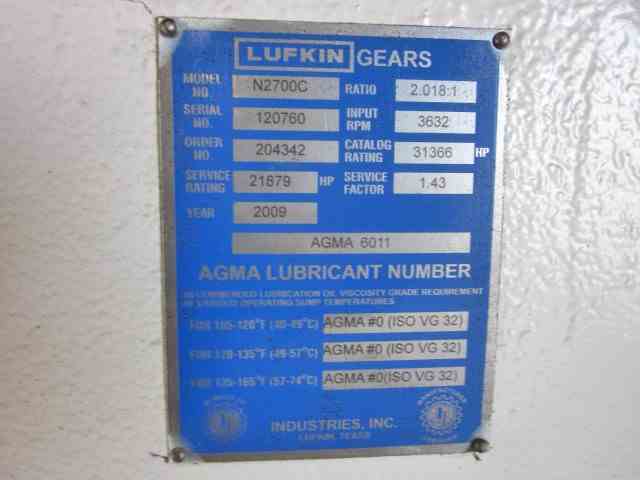

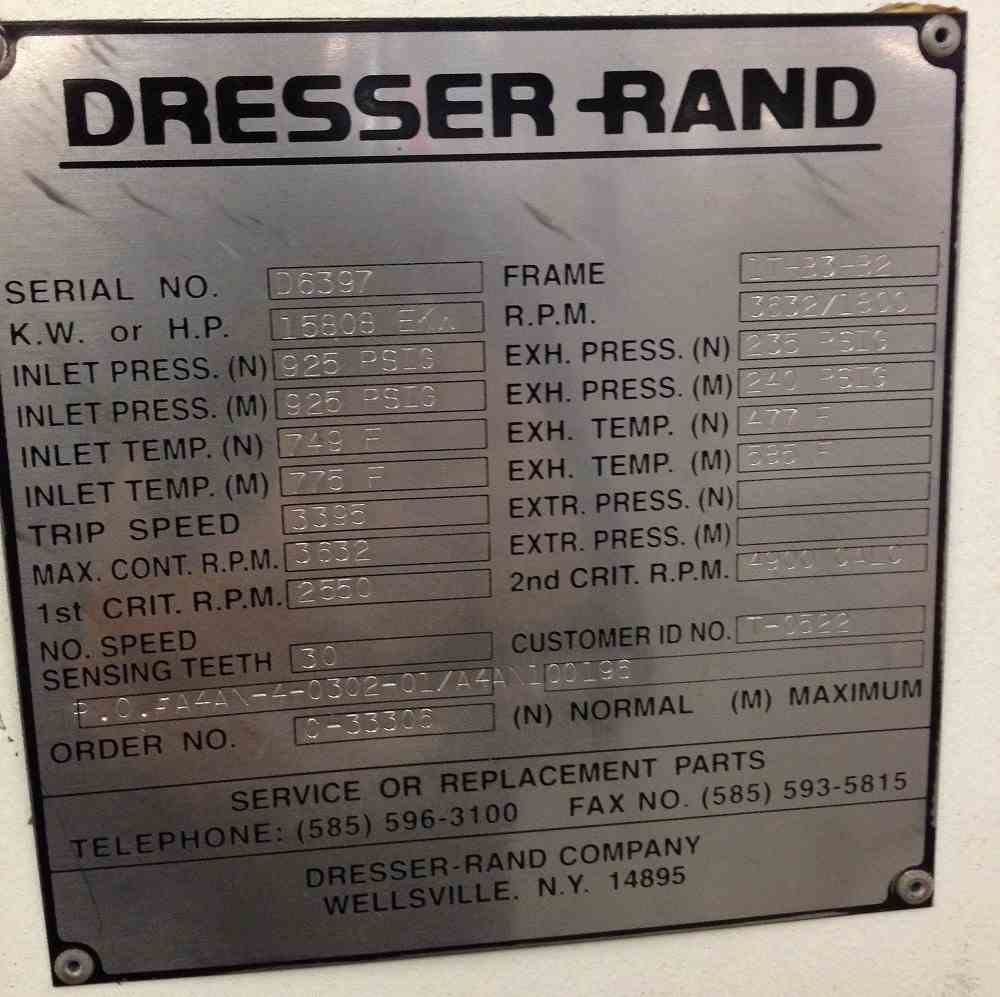

Unused 15MW Steam Turbine Generator. Manufactured by Dresser-Rand. Inlet Pressure 925PSIG@749F. Exhaust Pressure 235PSIG@477F. Trip Speed 3395 RPM. Max Cont RPM 3632. First Crit RPM 2550. Second Crit RPM 4900. Frame 1THB3HB2. Serial #D6397. Lufkin gearbox. Brush 18598kVA. Synchronous Generator PF: .85. 13.8kV, 60Hz, 4-pole. Brushless exciter. Rated current 778 A. Lube oil skid and control panel. includes (2) 5000 KVA Transformers 13.8 KV to 4160/2400 volts and (1) 2000 KVA Transformer 4160 to 480/277 volts.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Dresser Rand
Model
NA
Material
Unknown
Capacity
15800 KW
