110000 LBS/HR Termotecnica Industriale S.r.l. Watertube Boilers
Other Views - click image for larger view
110000 LBS/HR Termotecnica Industriale S.r.l. Watertube Boilers 110000 LBS/HR Termotecnica Industriale S.r.l. Watertube Boilers 110000 LBS/HR Termotecnica Industriale S.r.l. Watertube Boilers 110000 LBS/HR Termotecnica Industriale S.r.l. Watertube Boilers 110000 LBS/HR Termotecnica Industriale S.r.l. Watertube Boilers 110000 LBS/HR Termotecnica Industriale S.r.l. Watertube Boilers

110000 lbs/hr termotecnica industriale s.r.l. watertube boilers

Stock # 19703
Capacity 110000 LBS/HR

Overview

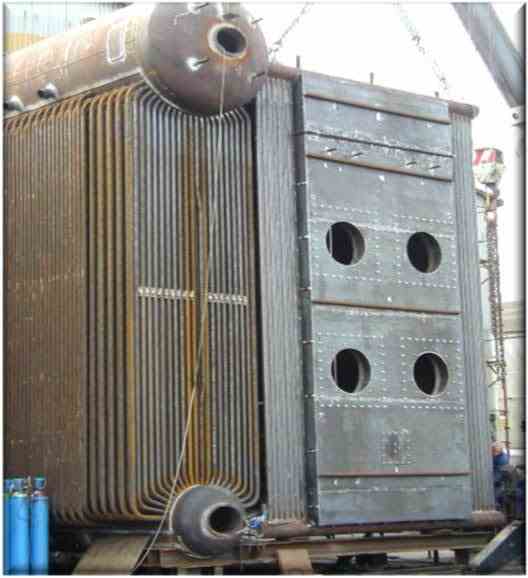

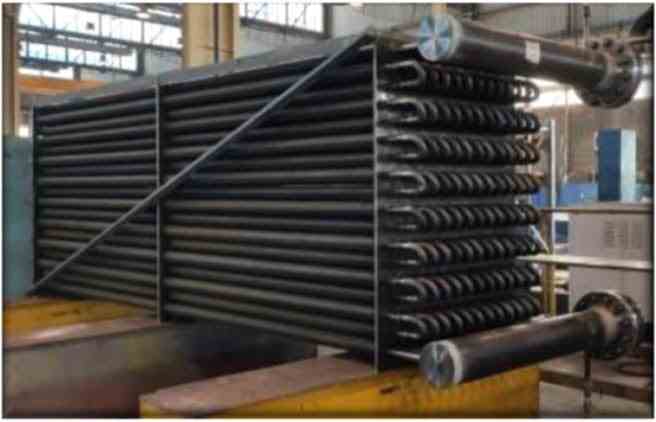

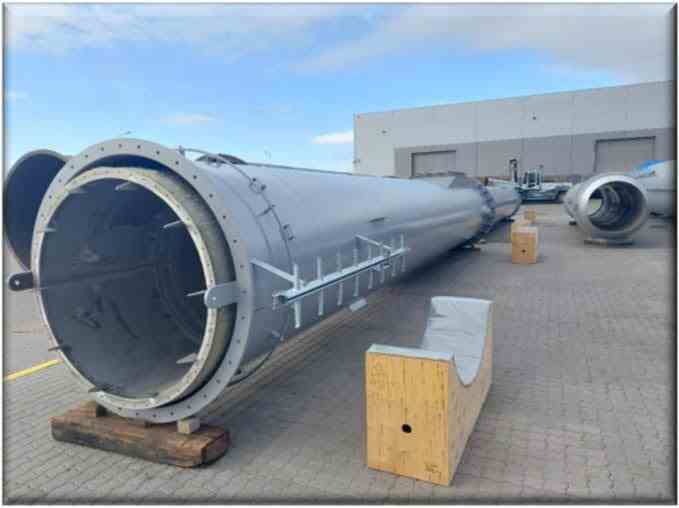

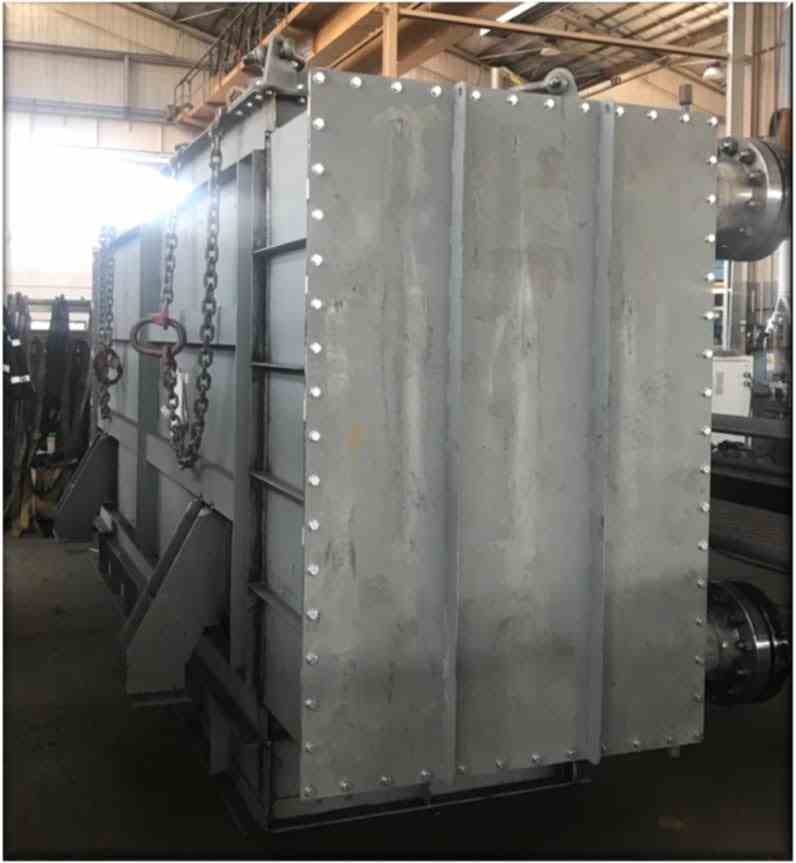

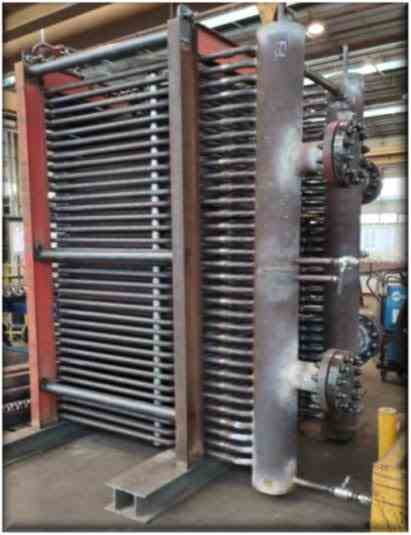

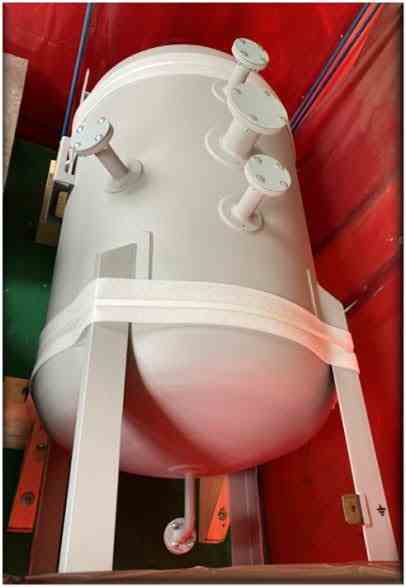

Unused Termotecnica Industriale Steam Boiler System. Natural gas fired. Output 110,000 Lbs/hour, minimum boiler efficiency 95.5%, working/design temperature 707 °F/815 °F, working/design pressure 609 psi/696 psi, max temperature of flue gas 320 °F. This is a complete boiler system including stack, fan with inlet silencer and air-preheater, complete set of control, shut off and safety valves, ACS and EDS system, and steel structure. Designed according to ASME and EU standards. Weight of boiler 121,254 Lbs, weight of auxiliary equipment 44,092 Lbs. Full technical documentation available. Technical services of installation supervision and commissioning, and warrantee available. The boiler system is designed to be used in ammonia plants or syngas reforming plants. Built 2022. Ready for Shipment.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Termotecnica Industriale S.r.l.
Model
N/A
Material
Unknown
Capacity
110000 LBS/HR
Category
