3200 KW Solar T4701 Gas Turbine Generator
Other Views - click image for larger view
3200 KW Solar T4701 Gas Turbine Generator 3200 KW Solar T4701 Gas Turbine Generator 3200 KW Solar T4701 Gas Turbine Generator 3200 KW Solar T4701 Gas Turbine Generator

3200 kw solar t4701 gas turbine generator

Stock # 17556
Capacity 3200 KW

Overview

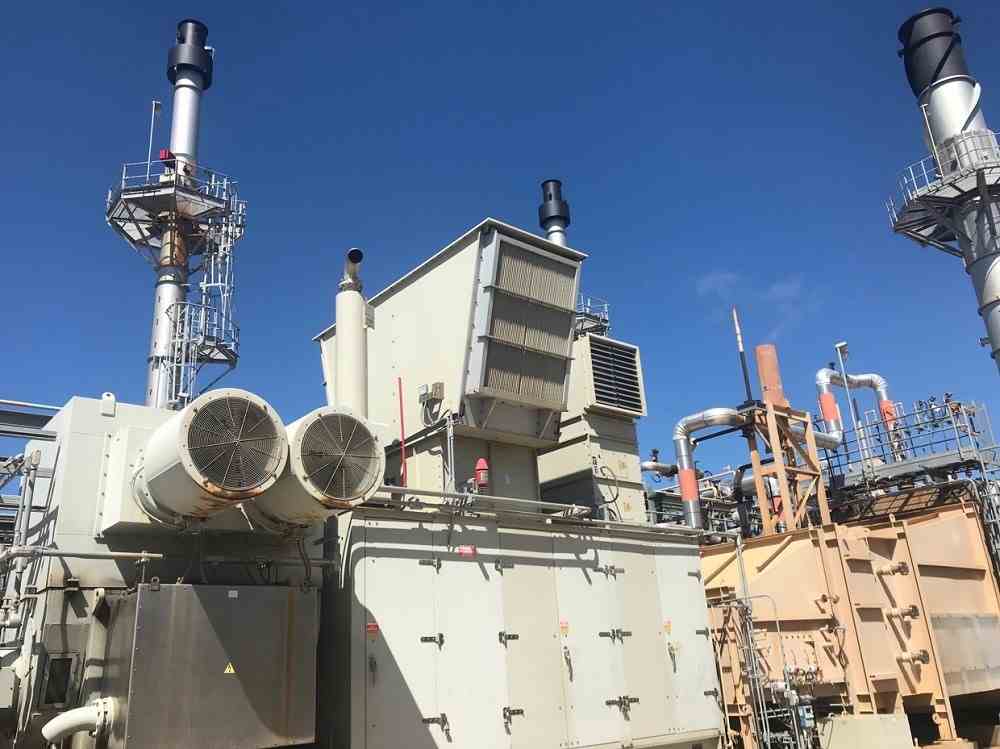

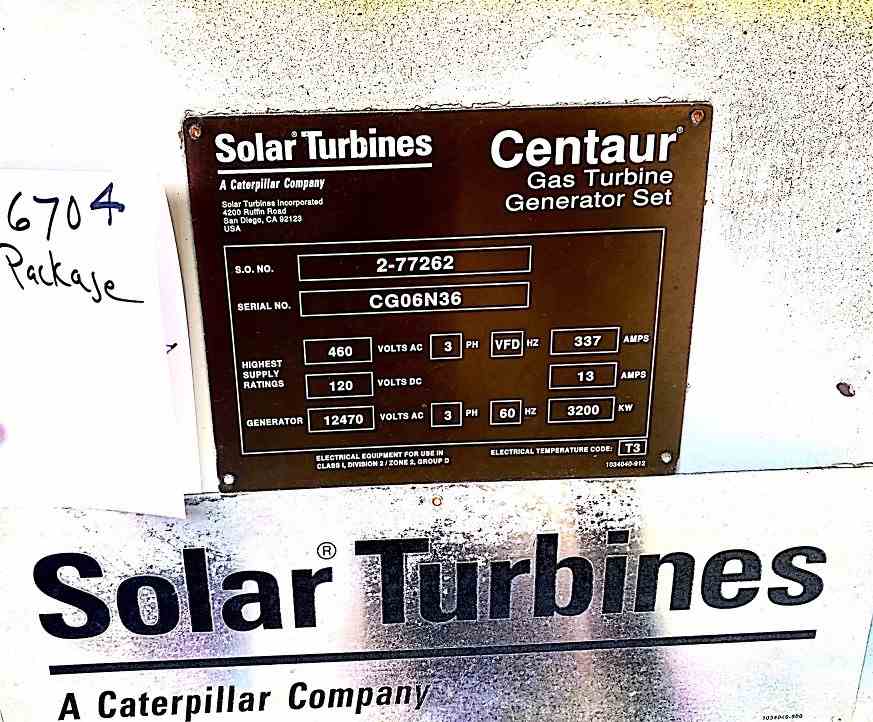

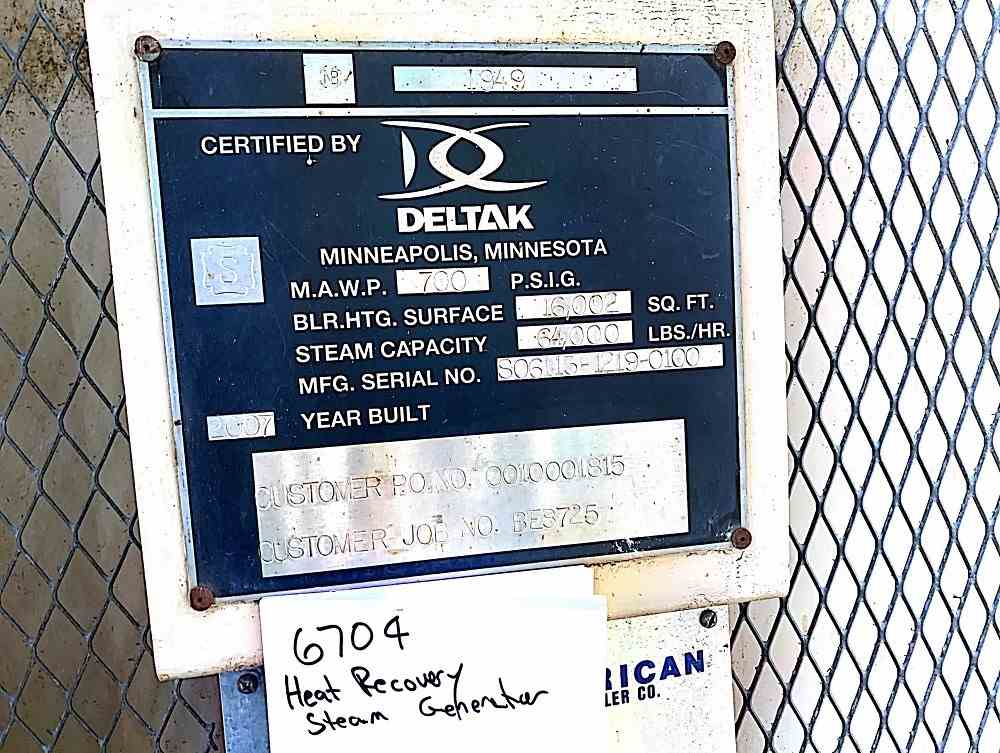

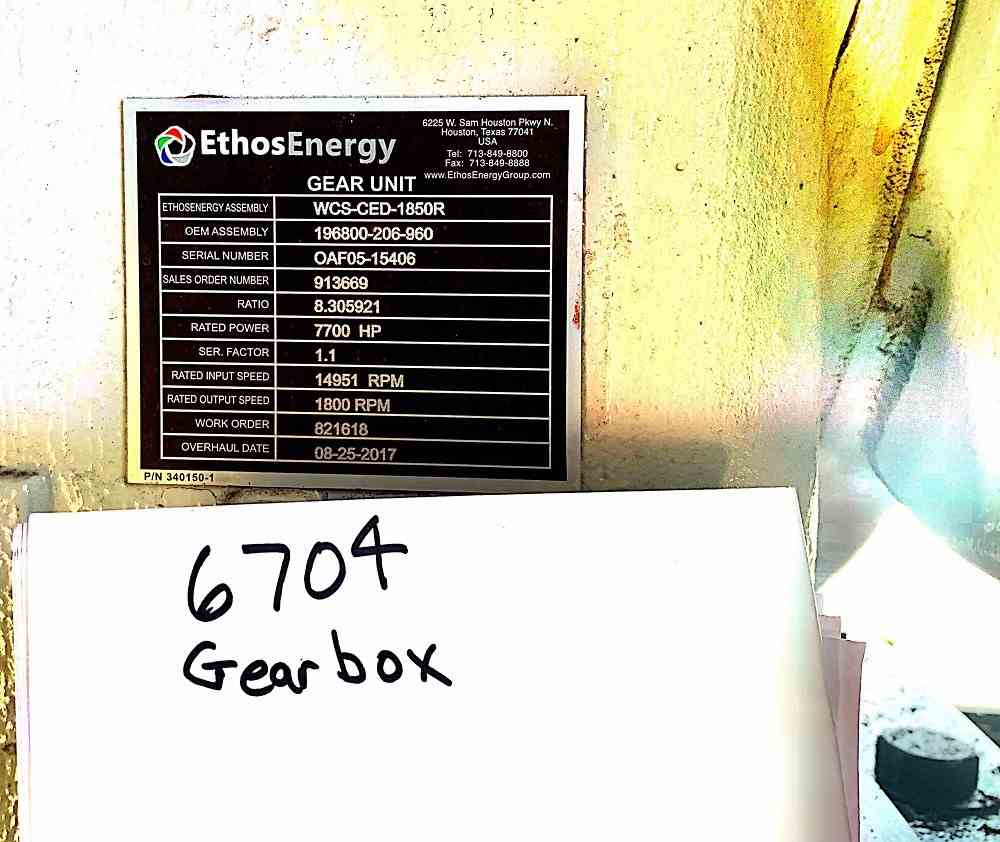

Used 3200 KW Solar Centaur T4701 Wet NoX Gas Turbine Generator Set. Model GC1-CB-1D. Engine Serial #3966C51. Turbine 1500 RPM. Serial #CG06N36. Keto Engineering Synchronous AC generator. Model AA27932000. Rated 3200KW. 1800 RPM. 4160/3/60. Power Factor .8. Temp Rise 70C. Serial #18771-01. Exciter Field Volts 100. Peak Duty 3169KW, Built 2006. Gear Box assembly 196800-206-960. Serial #OAF05-15406. Rated 7700 HP. Service Factor 1.1. Input 14851 RPM. Output 1800 RPM. Ration 8.305921. Overhauled 2017. Unit available with Deltak HRSG 64000Lb/Hr Steam Boiler. Rated 700PSIG. 16002 Sq Ft Heat Surface. Serial #S06113-1219-0100. National Board #1949. Built 2007.
