3200 KW Solar T4701 Gas Turbine Generator
Other Views - click image for larger view
3200 KW Solar T4701 Gas Turbine Generator 3200 KW Solar T4701 Gas Turbine Generator 3200 KW Solar T4701 Gas Turbine Generator

3200 kw solar t4701 gas turbine generator

Stock # 17554
Capacity 3200 KW

Overview

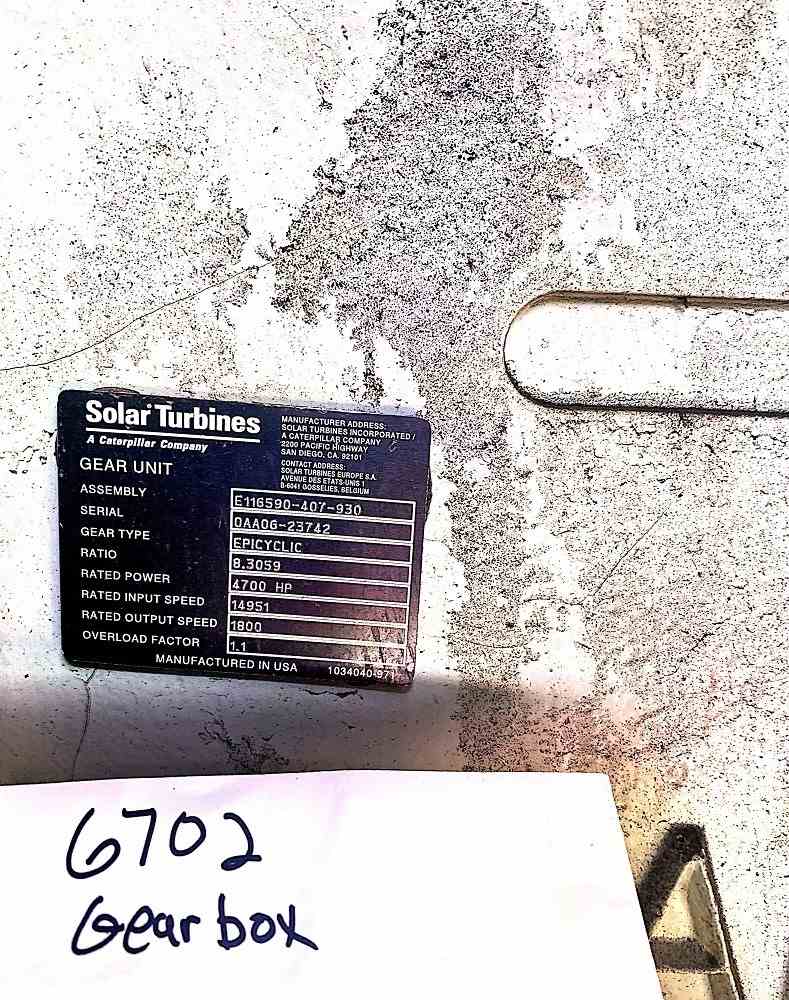

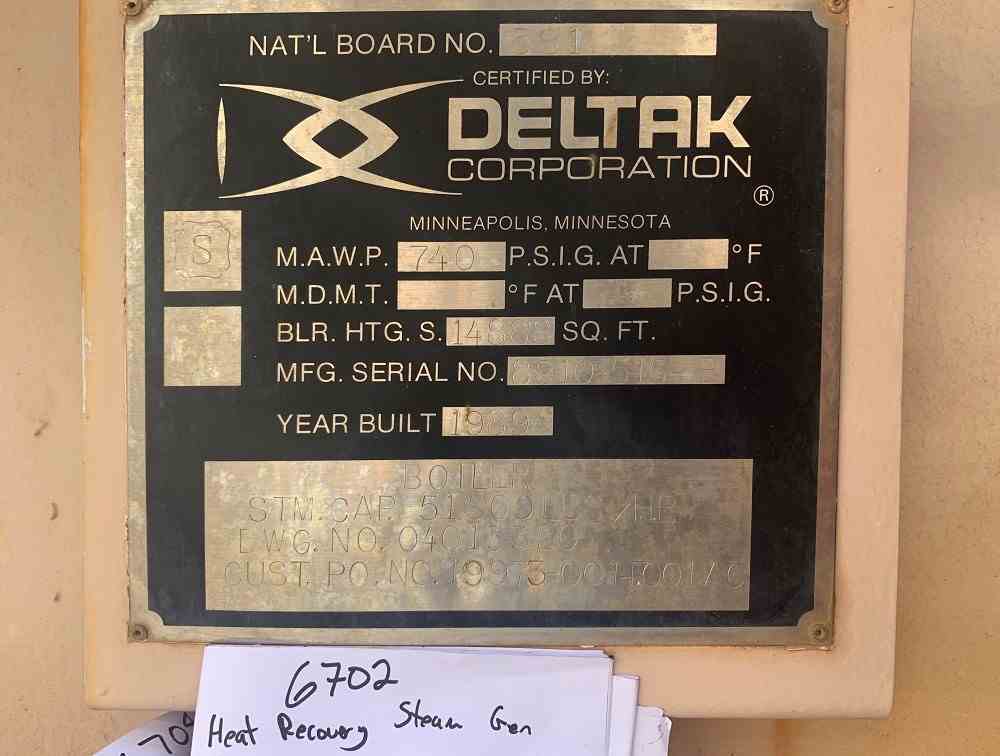

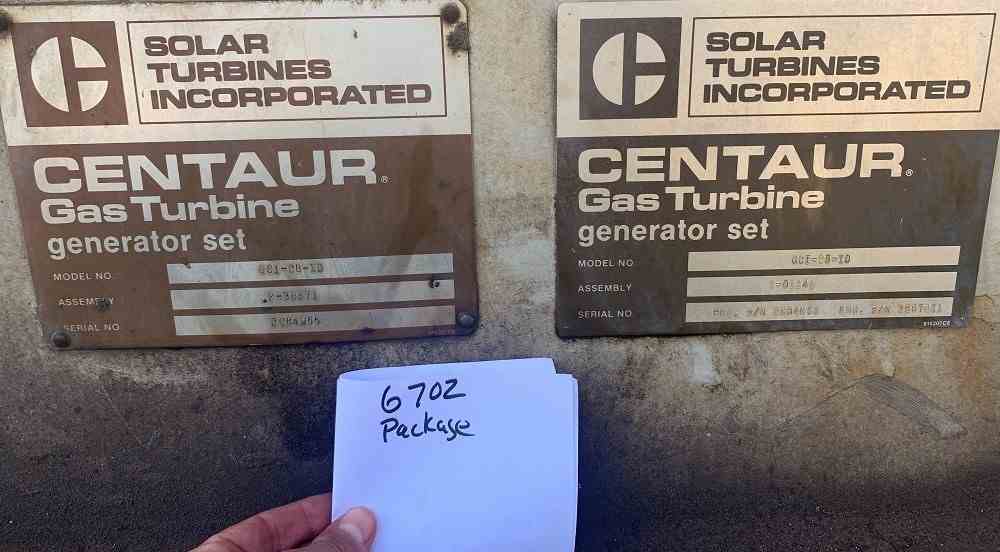

Used 3200 KW Solar Centaur T4701 Wet NoX Gas Turbine Generator Set. Model GC1-CB-ID. Engine Serial #3967C51. Turbine 1500 RPM. Serial #OHE13-C3914. Brushless AC Continuous duty generator. Type SAB. Rated 2760KW. Frame 21120-29. 1800 RPM. 4160/3/60. Power Factor .8. Temp Rise 70C. Serial #328638. Brushless Exciter: type FRBA Frame BE12-6. Field Volts 62.5. Peak Duty 3169KW, Built 1984. Package #CG84055. Epicyclic Gear Box Rated Power 4200HP. INput Speed 14951 RPM. Output 1800 RPM. Ratio 8.3059. Overload Factor 1.1. Assembly #E116590-408-930. Serial #OAAOG-23742. Unit available with Deltak HRSG 51500 Lb/Hr Steam Boiler. Rated 740PSIG. 14888 Sq Ft Heat Surface. Serial #8910-515-B. National Board #581. Built 1989.
