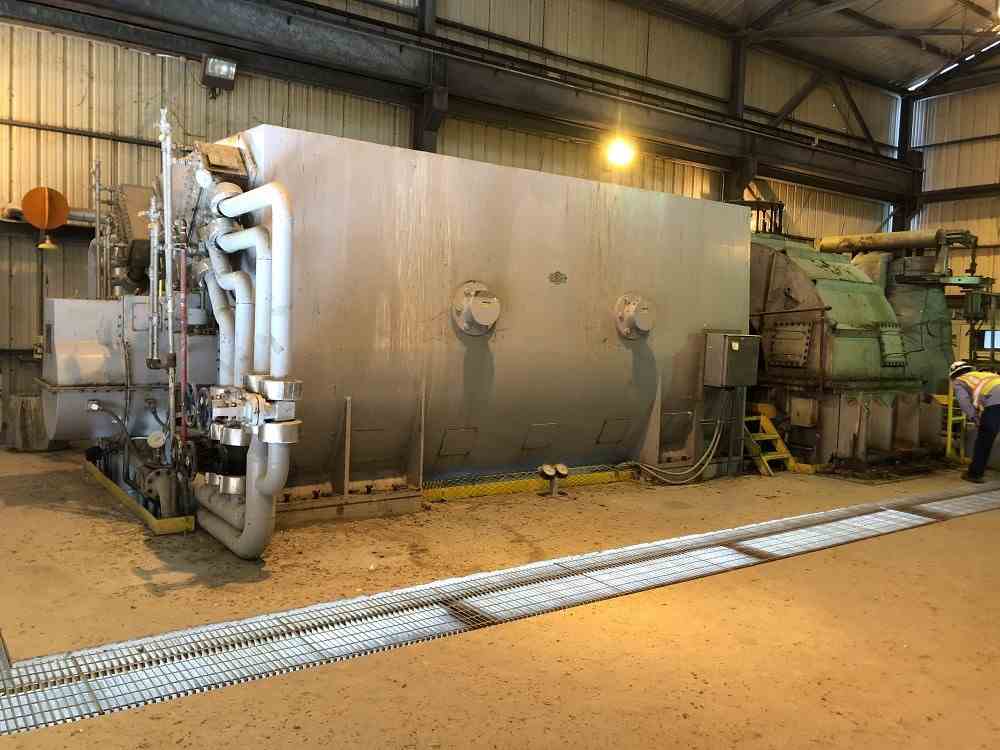

39000 KW IMO Delaval Steam Turbine Generator
Other Views - click image for larger view
39000 KW IMO Delaval Steam Turbine Generator 39000 KW IMO Delaval Steam Turbine Generator 39000 KW IMO Delaval Steam Turbine Generator 39000 KW IMO Delaval Steam Turbine Generator 39000 KW IMO Delaval Steam Turbine Generator 39000 KW IMO Delaval Steam Turbine Generator

39000 kw imo delaval steam turbine generator

Stock # 16717
Capacity 39000 KW

Overview

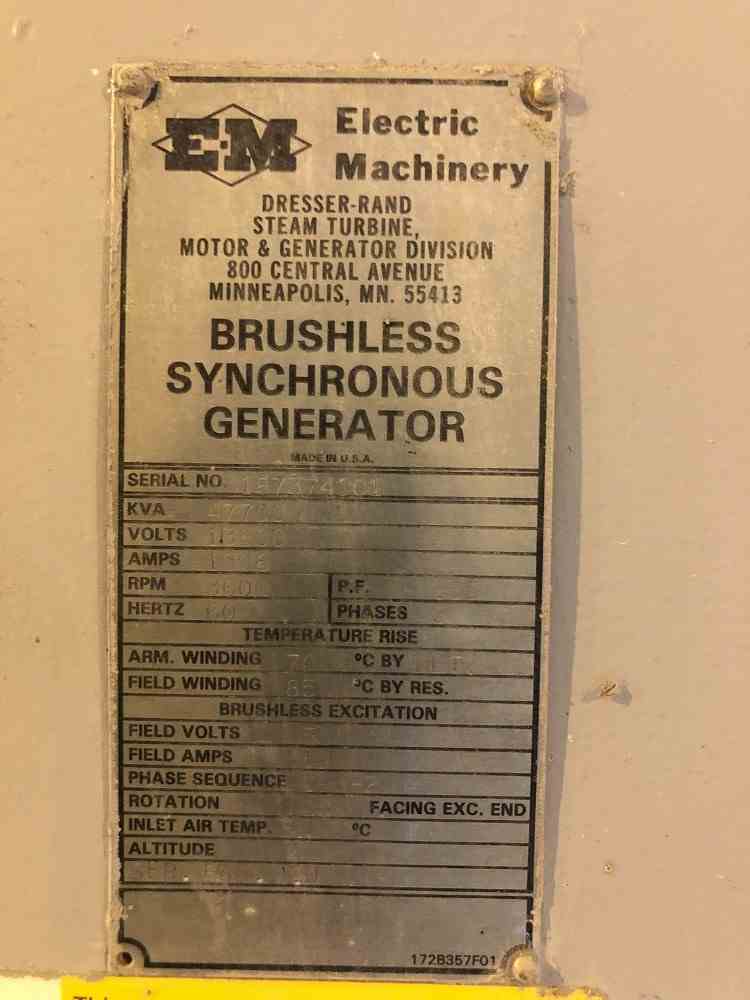

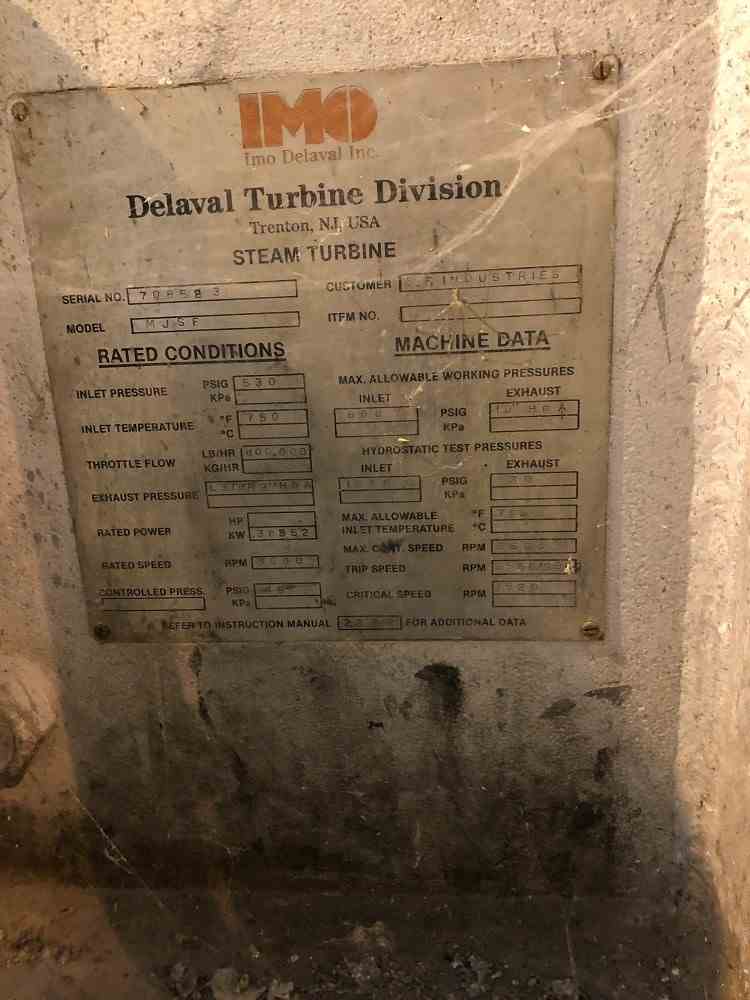

Used 39 MW (38,952 KW) Imo Delaval Model # MJSF Steam Turbine Generator. Speed 3,600 RPM. Inlet Steam Pressure – 530 psig. Inlet Steam Temperature – 750 F. Throttle Flow – 400 lb/hr. Exhaust Pressure – LB/HR 3” HGA. Serial No. 708523. Generator Manufacturer Electric Machinery (Dresser). KVA Rating – 47,700. Voltage – 13,800. Frequency – 60 Hz. KW Rating – 40,545. Power Factor – 0.85. 3 Phase. Serial No. 187374101.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
IMO Delaval
Model
MJSF
Material
Unknown
Capacity
39000 KW
