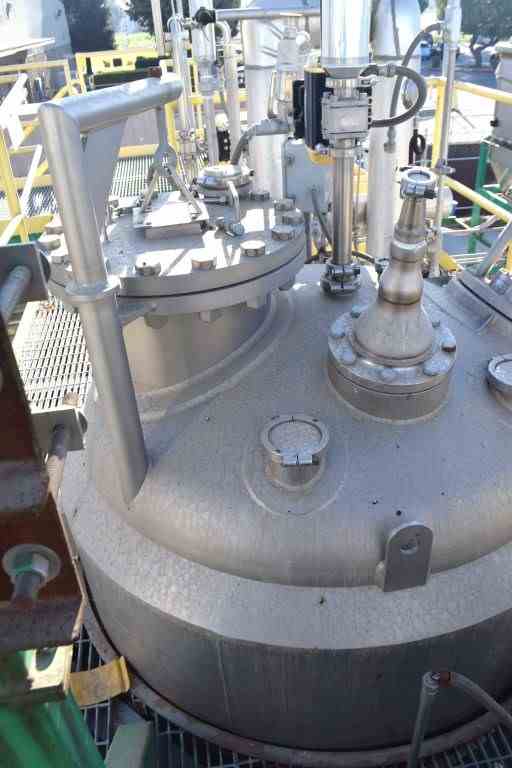

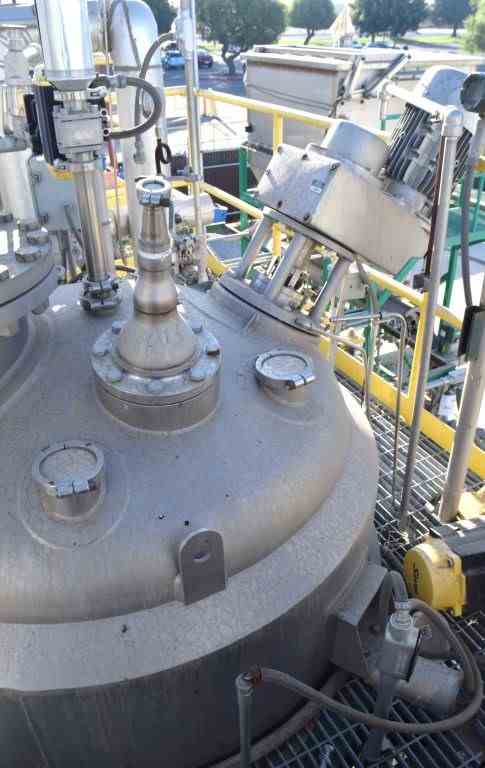

400 Gal A&B Process Systems Stainless Steel Kettle
Other Views - click image for larger view
400 Gal A&B Process Systems Stainless Steel Kettle 400 Gal A&B Process Systems Stainless Steel Kettle 400 Gal A&B Process Systems Stainless Steel Kettle 400 Gal A&B Process Systems Stainless Steel Kettle 400 Gal A&B Process Systems Stainless Steel Kettle 400 Gal A&B Process Systems Stainless Steel Kettle

400 gal a&b process systems stainless steel kettle

Stock # 16418
Sold
Capacity 400 Gal

Overview

A&B Process Systems Reactor, Approximate 400 Gallon, 304L Stainless Steel, Vertical. 54” Diameter x 24” straight side, Dished top, jacketed hemispherical bottom. Internal rated 150 psi at -20 to 425 degrees F., 304L stainless steel jacket rated 150 psi at -20 to 425 degrees F. Off center top entering angled anchor agitator with scrapers, driven by a 10hp, 3/60/230/460 volt, 1770 rpm gear motor, ratio 40.80 to 1. Top 18" man way with davit arm cover, 4” center bottom outlet. Mounted on (3) side lugs. Serial# 1118160301C, National Board#1607, built 2012.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
A&B Process Systems
Model
N/A
Material
304L
Capacity
400 Gal
