0.2 Sq Meter Cogeim C22 Nutsche Filter
Other Views - click image for larger view
0.2 Sq Meter Cogeim C22 Nutsche Filter 0.2 Sq Meter Cogeim C22 Nutsche Filter 0.2 Sq Meter Cogeim C22 Nutsche Filter 0.2 Sq Meter Cogeim C22 Nutsche Filter 0.2 Sq Meter Cogeim C22 Nutsche Filter 0.2 Sq Meter Cogeim C22 Nutsche Filter 0.2 Sq Meter Cogeim C22 Nutsche Filter

0.2 sq meter cogeim c22 nutsche filter

Stock # 15472
Capacity 0.2 Sq Meter

Overview

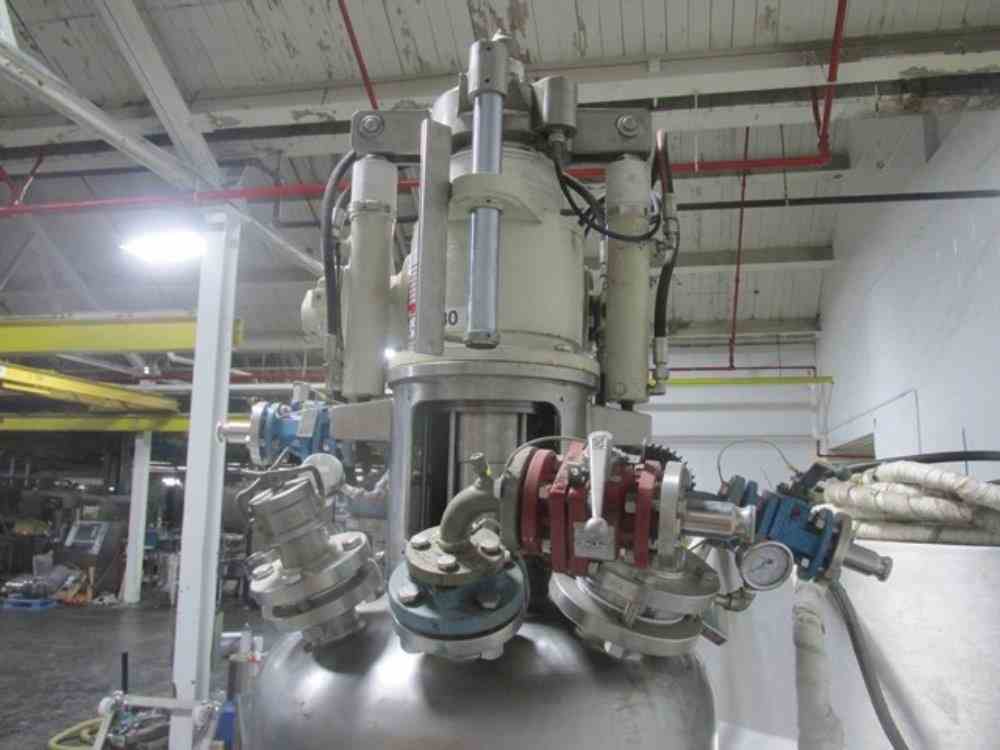

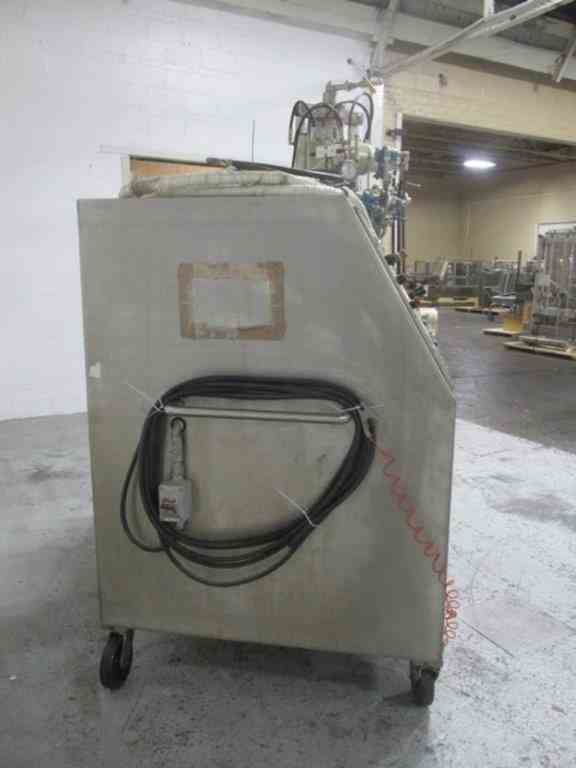

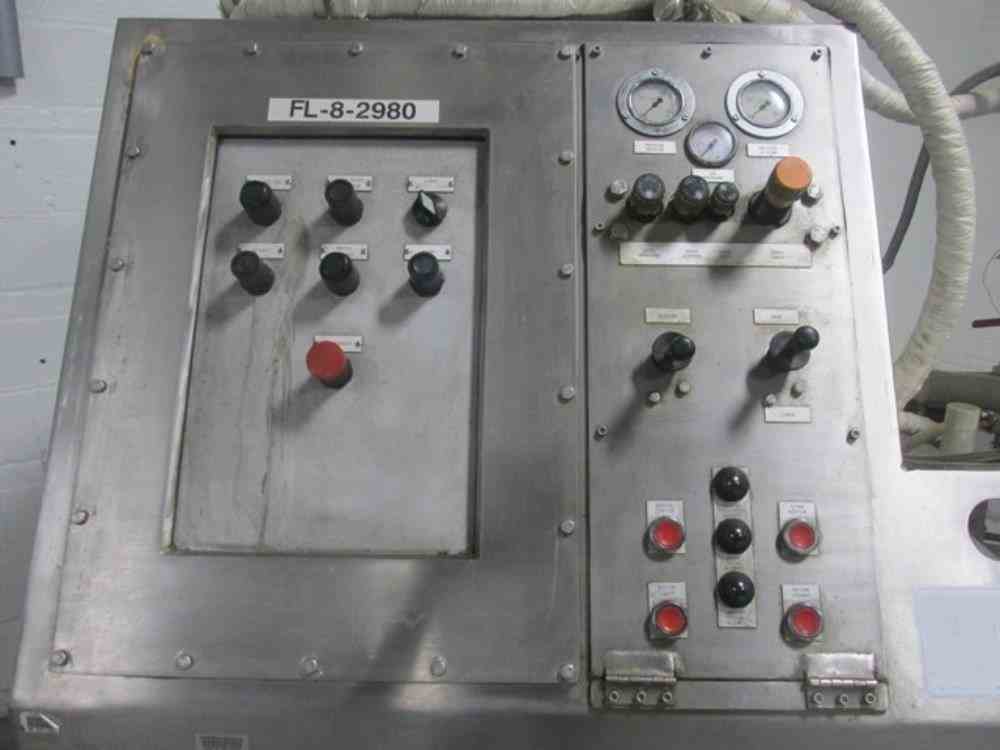

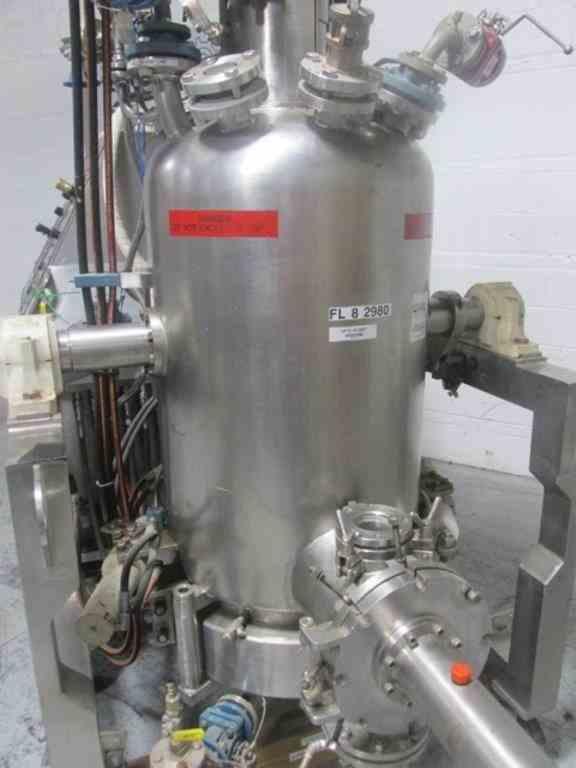

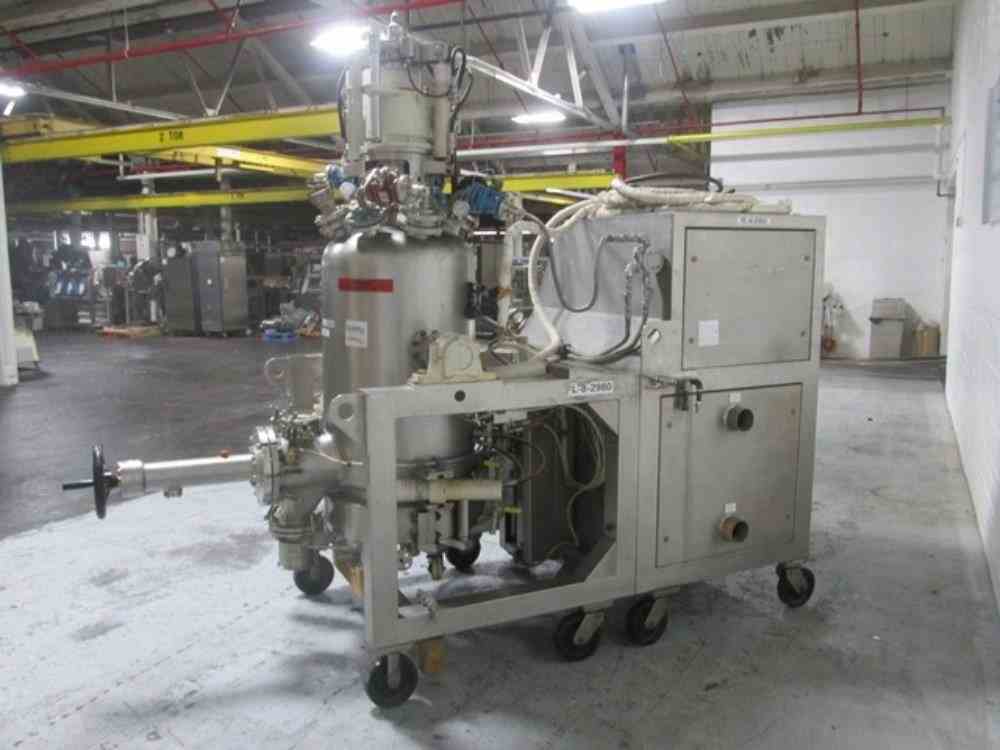

Used .2 sq meter Cogeim agitated Nutsche Filter, Model FPP050SD-FM, .2 sq meter surface area, Hastelloy C22 construction, rated 150 psi and full vacuum at 350 f internal, jacketed vessel and bottom plate for 150 psi and full vacuum at 350 f, removable bottom filter plate with hydraulically activated quick release clamp and plate lift/lower mechanism, side discharge with manually operated plug valve, hydraulically driven cored shaft with (2) wing agitator, mechanical seal, on portable stainless steel base with on board 10 HP, 460 volt hydraulic power pack and controls, Job# 931.022, Serial# 795, national board# 82, built 1994.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Cogeim
Model
FPP050SD-FM
Material
C22
Capacity
0.2 Sq Meter
Category
