500 Gal Ceramic Coatings Glass Lined Tank
Other Views - click image for larger view
500 Gal Ceramic Coatings Glass Lined Tank 500 Gal Ceramic Coatings Glass Lined Tank 500 Gal Ceramic Coatings Glass Lined Tank 500 Gal Ceramic Coatings Glass Lined Tank 500 Gal Ceramic Coatings Glass Lined Tank

500 gal ceramic coatings glass lined tank

Stock # 13781
Sold
Capacity 500 Gal

Overview

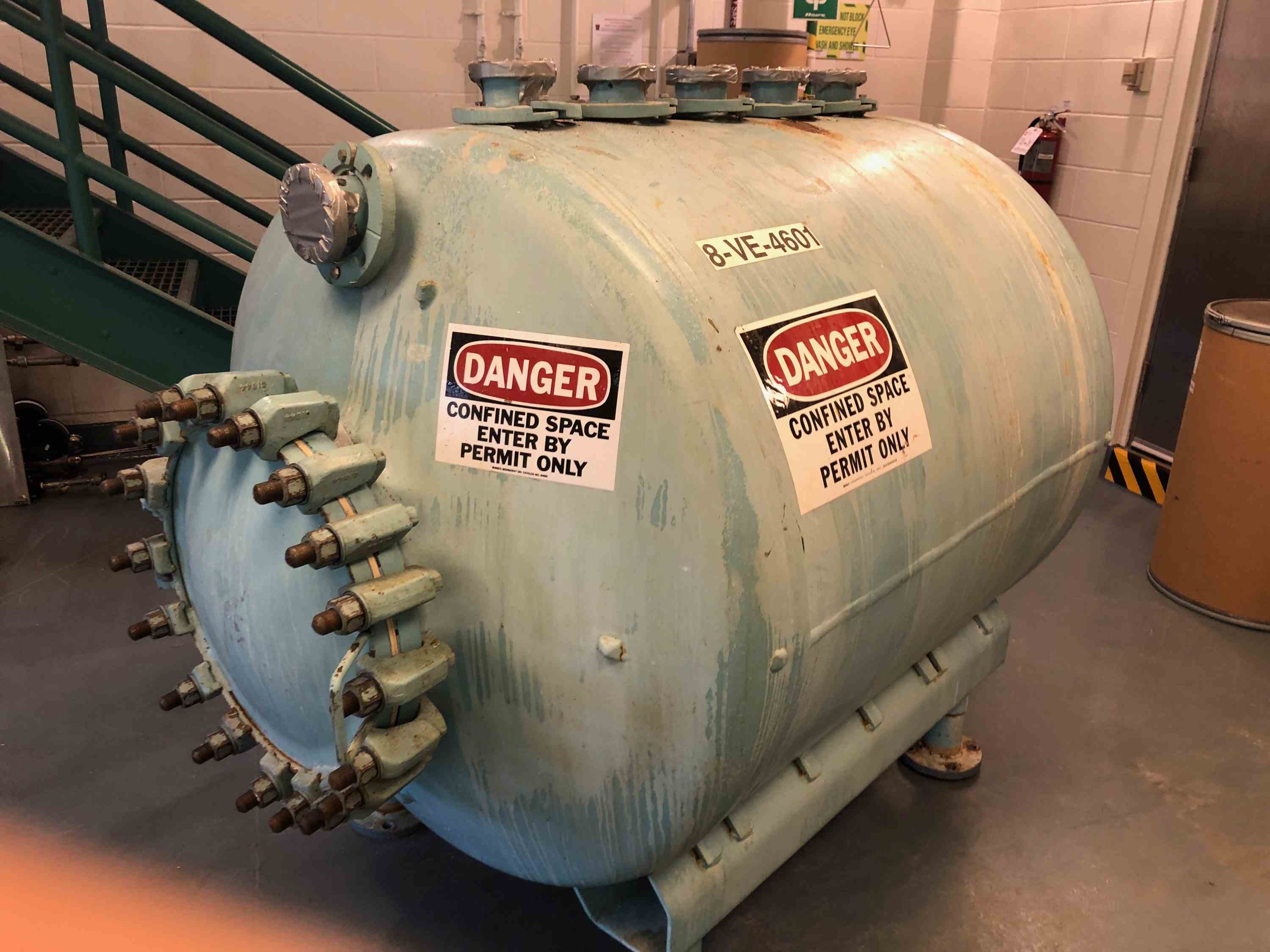

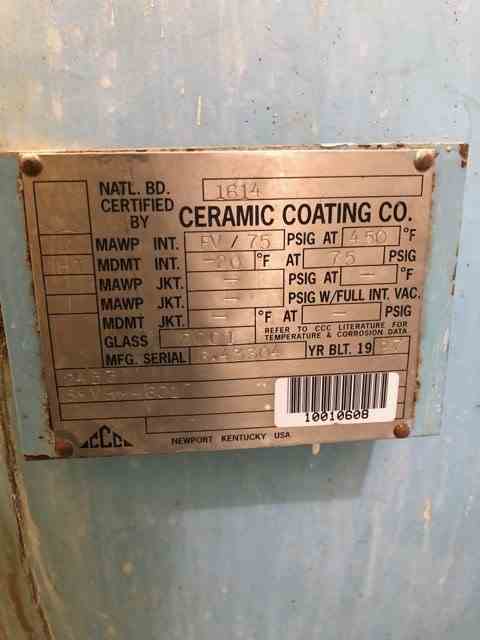

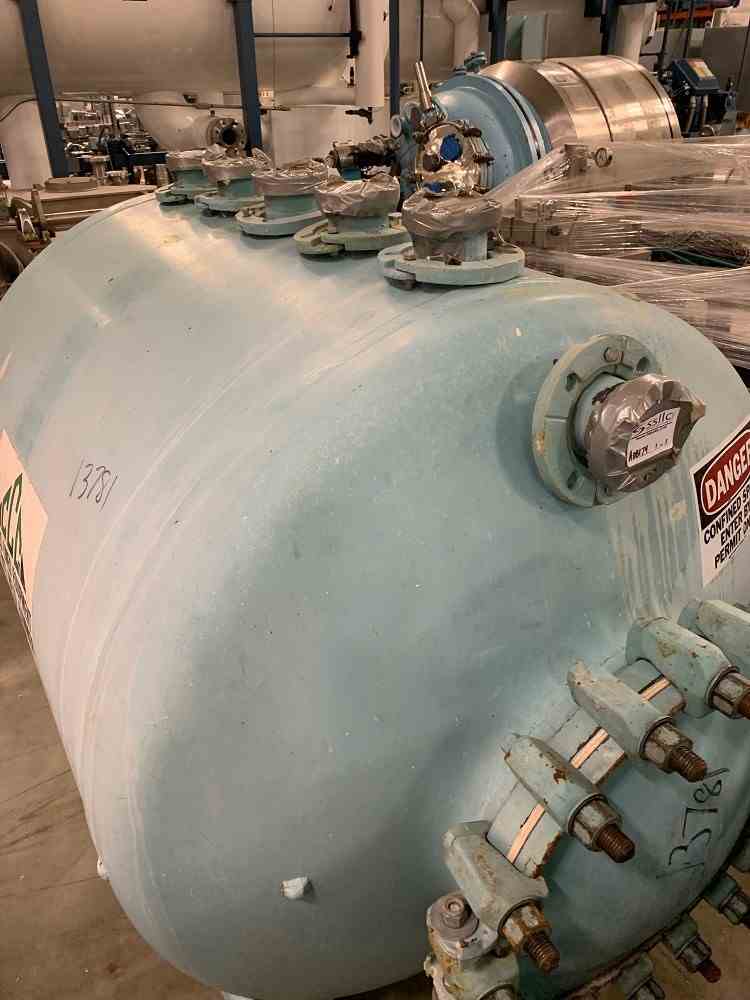

USED APPROX 500 GALLON GLASS LINED HORIZONTAL TANK. 22" DIA X 25" STRAIGHT SIDE. (5) 3.5" TOP NOZZLE; (2) 3.5" BOTTOM NOZZLE, (1) 3.5" SIDE NOZZLE, 22" SIDE MANWAY. MFG CERAMIC COATINGS CO. USED AS COLUMN BLOW DOWN TANK. MAWP INT 75PSI/FV @ 450F. NATIONAL BOARD 1614. SERIAL #6.43304. BUILT 1997.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Ceramic Coatings
Model
NA
Material
Unknown
Capacity
500 Gal
Subcategory
