16230 KW MAN Turbo AG Steam Turbine Generator
Other Views - click image for larger view

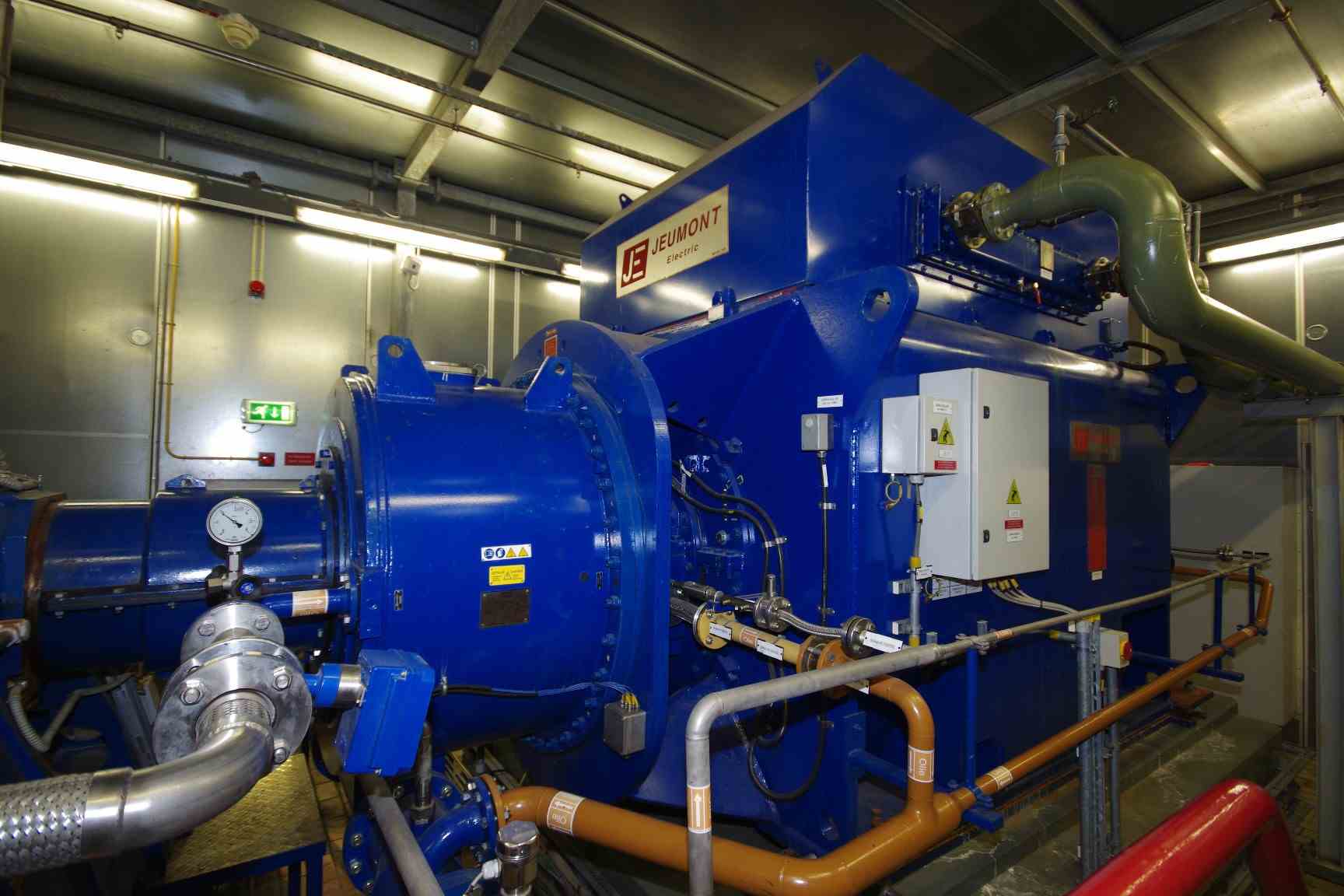

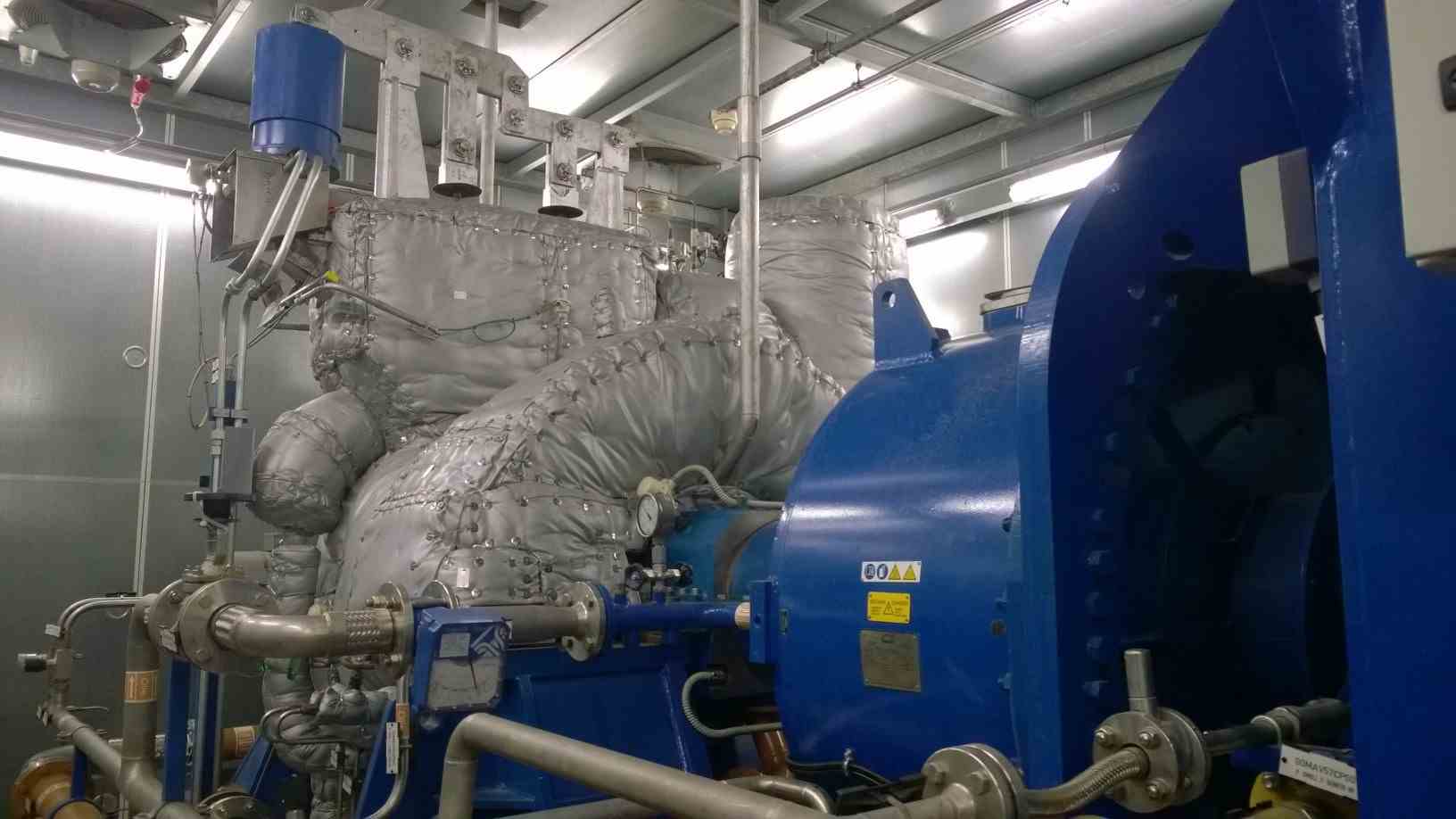

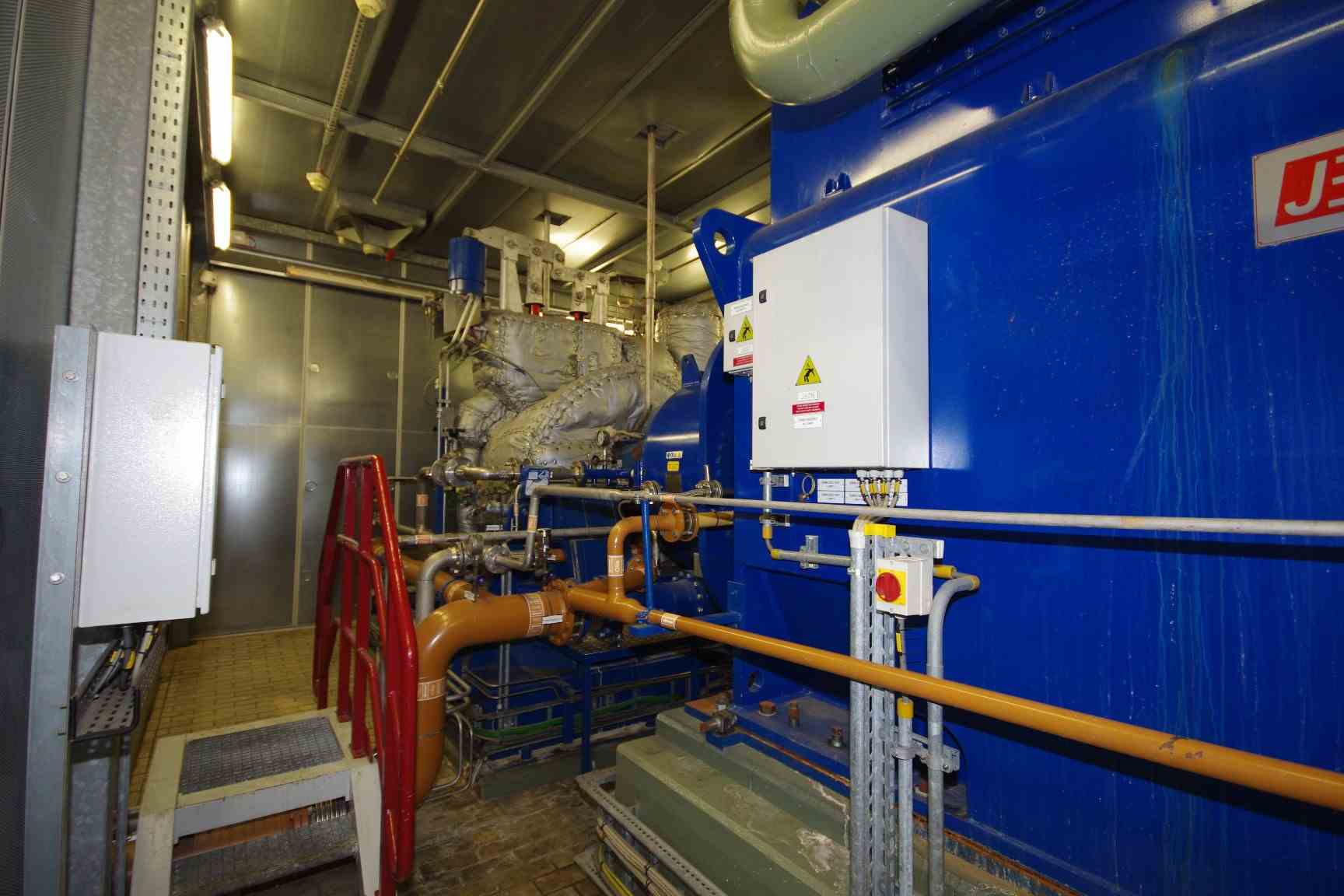

16230 KW MAN Turbo AG Steam Turbine Generator 16230 KW MAN Turbo AG Steam Turbine Generator 16230 KW MAN Turbo AG Steam Turbine Generator

16230 kw man turbo ag steam turbine generator

Stock # 14421
Capacity 16230 KW

Overview

Used 16MW MAN Back-Pressure Steam Turbine Generator. Model MARC4-B00. Hrs 60145. Input 99bar (1435 psi) at 400 C. output 7bar (101psi) at 165C. Max Speed 8932 rpm. Built 2008. Juemont Electric generator. Model Jisalt Deca 419. 16240kw / rated 20300kw. 50Hz. Power factor .80 with a water-glycol heat exchanger cooler. Renk AG gear box. Hydac System GmbH Oil pump and 400 liter reservoir. Hydac oil filter, accumulator. Reinhold Wesselmann lube system.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
MAN Turbo AG
Model
MARC-B00
Material
Unknown
Capacity
16230 KW
