196 Sq Ft YULA Stainless Steel Shell & Tube Heat Exchanger
Other Views - click image for larger view
196 Sq Ft YULA Stainless Steel Shell & Tube Heat Exchanger 196 Sq Ft YULA Stainless Steel Shell & Tube Heat Exchanger 196 Sq Ft YULA Stainless Steel Shell & Tube Heat Exchanger

196 sq ft yula stainless steel shell & tube heat exchanger

Stock # 14094
Sold
Capacity 196 Sq Ft

Overview

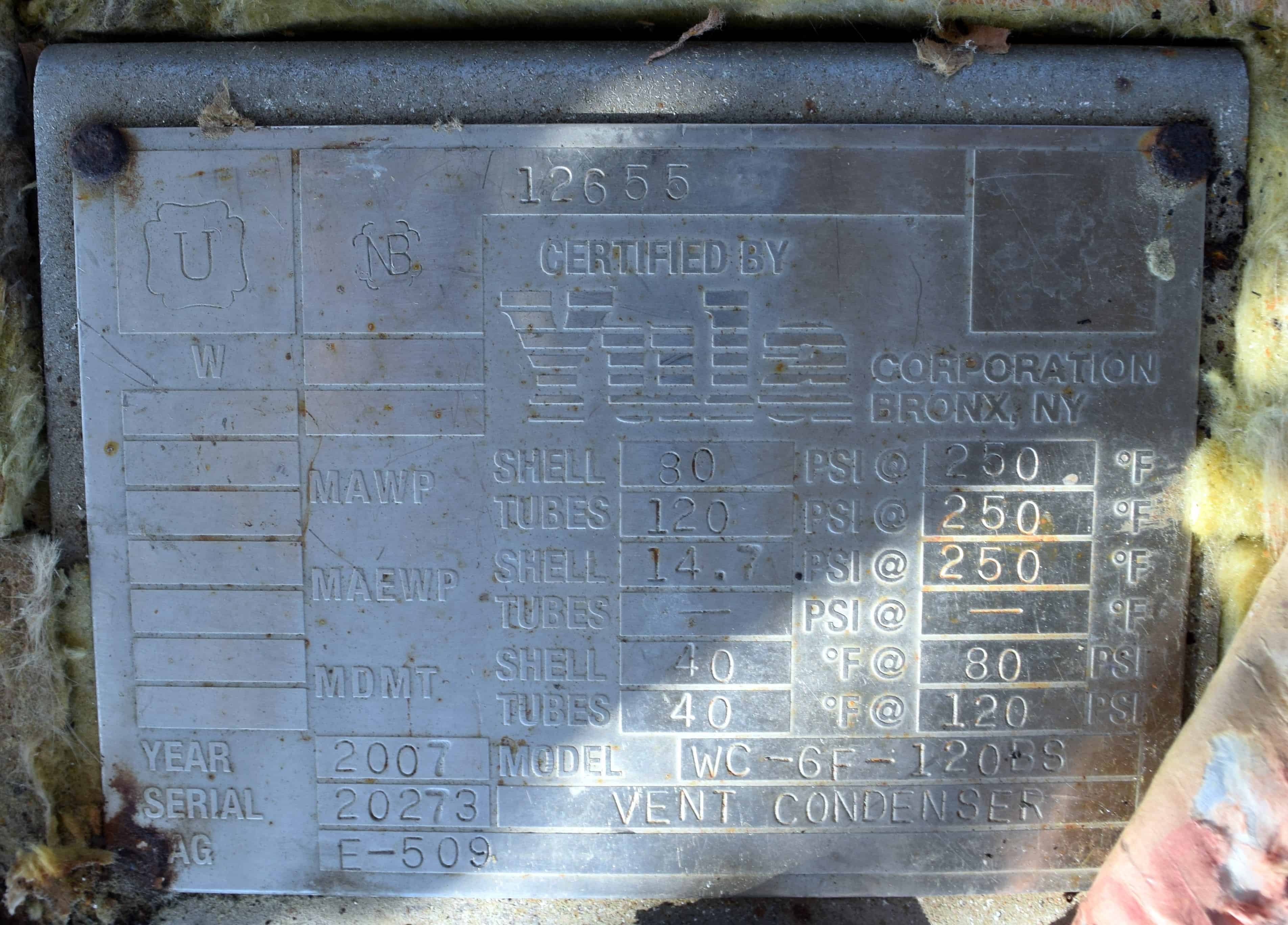

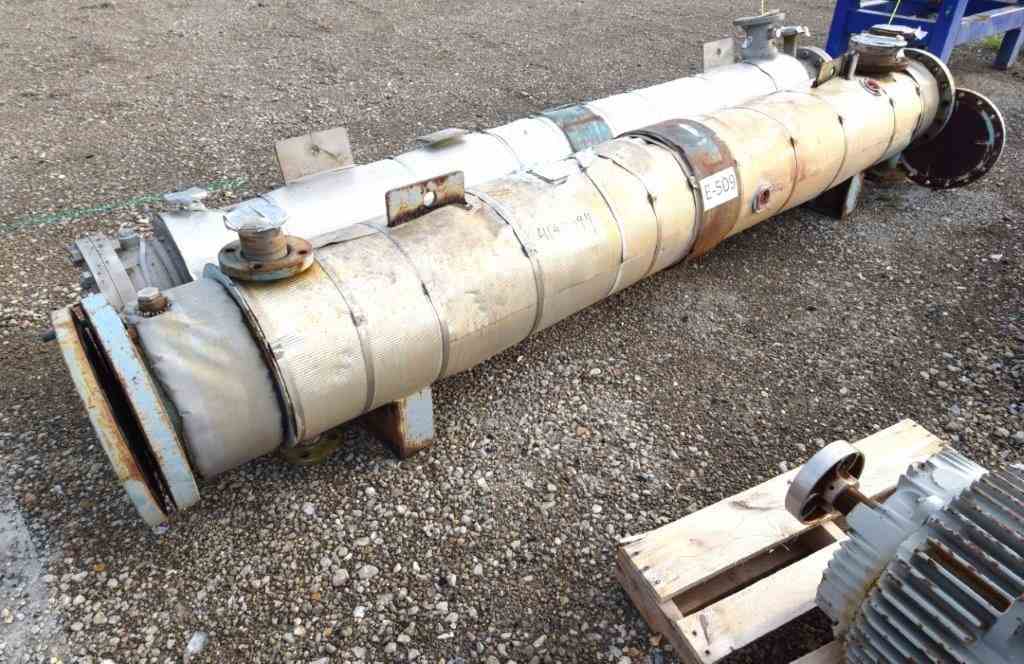

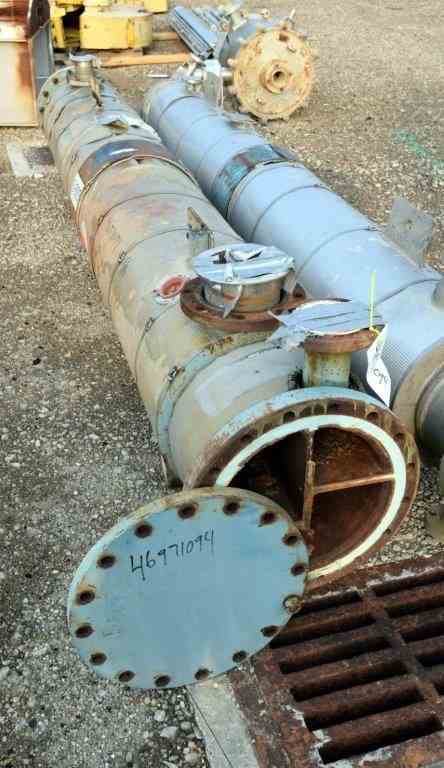

Used- Yula 6 Pass Shell & Tube Heat Exchanger, 196 Square Feet, Model WC-6F-120BS, 304L Stainless Steel, Horizontal. 304L Stainless steel shell rated 80 psi at 40 to 250 degrees F. (102) 3/4" diameter x 120" long 304L stainless steel tubes rated 120 psi at 40 to 250 degrees F. 304L Stainless steel tubesheet, carbon steel heads. Openings for tubes (2) 3", openings for shell 6", 2". National Board# 12655, serial# 20273, built 2007.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
YULA
Model
WC-6F-120BS
Material
SS
Capacity
196 Sq Ft
