500 Sq Ft YULA Stainless Steel Shell & Tube Heat Exchanger
Other Views - click image for larger view
500 Sq Ft YULA Stainless Steel Shell & Tube Heat Exchanger 500 Sq Ft YULA Stainless Steel Shell & Tube Heat Exchanger

500 sq ft yula stainless steel shell & tube heat exchanger

Stock # 14081
Sold
Capacity 500 Sq Ft

Overview

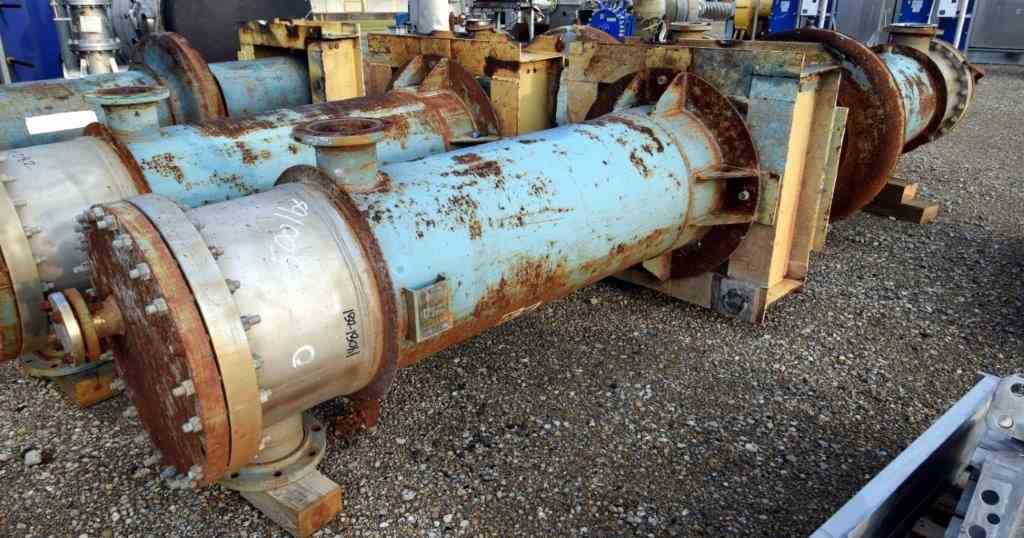

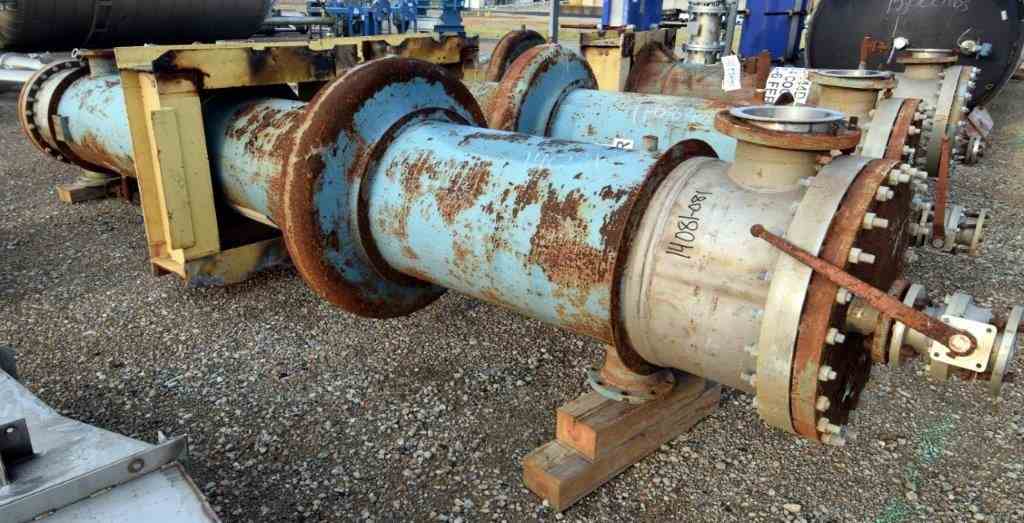

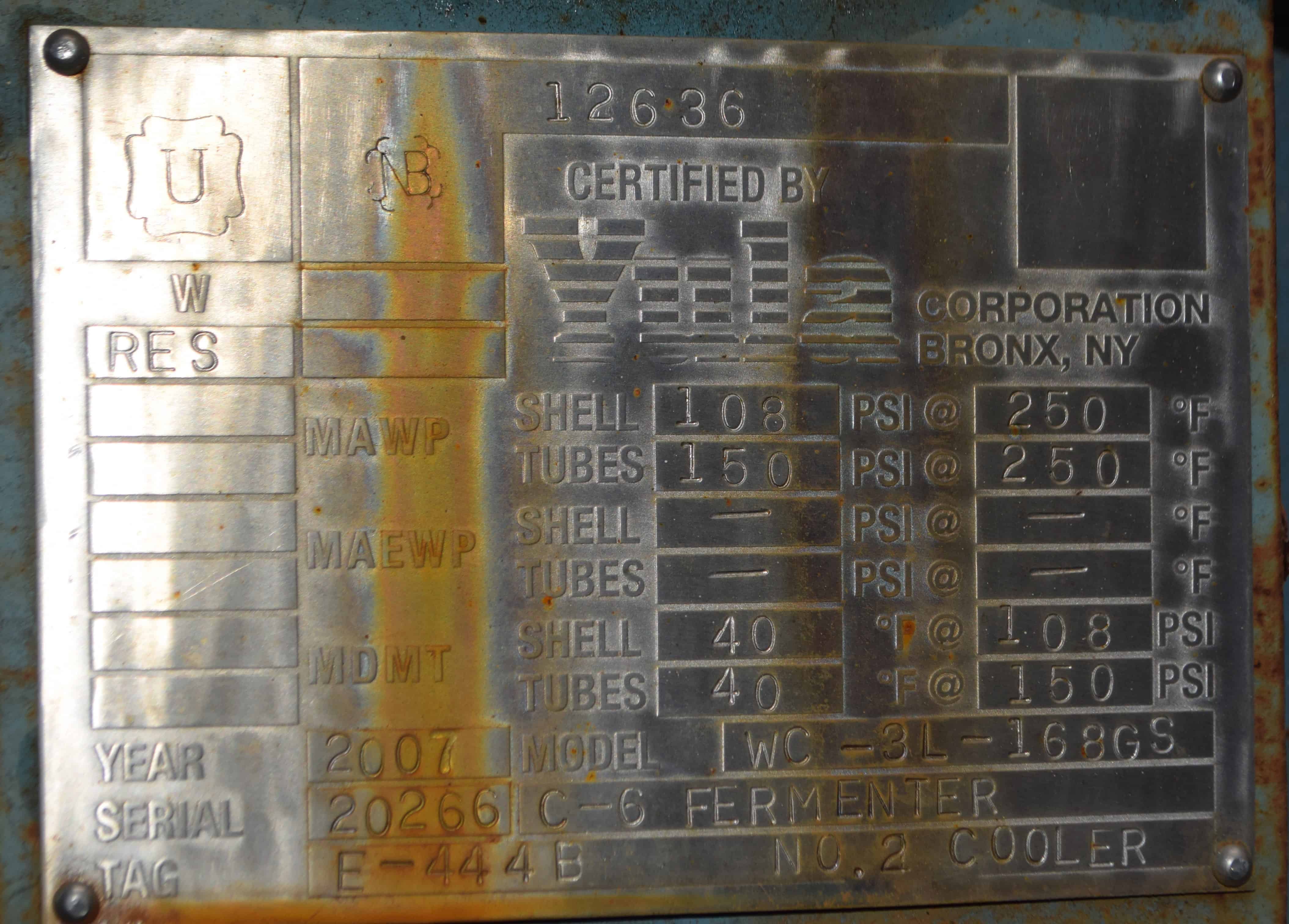

Used Yula 3 Pass Shell & Tube Heat Exchanger, Approximately 503 Square Feet, Model WC-3L-168GS, Horizontal. Carbon steel shell rated 108 psi at 40 to 250 degrees F. (93) 1-1/2" diameter x 168” long 304L stainless steel tubes rated 150 psi at 40 to 250 degrees F. 304L Stainless steel tubesheet, cladded heads. Openings for tubes (2) 8", openings for shell (2) 6". National Board# 12636, serial# 20266, built 2007.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
YULA
Model
WC-3L-168GS
Material
CS
Capacity
500 Sq Ft
