Hartel Clean In Place CIP System
Other Views - click image for larger view
Hartel Clean In Place CIP System Hartel Clean In Place CIP System Hartel Clean In Place CIP System Hartel Clean In Place CIP System

hartel clean in place cip system

Stock # 14055
Sold
Capacity 1 GPH

Overview

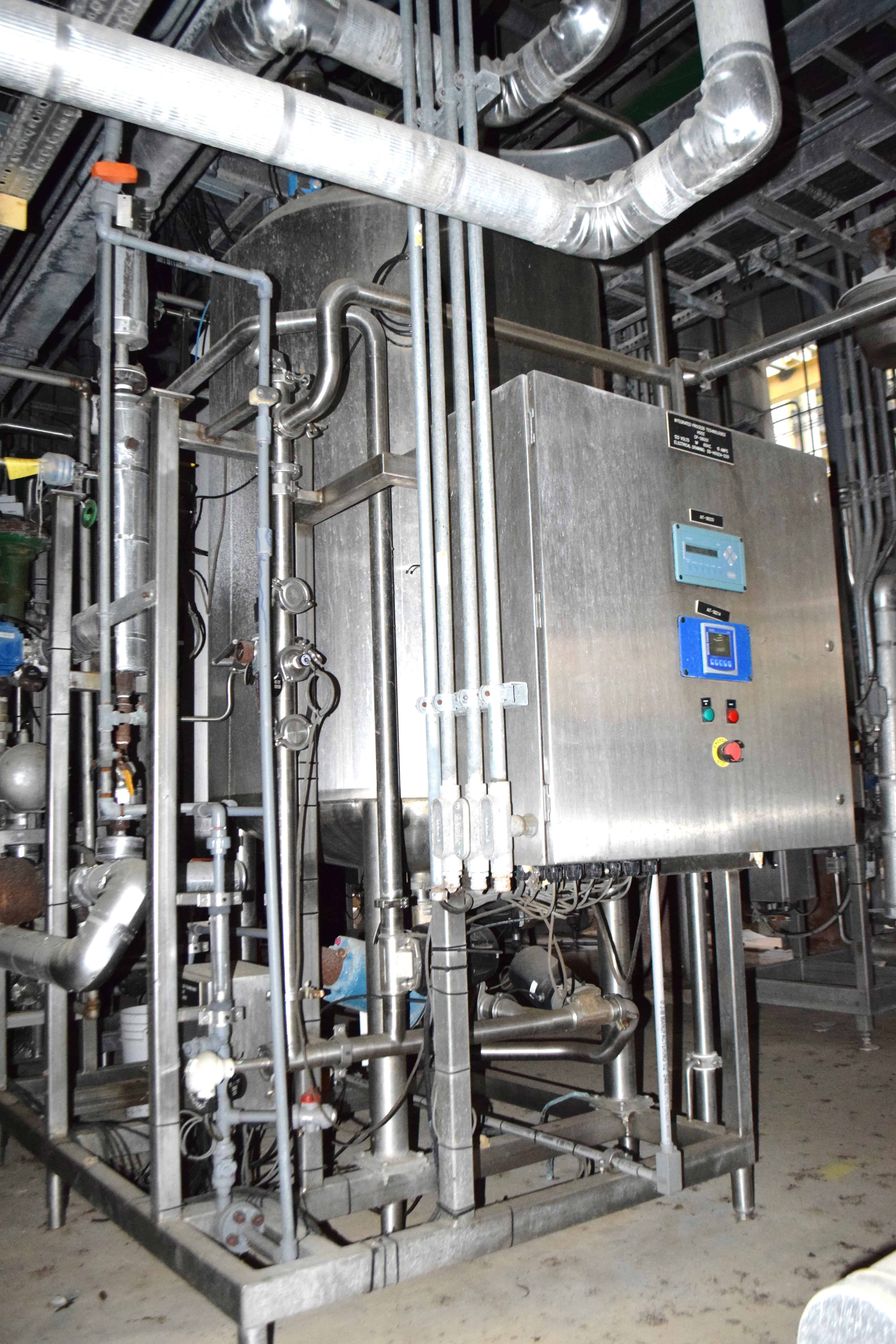

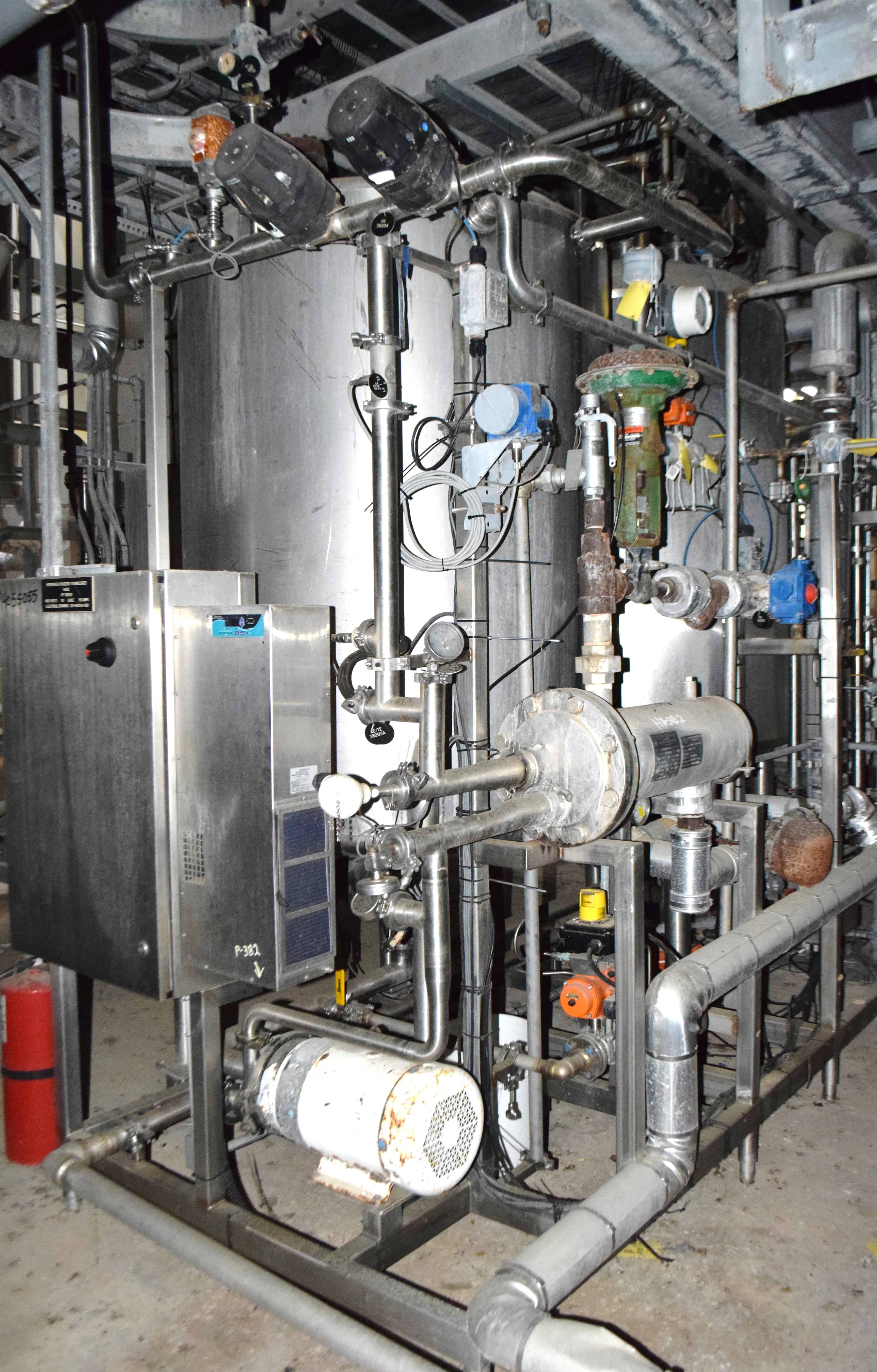

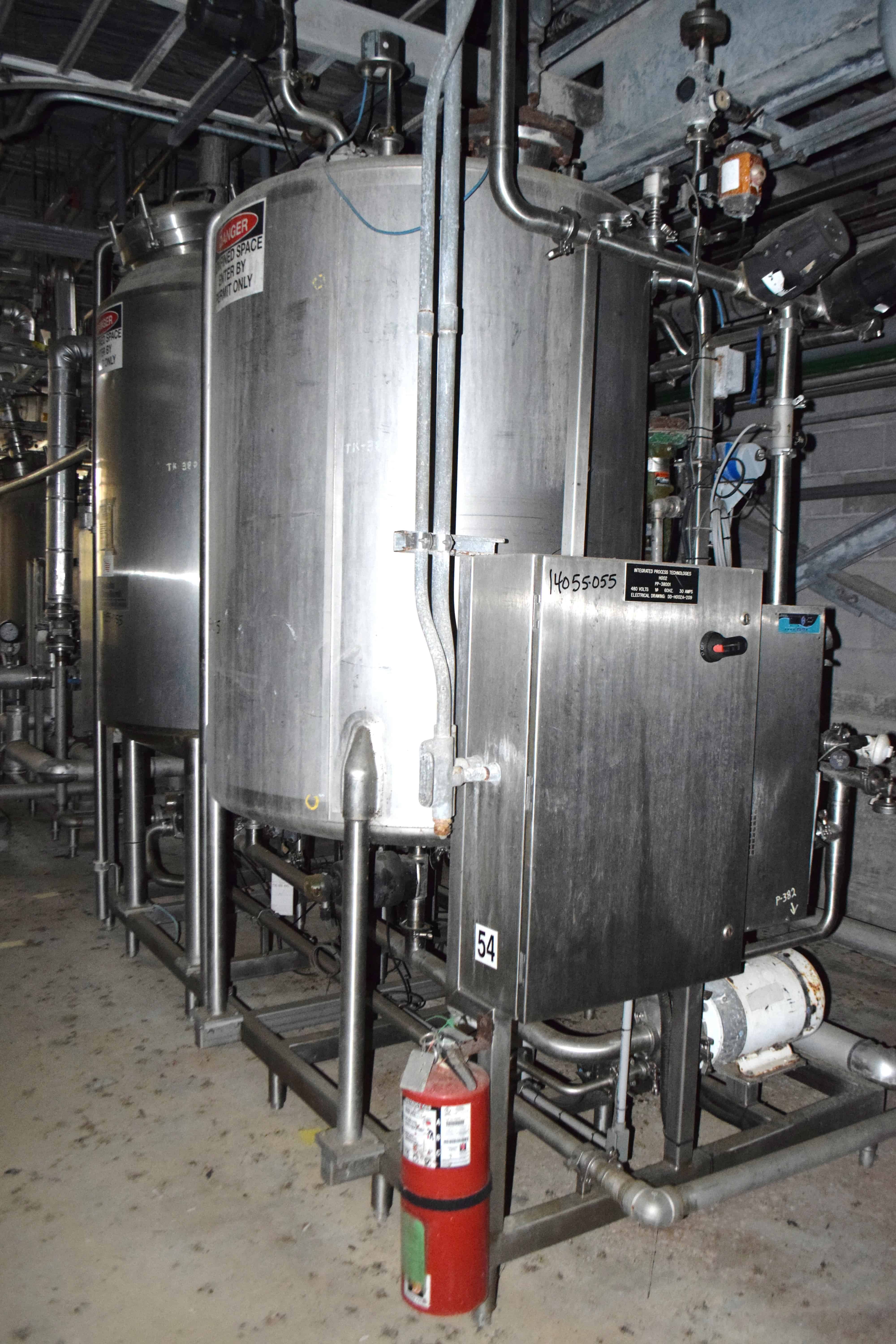

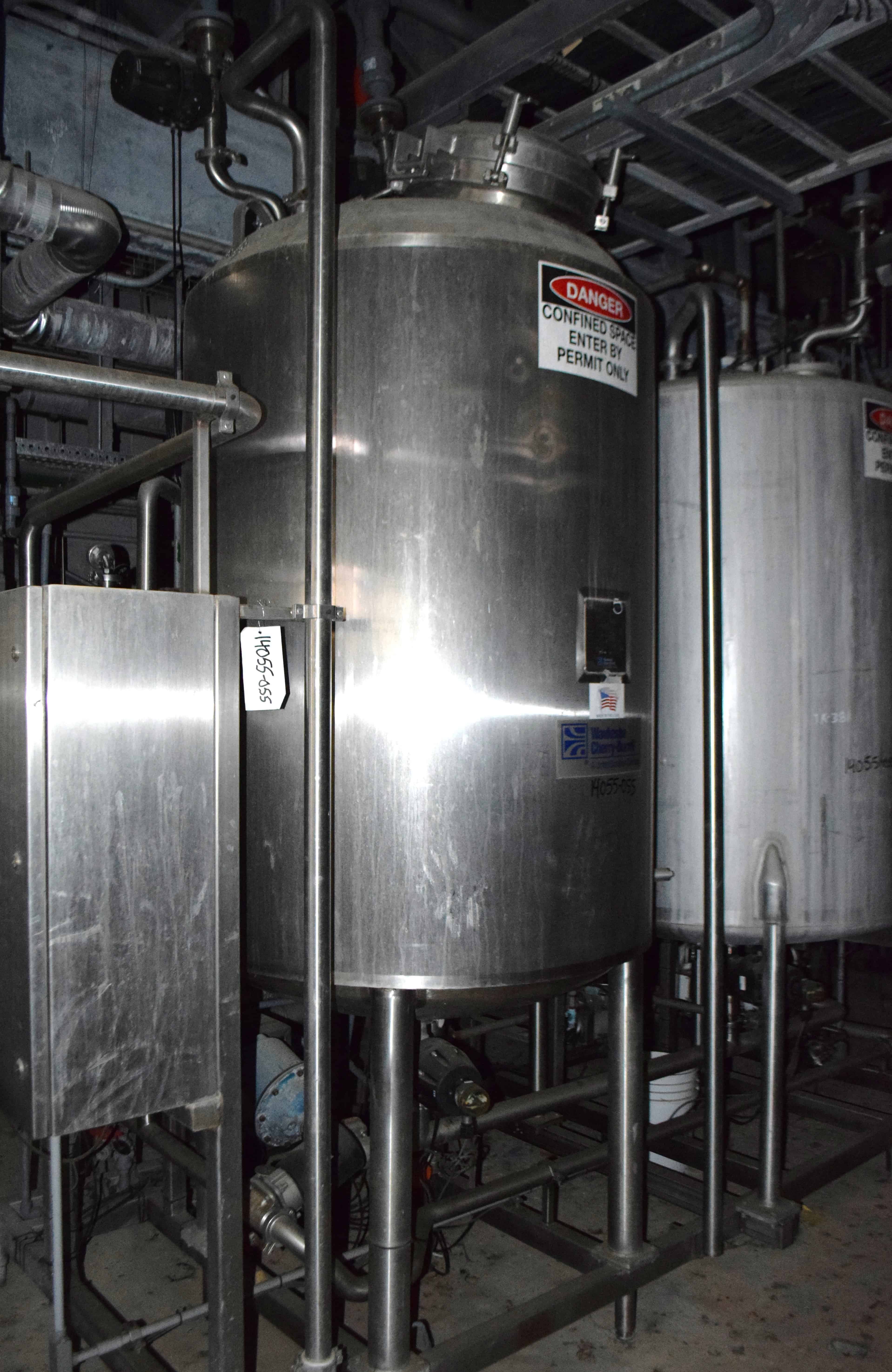

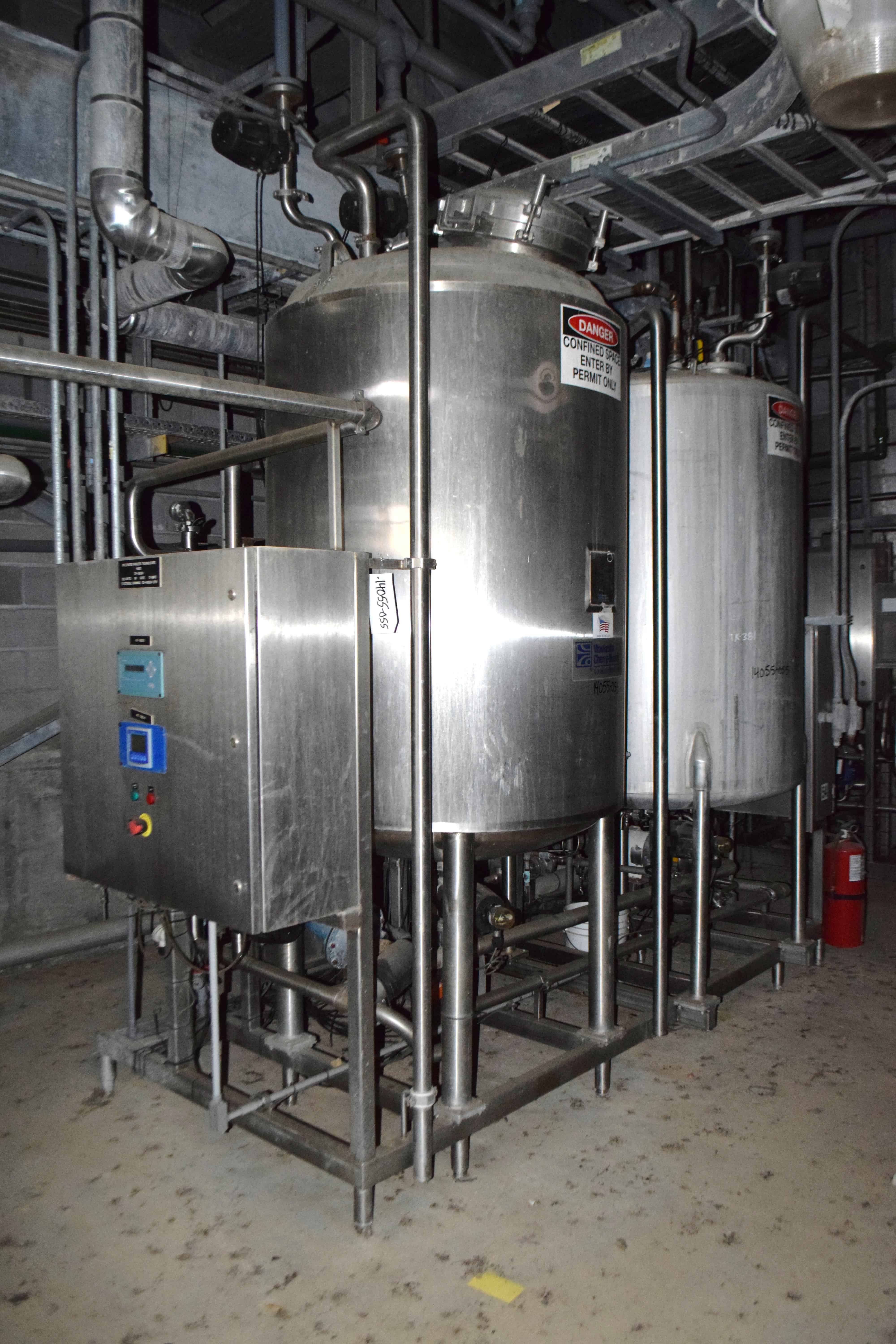

Used Hartel Clean In Place CIP System Consisting Of: (1) Waukesha Cherry-Burrell pressure tank, 396 gallon, 316L stainless steel. Internal rated 30 psi at -20 to 350 degrees F., National Board# 4417, serial# E-342-95, built 1996. (1) approximate 500 gallon stainless steel tank, (1) Allegheny Bradford shell & tube heat exchanger, shell and tubes rated 150 psi at -20 to 300 degrees F., serial# 024395-1-1-1, built 2008, (1) Waukesha Cherry-Burrell centrifugal pump, model 2065LV, stainless steel, serial# 270232-00. Driven by a 10hp, 3/60/208-230/460 volt, 3450 rpm motor, (2) stainless steel control cabinets with an Allen-Bradley PowerFlex 70 drive only, and Allen-Bradley Flex I/O controllers. Mounted on a stainless steel frame.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Hartel
Model
N/A
Material
SS
Capacity
1 GPH
