31.5" Wide FKC Screw Press
Other Views - click image for larger view
31.5" Wide FKC Screw Press 31.5" Wide FKC Screw Press 31.5" Wide FKC Screw Press 31.5" Wide FKC Screw Press 31.5" Wide FKC Screw Press 31.5" Wide FKC Screw Press 31.5" Wide FKC Screw Press 31.5" Wide FKC Screw Press

31.5" wide fkc screw press

Stock # 14034
Sold
Capacity 31.5 " Wide

Overview

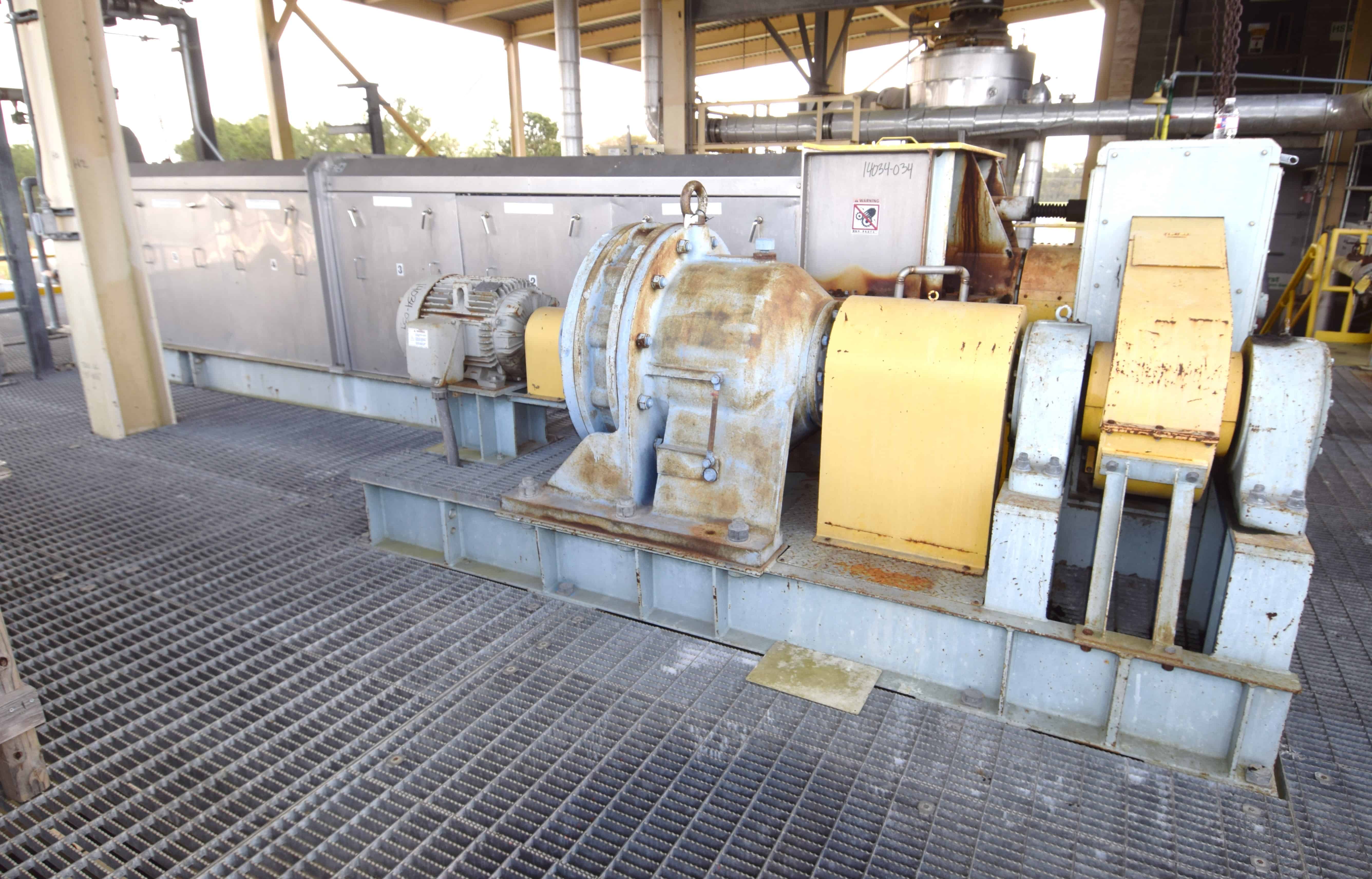

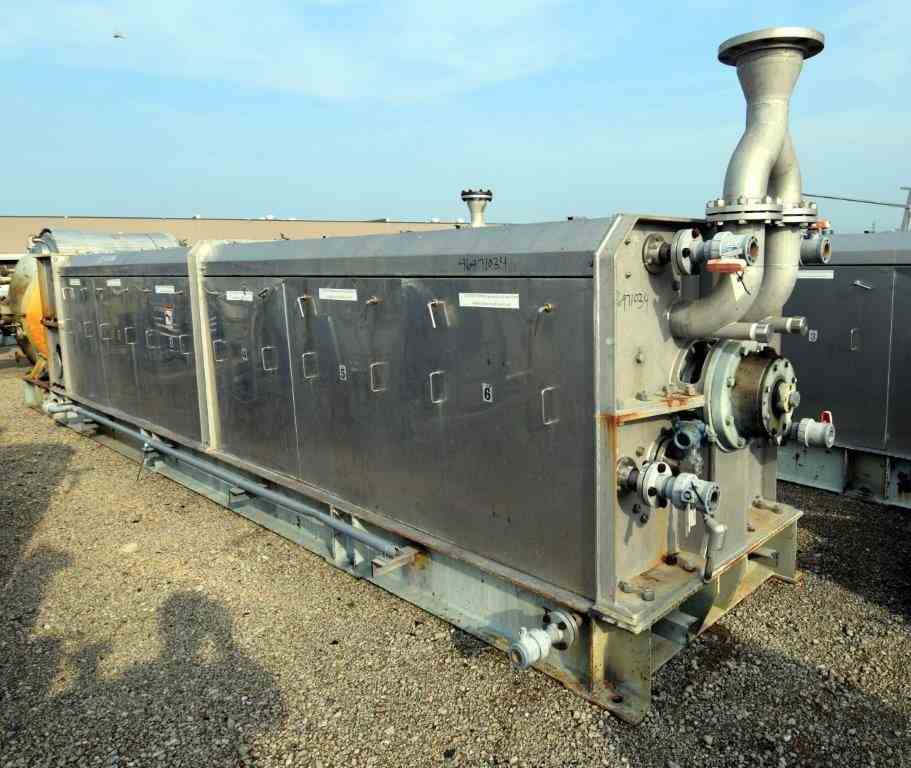

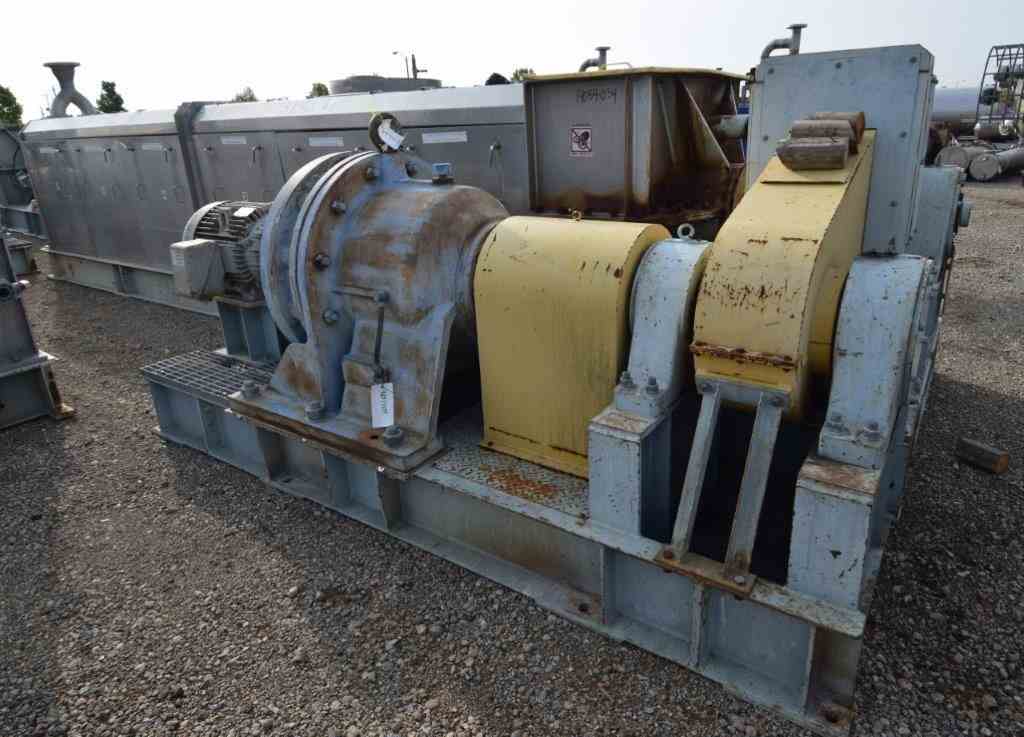

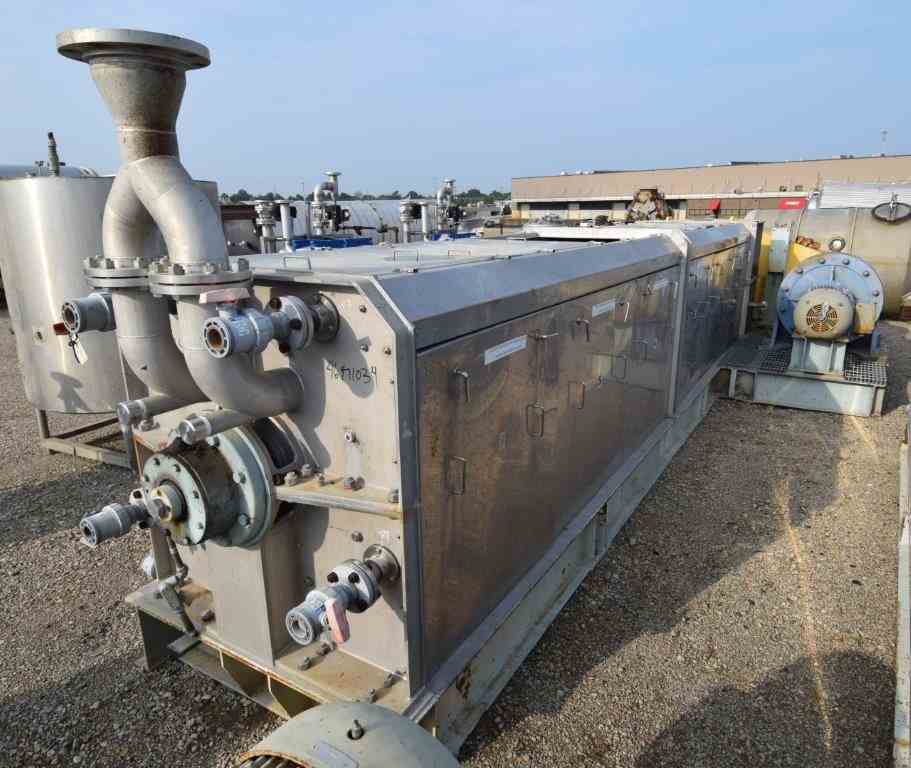

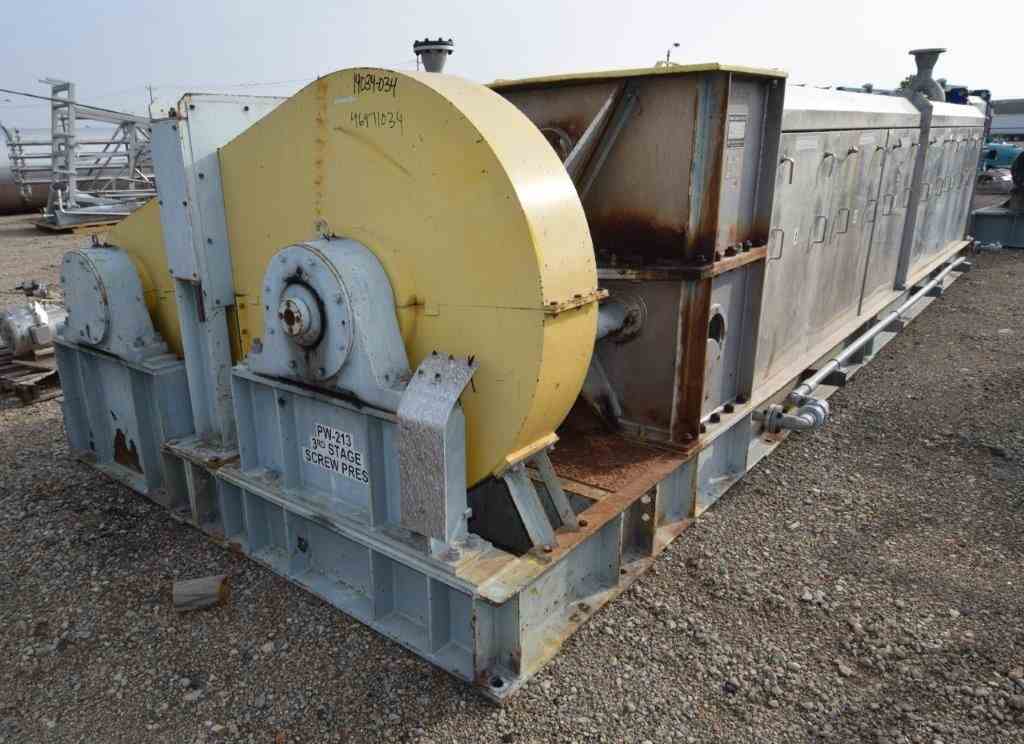

Used- FKC Screw Press, Model SHX-800X6000L, 316L Stainless Steel. Approximate capacity 65-165 kg/hr, depending on product, maximum pressure 0.7 MPa. Approximate 800mm diameter x 6000mm long screw. Top end feed, bottom end discharge. (4) external screen assembly spray bars, bottom drip pan. Driven by a 30hp, 3/60/460 volt, 1175 rpm motor thru a reducer, ratio 319 to 1. Mounted on an I-beam carbon steel frame. Serial# M-2428, built 2007.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
FKC
Model
SHX-800X6000L
Material
SS
Capacity
31.5 " Wide
Category
