5000 Gal Southwest Stainless Steel Tank
Other Views - click image for larger view
5000 Gal Southwest Stainless Steel Tank 5000 Gal Southwest Stainless Steel Tank 5000 Gal Southwest Stainless Steel Tank 5000 Gal Southwest Stainless Steel Tank

5000 gal southwest stainless steel tank

Stock # 14024
Sold
Capacity 5000 Gal

Overview

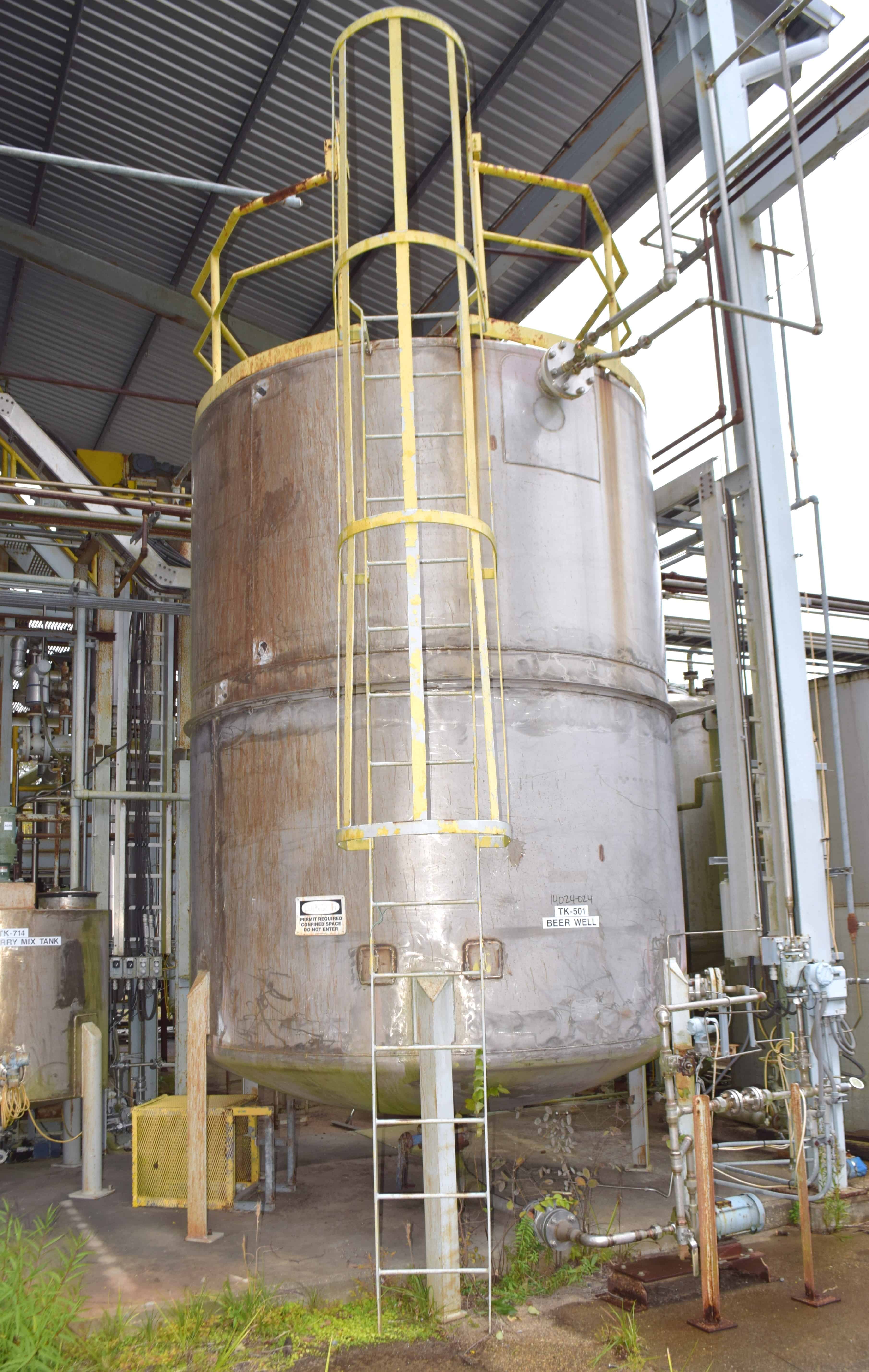

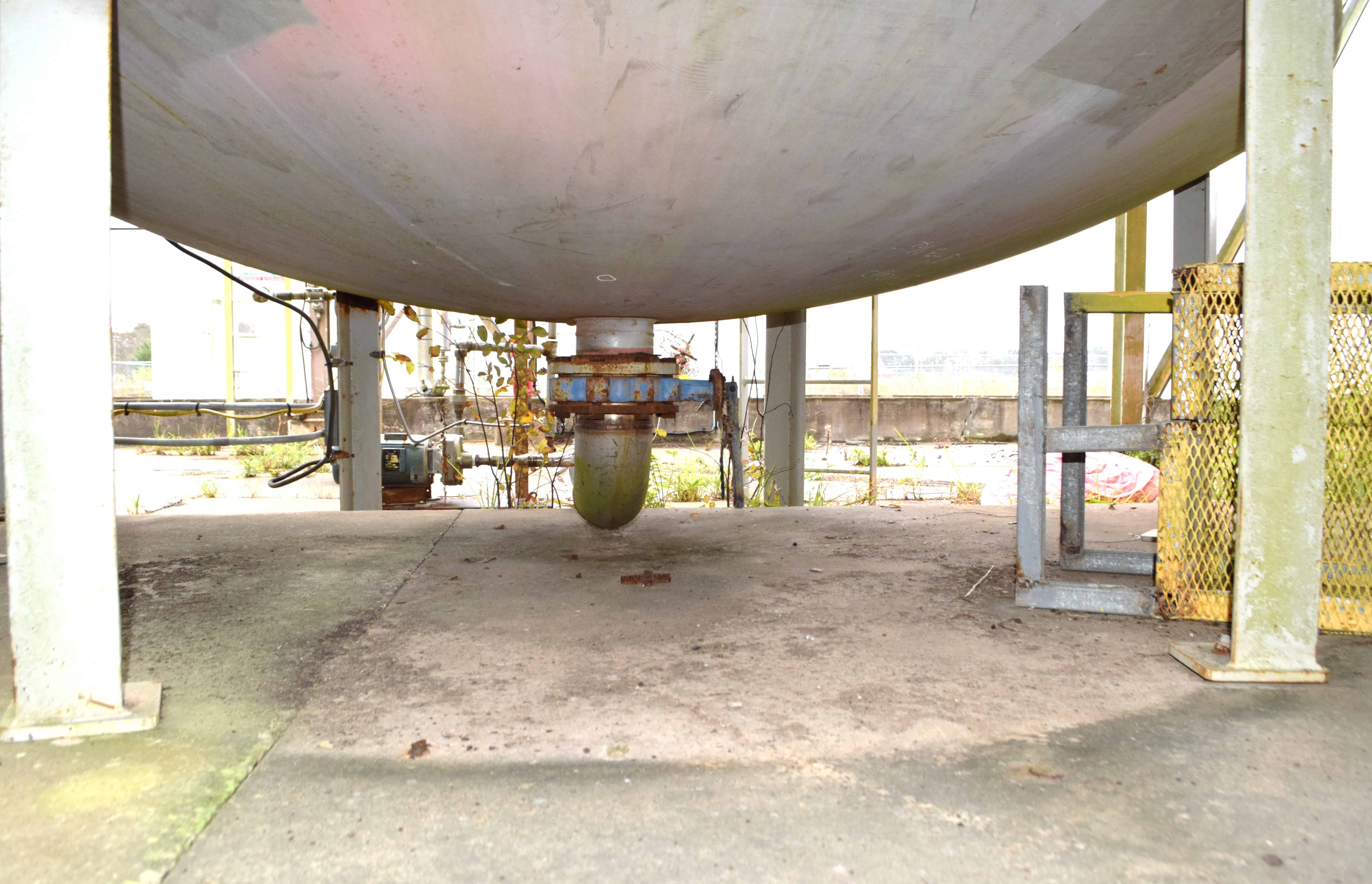

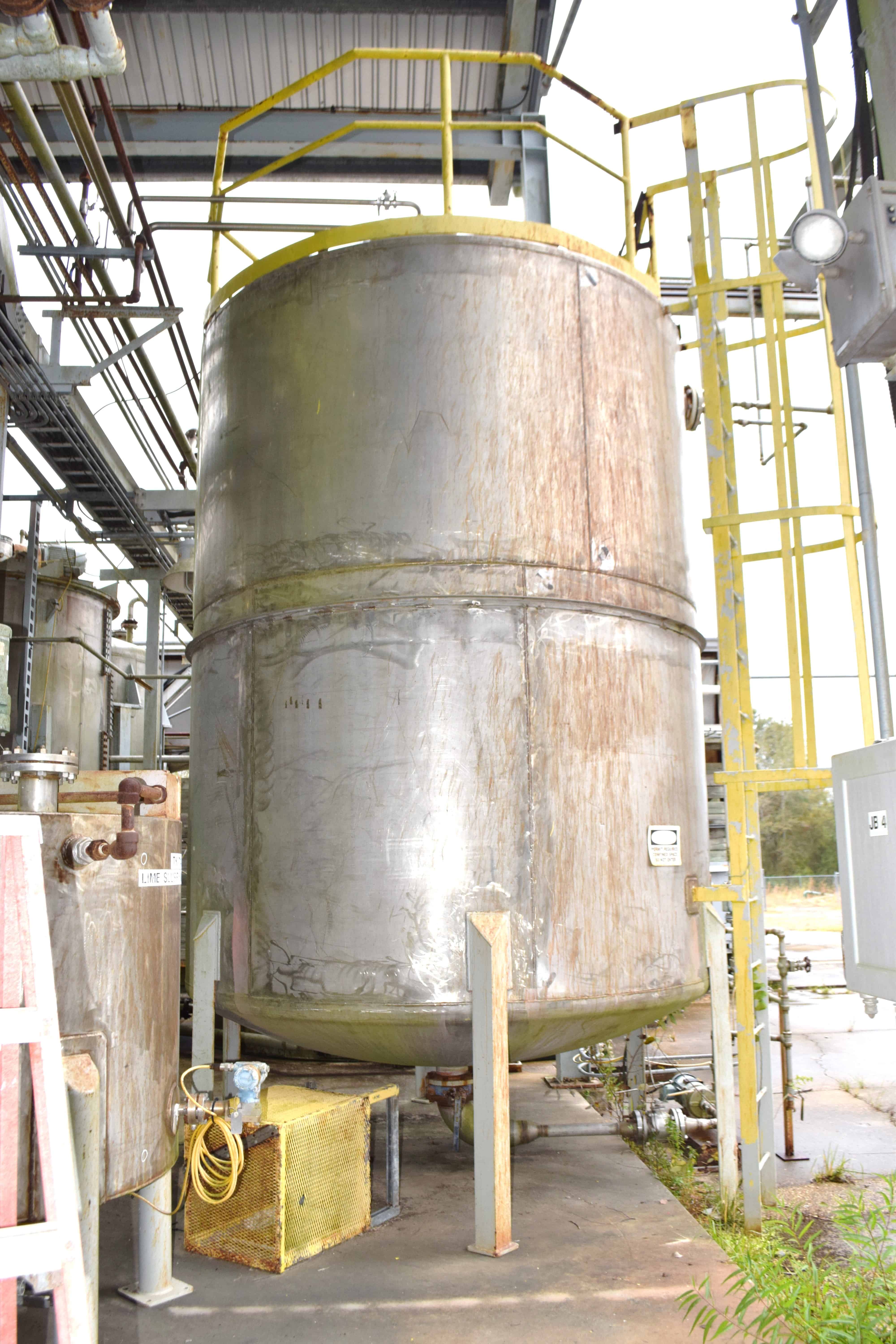

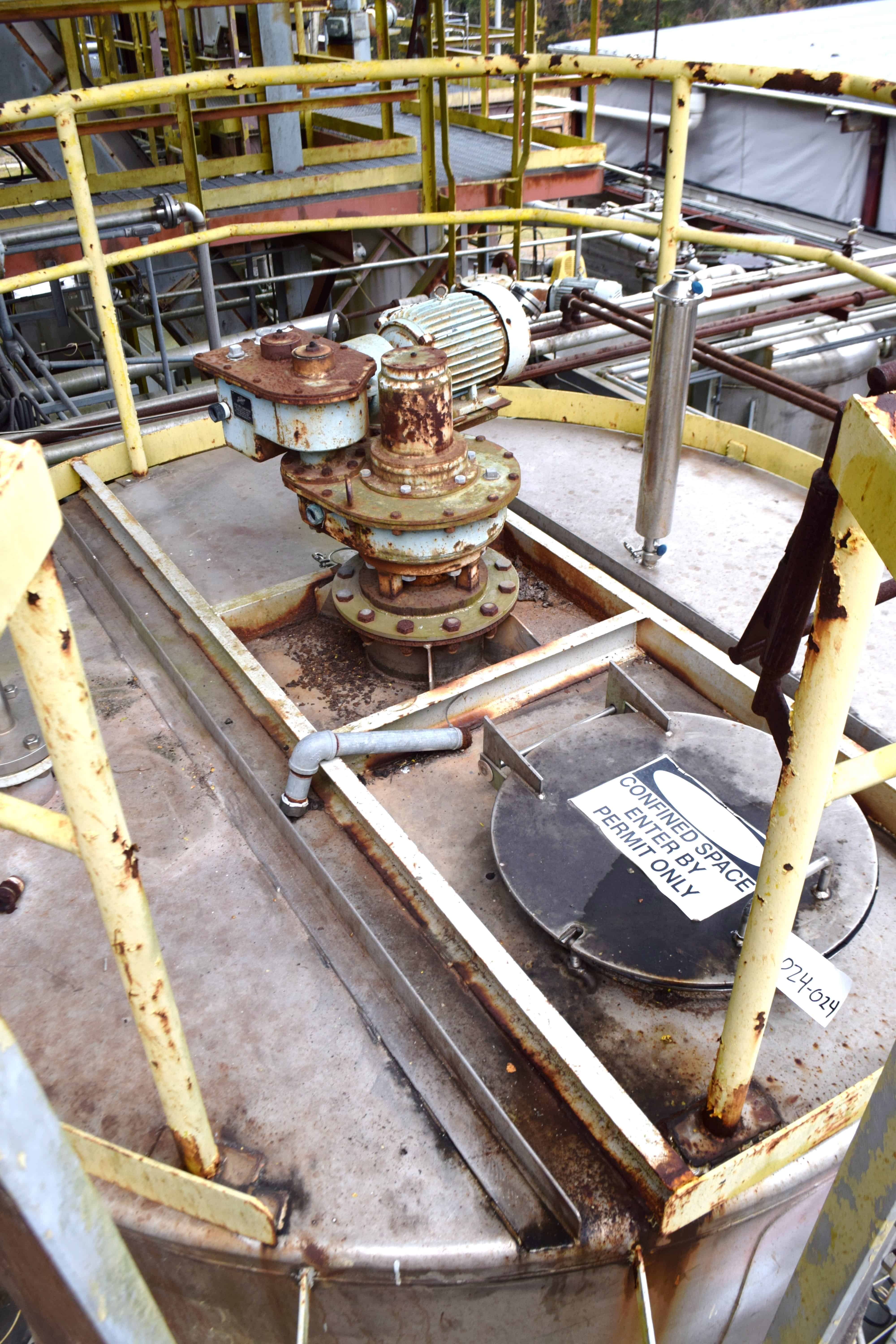

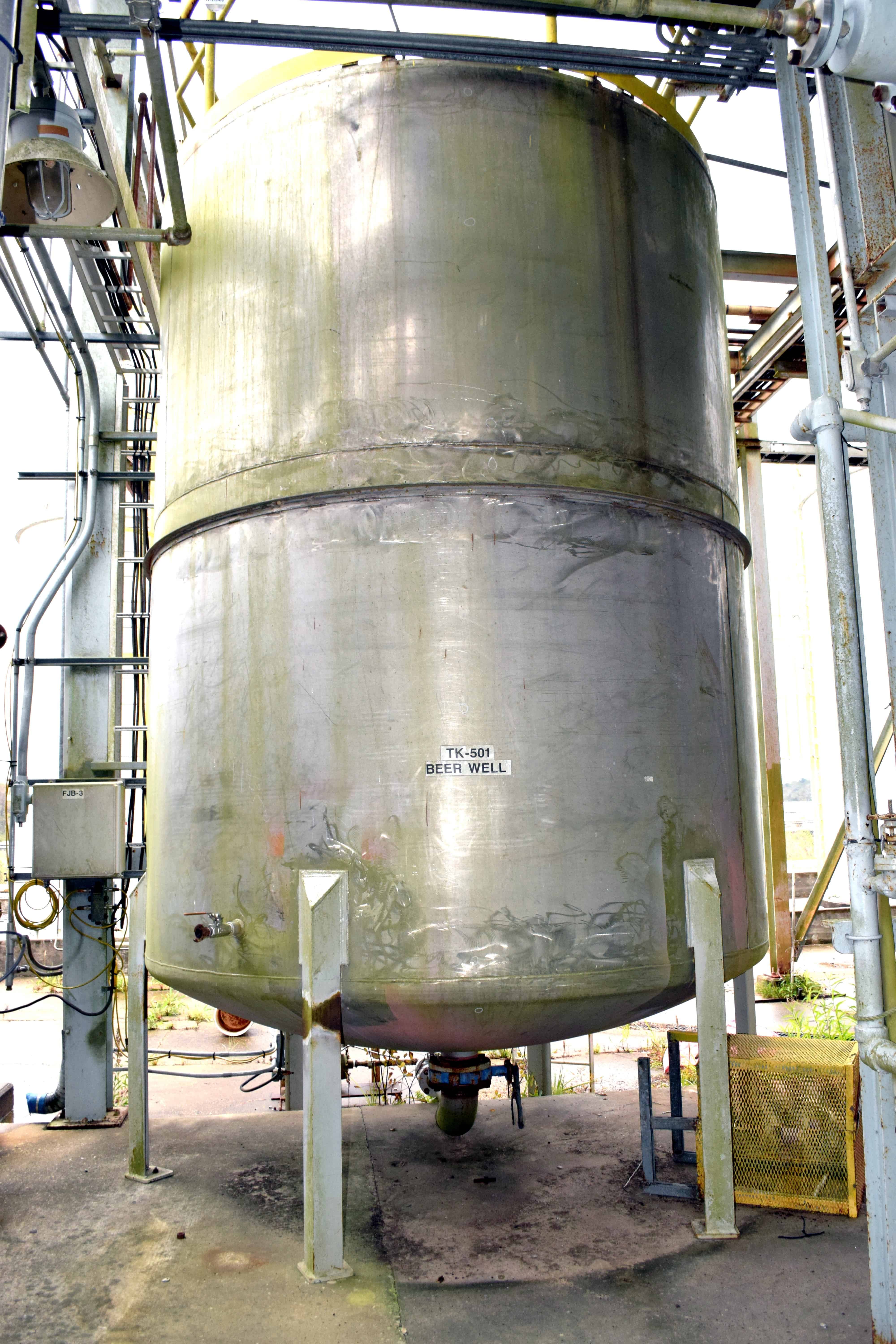

Used Southwest Tank & Treater Tank, 5000 Gallon, Stainless Steel, Vertical. Approximate 108" Diameter x 136" straight side, flat top, dish bottom. Top entering Jensen agitator, model 1105-5/100, serial# FG-149, output rpm 100, approximate 2" diameter shaft with a 4 blade turbine, driven by a 5hp, 3/60/230/460 volt, 1750 rpm motor. Top man way, center bottom outlet. Mounted on 4 carbon steel legs. Serial# 10680, built 1985.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Southwest
Model
N/A
Material
SS
Capacity
5000 Gal
