2 HP Ross HSM 401SC2 Homogenizing Mixer
Other Views - click image for larger view
2 HP Ross HSM 401SC2 Homogenizing Mixer 2 HP Ross HSM 401SC2 Homogenizing Mixer 2 HP Ross HSM 401SC2 Homogenizing Mixer 2 HP Ross HSM 401SC2 Homogenizing Mixer 2 HP Ross HSM 401SC2 Homogenizing Mixer 2 HP Ross HSM 401SC2 Homogenizing Mixer 2 HP Ross HSM 401SC2 Homogenizing Mixer 2 HP Ross HSM 401SC2 Homogenizing Mixer 2 HP Ross HSM 401SC2 Homogenizing Mixer

2 hp ross hsm 401sc2 homogenizing mixer

Stock # 13899
Capacity 2 HP

Overview

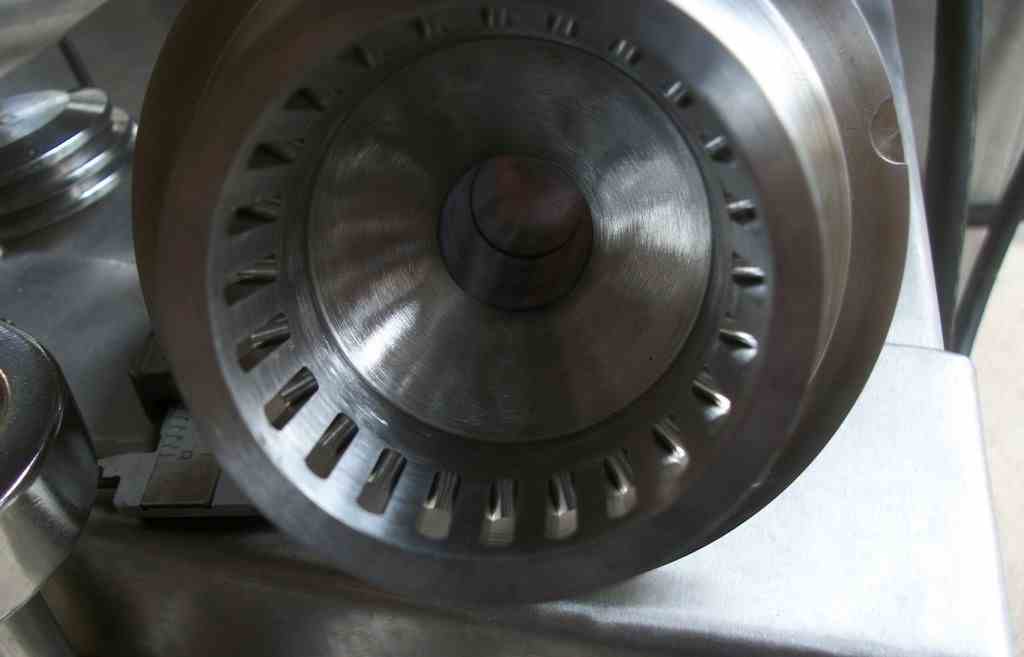

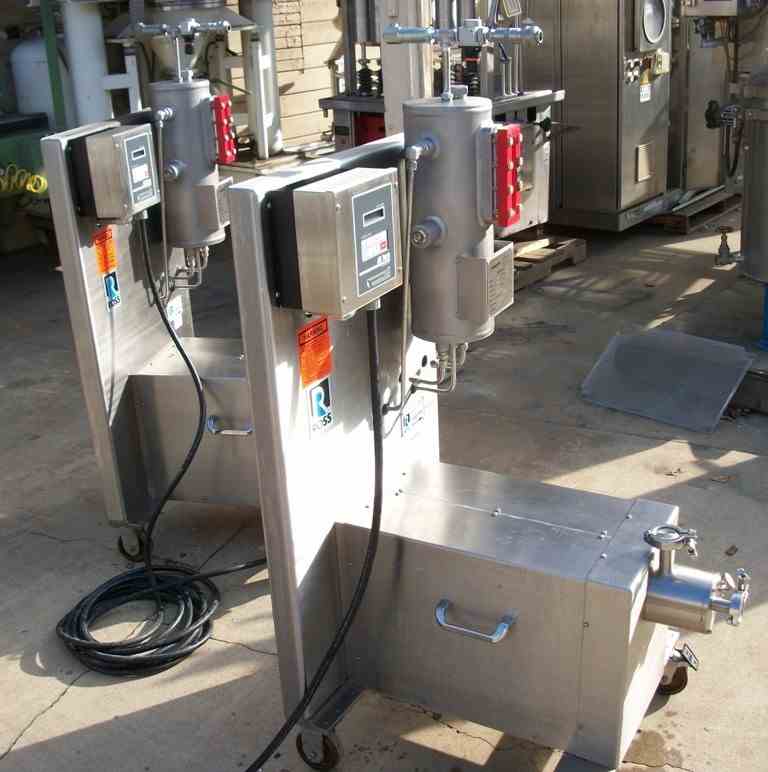

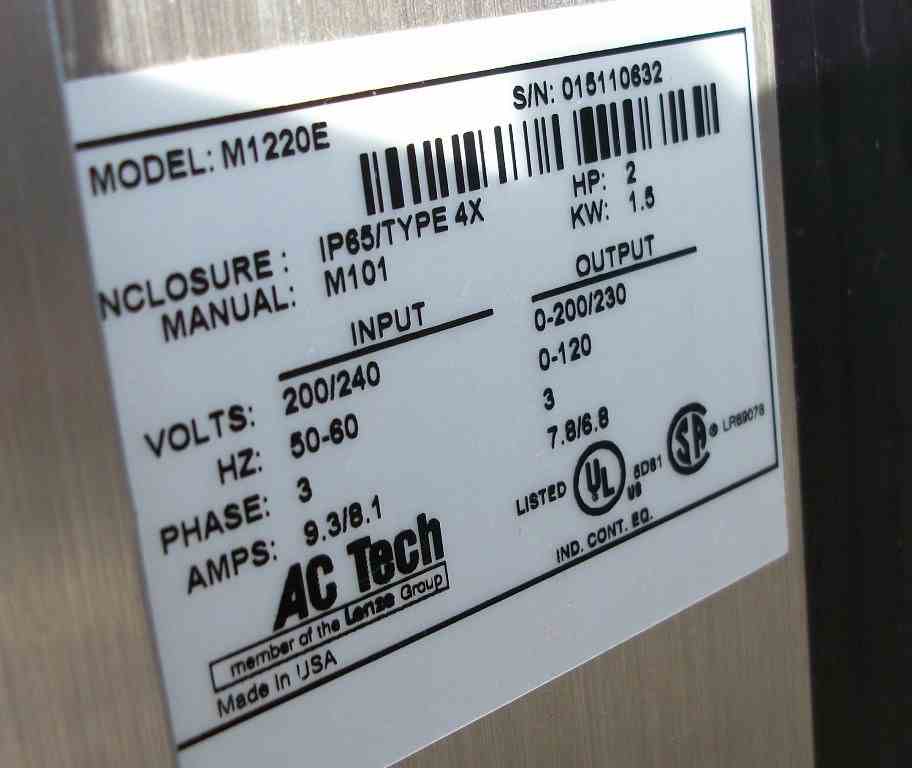

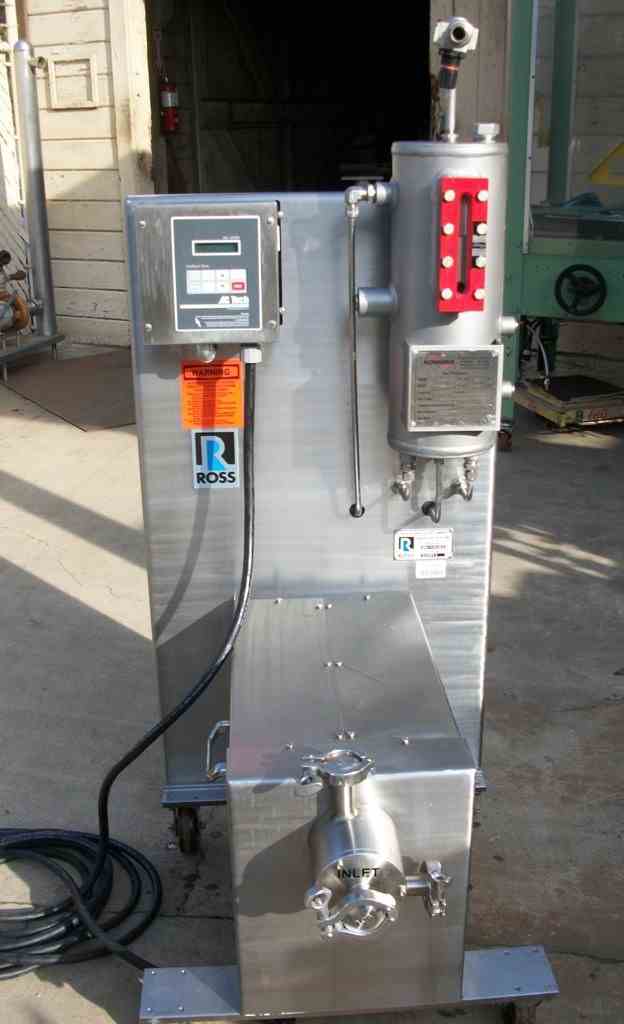

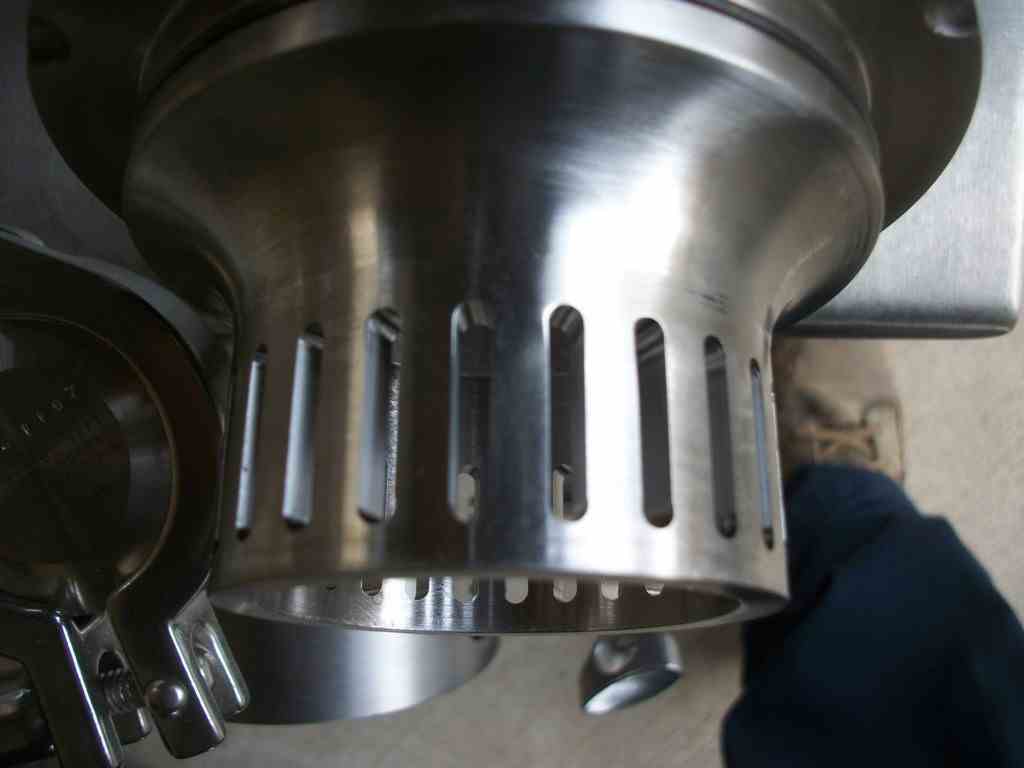

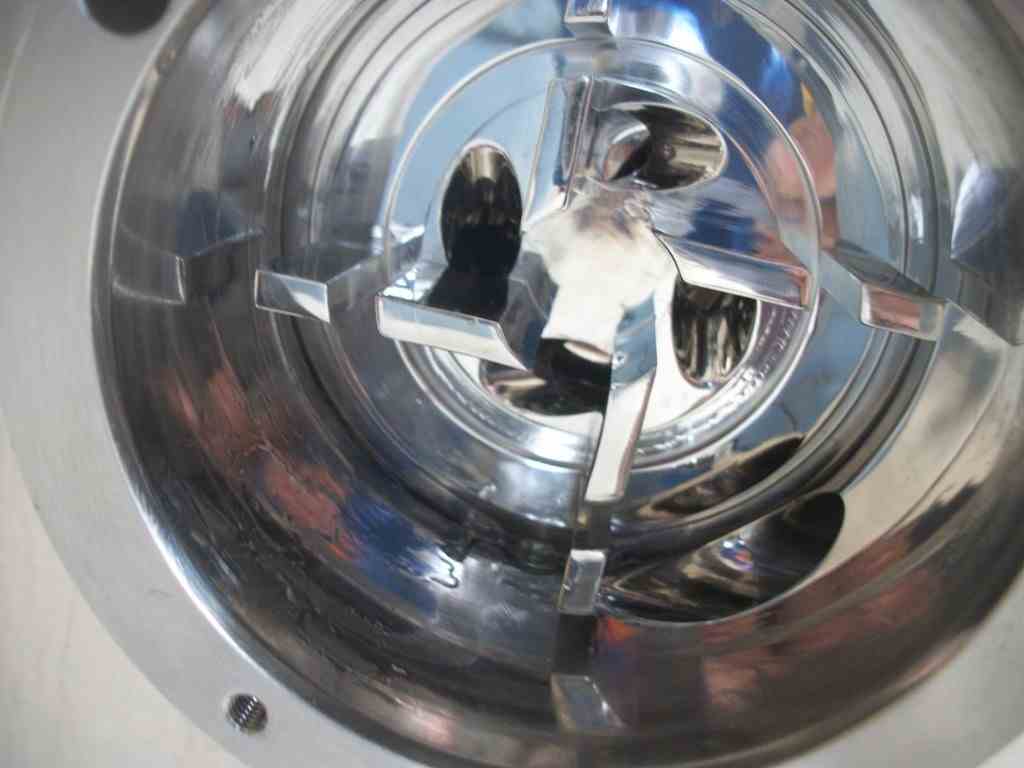

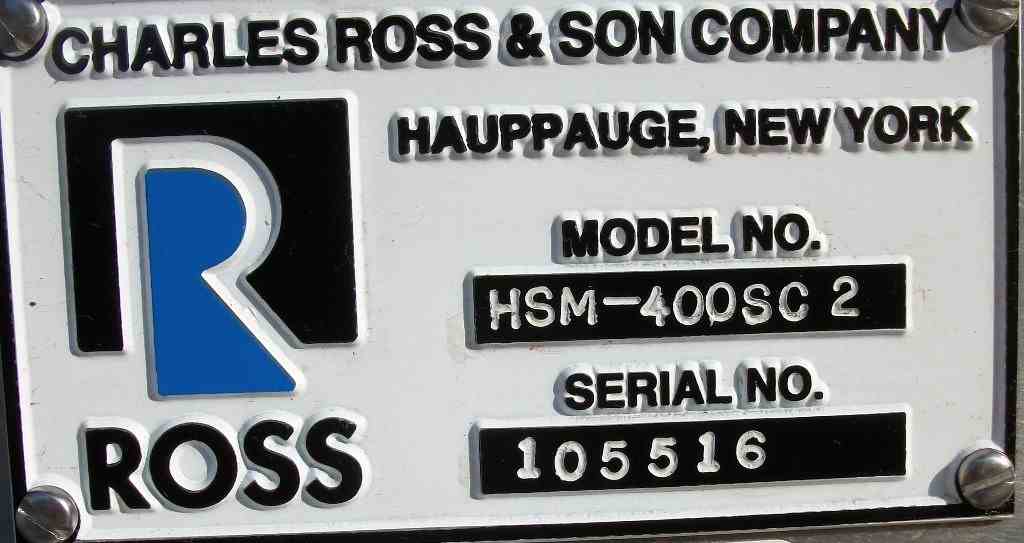

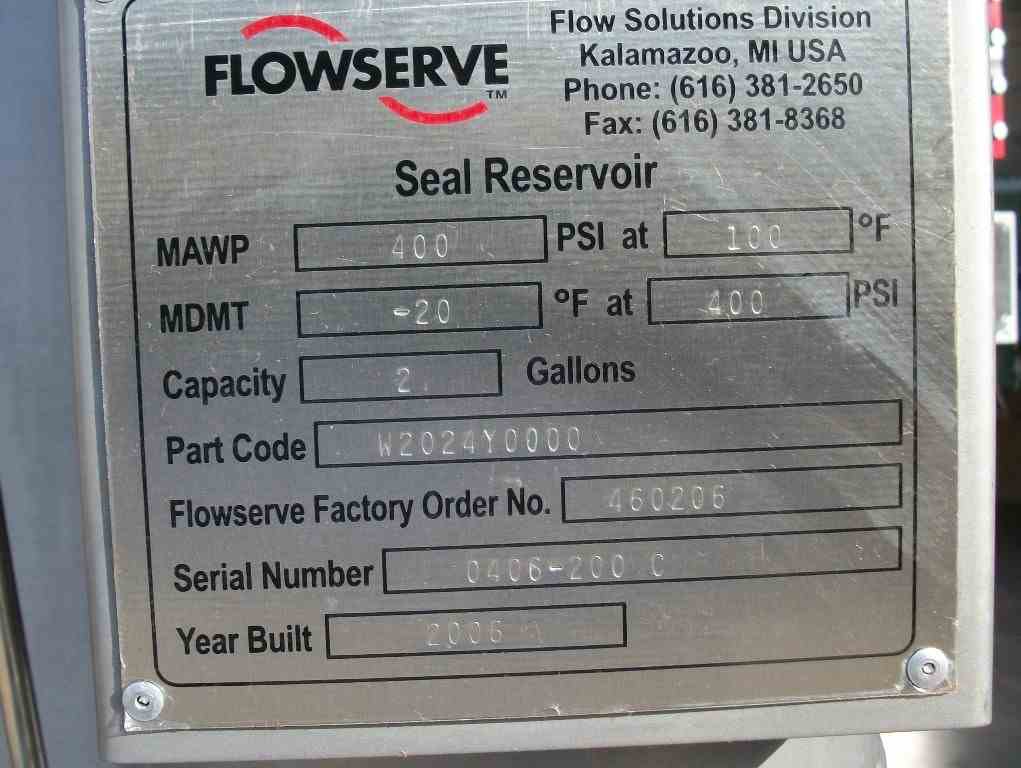

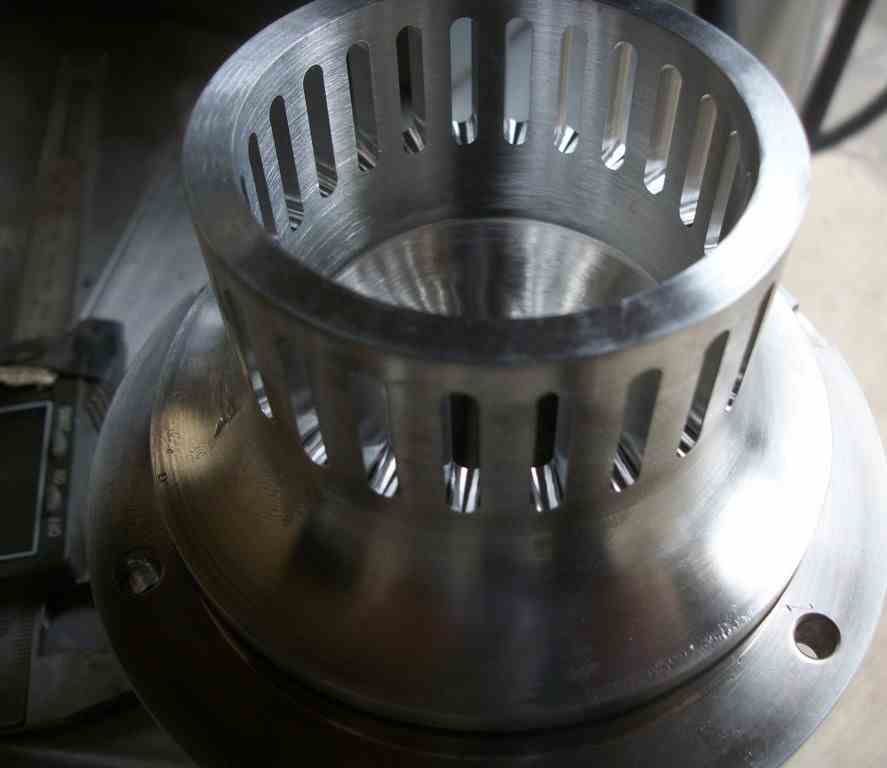

Used Ross Series 400 In-Line Mixer, Model HSM 401SC2, 316 Stainless Steel. Rated 66 gallon per minute (water). Non-jacketed chamber approximately 3-1/2" diameter x 2-1/2" deep, rotor approximately 3-7/16" diameter, slotted stator approximately 2-1/2" diameter. 1-1/2" Tri-clamp inlet/outlet. Driven by 2 HP, 3/60/200/240 volt, 3425 rpm stainless steel wash down motor. Include mechanical seal with lubricator, and an AC Tech MC Series intelligent drive. Mounted on a stainless steel base with casters. Serial number 105517.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Ross
Model
HSM 401SC2
Material
316-SS
Capacity
2 HP
Category
