100 Gal Pfaudler Glass Lined Tank
Other Views - click image for larger view
100 Gal Pfaudler Glass Lined Tank 100 Gal Pfaudler Glass Lined Tank 100 Gal Pfaudler Glass Lined Tank

100 gal pfaudler glass lined tank

Stock # 13751
Sold
Capacity 100 Gal

Overview

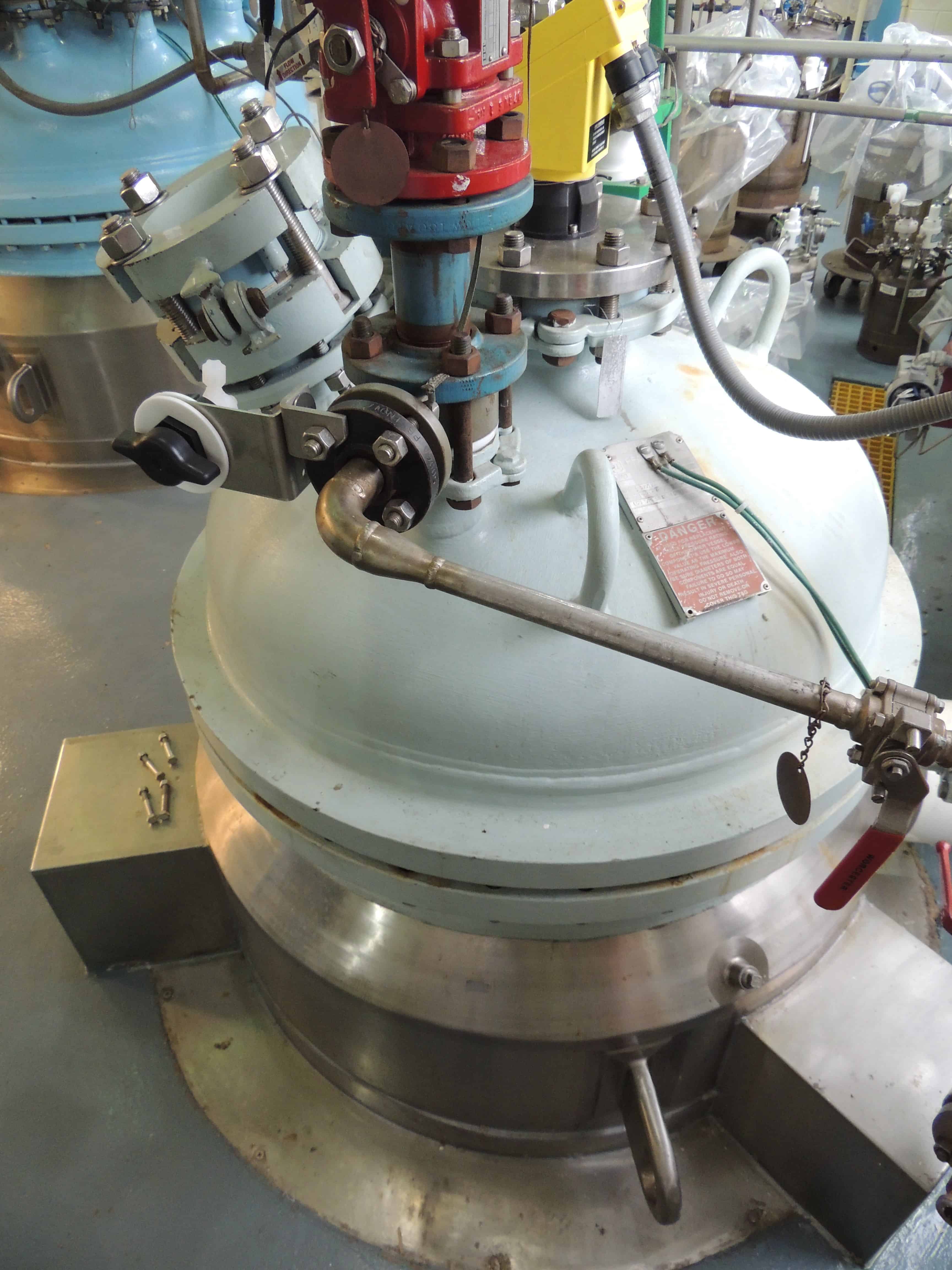

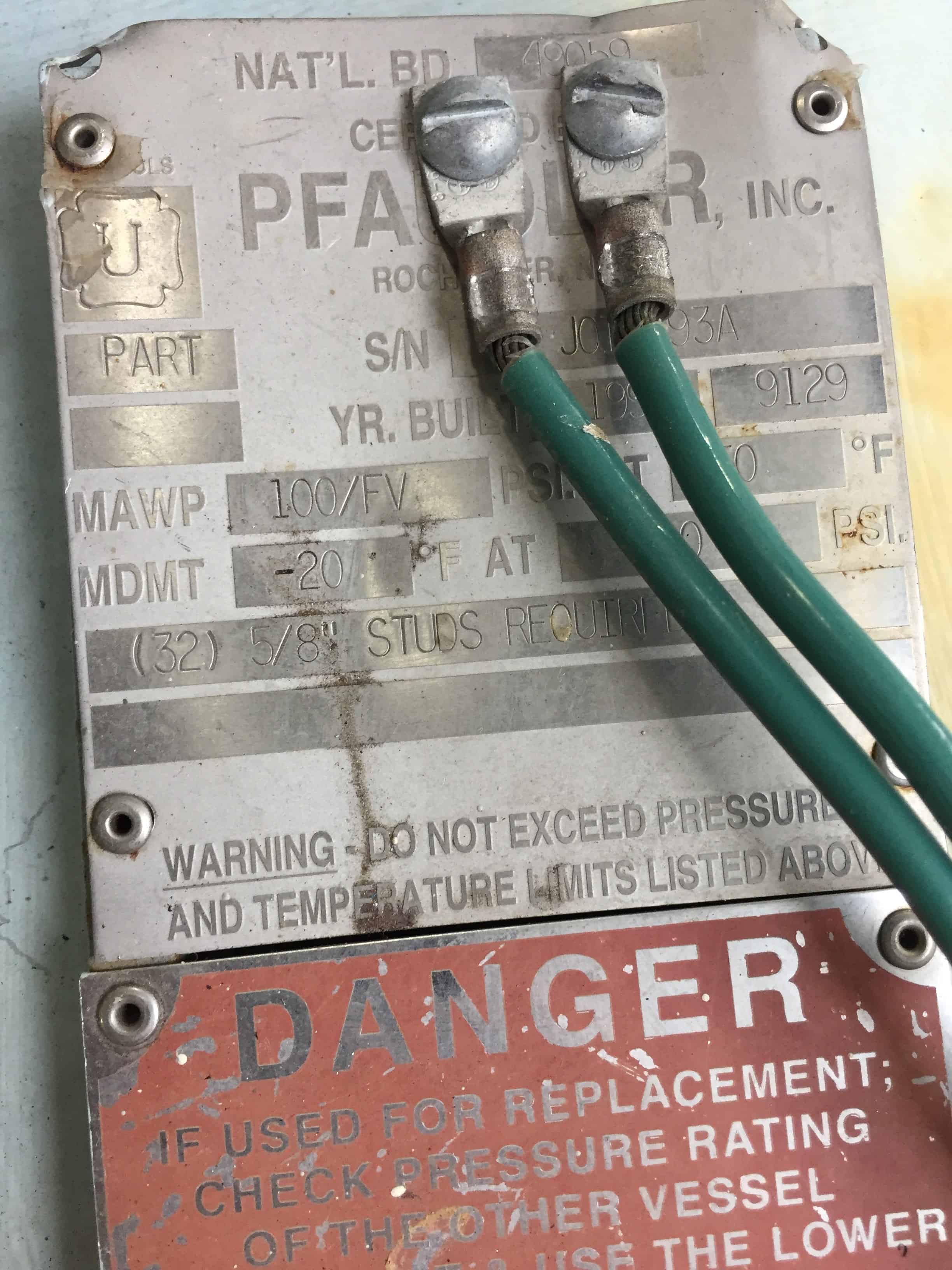

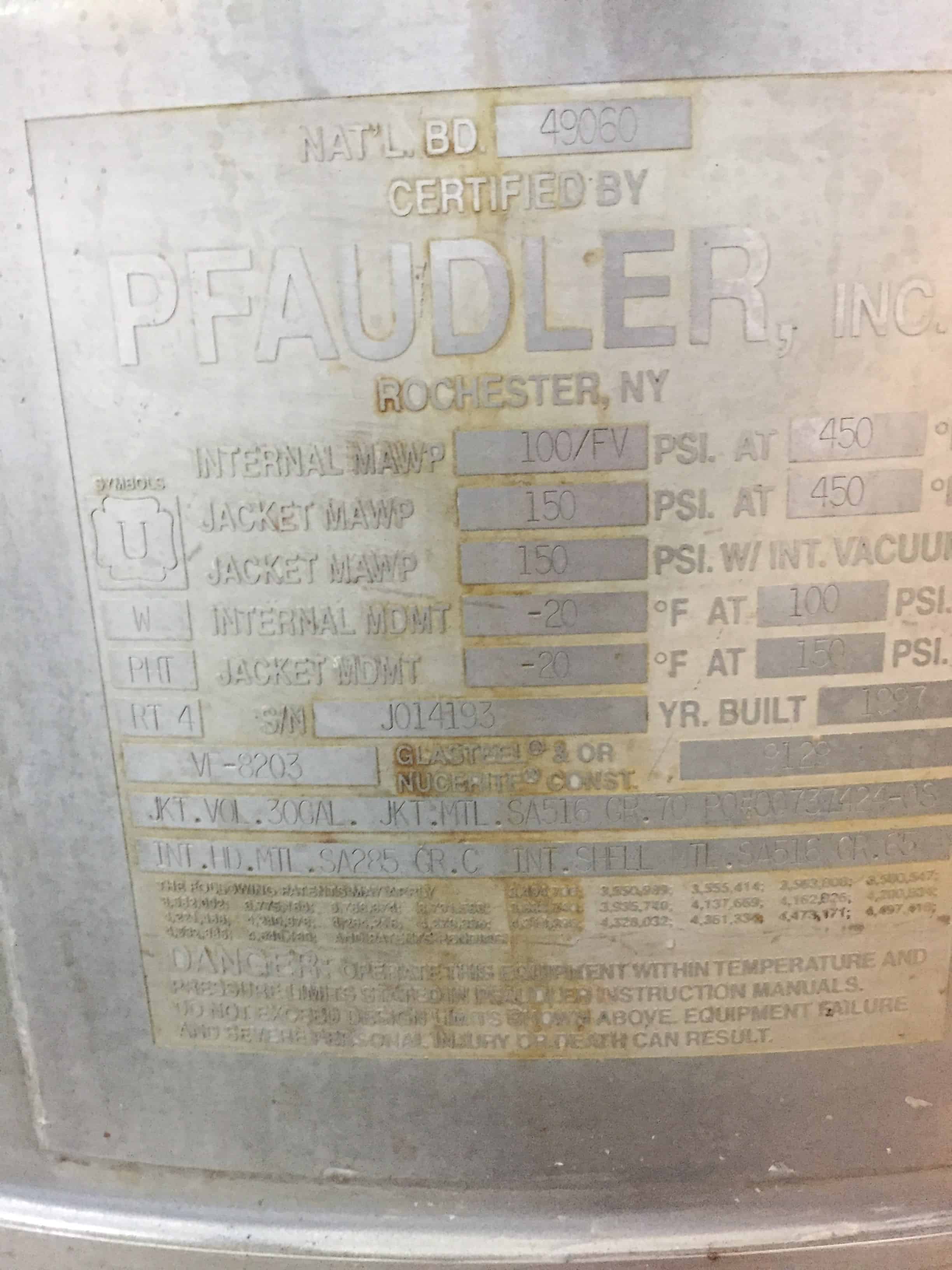

USED 100 GALLON PFAULDER GLASS LINED RECEIVER. DISHED HEADS. 32" ID x 29" STRAIGHT SIDE. INTERNAL RATED 100 PSI/FV @ 450F. JACKET RATED 150 PSI @ 450F. DISH BOTTOM. TOP NOZZLES: 6", 4.375" HANDHOLE, (3) 2". 3" CBO. NATIONAL BOARD #49060. SERIAL #J014193. BUILT 1997. SHIPPING DIMENSIONS: 63.75" OAL x 49" W. WEIGHT: 2190 lbs.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Pfaudler
Model
N/A
Material
Glass Lined
Capacity
100 Gal
Subcategory
