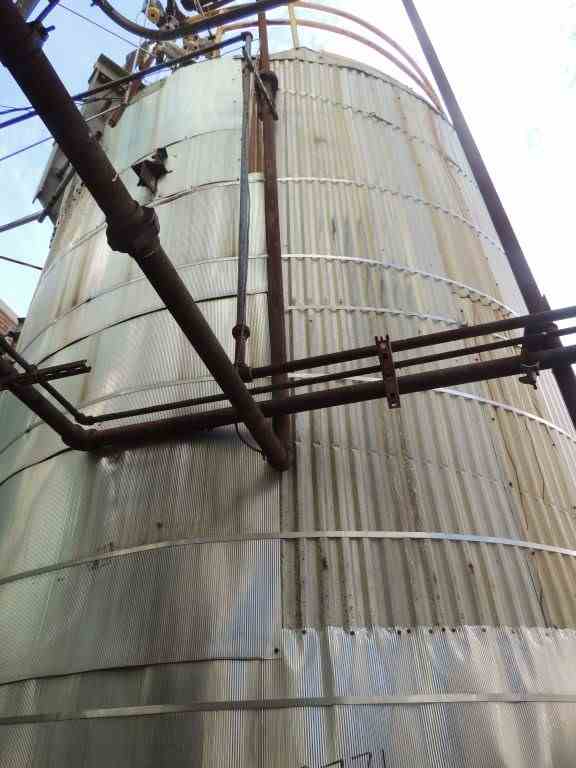

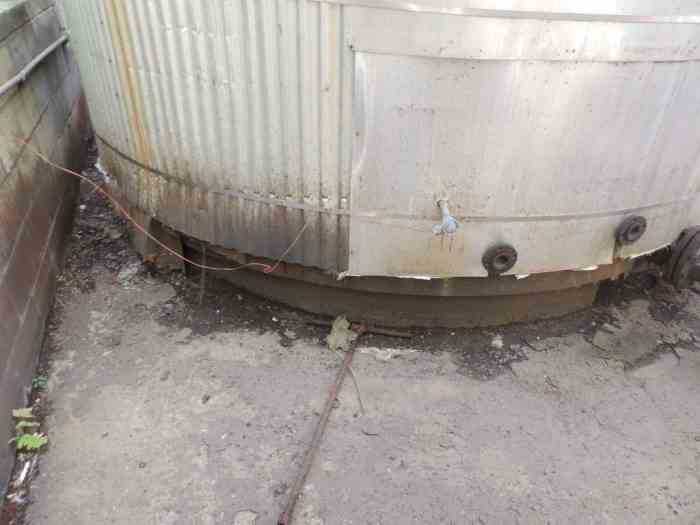

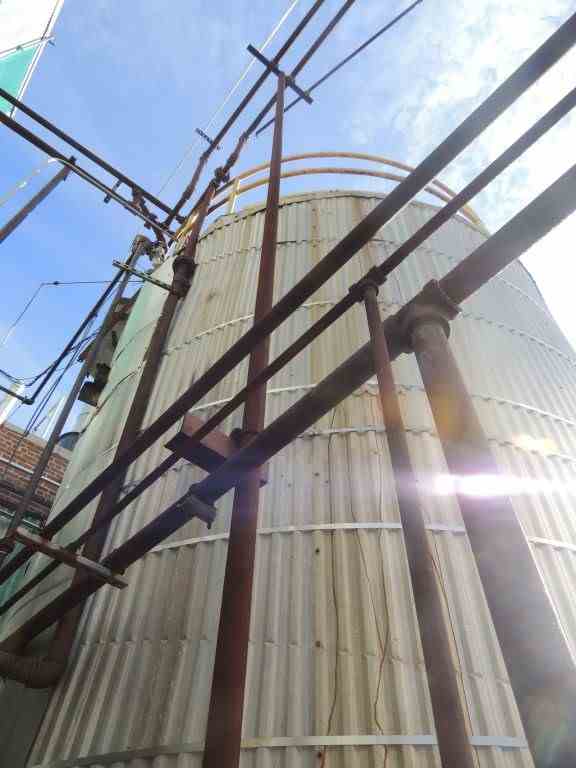

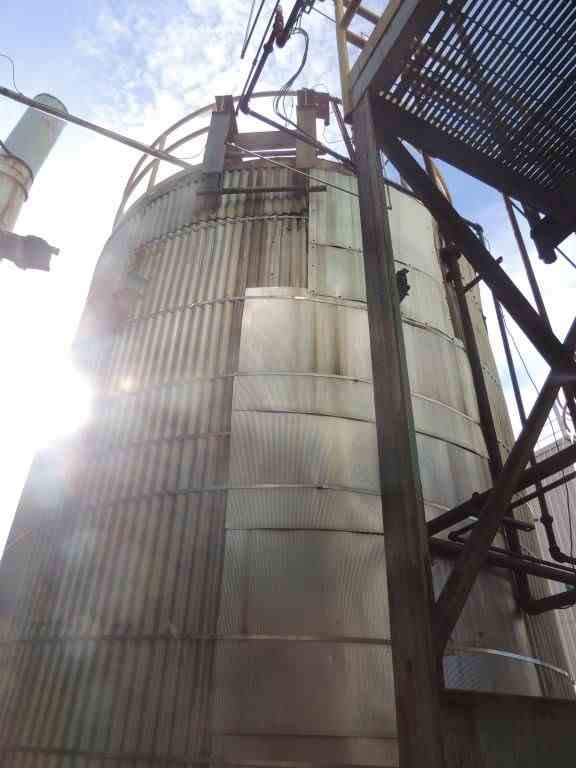

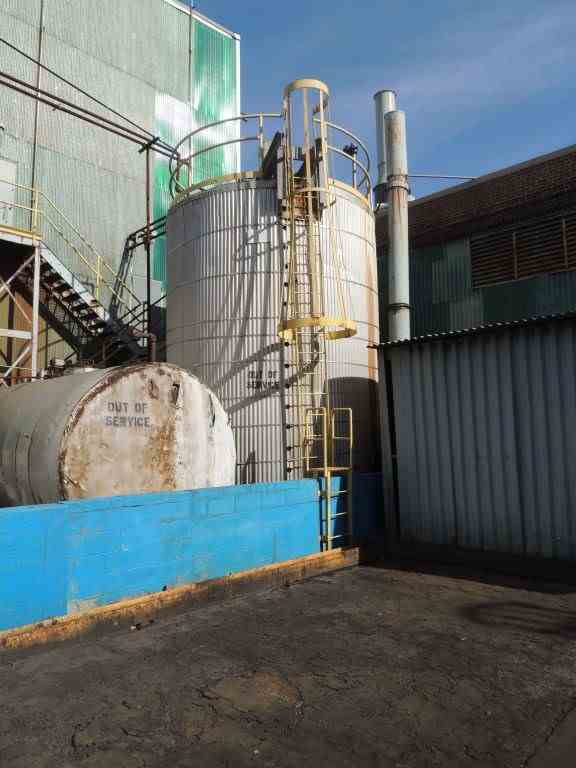

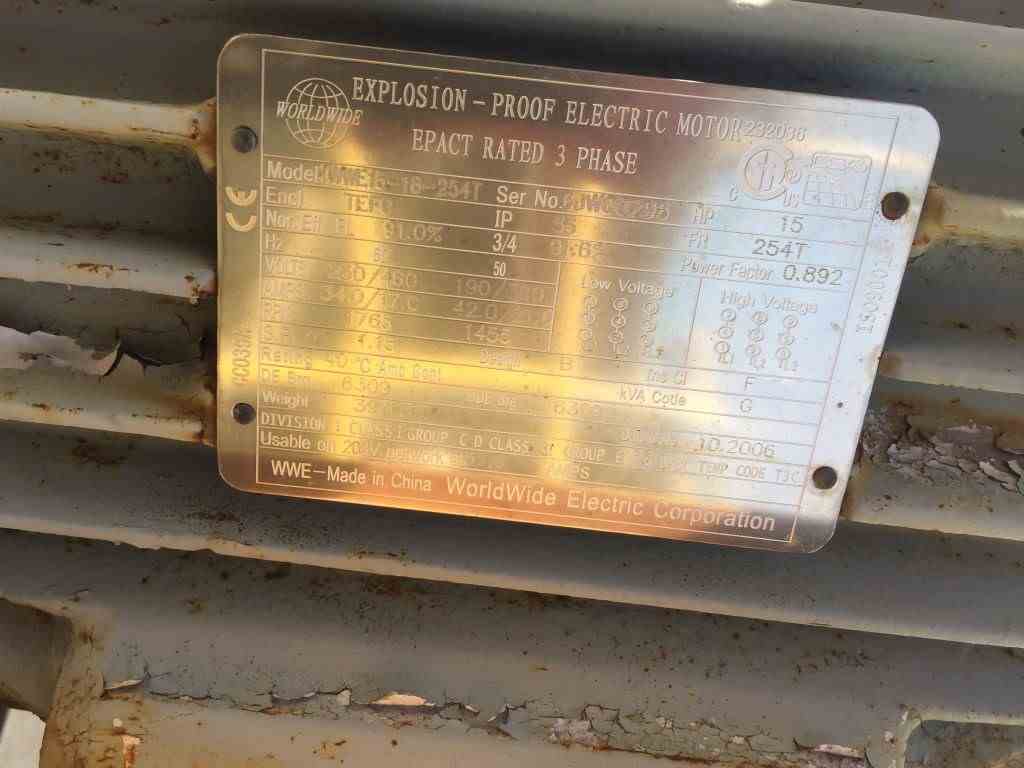

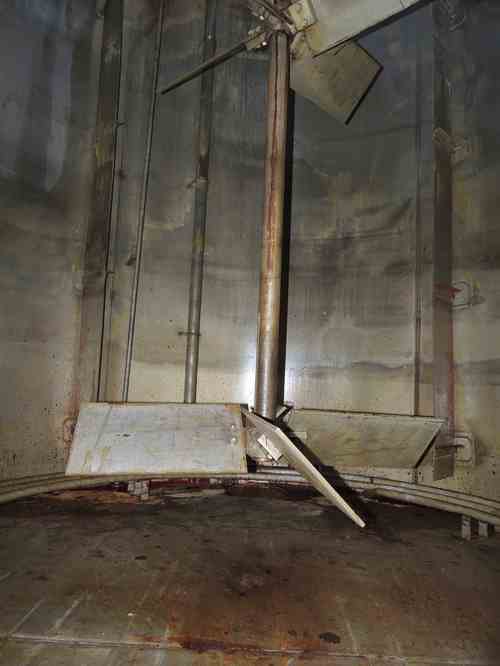

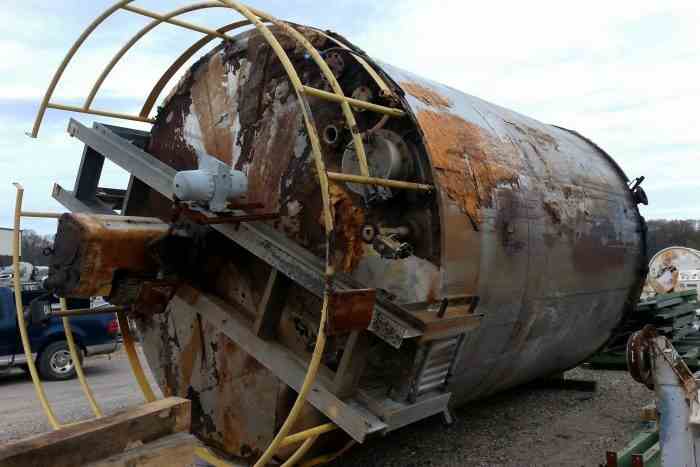

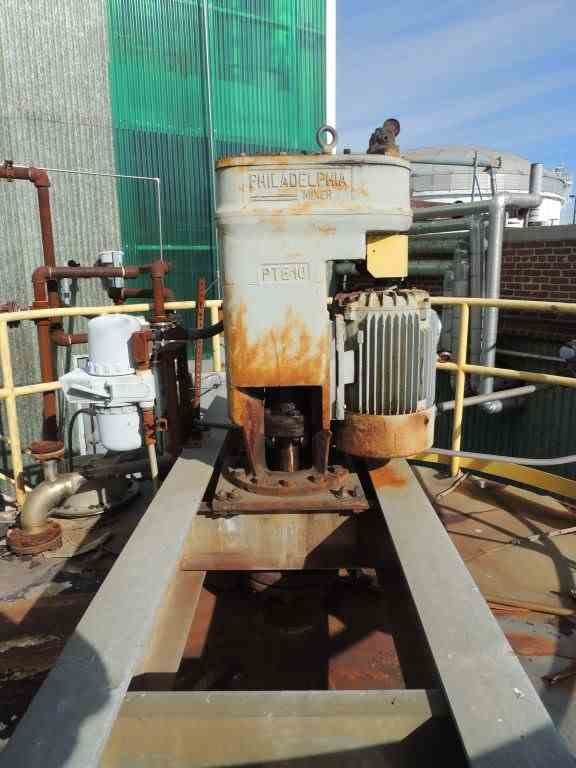

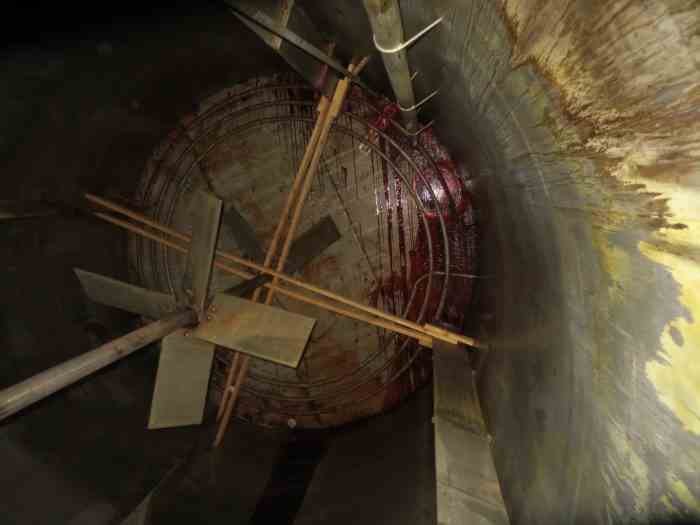

Used 16,000 gallon T316 stainless steel vertical tank, 12’7" diameter x 17’4" straight side, with slight cone top, slope bottom. Has bridge mounted Philadelphia mixer/agitator driven by PTE10 drive, 15 hp motor, 23/460 volt. Agitator has dual 4-blade paddles. There are 3 turns of heating coil in the inside bottom of tank. On the head there is an 8" center opening with agitator, 16" manway, (2) 3" nozzles, (3) 4" nozzles. Tank has 20" side bottom manway, 6" side bottom outlet and (2) 2" nozzles for coils.
