Gundlach 30 HP Heavy Duty Roll Crusher Model 3020D
Other Views - click image for larger view
Gundlach 30 HP Heavy Duty Roll Crusher Model 3020D Gundlach 30 HP Heavy Duty Roll Crusher Model 3020D Gundlach 30 HP Heavy Duty Roll Crusher Model 3020D Gundlach 30 HP Heavy Duty Roll Crusher Model 3020D

gundlach 30 hp heavy duty roll crusher model 3020d

Stock # 12525
Sold
Capacity 30 HP

Overview

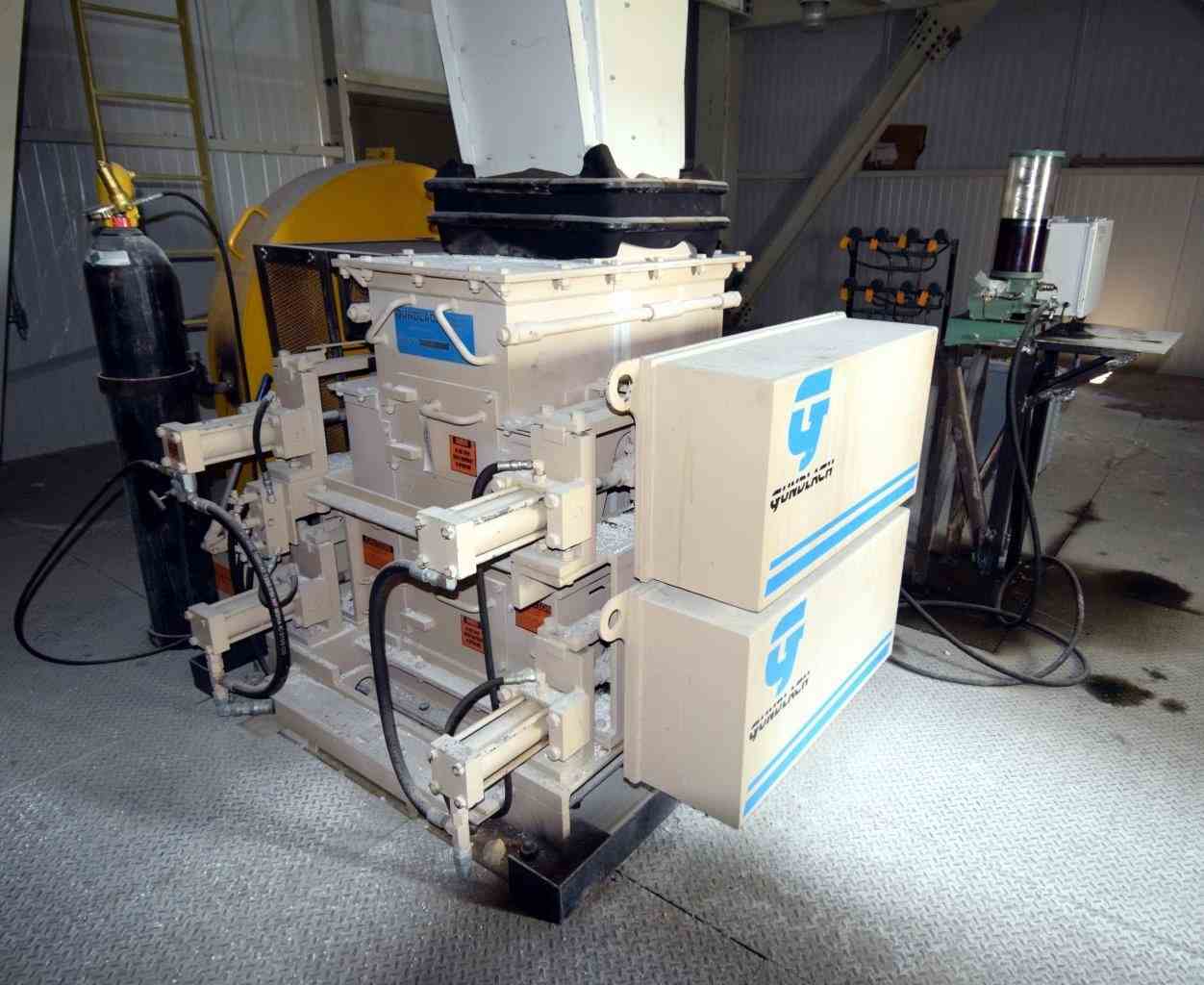

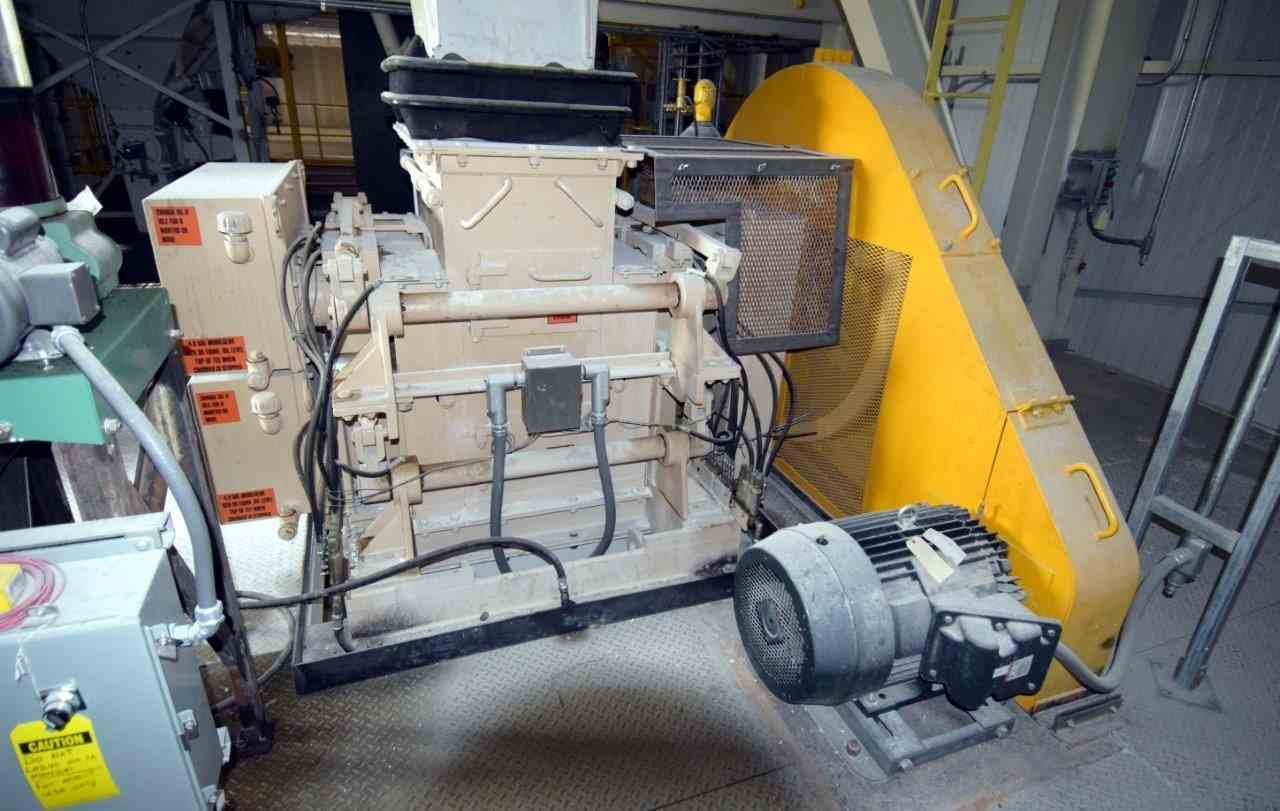

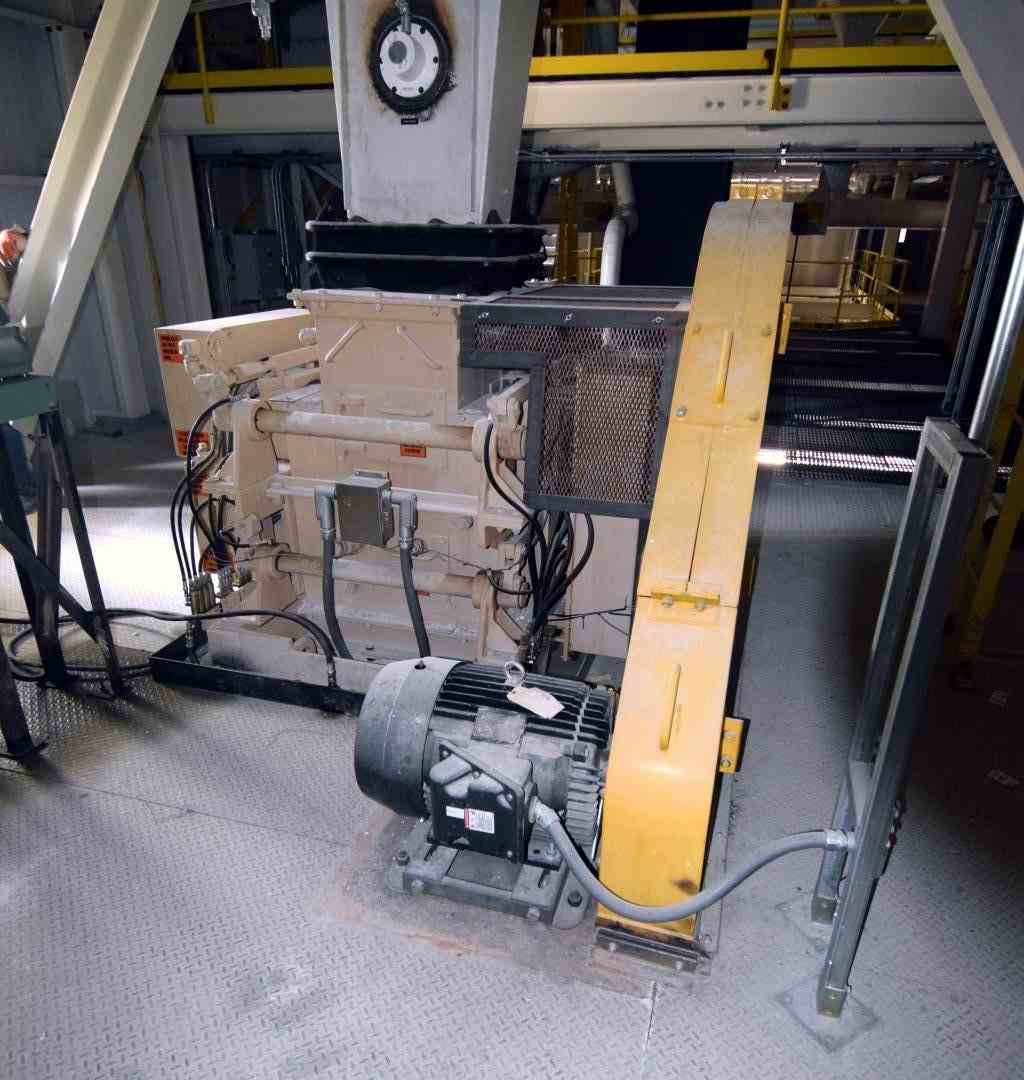

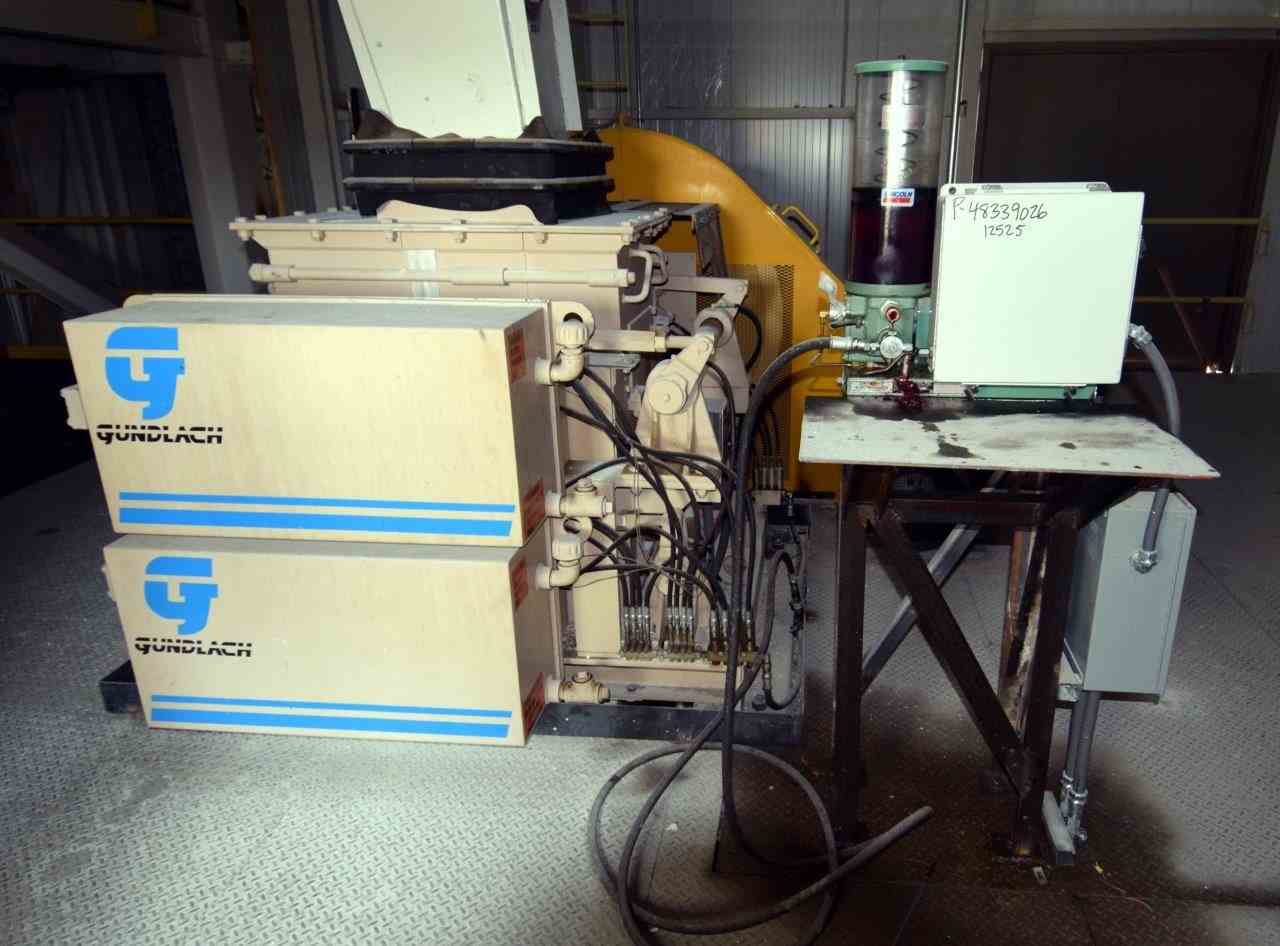

Used Gundlach Heavy Duty Roll Crusher, Model 3020D, Carbon Steel. (2) Hardfaced coupling mounted upper rolls 15" diameter x 18-7/8" wide configured with timing hook chisel tooth rolls, (40) chisel teeth per roll at 225rpm, (2) Hardfaced coupling mounted lower rolls 16" diameter x 18-7/8" wide configured with timing pocket continuous tooth rolls at 300rpm. Oil/air adjustment. Inlet dimensions approximate 19-3/8" x 20". Designed for processing Trona ore through 3/4" square hole screen from 3"x1" and 4"x5" feed. Rolls mounted on coupling mounting rolls. Driven by a 30hp, 3/60/230/460 volt, 1180 rpm TEFC motor. With NEMA-4X central automation lubrication system and controller. Serial #3020D-2678, built 2012.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Gundlach
Model
3020D
Material
Carbon Steel
Capacity
30 HP
Category
