48 " Dia Universal Engineering Apron Feeder
Other Views - click image for larger view
48 " Dia Universal Engineering Apron Feeder 48 " Dia Universal Engineering Apron Feeder 48 " Dia Universal Engineering Apron Feeder 48 " Dia Universal Engineering Apron Feeder

48 " dia universal engineering apron feeder

Stock # 12500
Sold
Capacity 48 " Wide

Overview

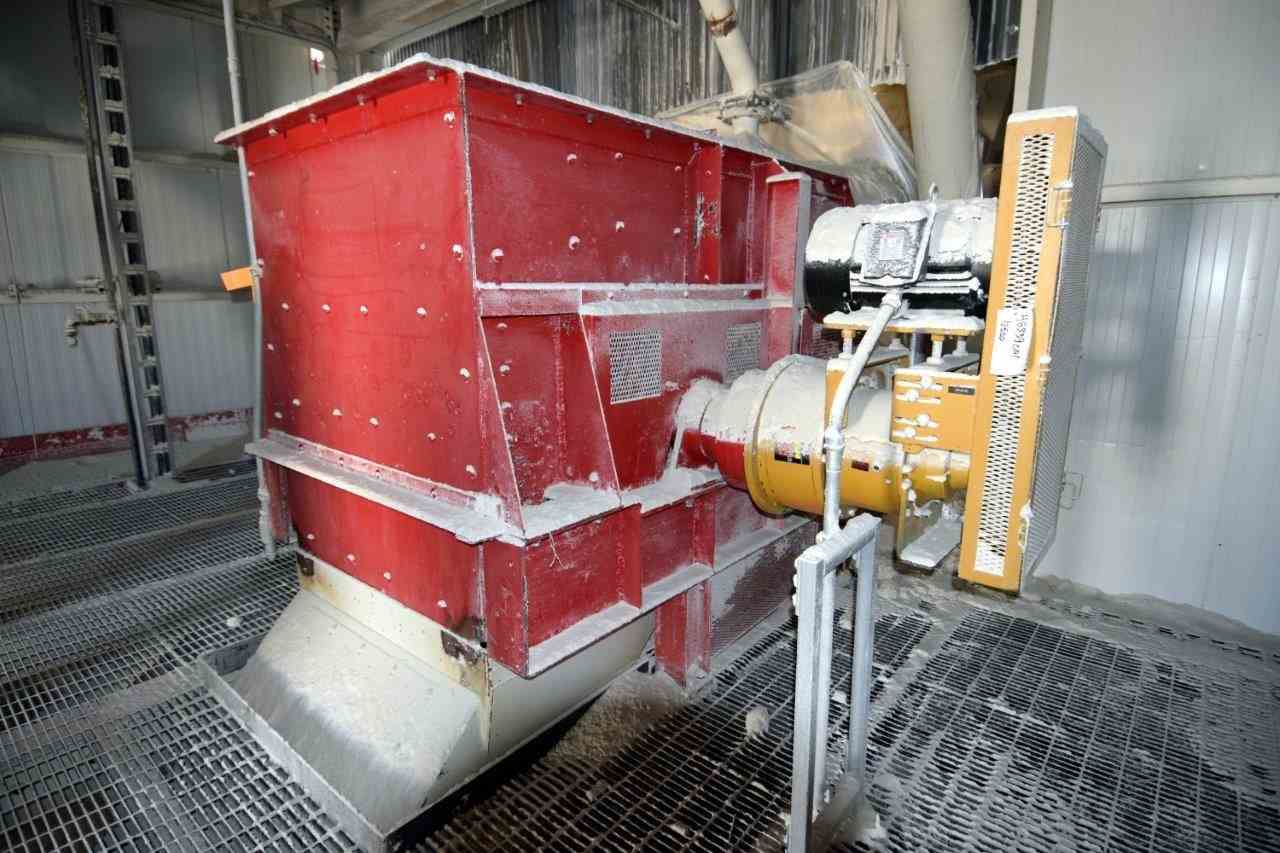

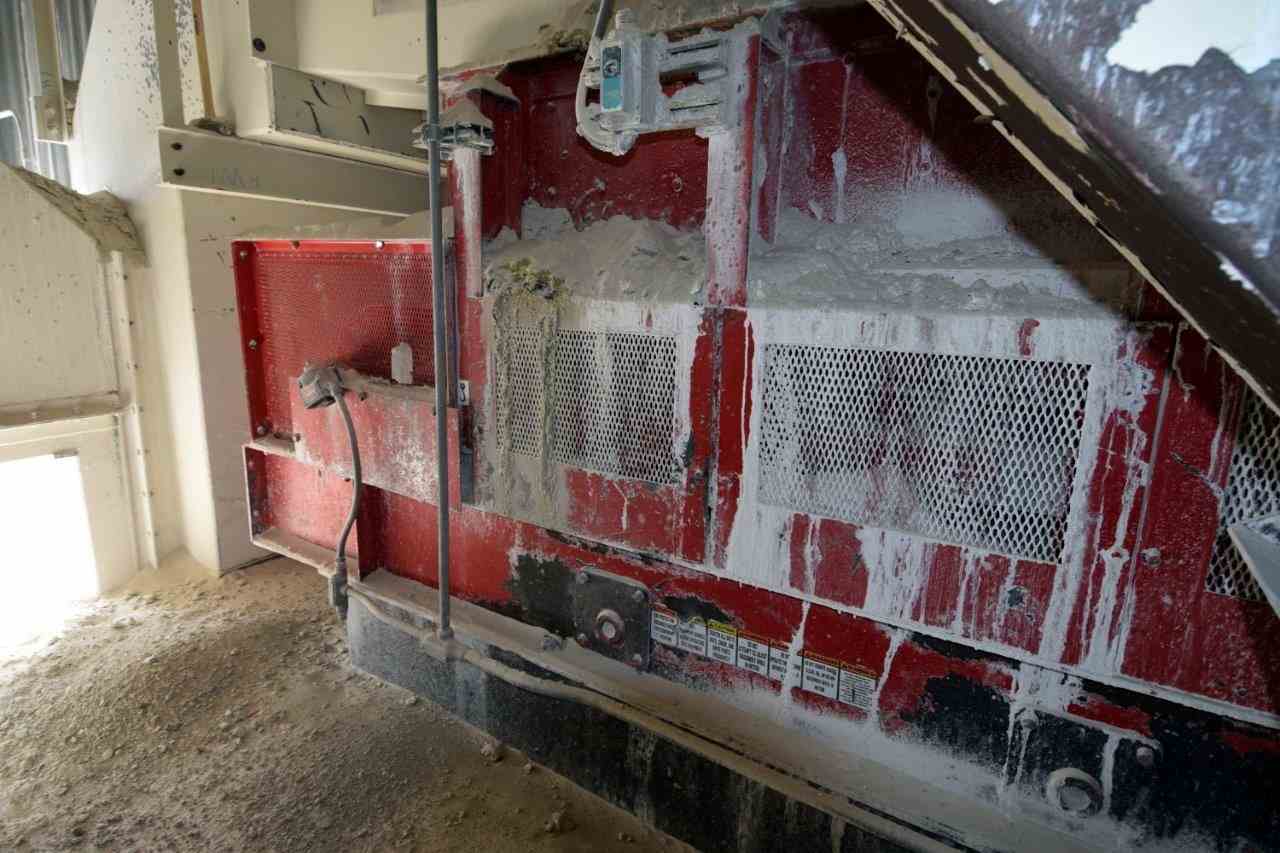

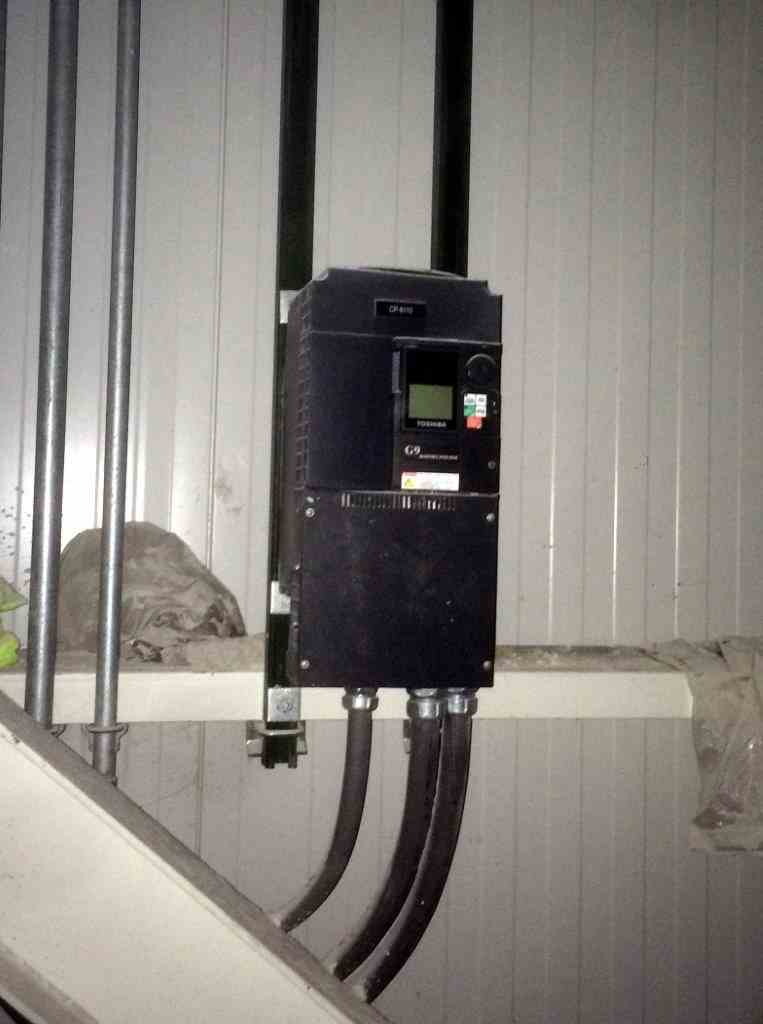

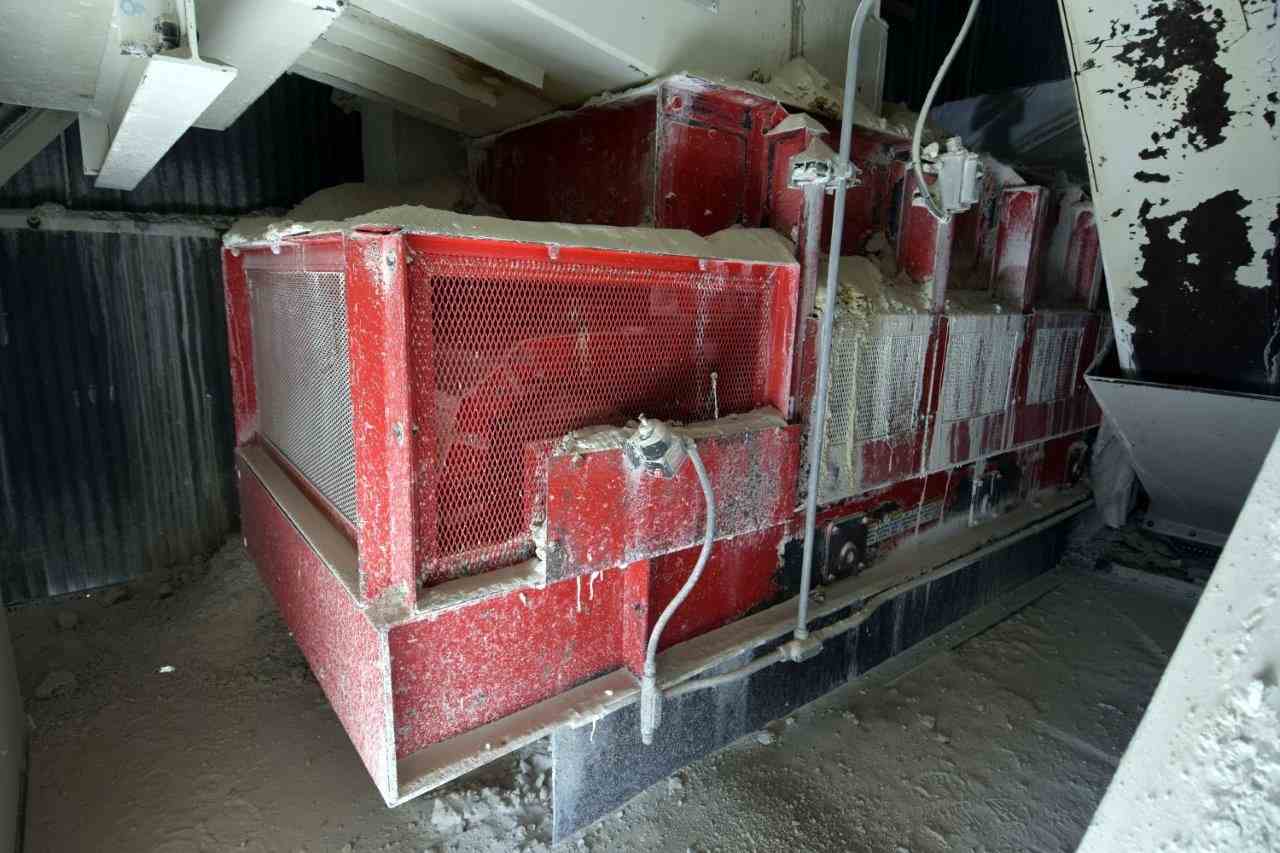

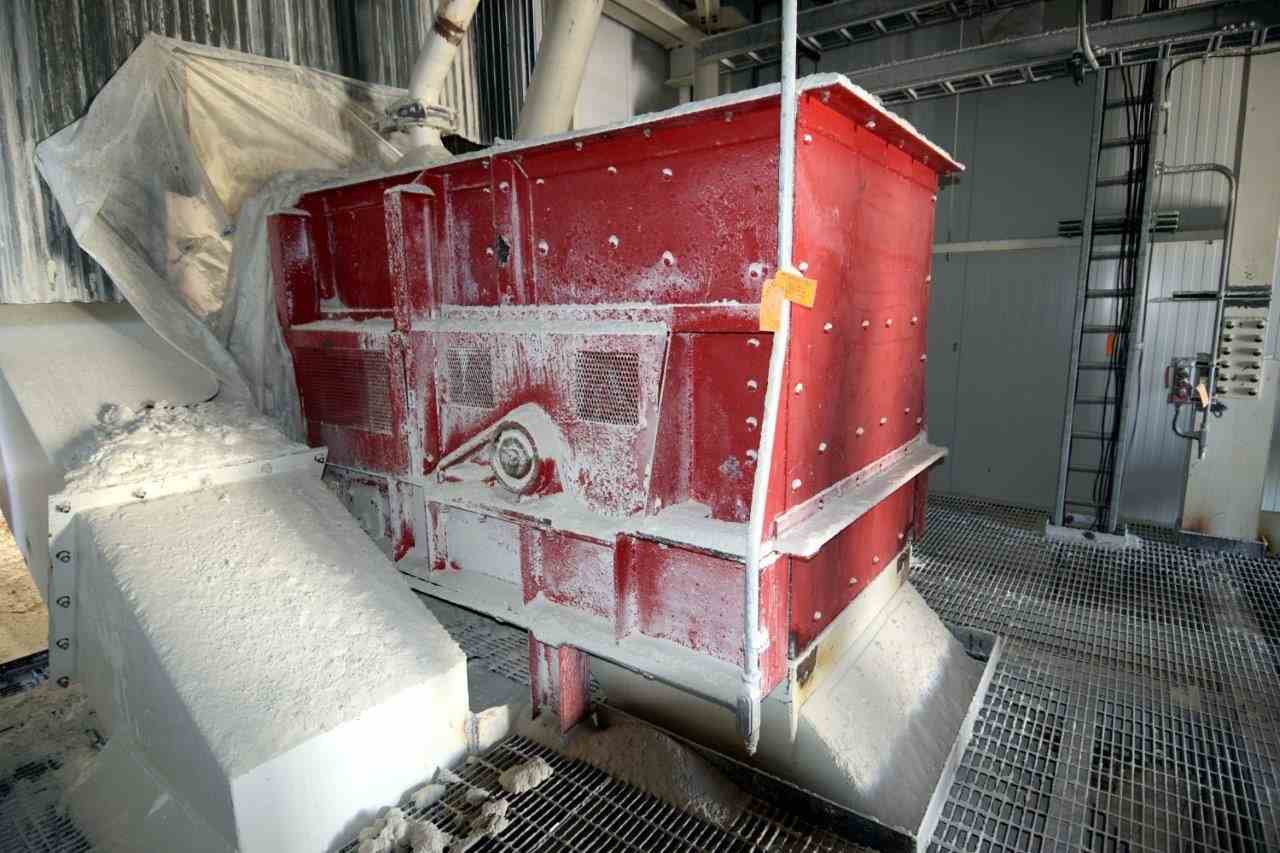

Used Universal Engineering Apron Feeder, Model FL4-48F-17-17.5-6.5. Approximate 48" wide x 17'6" long. Approximate capacity 700 short ton per hour, material density 80 to 85 pounds per cubic foot, lump size 6" maximum, bed depth 22.5", skirting inside width 45", minimum speed 5.35 feet per minute, maximum speed 53.5 feet per minute. Driven by a 20hp WEG motor with a VFD controller, Rexnord planetary drive, model 40R10NSMP4, 180.030 to 1 shaft mounted with shrink disc with 5.437" bore. Lubricated Crawler tractor type carrying and return roller assemblies with removable segmental (21) tooth cast manganese alloy. (1) Impact Rail under deck. Mounted on heavy duty structural steel frame and (8) support legs. Built 2012.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Universal Engineering
Model
FL4-48F-17-17.5-6.5
Material
Unknown
Capacity
48 " Wide
