115 Cu Ft JH Day 304 Stainless Steel Nauta Mixer
Other Views - click image for larger view
115 Cu Ft JH Day 304 Stainless Steel Nauta Mixer 115 Cu Ft JH Day 304 Stainless Steel Nauta Mixer 115 Cu Ft JH Day 304 Stainless Steel Nauta Mixer 115 Cu Ft JH Day 304 Stainless Steel Nauta Mixer 115 Cu Ft JH Day 304 Stainless Steel Nauta Mixer 115 Cu Ft JH Day 304 Stainless Steel Nauta Mixer 115 Cu Ft JH Day 304 Stainless Steel Nauta Mixer

115 cu ft jh day 304 stainless steel nauta mixer

Stock # 11988
Capacity 115 Cu Ft

Overview

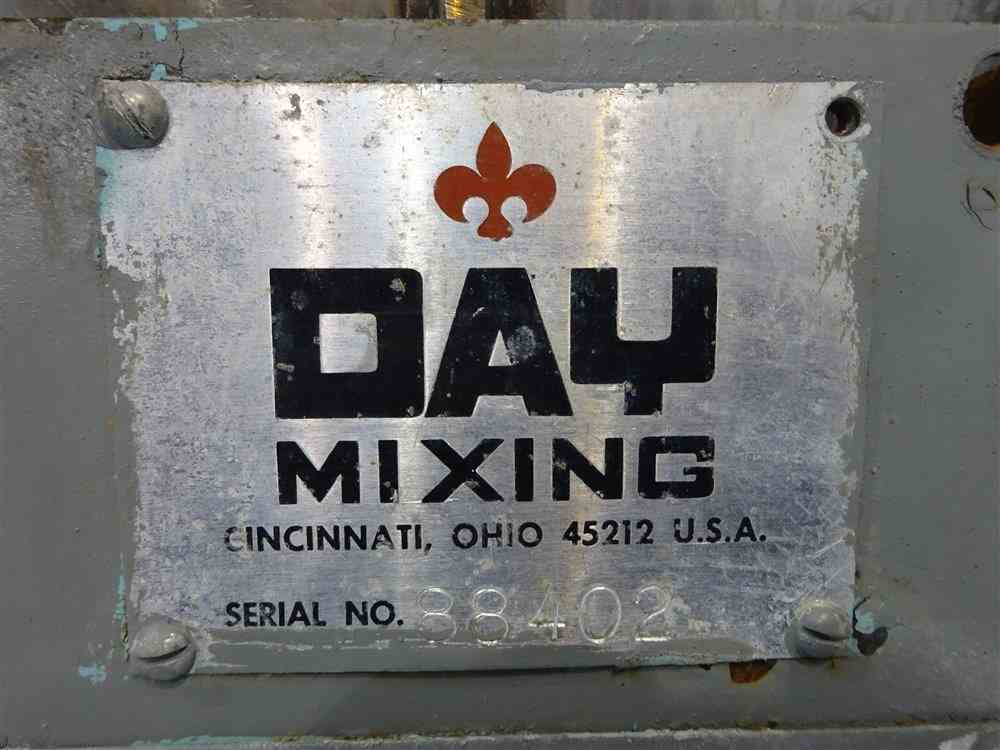

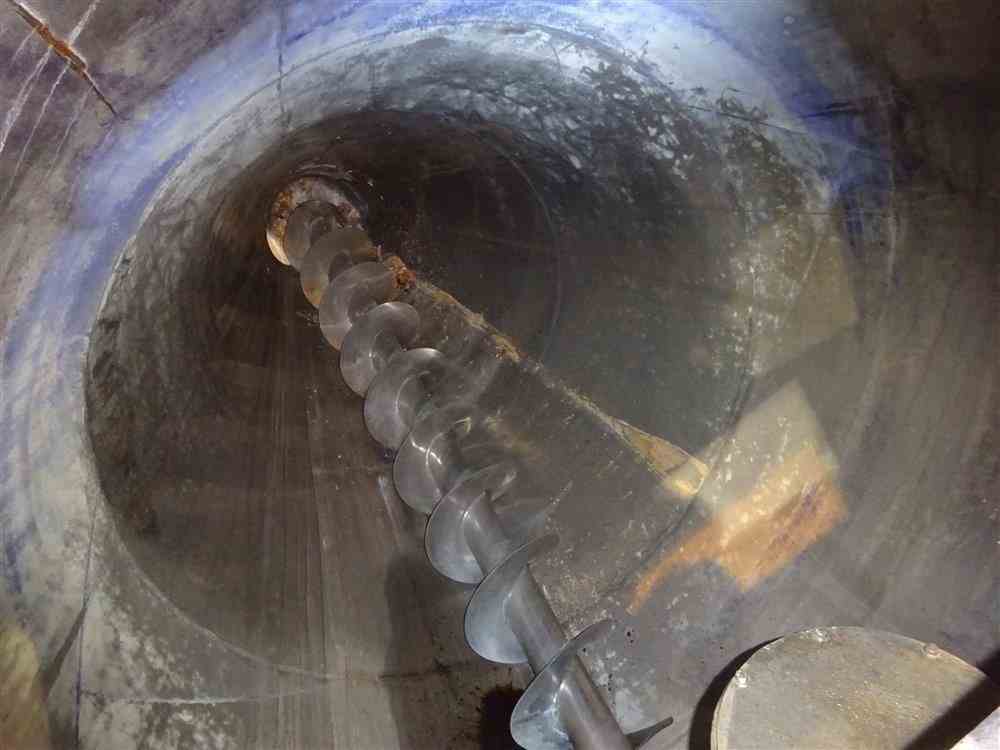

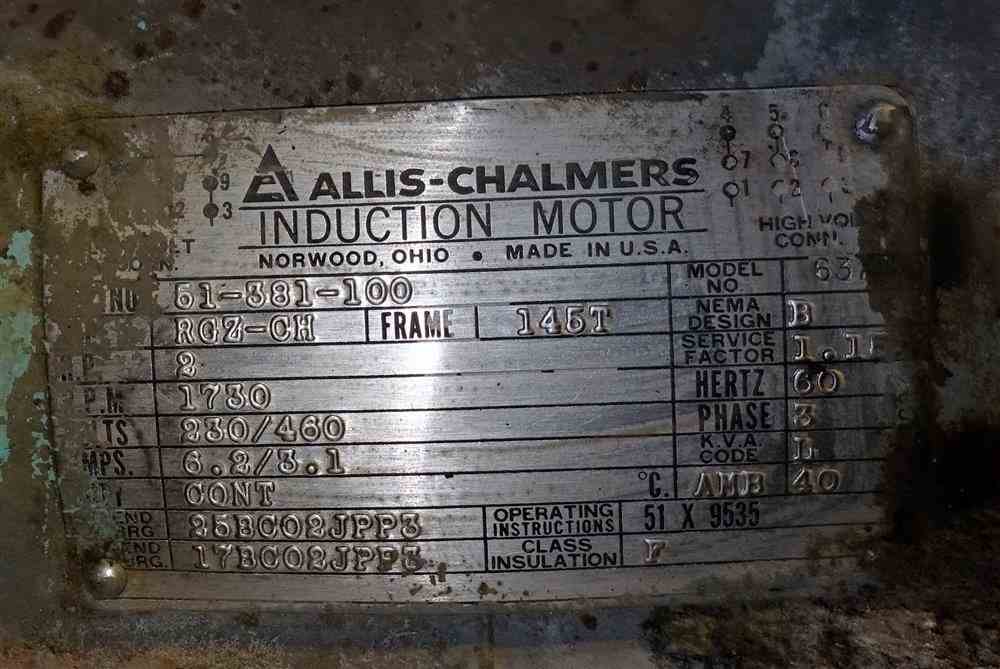

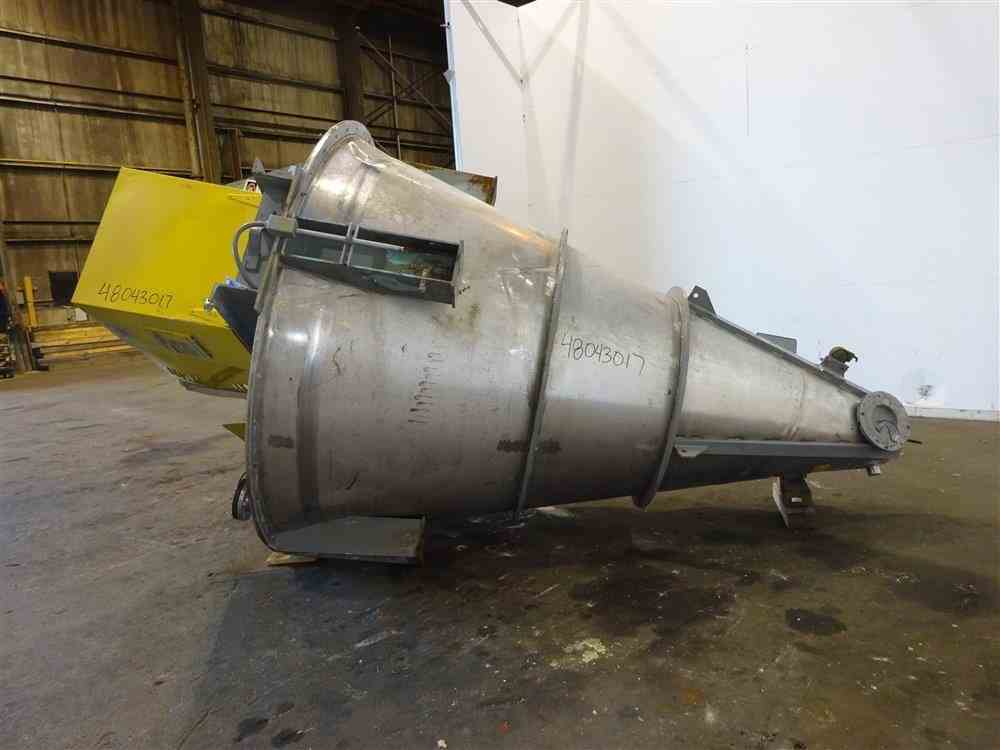

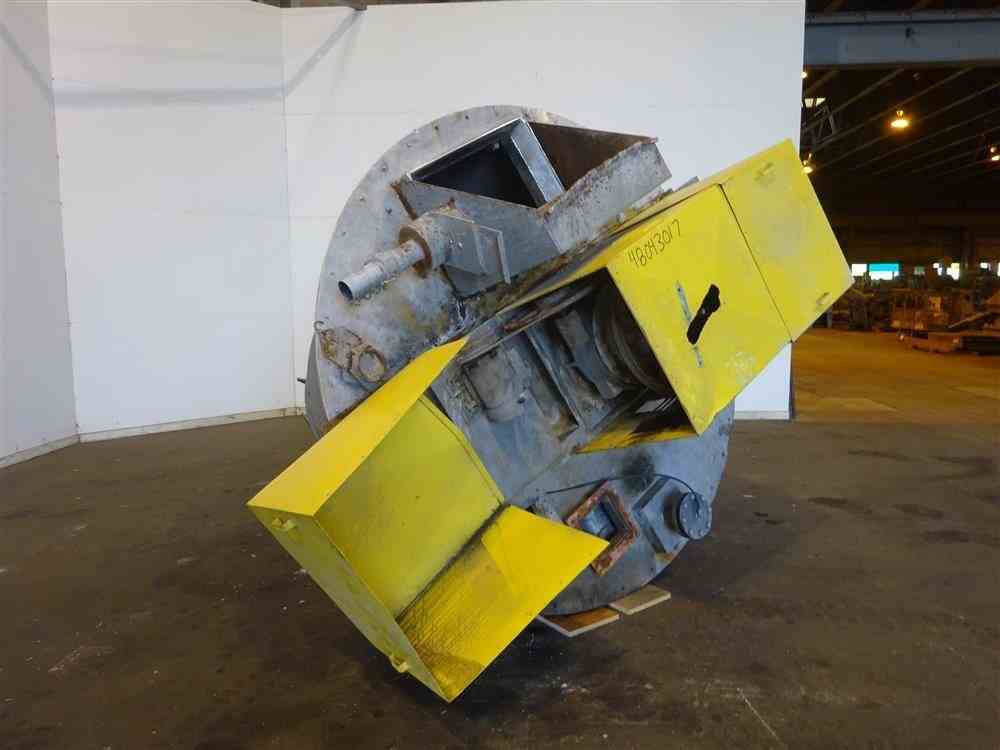

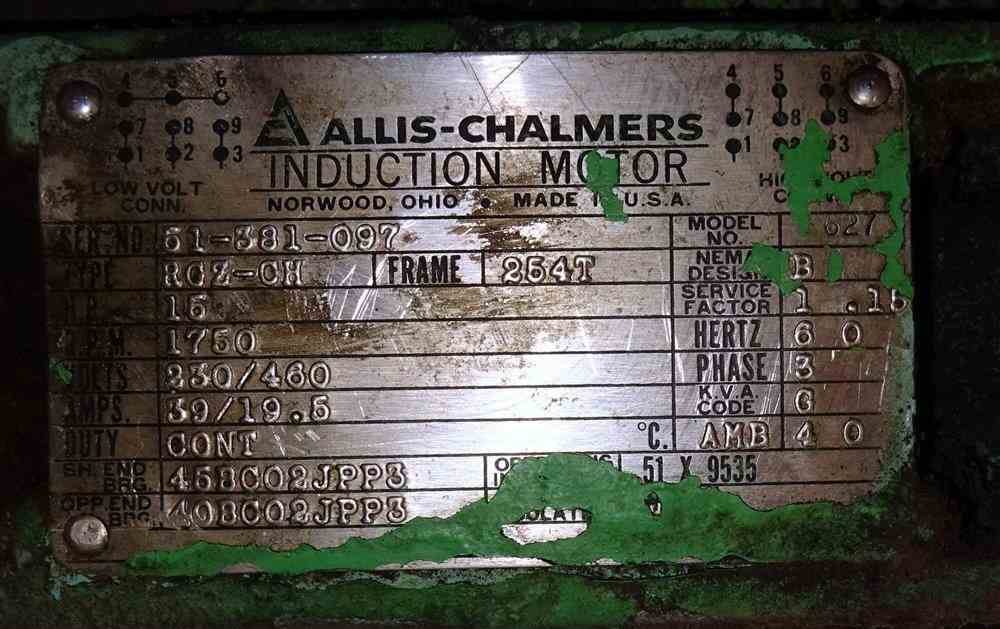

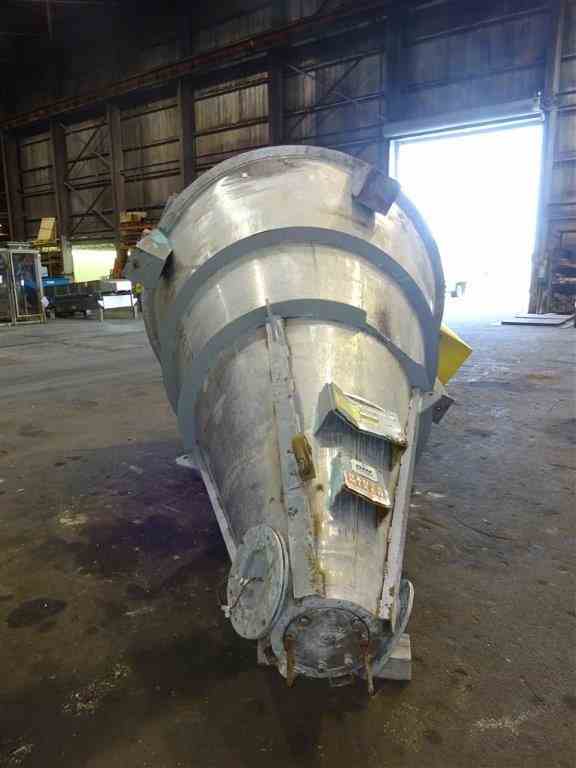

Used J.H. Day Mark II Nauta Mixer, Approximate 115 Cubic Feet Working Capacity, 304 Stainless Steel. Approximate 72" diameter x 130" non-jacketed cone height. Bolt on top cover with openings. Approximate 14" diameter screw with pintle bearing support, driven by a 15hp, 3/60/230/460 volt, 1750 rpm motor thru a gearbox, arm driven by a 2hp, 3/60/230/460 volt, 1730 rpm motor. 8" Side bottom outlet. Mounted on (4) carbon steel side lugs. Serial# 88402.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
JH Day
Model
Mark II
Material
304 Stainless Steel
Capacity
115 Cu Ft
Category
